LIGAND-BINDING PORTION OF FIBROBLAST GROWTH FACTOR RECEPTOR 2 IN COMPLEX WITH FGF1

entry_id	1djs
deposition_date	1999-12-03
title	LIGAND-BINDING PORTION OF FIBROBLAST GROWTH FACTOR RECEPTOR 2 IN COMPLEX WITH FGF1
keywords	FGFR, FGF, IMMUNOGLOBULIN, IMMUNE SYSTEM, HORMONE-GROWTH FACTOR-RECEPTOR COMPLEX; HORMONE/GROWTH FACTOR/RECEPTOR
method	X-RAY DIFFRACTION

rg_guinier	25.43 Å
rg_electron	25.54 Å
i0	28632600.00
molecular_weight	39429.0 kDa
excluded_volume	48458 ų
envelope_volume	59775 ų
shell_volume	21676 ų
envelope_diameter	105.1 Å
shell_rg	29.79 Å
envelope_rg	26.28 Å
shape_rg	25.54 Å
total_rg	25.98 Å
total_atoms	2747
n_residues	336
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	98.8 Å
rg_real	25.70 Å
rg_real_error	1.08 Å
i0_real	2.8630e+07
i0_real_error	4.9260e+05
rg_reciprocal	25.62 Å
i0_reciprocal	28630000.0000
total_estimate	0.7677
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	23.9 Å
skewness	0.662
kurtosis	0.202
angular_range	— – 0.3100 Å−1
current_alpha	0.0000
highest_alpha	4630000.0000
n_real_points	63
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.503; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.499; Smooth: 0.967

Unit Cell

length_a	129.970 Å
length_b	129.970 Å
length_c	129.060 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

Symmetry

space_group	I 4 2 2
int_tables_number	97
crystal_system	—

Refinement

resolution	2.400 Å
resolution_low	6.000 Å
r_factor	0.2270
r_work	0.2210
r_free	0.3150

Diffraction

temperature

110.0 K

Files (7)

• pr_distribution /app/data/pr_computation/dj/1djs/pr_distribution.json
• pr_output /app/data/pr_computation/dj/1djs/1djs.pr.out

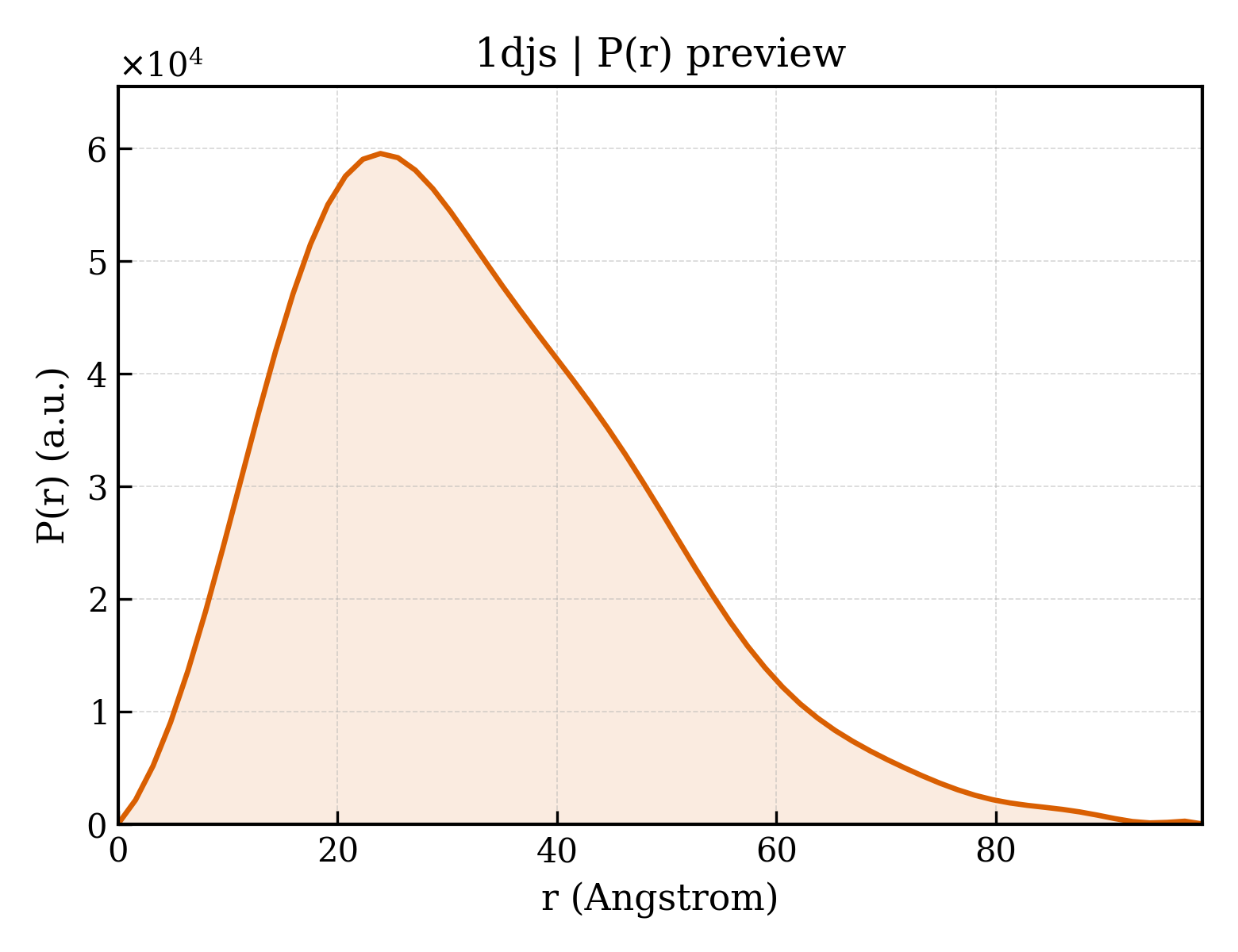

• pr_plot /app/data/visualization/pr_computation/dj/1djs/1djs_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/dj/1djs/1djs.dat
• saxs_fit /app/data/saxs_computation/dj/1djs/1djs.fit
• saxs_log /app/data/saxs_computation/dj/1djs/1djs.log

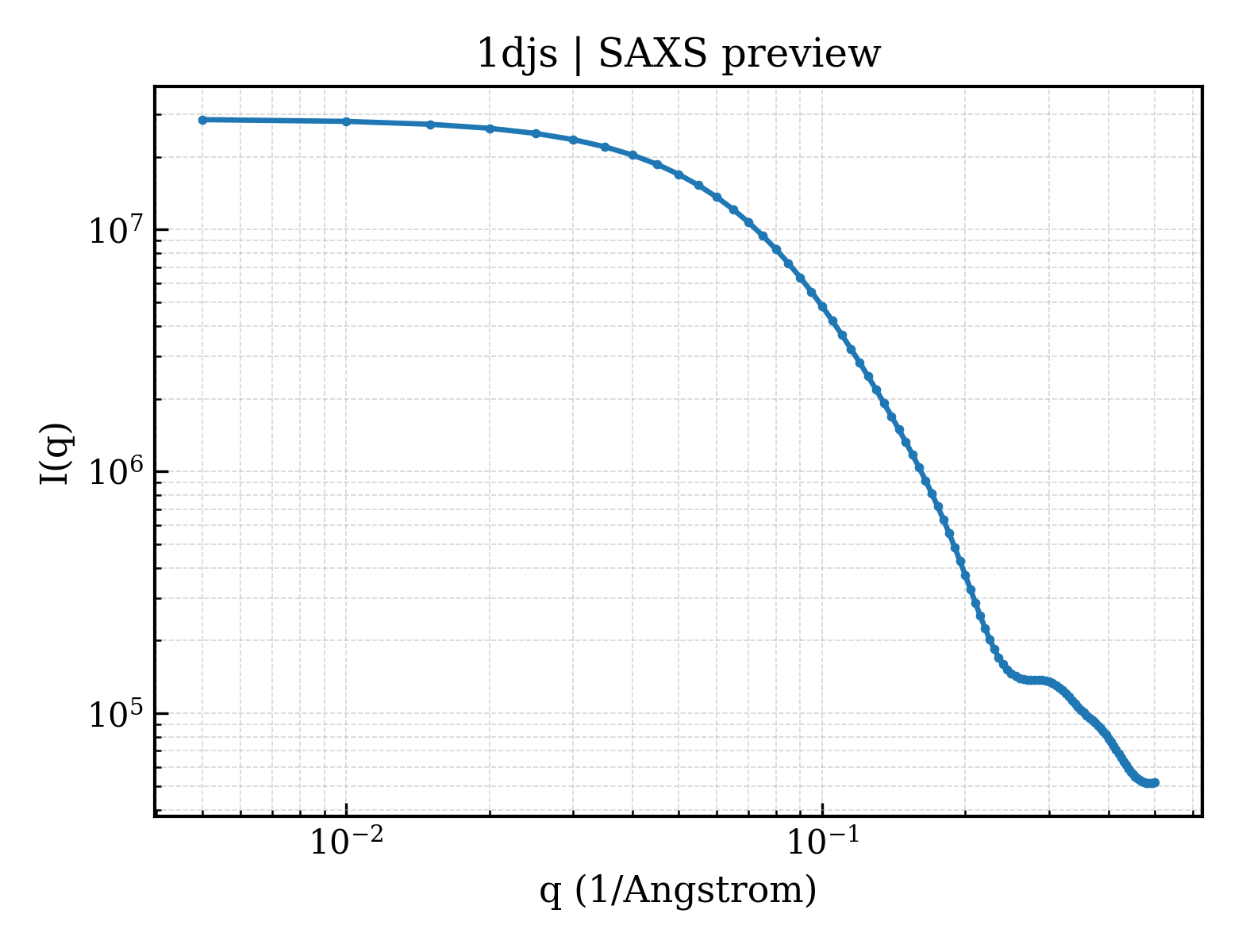

• saxs_plot /app/data/visualization/saxs_computation/dj/1djs/1djs_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/dj/1djs/1djs.fit
pddf	/app/data/pr_computation/dj/1djs/1djs.pr.out
profile	/app/data/saxs_computation/dj/1djs/1djs.dat
