1e0h
Inhibitor Protein Im9 bound to its partner E9 DNase

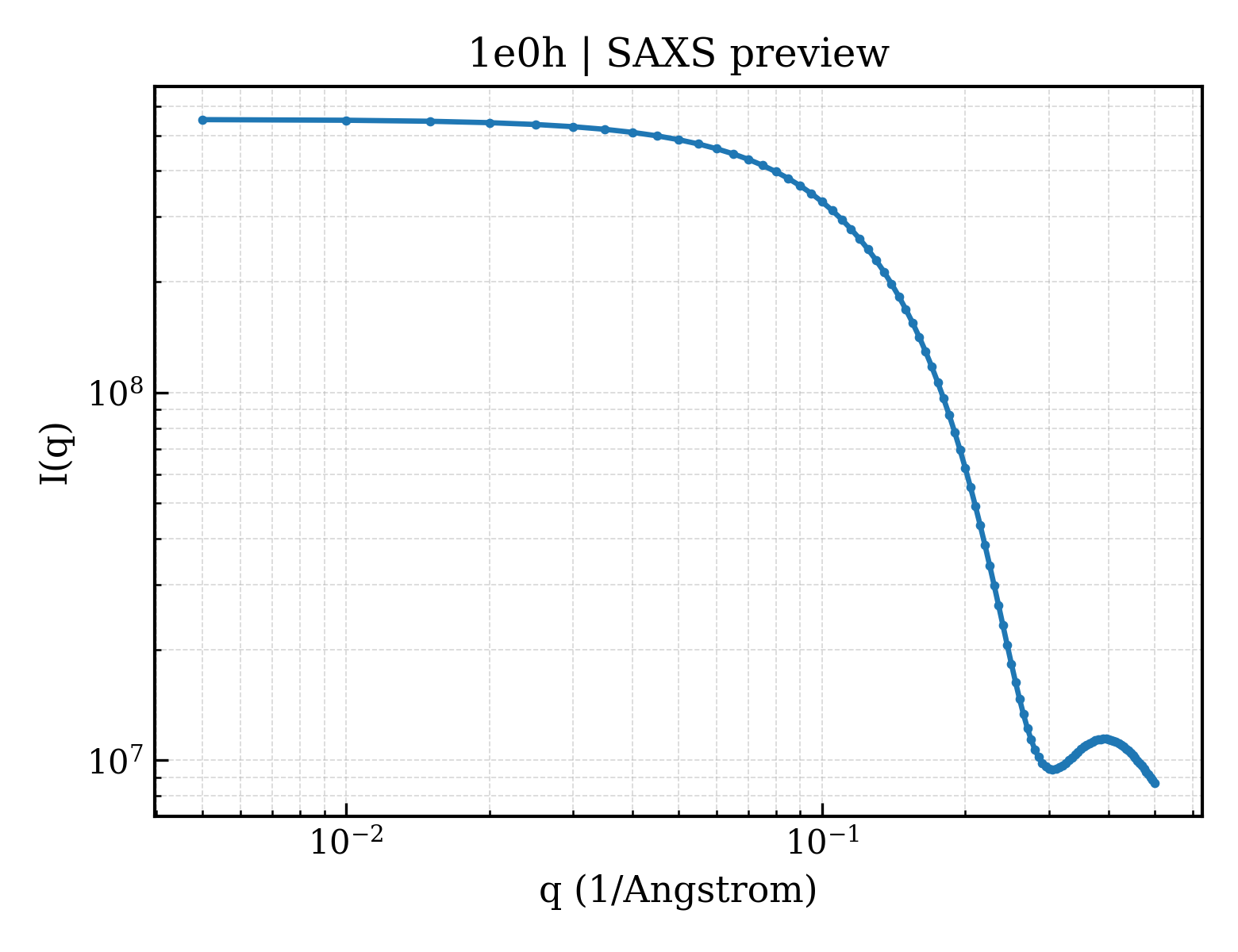

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e0h |
| deposition_date | 2000-03-28 |
| title | Inhibitor Protein Im9 bound to its partner E9 DNase |
| keywords | BACTERIOCIN, COLICIN IMMUNITY PROTEIN, E-TYPE COLICINS, INHIBITOR OF E9 DNASE; BACTERIOCIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.38 Å |
| rg_electron | 11.91 Å |
| i0 | 552219000.00 |
| molecular_weight | 191470.0 kDa |
| excluded_volume | 235860 ų |
| envelope_volume | 17034 ų |
| shell_volume | 11077 ų |
| envelope_diameter | 43.3 Å |
| shell_rg | 18.87 Å |
| envelope_rg | 13.59 Å |
| shape_rg | 11.91 Å |
| total_rg | 12.06 Å |
| total_atoms | 26148 |
| n_residues | 1720 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.4 Å |
| rg_real | 12.30 Å |
| rg_real_error | 0.22 Å |
| i0_real | 5.5220e+08 |
| i0_real_error | 5.3340e+06 |
| rg_reciprocal | 12.31 Å |
| i0_reciprocal | 552200000.0000 |
| total_estimate | 0.8885 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.0 Å |
| skewness | 0.094 |
| kurtosis | -0.323 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 101700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.959 |
