CRYSTAL STRUCTURE OF COLICIN E9 DNASE DOMAIN WITH ITS COGNATE IMMUNITY PROTEIN IM9 (1.7 ANGSTROMS)

entry_id	1emv
deposition_date	2000-03-20
title	CRYSTAL STRUCTURE OF COLICIN E9 DNASE DOMAIN WITH ITS COGNATE IMMUNITY PROTEIN IM9 (1.7 ANGSTROMS)
keywords	protein-protein complex, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

rg_guinier	19.76 Å
rg_electron	18.92 Å
i0	11313800.00
molecular_weight	24070.0 kDa
excluded_volume	29735 ų
envelope_volume	35792 ų
shell_volume	16535 ų
envelope_diameter	67.1 Å
shell_rg	24.40 Å
envelope_rg	19.27 Å
shape_rg	18.87 Å
total_rg	19.88 Å
total_atoms	1695
n_residues	214
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	66.2 Å
rg_real	19.82 Å
rg_real_error	0.46 Å
i0_real	1.1310e+07
i0_real_error	1.1780e+05
rg_reciprocal	19.81 Å
i0_reciprocal	11310000.0000
total_estimate	0.8624
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.4 Å
skewness	0.445
kurtosis	-0.261
angular_range	— – 0.4000 Å−1
current_alpha	0.0000
highest_alpha	2232000.0000
n_real_points	72
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.904

Unit Cell

length_a	43.870 Å
length_b	52.560 Å
length_c	87.770 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

Symmetry

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

Refinement

resolution	1.700 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.2190
r_free	0.2600

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/em/1emv/pr_distribution.json
• pr_output /app/data/pr_computation/em/1emv/1emv.pr.out

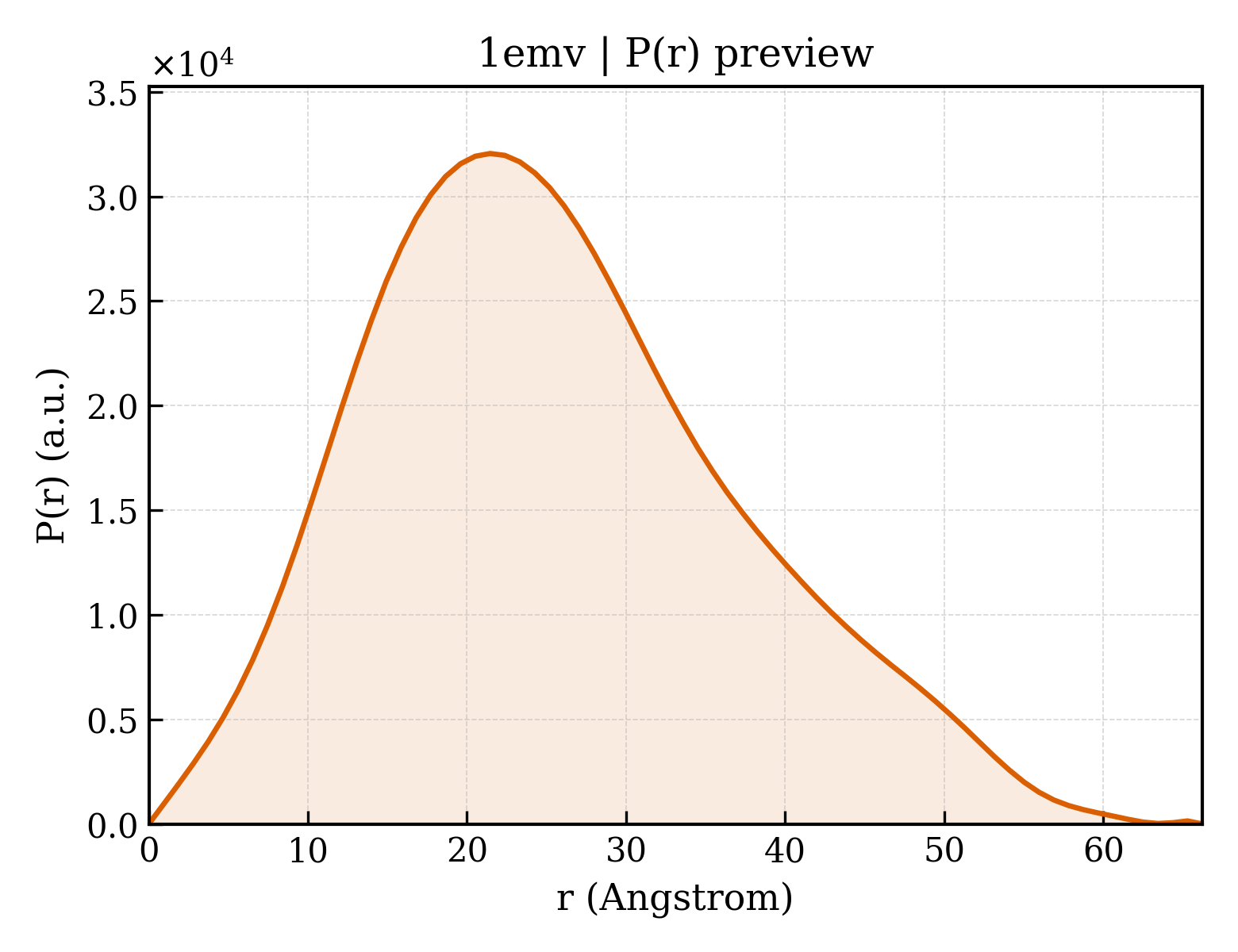

• pr_plot /app/data/visualization/pr_computation/em/1emv/1emv_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/em/1emv/1emv.dat
• saxs_fit /app/data/saxs_computation/em/1emv/1emv.fit
• saxs_log /app/data/saxs_computation/em/1emv/1emv.log

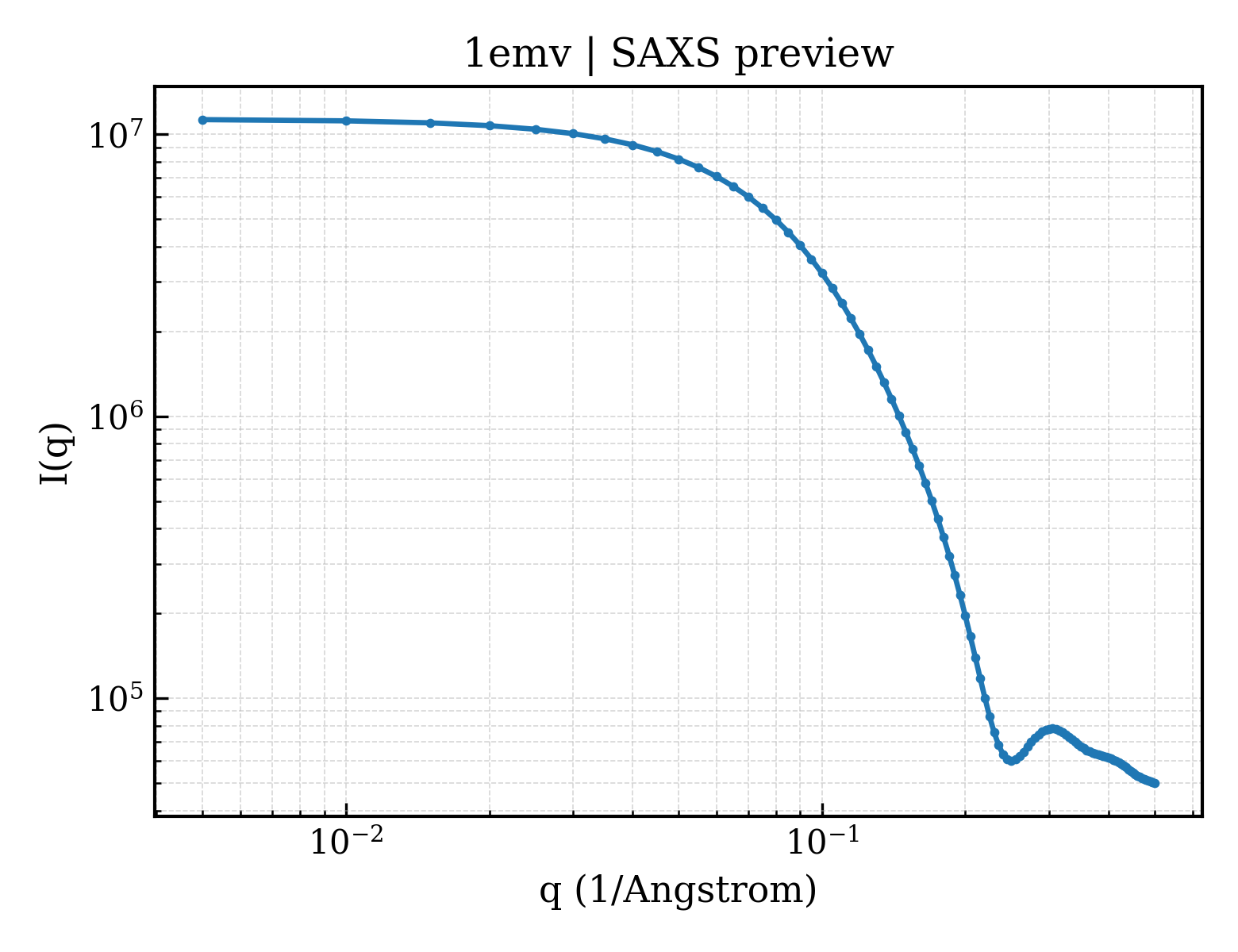

• saxs_plot /app/data/visualization/saxs_computation/em/1emv/1emv_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/em/1emv/1emv.fit
pddf	/app/data/pr_computation/em/1emv/1emv.pr.out
profile	/app/data/saxs_computation/em/1emv/1emv.dat
