SAXSdb — 2gyk

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gyk
沉积日期 deposition_date	2006-05-09
结构标题 title	Crystal structure of the complex of the Colicin E9 DNase domain with a mutant immunity protein, IMME9 (D51A)
关键词 keywords	PROTEIN-PROTEIN COMPLEX, 4-HELIX BUNDLE, DNASE DOMAIN, HNH-MOTIF, antibiotic-antibiotic inhibitor COMPLEX; antibiotic/antibiotic inhibitor
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.19 Å
回转半径 Rg (电子) rg_electron	48.18 Å
零角强度 I(0) i0	37043600.00
分子量 molecular_weight	48135.0 kDa
排除体积 excluded_volume	59409 Å³
包络体积 envelope_volume	91986 Å³
水化壳体积 shell_volume	16380 Å³
包络直径 envelope_diameter	156.1 Å
壳层 Rg shell_rg	51.11 Å
包络 Rg envelope_rg	45.82 Å
形状 Rg shape_rg	48.20 Å
总 Rg total_rg	48.26 Å
总原子数 total_atoms	3385
残基数 n_residues	428
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	154.8 Å
Rg (实空间) rg_real	48.20 Å
Rg 误差 (实空间) rg_real_error	2.50 Å
I(0) (实空间) i0_real	3.7040e+07
I(0) 误差 (实空间) i0_real_error	7.9560e+05
Rg (倒空间) rg_reciprocal	47.20 Å
I(0) (倒空间) i0_reciprocal	37000000.0000
解质量估计 total_estimate	0.5525
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	23.4 Å
偏度 Skewness skewness	0.309
峰度 Kurtosis kurtosis	-1.215
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	920700.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.001; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.003; Smooth: 0.178

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Colicin-E9 immunity protein
分子量 formula_weight	9548.5 kDa
突变 mutation	D51A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E
原子数 atom_count	4109

MELKHSISDYTEAEFLQLVTTICNADTSSEEELVKLVTHFEEMTEHPSGSALIYYPKEGDDDSPSGIVNTVKQWRAANGKSGFKQG

来源 Source

来源生物 organism	Escherichia coli K12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Colicin-E9
分子量 formula_weight	15120.0 kDa
EC 编号 ec_number	3.1.21.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F

MESKRNKPGKATGKGKPVGDKWLDDAGKDSGAPIPDRIADKLRDKEFKSFDDFRKAVWEEVSKDPELSKNLNPSNKSSVSKGYSPFTPKNQQVGGRKVYELHHDKPISQGGEVYDMDNIRVTTPKRHIDIHRGK

来源 Source

来源生物 organism	Escherichia coli K12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	686

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2gyka1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.28 — Acyl carrier protein-like
超家族 Superfamily superfamily	a.28.2 — Colicin E immunity proteins
家族 Family family	a.28.2.1 — Colicin E immunity proteins

结构域编号 domain_id	d2gykb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.4 — His-Me finger endonucleases
超家族 Superfamily superfamily	d.4.1 — His-Me finger endonucleases
家族 Family family	d.4.1.1 — HNH-motif

结构域编号 domain_id	d2gyke_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.28 — Acyl carrier protein-like
超家族 Superfamily superfamily	a.28.2 — Colicin E immunity proteins
家族 Family family	a.28.2.1 — Colicin E immunity proteins

结构域编号 domain_id	d2gykf_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.4 — His-Me finger endonucleases
超家族 Superfamily superfamily	d.4.1 — His-Me finger endonucleases
家族 Family family	d.4.1.1 — HNH-motif

CATH v4.4 (4 domains)

结构域编号 domain_id	2gykA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Colicin E immunity protein

结构域编号 domain_id	2gykB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	540 — Colicin E7 immunity protein; Chain B, fragment: Endonuclease domain
同源超家族 H-superfamily homologous superfamily	10 — Colicin/pyocin, DNase domain

结构域编号 domain_id	2gykE00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Colicin E immunity protein

结构域编号 domain_id	2gykF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	540 — Colicin E7 immunity protein; Chain B, fragment: Endonuclease domain
同源超家族 H-superfamily homologous superfamily	10 — Colicin/pyocin, DNase domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	44.903 Å
晶胞边长 b length_b	88.248 Å
晶胞边长 c length_c	52.235 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.92 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.600 Å
最低分辨率 resolution_low	19.860 Å
R 因子 r_factor	0.1870
R_work r_work	0.1850
R_free r_free	0.2320

fit	/app/data/saxs_computation/gy/2gyk/2gyk.fit
pddf	/app/data/pr_computation/gy/2gyk/2gyk.pr.out
profile	/app/data/saxs_computation/gy/2gyk/2gyk.dat

Crystal structure of the complex of the Colicin E9 DNase domain with a mutant immunity protein, IMME9 (D51A)

SAXS 散射曲线 SAXS Profile

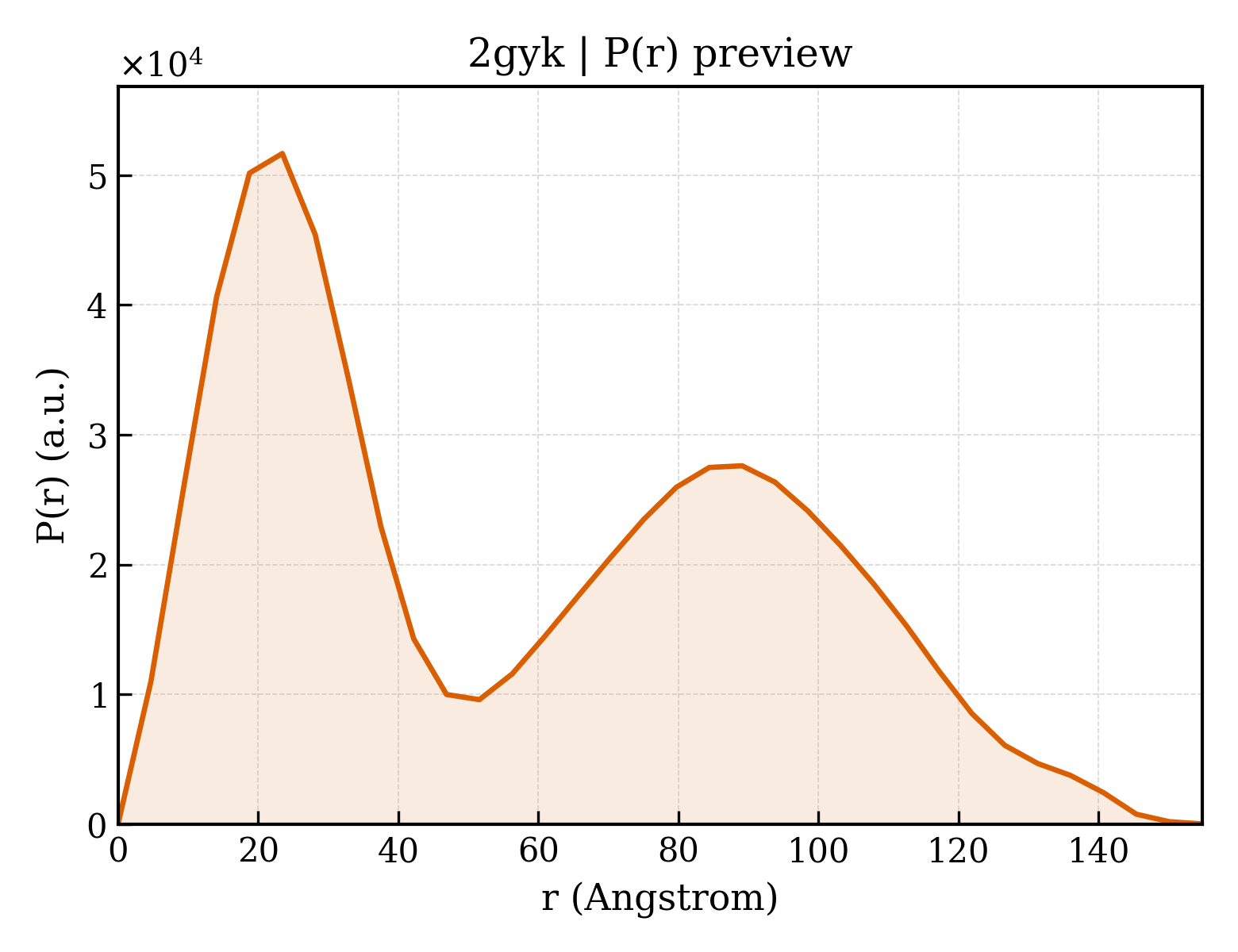

P(r) 距离分布 P(r) Distribution
