1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1v14
沉积日期 deposition_date	2004-04-06
结构标题 title	Crystal Structure of the Colicin E9, mutant His103Ala, in complex with Mg+2 and dsDNA (resolution 2.9A)
关键词 keywords	HOMING ENDONUCLEASES, COLICIN, HNH MOTIF, BETA-BETA-ALPHA METAL MOTIF, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.93 Å
回转半径 Rg (电子) rg_electron	30.57 Å
零角强度 I(0) i0	126904000.00
分子量 molecular_weight	76119.0 kDa
排除体积 excluded_volume	89668 Å³
包络体积 envelope_volume	124570 Å³
水化壳体积 shell_volume	34481 Å³
包络直径 envelope_diameter	99.6 Å
壳层 Rg shell_rg	37.29 Å
包络 Rg envelope_rg	30.18 Å
形状 Rg shape_rg	30.55 Å
总 Rg total_rg	31.15 Å
总原子数 total_atoms	5295
残基数 n_residues	582
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	97.4 Å
Rg (实空间) rg_real	30.87 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	1.2690e+08
I(0) 误差 (实空间) i0_real_error	1.8980e+06
Rg (倒空间) rg_reciprocal	30.90 Å
I(0) (倒空间) i0_reciprocal	126900000.0000
解质量估计 total_estimate	0.9063
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	42.0 Å
偏度 Skewness skewness	0.185
峰度 Kurtosis kurtosis	-0.632
角度范围 angular_range	— – 0.2550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	31540000.0000
实空间数据点数 n_real_points	52
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.937

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	COLICIN E9
分子量 formula_weight	15053.0 kDa
EC 编号 ec_number	3.1.21.1
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	5328

MESKRNKPGKATGKGKPVGDKWLDDAGKDSGAPIPDRIADKLRDKEFKSFDDFRKAVWEEVSKDPELSKNLNPSNKSSVSKGYSPFTPKNQQVGGRKVYELHADKPISQGGEVYDMDNIRVTTPKRHIDIHRGK

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	5'-D(GPCPGPAPTPCPGPCP)-3'
分子量 formula_weight	2427.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,F,G,H,I,J,K,L

GCGATCGC

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	33

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1v14a_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.4 — His-Me finger endonucleases
超家族 Superfamily superfamily	d.4.1 — His-Me finger endonucleases
家族 Family family	d.4.1.1 — HNH-motif

结构域编号 domain_id	d1v14b_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.4 — His-Me finger endonucleases
超家族 Superfamily superfamily	d.4.1 — His-Me finger endonucleases
家族 Family family	d.4.1.1 — HNH-motif

结构域编号 domain_id	d1v14c_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.4 — His-Me finger endonucleases
超家族 Superfamily superfamily	d.4.1 — His-Me finger endonucleases
家族 Family family	d.4.1.1 — HNH-motif

结构域编号 domain_id	d1v14d_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.4 — His-Me finger endonucleases
超家族 Superfamily superfamily	d.4.1 — His-Me finger endonucleases
家族 Family family	d.4.1.1 — HNH-motif

CATH v4.4 (4 domains)

结构域编号 domain_id	1v14A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	540 — Colicin E7 immunity protein; Chain B, fragment: Endonuclease domain
同源超家族 H-superfamily homologous superfamily	10 — Colicin/pyocin, DNase domain

结构域编号 domain_id	1v14B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	540 — Colicin E7 immunity protein; Chain B, fragment: Endonuclease domain
同源超家族 H-superfamily homologous superfamily	10 — Colicin/pyocin, DNase domain

结构域编号 domain_id	1v14C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	540 — Colicin E7 immunity protein; Chain B, fragment: Endonuclease domain
同源超家族 H-superfamily homologous superfamily	10 — Colicin/pyocin, DNase domain

结构域编号 domain_id	1v14D00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	540 — Colicin E7 immunity protein; Chain B, fragment: Endonuclease domain
同源超家族 H-superfamily homologous superfamily	10 — Colicin/pyocin, DNase domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	92.946 Å
晶胞边长 b length_b	124.442 Å
晶胞边长 c length_c	111.227 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	64

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	74.540 Å
R 因子 r_factor	0.2190
R_work r_work	0.2150
R_free r_free	0.3060

fit	/app/data/saxs_computation/v1/1v14/1v14.fit
pddf	/app/data/pr_computation/v1/1v14/1v14.pr.out
profile	/app/data/saxs_computation/v1/1v14/1v14.dat

Crystal Structure of the Colicin E9, mutant His103Ala, in complex with Mg+2 and dsDNA (resolution 2.9A)

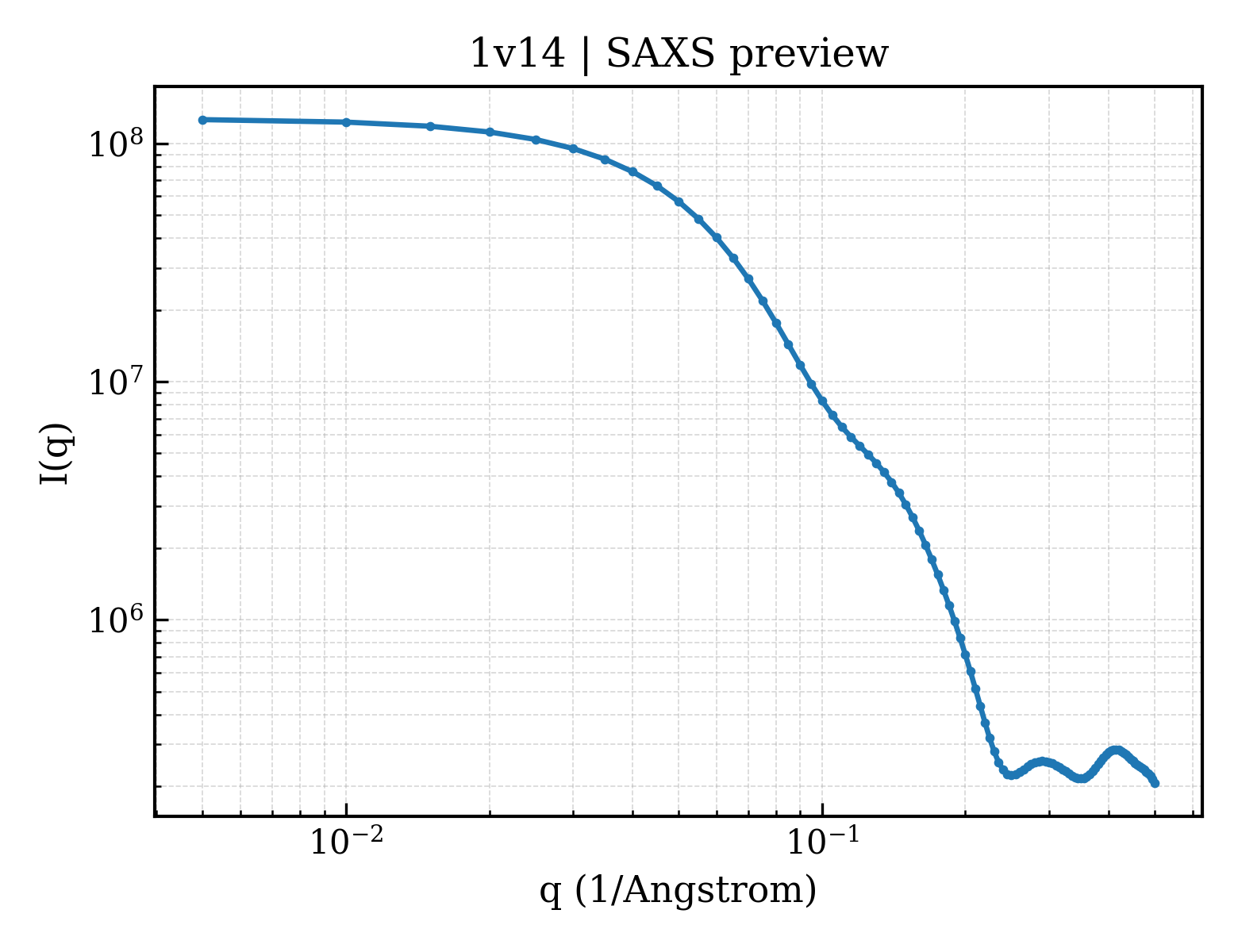

SAXS 散射曲线 SAXS Profile

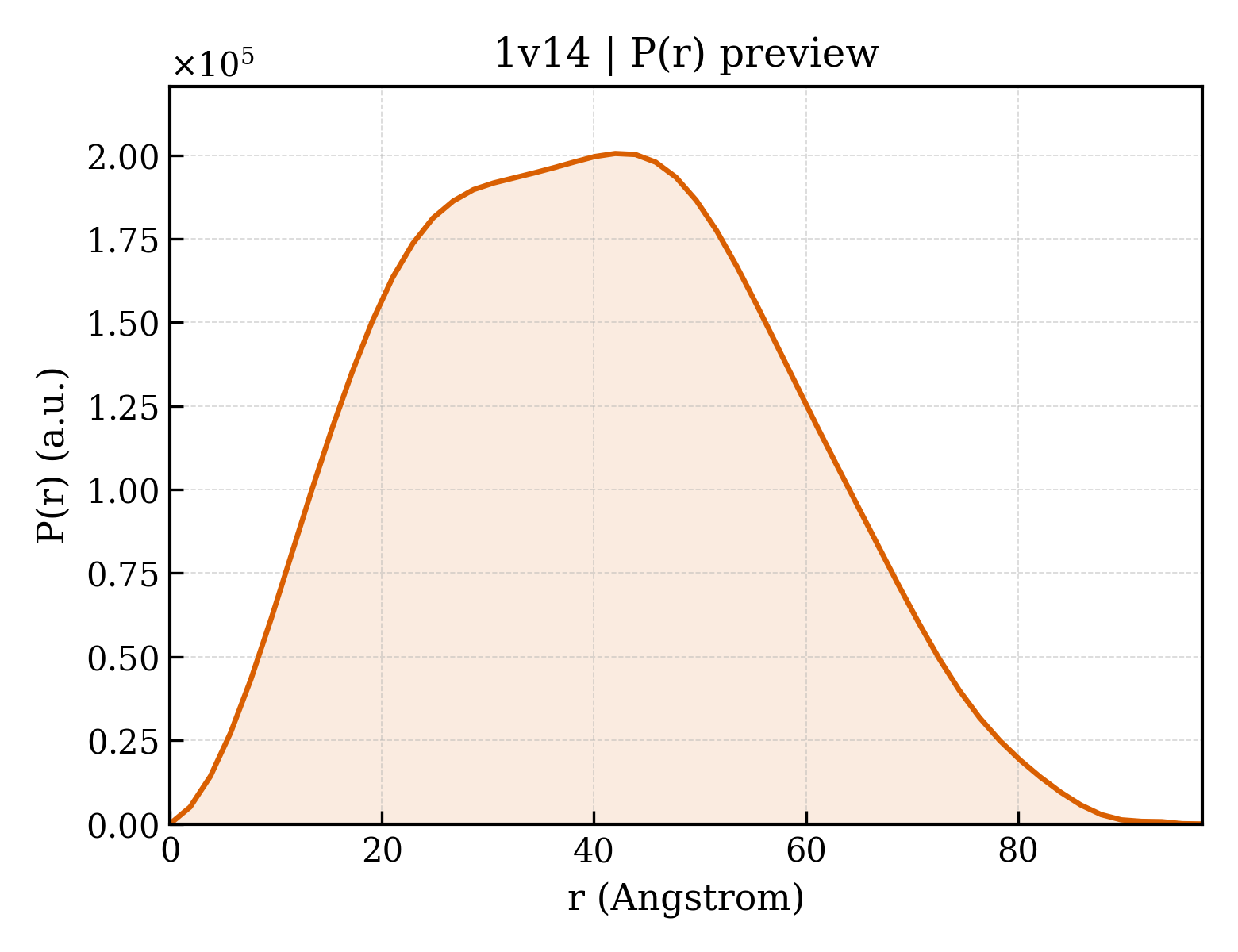

P(r) 距离分布 P(r) Distribution
