CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI COLICIN E9 DNASE DOMAIN WITH ITS COGNATE IMMUNITY PROTEIN IM9

entry_id	1bxi
deposition_date	1998-10-04
title	CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI COLICIN E9 DNASE DOMAIN WITH ITS COGNATE IMMUNITY PROTEIN IM9
keywords	COLICINS, ENDONUCLEASE, PROTEIN-PROTEIN INTERACTION, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

rg_guinier	19.57 Å
rg_electron	18.69 Å
i0	11562900.00
molecular_weight	24156.0 kDa
excluded_volume	29693 ų
envelope_volume	34941 ų
shell_volume	16370 ų
envelope_diameter	65.4 Å
shell_rg	24.07 Å
envelope_rg	18.97 Å
shape_rg	18.63 Å
total_rg	19.66 Å
total_atoms	1691
n_residues	212
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	64.7 Å
rg_real	19.62 Å
rg_real_error	0.41 Å
i0_real	1.1560e+07
i0_real_error	1.3790e+05
rg_reciprocal	19.62 Å
i0_reciprocal	11560000.0000
total_estimate	0.7976
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.9 Å
skewness	0.435
kurtosis	-0.286
angular_range	— – 0.4050 Å−1
current_alpha	0.0000
highest_alpha	2012000.0000
n_real_points	72
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.806; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.949; Smooth: 0.000

Unit Cell

length_a	43.850 Å
length_b	51.960 Å
length_c	87.590 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

Symmetry

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

Refinement

resolution	2.050 Å
resolution_low	8.000 Å
r_factor	—
r_work	0.2180
r_free	0.3150

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/bx/1bxi/pr_distribution.json
• pr_output /app/data/pr_computation/bx/1bxi/1bxi.pr.out
• pr_plot /app/data/visualization/pr_computation/bx/1bxi/1bxi_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/bx/1bxi/1bxi.dat
• saxs_fit /app/data/saxs_computation/bx/1bxi/1bxi.fit
• saxs_log /app/data/saxs_computation/bx/1bxi/1bxi.log

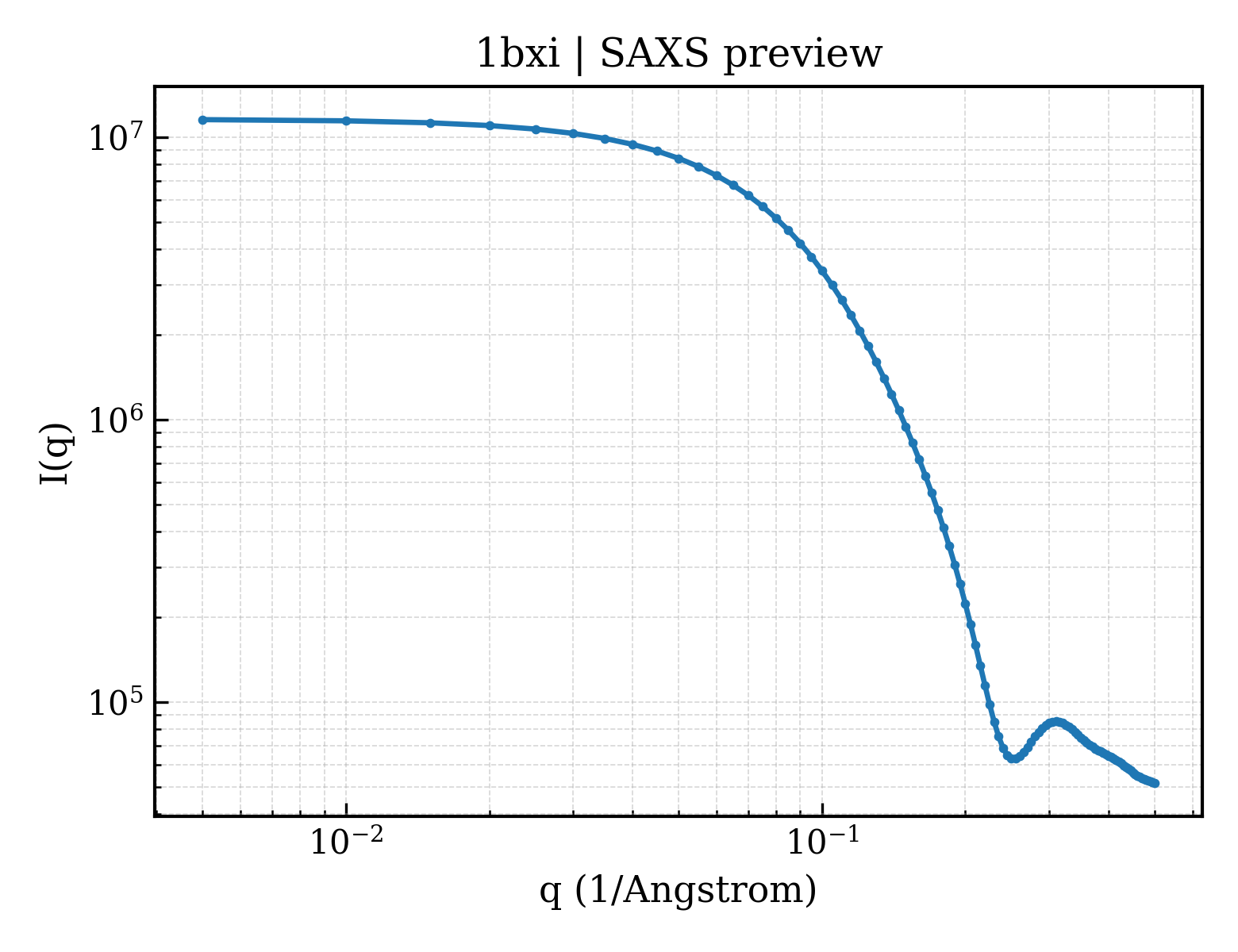

• saxs_plot /app/data/visualization/saxs_computation/bx/1bxi/1bxi_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/bx/1bxi/1bxi.fit
pddf	/app/data/pr_computation/bx/1bxi/1bxi.pr.out
profile	/app/data/saxs_computation/bx/1bxi/1bxi.dat
