1e1r

BOVINE MITOCHONDRIAL F1-ATPASE INHIBITED BY MG2+ADP AND ALUMINIUM FLUORIDE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BOVINE MITOCHONDRIAL F1-ATPASE

OrganismNot specified

UniProt P19483

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	BOVINE MITOCHONDRIAL F1-ATPASE × 3 （P00829） BOVINE MITOCHONDRIAL F1-ATPASE × 1 （P05631） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 1 ALUMINUM FLUORIDE × 1 PHOSPHATE ION × 1 water × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP0_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 44–553 Author chain B； PDBConstruct 1–510； UniProt 44–553 Author chain C； PDBConstruct 1–510； UniProt 44–553

BOVINE MITOCHONDRIAL F1-ATPASE

OrganismNot specified

UniProt P00829

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	BOVINE MITOCHONDRIAL F1-ATPASE × 3 （P19483） BOVINE MITOCHONDRIAL F1-ATPASE × 1 （P05631） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 1 ALUMINUM FLUORIDE × 1 PHOSPHATE ION × 1 water × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPB_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–482； UniProt 47–525 Author chain E； PDBConstruct 1–482； UniProt 47–525 Author chain F； PDBConstruct 1–482； UniProt 47–525

BOVINE MITOCHONDRIAL F1-ATPASE

OrganismNot specified

UniProt P05631

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	BOVINE MITOCHONDRIAL F1-ATPASE × 3 （P19483） BOVINE MITOCHONDRIAL F1-ATPASE × 3 （P00829） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 1 ALUMINUM FLUORIDE × 1 PHOSPHATE ION × 1 water × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPG_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–272； UniProt 26–297

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e1r
Deposition date deposition_date	2000-05-10
Structure title title	BOVINE MITOCHONDRIAL F1-ATPASE INHIBITED BY MG2+ADP AND ALUMINIUM FLUORIDE
Keywords keywords	ATP PHOSPHORYLASE, ATP PHOSPHORYLASE (H+ TRANSPORTING), ATP SYNTHASE, F1FO ATP SYNTHASE, F1-ATPASE; ATP PHOSPHORYLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e1r__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e1r__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

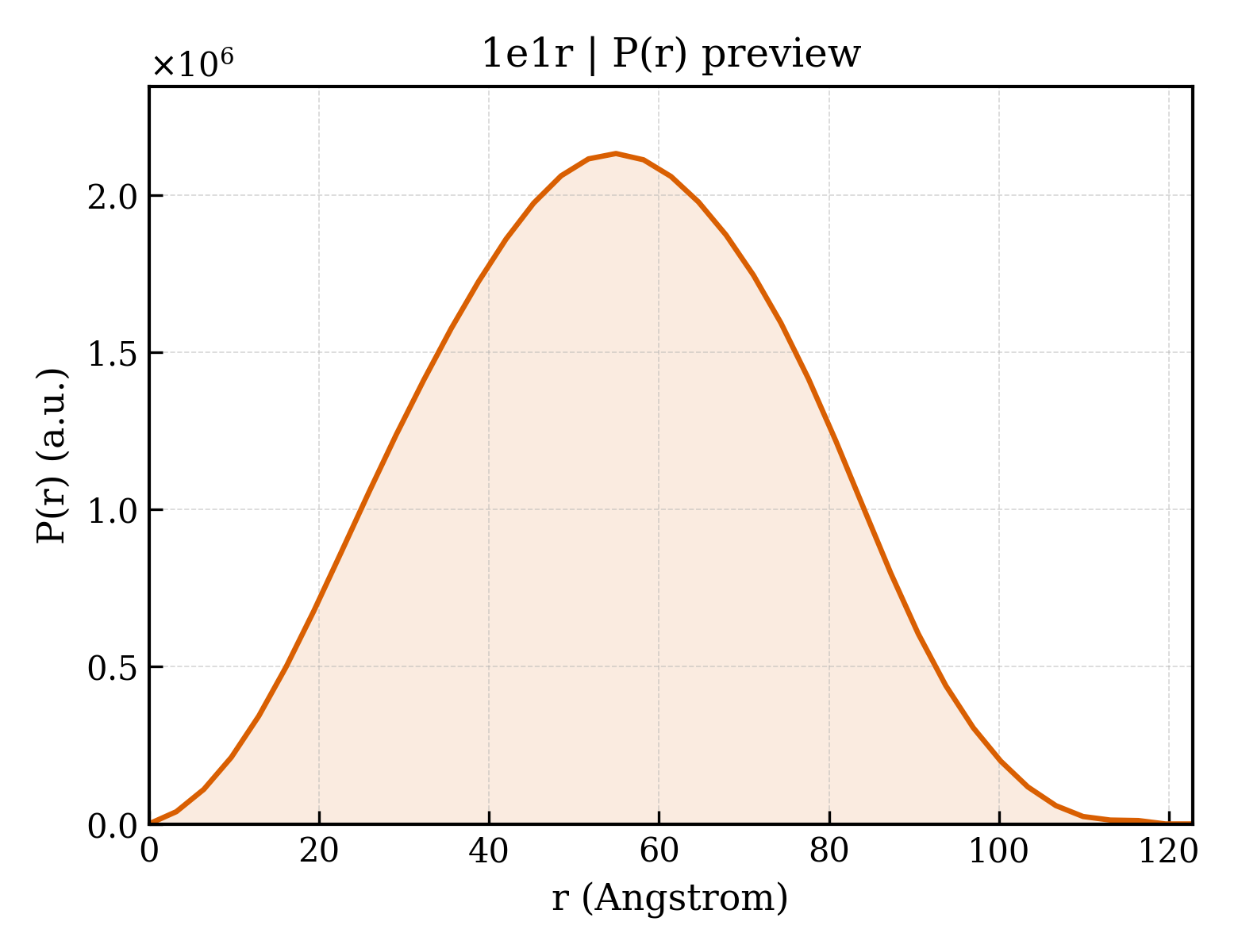

1e1r__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.69 Å
Rg (electron density)	40.87 Å
Total Rg	41.29 Å
Atom count	22828
Residues	2979
Excluded volume	408310 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e1r__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	BOVINE MITOCHONDRIAL F1-ATPASE
Molecular weight formula_weight	55301.2 kDa
EC 编号 ec_number	3.6.1.34
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	23688

QKTGTAEVSSILEERILGADTSVDLEETGRVLSIGDGIARVHGLRNVQAEEMVEFSSGLKGMSLNLEPDNVGVVVFGNDKLIKEGDIVKRTGAIVDVPVGEELLGRVVDALGNAIDGKGPIGSKARRRVGLKAPGIIPRISVREPMQTGIKAVDSLVPIGRGQRELIIGDRQTGKTSIAIDTIINQKRFNDGTDEKKKLYCIYVAIGQKRSTVAQLVKRLTDADAMKYTIVVSATASDAAPLQYLAPYSGCSMGEYFRDNGKHALIIYDDLSKQAVAYRQMSLLLRRPPGREAYPGDVFYLHSRLLERAAKMNDAFGGGSLTALPVIETQAGDVSAYIPTNVISITDGQIFLETELFYKGIRPAINVGLSVSRVGSAAQTRAMKQVAGTMKLELAQYREVAAFAQFGSDLDAATQQLLSRGVRLTELLKQGQYSPMAIEEQVAVIYAGVRGYLDKLEPSKITKFENAFLSHVISQHQALLGKIRTDGKISEESDAKLKEIVTNFLAGFEA

Entity 2 Entity 2 polymer

Description description	BOVINE MITOCHONDRIAL F1-ATPASE
Molecular weight formula_weight	51757.8 kDa
EC 编号 ec_number	3.6.1.34
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

AAQASPSPKAGATTGRIVAVIGAVVDVQFDEGLPPILNALEVQGRETRLVLEVAQHLGESTVRTIAMDGTEGLVRGQKVLDSGAPIRIPVGPETLGRIMNVIGEPIDERGPIKTKQFAAIHAEAPEFVEMSVEQEILVTGIKVVDLLAPYAKGGKIGLFGGAGVGKTVLIMELINNVAKAHGGYSVFAGVGERTREGNDLYHEMIESGVINLKDATSKVALVYGQMNEPPGARARVALTGLTVAEYFRDQEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAVGYQPTLATDMGTMQERITTTKKGSITSVQAIYVPADDLTDPAPATTFAHLDATTVLSRAIAELGIYPAVDPLDSTSRIMDPNIVGSEHYDVARGVQKILQDYKSLQDIIAILGMDELSEEDKLTVSRARKIQRFLSQPFQVAEVFTGHLGKLVPLKETIKGFQQILAGEYDHLPEQAFYMVGPIEEAVAKADKLAEEHS

Entity 3 Entity 3 polymer

Description description	BOVINE MITOCHONDRIAL F1-ATPASE
Molecular weight formula_weight	30185.7 kDa
EC 编号 ec_number	3.6.1.34
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ATLKDITRRLKSIKNIQKITKSMKMVAAAKYARAERELKPARVYGVGSLALYEKADIKTPEDKKKHLIIGVSSDRGLCGAIHSSVAKQMKSEAANLAAAGKEVKIIGVGDKIRSILHRTHSDQFLVTFKEVGRRPPTFGDASVIALELLNSGYEFDEGSIIFNRFRSVISYKTEEKPIFSLDTISSAESMSIYDDIDADVLRNYQEYSLANIIYYSLKESTTSEQSARMTAMDNASKNASEMIDKLTLTFNRTRQAVITKELIEIISGAAAL

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	ALUMINUM FLUORIDE
Molecular weight formula_weight	84.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	860

▼

6. Fold Classification (SCOP + CATH) 38 domains

SCOP 2.08 (19 domains)

Domain ID domain_id	d1e1ra1
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1ra2
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1ra3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1e1rb1
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rb2
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rb3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1e1rc1
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rc2
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rc3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1e1rd1
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rd2
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rd3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1e1re1
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1re2
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1re3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1e1rf1
Class class	a — All alpha proteins
Fold Fold fold	a.69 — Left-handed superhelix
Superfamily Superfamily superfamily	a.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	a.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rf2
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family family	b.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase

Domain ID domain_id	d1e1rf3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1e1rg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family family	c.49.2.1 — ATP synthase (F1-ATPase), gamma subunit

CATH v4.4 (19 domains)

Domain ID domain_id	1e1rA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1e1rA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1e1rA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	1e1rB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1e1rB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1e1rB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	1e1rC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1e1rC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1e1rC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	150 — Lysin
Homologous superfamily homologous superfamily	20 — ATP synthase alpha/beta chain, C-terminal domain

Domain ID domain_id	1e1rD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1e1rD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1e1rD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	1e1rE01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1e1rE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1e1rE03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	1e1rF01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1e1rF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1e1rF03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily	10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3

Domain ID domain_id	1e1rG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

▶

Unit-cell length a length_a	278.600 Å
Unit-cell length b length_b	106.700 Å
Unit-cell length c length_c	137.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2180
R_free r_free	0.2820

BOVINE MITOCHONDRIAL F1-ATPASE INHIBITED BY MG2+ADP AND ALUMINIUM FLUORIDE

1. Protein Identity and Related Structures Protein Identity & Related Structures

BOVINE MITOCHONDRIAL F1-ATPASE

State in the Current Structure

Other States of the Same Protein in the Database

BOVINE MITOCHONDRIAL F1-ATPASE

State in the Current Structure

Other States of the Same Protein in the Database

BOVINE MITOCHONDRIAL F1-ATPASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1e1r__assembly_1__model_1

1e1r__assembly_1__model_1 | I(q)

1e1r__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 38 domains

SCOP 2.08 (19 domains)

CATH v4.4 (19 domains)

7. Citations (4)

BOVINE MITOCHONDRIAL F1-ATPASE INHIBITED BY MG2+ADP AND ALUMINIUM FLUORIDE

1. Protein Identity and Related Structures Protein Identity & Related Structures

BOVINE MITOCHONDRIAL F1-ATPASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

BOVINE MITOCHONDRIAL F1-ATPASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

BOVINE MITOCHONDRIAL F1-ATPASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1e1r__assembly_1__model_1

1e1r__assembly_1__model_1 | I(q)

1e1r__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 38 domains

SCOP 2.08 (19 domains)

CATH v4.4 (19 domains)

7. Citations (4)
