1ohh

BOVINE MITOCHONDRIAL F1-ATPASE complexed with the inhibitor protein IF1

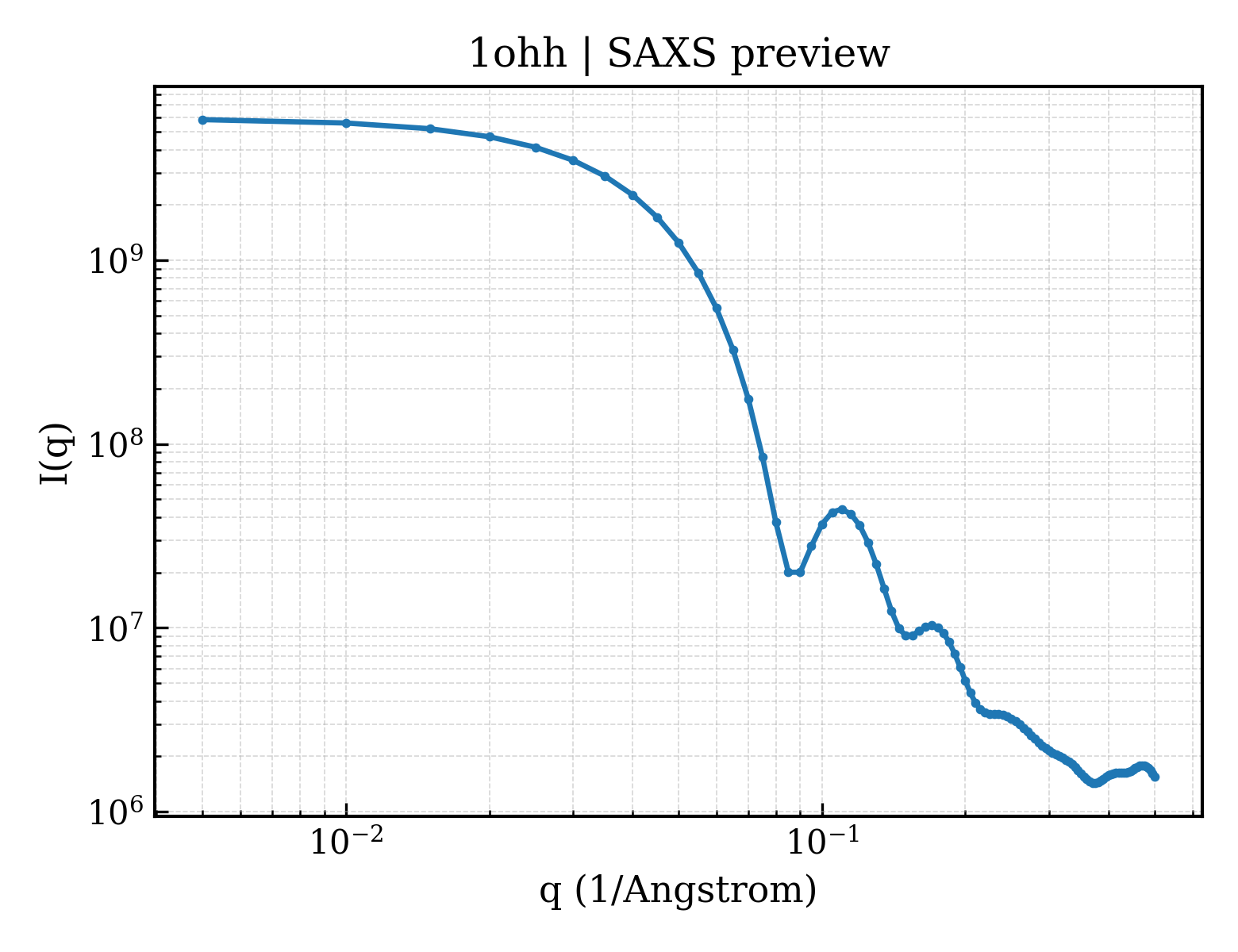

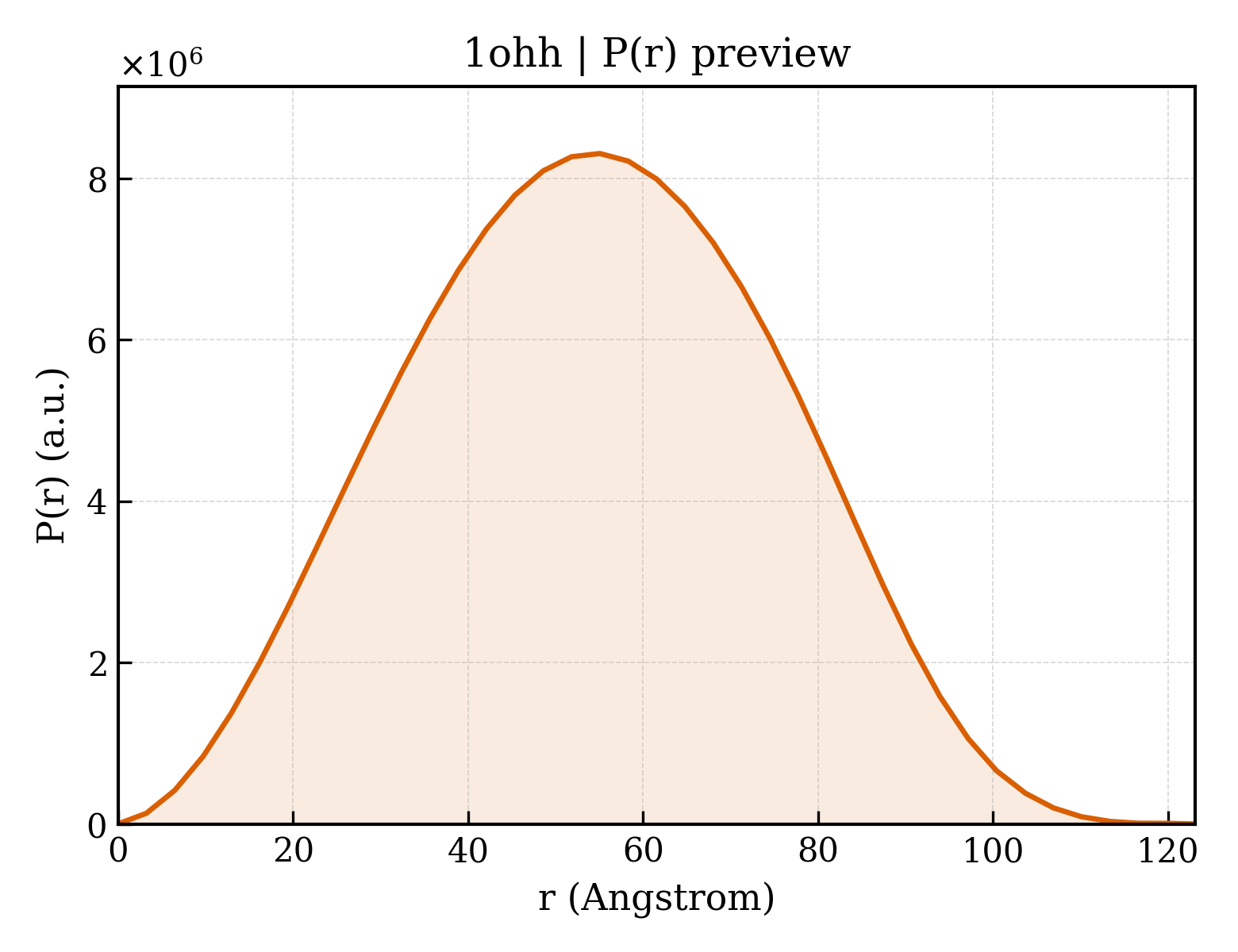

Method: X-RAY DIFFRACTION Dmax: 123.1 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit alpha, mitochondrial

OrganismNot specified

UniProt P19483

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain A； UniProt 44–553 Chain B； UniProt 44–553 Chain C； UniProt 44–553 Not recorded ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATPase inhibitor, mitochondrial × 1 （P01096） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.6；PROTEIN 20MG/ML IN 100MM PIPES-NAOH PH6.6, 40MM MGSO4, 0.04% NA AZIDE, 10% GLYCEROL, 0.002% PMSF. DROPS EQUAL VOLUME OF PROTEIN AND 10MM AMP-PNP, 300MM NACL, 16% PEG 4000, 5MM SPERMIDINE. BATCH METHOD., pH 6.60 Resolution 2.80 Å R-free 0.280

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1OHH Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BMF BOVINE MITOCHONDRIAL F1-ATPASE Deposited 1996-03-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.85 Å
1COW BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH AUROVERTIN B Deposited 1996-05-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 45–553（509 aa）
Chain B 45–553（509 aa）
Chain C 45–553（509 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AUR AUROVERTIN B × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.10 Å R-free 0.280
1E1Q BOVINE MITOCHONDRIAL F1-ATPASE AT 100K Deposited 2000-05-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；pH 8.00
Resolution 2.61 Å R-free 0.280
1E1R BOVINE MITOCHONDRIAL F1-ATPASE INHIBITED BY MG2+ADP AND ALUMINIUM FLUORIDE Deposited 2000-05-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；pH 8.00
Resolution 2.50 Å R-free 0.282
1E79 Bovine F1-ATPase inhibited by DCCD (dicyclohexylcarbodiimide) Deposited 2000-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 GOL GLYCEROL × 1 DCW DICYCLOHEXYLUREA × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.00
Resolution 2.40 Å R-free 0.281
1EFR BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH THE PEPTIDE ANTIBIOTIC EFRAPEPTIN Deposited 1996-05-24 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 45–553（509 aa）
Chain B 45–553（509 aa）
Chain C 45–553（509 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；PH 8.2
Resolution 3.10 Å R-free 0.220
1H8E (ADP.AlF4)2(ADP.SO4) bovine F1-ATPase (all three catalytic sites occupied) Deposited 2001-02-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 GOL GLYCEROL × 4 ALF TETRAFLUOROALUMINATE ION × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.00
Resolution 2.00 Å R-free 0.264
1H8H Bovine mitochondrial F1-ATPase crystallised in the presence of 5mm AMPPNP Deposited 2001-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.00
Resolution 2.90 Å R-free 0.292
1NBM THE STRUCTURE OF BOVINE F1-ATPASE COVALENTLY INHIBITED WITH 4-CHLORO-7-NITROBENZOFURAZAN Deposited 1998-04-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；50MM TRIS-HCL, PH7.5, 200MM SODIUM CHLORIDE, 20MM MAGNESIUM SULPHATE, 1MM EDTA, 0.002% (W/V) PHENYL METHYLSULPHONYL FLUORIDE, 0.02%(W/V) SODIUM AZIDE, 10.5% (W/V) PEG MME 5000, 250UM AMP-PNP AND 5UM ADP.
Resolution 3.00 Å R-free 0.297
1QO1 Molecular Architecture of the Rotary Motor in ATP Synthase from Yeast Mitochondria Deposited 1999-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain A 67–553（487 aa）
Chain B 67–553（487 aa）
Chain C 62–553（492 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；0.1 M TRIS/CL PH8.0, 12% PEG 6000, 150 MM NACL, 1 MM AMP-PNP, 40 MICROM ADP, 1 MM DTT, 0.02% NAN3, MIXED 1:1 WITH PROTEIN SOLUTION UNDER PARAFFIN OIL IN MICROBATCH PLATE., pH 8.00
Resolution 3.90 Å
1W0J Beryllium fluoride inhibited bovine F1-ATPase Deposited 2004-06-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 4 BEF BERYLLIUM TRIFLUORIDE ION × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.20
Resolution 2.20 Å R-free 0.236
1W0K ADP inhibited bovine F1-ATPase Deposited 2004-06-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 3 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.20
Resolution 2.85 Å R-free 0.278
2CK3 Azide inhibited bovine F1-ATPase Deposited 2006-04-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 250 UM AMP-PNP, 5 UM ADP, 3 MM NAN3, 0.004% (W/V) PHENYLMETHYLSULFONYL FLUORIDE AND 9% (W/V) POLYETHYLENE GLYCOL 6000.
Resolution 1.95 Å R-free 0.226
2JDI Ground state structure of F1-ATPase from bovine heart mitochondria (Bovine F1-ATPase crystallised in the absence of azide) Deposited 2007-01-09 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 44–553（510 aa） Fragment：RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：RESIDUES 44-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 250 UM AMP-PNP, 5 UM ADP, 0.004% (W/V) PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 1.90 Å R-free 0.220
2JIZ The Structure of F1-ATPase inhibited by resveratrol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 45–553（509 aa） Fragment：RESIDUES 44-553
Chain B 45–553（509 aa） Fragment：RESIDUES 44-553
Chain C 45–553（509 aa） Fragment：RESIDUES 44-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 STL RESVERATROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.30 Å R-free 0.217
2JIZ The Structure of F1-ATPase inhibited by resveratrol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 45–553（509 aa） Fragment：RESIDUES 44-553
Chain I 45–553（509 aa） Fragment：RESIDUES 44-553
Chain J 45–553（509 aa） Fragment：RESIDUES 44-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 STL RESVERATROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.30 Å R-free 0.217
2JJ1 The Structure of F1-ATPase inhibited by piceatannol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 45–553（509 aa） Fragment：RESIDUES 44-553
Chain B 45–553（509 aa） Fragment：RESIDUES 44-553
Chain C 45–553（509 aa） Fragment：RESIDUES 44-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 PIT PICEATANNOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.70 Å R-free 0.269
2JJ1 The Structure of F1-ATPase inhibited by piceatannol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 45–553（509 aa） Fragment：RESIDUES 44-553
Chain I 45–553（509 aa） Fragment：RESIDUES 44-553
Chain J 45–553（509 aa） Fragment：RESIDUES 44-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 PIT PICEATANNOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.70 Å R-free 0.269
2JJ2 The Structure of F1-ATPase inhibited by quercetin. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 45–553（509 aa） Fragment：RESIDUES 44-553
Chain B 45–553（509 aa） Fragment：RESIDUES 44-553
Chain C 45–553（509 aa） Fragment：RESIDUES 44-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 QUE 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.40 Å R-free 0.238
2JJ2 The Structure of F1-ATPase inhibited by quercetin. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 45–553（509 aa） Fragment：RESIDUES 44-553
Chain I 45–553（509 aa） Fragment：RESIDUES 44-553
Chain J 45–553（509 aa） Fragment：RESIDUES 44-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 QUE 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.40 Å R-free 0.238
2JMX OSCP-NT (1-120) in complex with N-terminal (1-25) alpha subunit from F1-ATPase Deposited 2006-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 44–68（25 aa） Fragment：ATP synthase subunit alpha heart isoform, residues 1-25
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 0.5；Pressure ambient
NMR sample composition 0.5 mM [U-99% 13C, U-99% 15N] oscp-nt, 1.5 mM alpha-nt, 20 mM sodium phosphate, pH 6.5, 0.5 M NaCl, 0.001% PMSF 95% H2O, 5% D2O | 95% H2O/5% D2O
Resolution not provided
2W6E Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration:hydration state 1. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–553（553 aa）
Chain B 1–553（553 aa）
Chain C 1–553（553 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.50 Å R-free 0.285
2W6F Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 2. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–553（553 aa）
Chain B 1–553（553 aa）
Chain C 1–553（553 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.00 Å R-free 0.343
2W6G Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 3. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–553（553 aa）
Chain B 1–553（553 aa）
Chain C 1–553（553 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.00 Å
2W6H Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 4A. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–553（553 aa）
Chain B 1–553（553 aa）
Chain C 1–553（553 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 5.00 Å
2W6I Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 4B. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–553（553 aa）
Chain B 1–553（553 aa）
Chain C 1–553（553 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 4.00 Å R-free 0.300
2W6J Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 5. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–553（553 aa）
Chain B 1–553（553 aa）
Chain C 1–553（553 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 3.84 Å
2WSS The structure of the membrane extrinsic region of bovine ATP synthase Deposited 2009-09-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；MICROBATCH UNDER OIL
Resolution 3.20 Å R-free 0.271
2WSS The structure of the membrane extrinsic region of bovine ATP synthase Deposited 2009-09-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain J 44–553（510 aa）
Chain K 44–553（510 aa）
Chain L 44–553（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；MICROBATCH UNDER OIL
Resolution 3.20 Å R-free 0.271
2XND Crystal structure of bovine F1-c8 sub-complex of ATP Synthase Deposited 2010-08-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain A 62–553（492 aa） Fragment：RESIDUES 62-553
Chain B 62–553（492 aa） Fragment：RESIDUES 62-553
Chain C 62–553（492 aa） Fragment：RESIDUES 62-553
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；CRYSTALS WERE GROWN UNDER OIL BY MIXING EQUAL VOLUMES OF PROTEIN (10MG/ML IN 20MM TRIS PH 8.0, 10% GLYCEROL, 1MM ADP, 1MM AMP-PNP, 2MM MGSO4, 0.02% NAN3, 5.7MM TDM) AND PRECIPITANT SOLUTION (50MM HEPES PH 7.0, 14% PEG4600, 50MM K2HPO4)
Resolution 3.50 Å R-free 0.304
4ASU F1-ATPase in which all three catalytic sites contain bound nucleotide, with magnesium ion released in the Empty site Deposited 2012-05-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å R-free 0.289
4TSF The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: Nonameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；Tris-HCl, PEG 4000, magnesium chloride, EDTA, NaCl, spermidine
Resolution 3.20 Å R-free 0.272
4TT3 The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: Decameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；PEG 4000, Tris-HCl, magnesium chloride, EDTA, ATP, NaCl, spermidine
Resolution 3.21 Å R-free 0.283
4YXW Bovine heart mitochondrial F1-ATPase inhibited by AMP-PNP and ADP in the presence of thiophosphate. Deposited 2015-03-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 1 TS6 Monothiophosphate × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 8.2；295 K；PEG 6000, sodium chloride, magnesium chloride, Tris-HCl, AMP-PNP, ADP, sodium monothiophosphate
Resolution 3.10 Å R-free 0.273
4Z1M Bovine F1-ATPase inhibited by three copies of the inhibitor protein IF1 crystallised in the presence of thiophosphate. Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 CL CHLORIDE ION × 11 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；295 K；Tris.HCl, MgCl2, EDTA, sodium monothiophosphate, ATP NaCl, spermidine, PEG 4000
Resolution 3.30 Å R-free 0.275
5ARA Bovine mitochondrial ATP synthase state 1a Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5ARE Bovine mitochondrial ATP synthase state 1b Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 6.70 Å
5ARH Bovine mitochondrial ATP synthase state 2a Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.20 Å
5ARI Bovine mitochondrial ATP synthase state 2b Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5FIJ Bovine mitochondrial ATP synthase state 2c Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5FIK Bovine mitochondrial ATP synthase state 3a Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 6.40 Å
5FIL Bovine mitochondrial ATP synthase state 3b Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain B 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Chain C 44–553（510 aa） Fragment：UNP RESIDUES 44-553
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) GLYCEROL, 0.05% (WT/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) GLYCEROL, 0.05% (WT/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.10 Å
6YY0 bovine ATP synthase F1-peripheral stalk domain, state 1 Deposited 2020-05-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.23 Å
6Z1R bovine ATP synthase F1-peripheral stalk domain, state 2 Deposited 2020-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6Z1U bovine ATP synthase F1c8-peripheral stalk domain, state 3 Deposited 2020-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.47 Å
6ZIQ bovine ATP synthase stator domain, state 1 Deposited 2020-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain C 44–553（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.33 Å
6ZIT bovine ATP synthase Stator domain, state 2 Deposited 2020-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain C 44–553（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.49 Å
6ZIU bovine ATP synthase stator domain, state 3 Deposited 2020-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain C 44–553（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；Th sample was allowed to penetrate through the holey grid support and to distribute to both sides of the grid surface for ~15sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 6.02 Å
6ZPO bovine ATP synthase monomer state 1 (combined) Deposited 2020-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
6ZQM bovine ATP synthase monomer state 2 (combined) Deposited 2020-07-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6ZQN bovine ATP synthase monomer state 3 (combined) Deposited 2020-07-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
7AJB bovine ATP synthase dimer state1:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.20 Å
7AJC bovine ATP synthase dimer state1:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.90 Å
7AJD bovine ATP synthase dimer state1:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.00 Å
7AJE bovine ATP synthase dimer state2:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
7AJF bovine ATP synthase dimer state2:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.45 Å
7AJG bovine ATP synthase dimer state2:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.70 Å
7AJH bovine ATP synthase dimer state3:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.70 Å
7AJI bovine ATP synthase dimer state3:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.40 Å
7AJJ bovine ATP synthase dimer state3:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain A 44–553（510 aa）
Chain AA 44–553（510 aa）
Chain AB 44–553（510 aa）
Chain AC 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 13.10 Å
9W2R Cryo-EM structure of FoF1-ATPase monomer state 1 on the bovine heart submitochondrial particles (FoF1-1) Deposited 2025-07-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9W2S Cryo-EM structure of FoF1-ATPase monomer state 3 on the bovine heart submitochondrial particles (FoF1-2) Deposited 2025-07-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 44–553（510 aa）
Chain B 44–553（510 aa）
Chain C 44–553（510 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å

58 other PDB entries and 62 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATPA_BOVIN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–510； UniProt 44–553 Author chain B； PDBConstruct 1–510； UniProt 44–553 Author chain C； PDBConstruct 1–510； UniProt 44–553

ATP synthase subunit beta, mitochondrial

OrganismNot specified

UniProt P00829

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain D； UniProt 47–528 Chain E； UniProt 47–528 Chain F； UniProt 47–528 Not recorded ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATPase inhibitor, mitochondrial × 1 （P01096） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.6；PROTEIN 20MG/ML IN 100MM PIPES-NAOH PH6.6, 40MM MGSO4, 0.04% NA AZIDE, 10% GLYCEROL, 0.002% PMSF. DROPS EQUAL VOLUME OF PROTEIN AND 10MM AMP-PNP, 300MM NACL, 16% PEG 4000, 5MM SPERMIDINE. BATCH METHOD., pH 6.60 Resolution 2.80 Å R-free 0.280

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1OHH Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BMF BOVINE MITOCHONDRIAL F1-ATPASE Deposited 1996-03-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.85 Å
1COW BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH AUROVERTIN B Deposited 1996-05-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AUR AUROVERTIN B × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.10 Å R-free 0.280
1E1Q BOVINE MITOCHONDRIAL F1-ATPASE AT 100K Deposited 2000-05-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–525（479 aa）
Chain E 47–525（479 aa）
Chain F 47–525（479 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；pH 8.00
Resolution 2.61 Å R-free 0.280
1E1R BOVINE MITOCHONDRIAL F1-ATPASE INHIBITED BY MG2+ADP AND ALUMINIUM FLUORIDE Deposited 2000-05-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–525（479 aa）
Chain E 47–525（479 aa）
Chain F 47–525（479 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；pH 8.00
Resolution 2.50 Å R-free 0.282
1E79 Bovine F1-ATPase inhibited by DCCD (dicyclohexylcarbodiimide) Deposited 2000-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 GOL GLYCEROL × 1 DCW DICYCLOHEXYLUREA × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.00
Resolution 2.40 Å R-free 0.281
1EFR BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH THE PEPTIDE ANTIBIOTIC EFRAPEPTIN Deposited 1996-05-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；PH 8.2
Resolution 3.10 Å R-free 0.220
1H8E (ADP.AlF4)2(ADP.SO4) bovine F1-ATPase (all three catalytic sites occupied) Deposited 2001-02-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 GOL GLYCEROL × 4 ALF TETRAFLUOROALUMINATE ION × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.00
Resolution 2.00 Å R-free 0.264
1H8H Bovine mitochondrial F1-ATPase crystallised in the presence of 5mm AMPPNP Deposited 2001-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.00
Resolution 2.90 Å R-free 0.292
1NBM THE STRUCTURE OF BOVINE F1-ATPASE COVALENTLY INHIBITED WITH 4-CHLORO-7-NITROBENZOFURAZAN Deposited 1998-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–526（480 aa）
Chain E 47–526（480 aa）
Chain F 47–526（480 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；50MM TRIS-HCL, PH7.5, 200MM SODIUM CHLORIDE, 20MM MAGNESIUM SULPHATE, 1MM EDTA, 0.002% (W/V) PHENYL METHYLSULPHONYL FLUORIDE, 0.02%(W/V) SODIUM AZIDE, 10.5% (W/V) PEG MME 5000, 250UM AMP-PNP AND 5UM ADP.
Resolution 3.00 Å R-free 0.297
1QO1 Molecular Architecture of the Rotary Motor in ATP Synthase from Yeast Mitochondria Deposited 1999-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain D 59–525（467 aa）
Chain E 59–524（466 aa）
Chain F 59–524（466 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；0.1 M TRIS/CL PH8.0, 12% PEG 6000, 150 MM NACL, 1 MM AMP-PNP, 40 MICROM ADP, 1 MM DTT, 0.02% NAN3, MIXED 1:1 WITH PROTEIN SOLUTION UNDER PARAFFIN OIL IN MICROBATCH PLATE., pH 8.00
Resolution 3.90 Å
1W0J Beryllium fluoride inhibited bovine F1-ATPase Deposited 2004-06-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 4 BEF BERYLLIUM TRIFLUORIDE ION × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.20
Resolution 2.20 Å R-free 0.236
1W0K ADP inhibited bovine F1-ATPase Deposited 2004-06-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 3 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.20
Resolution 2.85 Å R-free 0.278
2CK3 Azide inhibited bovine F1-ATPase Deposited 2006-04-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 250 UM AMP-PNP, 5 UM ADP, 3 MM NAN3, 0.004% (W/V) PHENYLMETHYLSULFONYL FLUORIDE AND 9% (W/V) POLYETHYLENE GLYCOL 6000.
Resolution 1.95 Å R-free 0.226
2JDI Ground state structure of F1-ATPase from bovine heart mitochondria (Bovine F1-ATPase crystallised in the absence of azide) Deposited 2007-01-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 47–50（4 aa） Fragment：RESIDUES 47-528
Chain D 51–528（478 aa） Fragment：RESIDUES 47-528
Chain E 47–50（4 aa） Fragment：RESIDUES 47-528
Chain E 51–528（478 aa） Fragment：RESIDUES 47-528
Chain F 47–50（4 aa） Fragment：RESIDUES 47-528
Chain F 51–528（478 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 250 UM AMP-PNP, 5 UM ADP, 0.004% (W/V) PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 1.90 Å R-free 0.220
2JIZ The Structure of F1-ATPase inhibited by resveratrol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa） Fragment：RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 STL RESVERATROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.30 Å R-free 0.217
2JIZ The Structure of F1-ATPase inhibited by resveratrol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain K 47–528（482 aa） Fragment：RESIDUES 47-528
Chain L 47–528（482 aa） Fragment：RESIDUES 47-528
Chain M 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 STL RESVERATROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.30 Å R-free 0.217
2JJ1 The Structure of F1-ATPase inhibited by piceatannol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa） Fragment：RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 PIT PICEATANNOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.70 Å R-free 0.269
2JJ1 The Structure of F1-ATPase inhibited by piceatannol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain K 47–528（482 aa） Fragment：RESIDUES 47-528
Chain L 47–528（482 aa） Fragment：RESIDUES 47-528
Chain M 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 PIT PICEATANNOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.70 Å R-free 0.269
2JJ2 The Structure of F1-ATPase inhibited by quercetin. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 47–528（482 aa） Fragment：RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 QUE 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.40 Å R-free 0.238
2JJ2 The Structure of F1-ATPase inhibited by quercetin. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain K 47–528（482 aa） Fragment：RESIDUES 47-528
Chain L 47–528（482 aa） Fragment：RESIDUES 47-528
Chain M 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 QUE 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.40 Å R-free 0.238
2V7Q The structure of F1-ATPase inhibited by I1-60HIS, a monomeric form of the inhibitor protein, IF1. Deposited 2007-07-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 47–528（482 aa） Fragment：RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.10 Å R-free 0.245
2W6E Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration:hydration state 1. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–528（528 aa）
Chain E 1–528（528 aa）
Chain F 1–528（528 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.50 Å R-free 0.285
2W6F Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 2. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–528（528 aa）
Chain E 1–528（528 aa）
Chain F 1–528（528 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.00 Å R-free 0.343
2W6G Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 3. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–528（528 aa）
Chain E 1–528（528 aa）
Chain F 1–528（528 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.00 Å
2W6H Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 4A. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–528（528 aa）
Chain E 1–528（528 aa）
Chain F 1–528（528 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 5.00 Å
2W6I Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 4B. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–528（528 aa）
Chain E 1–528（528 aa）
Chain F 1–528（528 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 4.00 Å R-free 0.300
2W6J Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 5. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–528（528 aa）
Chain E 1–528（528 aa）
Chain F 1–528（528 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 3.84 Å
2WSS The structure of the membrane extrinsic region of bovine ATP synthase Deposited 2009-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain D 47–528（482 aa） Fragment：RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；MICROBATCH UNDER OIL
Resolution 3.20 Å R-free 0.271
2WSS The structure of the membrane extrinsic region of bovine ATP synthase Deposited 2009-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain M 47–528（482 aa） Fragment：RESIDUES 47-528
Chain N 47–528（482 aa） Fragment：RESIDUES 47-528
Chain O 47–528（482 aa） Fragment：RESIDUES 47-528
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；MICROBATCH UNDER OIL
Resolution 3.20 Å R-free 0.271
2XND Crystal structure of bovine F1-c8 sub-complex of ATP Synthase Deposited 2010-08-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain D 59–525（467 aa） Fragment：RESIDUES 59-525
Chain E 59–525（467 aa） Fragment：RESIDUES 59-525
Chain F 59–525（467 aa） Fragment：RESIDUES 59-525
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；CRYSTALS WERE GROWN UNDER OIL BY MIXING EQUAL VOLUMES OF PROTEIN (10MG/ML IN 20MM TRIS PH 8.0, 10% GLYCEROL, 1MM ADP, 1MM AMP-PNP, 2MM MGSO4, 0.02% NAN3, 5.7MM TDM) AND PRECIPITANT SOLUTION (50MM HEPES PH 7.0, 14% PEG4600, 50MM K2HPO4)
Resolution 3.50 Å R-free 0.304
4ASU F1-ATPase in which all three catalytic sites contain bound nucleotide, with magnesium ion released in the Empty site Deposited 2012-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 49–528（480 aa）
Chain E 49–528（480 aa）
Chain F 49–528（480 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å R-free 0.289
4TSF The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: Nonameric
Chain D 49–528（480 aa）
Chain E 49–528（480 aa）
Chain F 49–528（480 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；Tris-HCl, PEG 4000, magnesium chloride, EDTA, NaCl, spermidine
Resolution 3.20 Å R-free 0.272
4TT3 The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: Decameric
Chain D 49–528（480 aa）
Chain E 49–528（480 aa）
Chain F 49–528（480 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；PEG 4000, Tris-HCl, magnesium chloride, EDTA, ATP, NaCl, spermidine
Resolution 3.21 Å R-free 0.283
4YXW Bovine heart mitochondrial F1-ATPase inhibited by AMP-PNP and ADP in the presence of thiophosphate. Deposited 2015-03-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 1 TS6 Monothiophosphate × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 8.2；295 K；PEG 6000, sodium chloride, magnesium chloride, Tris-HCl, AMP-PNP, ADP, sodium monothiophosphate
Resolution 3.10 Å R-free 0.273
4Z1M Bovine F1-ATPase inhibited by three copies of the inhibitor protein IF1 crystallised in the presence of thiophosphate. Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 CL CHLORIDE ION × 11 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；295 K；Tris.HCl, MgCl2, EDTA, sodium monothiophosphate, ATP NaCl, spermidine, PEG 4000
Resolution 3.30 Å R-free 0.275
5ARA Bovine mitochondrial ATP synthase state 1a Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5ARE Bovine mitochondrial ATP synthase state 1b Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 6.70 Å
5ARH Bovine mitochondrial ATP synthase state 2a Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.20 Å
5ARI Bovine mitochondrial ATP synthase state 2b Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5FIJ Bovine mitochondrial ATP synthase state 2c Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5FIK Bovine mitochondrial ATP synthase state 3a Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 6.40 Å
5FIL Bovine mitochondrial ATP synthase state 3b Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain E 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Chain F 47–528（482 aa） Fragment：UNP RESIDUES 47-528
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) GLYCEROL, 0.05% (WT/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) GLYCEROL, 0.05% (WT/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.10 Å
6YY0 bovine ATP synthase F1-peripheral stalk domain, state 1 Deposited 2020-05-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.23 Å
6Z1R bovine ATP synthase F1-peripheral stalk domain, state 2 Deposited 2020-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6Z1U bovine ATP synthase F1c8-peripheral stalk domain, state 3 Deposited 2020-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.47 Å
6ZPO bovine ATP synthase monomer state 1 (combined) Deposited 2020-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
6ZQM bovine ATP synthase monomer state 2 (combined) Deposited 2020-07-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6ZQN bovine ATP synthase monomer state 3 (combined) Deposited 2020-07-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
7AJB bovine ATP synthase dimer state1:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.20 Å
7AJC bovine ATP synthase dimer state1:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.90 Å
7AJD bovine ATP synthase dimer state1:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.00 Å
7AJE bovine ATP synthase dimer state2:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
7AJF bovine ATP synthase dimer state2:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.45 Å
7AJG bovine ATP synthase dimer state2:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.70 Å
7AJH bovine ATP synthase dimer state3:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.70 Å
7AJI bovine ATP synthase dimer state3:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.40 Å
7AJJ bovine ATP synthase dimer state3:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AD 47–528（482 aa）
Chain AE 47–528（482 aa）
Chain AF 47–528（482 aa）
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 13.10 Å
9W2R Cryo-EM structure of FoF1-ATPase monomer state 1 on the bovine heart submitochondrial particles (FoF1-1) Deposited 2025-07-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9W2S Cryo-EM structure of FoF1-ATPase monomer state 3 on the bovine heart submitochondrial particles (FoF1-2) Deposited 2025-07-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 47–528（482 aa）
Chain E 47–528（482 aa）
Chain F 47–528（482 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å

55 other PDB entries and 59 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATPB_BOVIN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain D； PDBConstruct 1–482； UniProt 47–528 Author chain E； PDBConstruct 1–482； UniProt 47–528 Author chain F； PDBConstruct 1–482； UniProt 47–528

ATP synthase subunit gamma, mitochondrial

OrganismNot specified

UniProt P05631

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain G； UniProt 26–297 Not recorded ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATPase inhibitor, mitochondrial × 1 （P01096） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.6；PROTEIN 20MG/ML IN 100MM PIPES-NAOH PH6.6, 40MM MGSO4, 0.04% NA AZIDE, 10% GLYCEROL, 0.002% PMSF. DROPS EQUAL VOLUME OF PROTEIN AND 10MM AMP-PNP, 300MM NACL, 16% PEG 4000, 5MM SPERMIDINE. BATCH METHOD., pH 6.60 Resolution 2.80 Å R-free 0.280

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1OHH Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BMF BOVINE MITOCHONDRIAL F1-ATPASE Deposited 1996-03-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.85 Å
1COW BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH AUROVERTIN B Deposited 1996-05-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AUR AUROVERTIN B × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.10 Å R-free 0.280
1E1Q BOVINE MITOCHONDRIAL F1-ATPASE AT 100K Deposited 2000-05-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；pH 8.00
Resolution 2.61 Å R-free 0.280
1E1R BOVINE MITOCHONDRIAL F1-ATPASE INHIBITED BY MG2+ADP AND ALUMINIUM FLUORIDE Deposited 2000-05-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；pH 8.00
Resolution 2.50 Å R-free 0.282
1E79 Bovine F1-ATPase inhibited by DCCD (dicyclohexylcarbodiimide) Deposited 2000-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 26–297（272 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 GOL GLYCEROL × 1 DCW DICYCLOHEXYLUREA × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.00
Resolution 2.40 Å R-free 0.281
1EFR BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH THE PEPTIDE ANTIBIOTIC EFRAPEPTIN Deposited 1996-05-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 26–297（272 aa）
Not recorded MG MAGNESIUM ION × 5 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；PH 8.2
Resolution 3.10 Å R-free 0.220
1H8E (ADP.AlF4)2(ADP.SO4) bovine F1-ATPase (all three catalytic sites occupied) Deposited 2001-02-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 26–297（272 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 GOL GLYCEROL × 4 ALF TETRAFLUOROALUMINATE ION × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.00
Resolution 2.00 Å R-free 0.264
1H8H Bovine mitochondrial F1-ATPase crystallised in the presence of 5mm AMPPNP Deposited 2001-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.00
Resolution 2.90 Å R-free 0.292
1NBM THE STRUCTURE OF BOVINE F1-ATPASE COVALENTLY INHIBITED WITH 4-CHLORO-7-NITROBENZOFURAZAN Deposited 1998-04-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；50MM TRIS-HCL, PH7.5, 200MM SODIUM CHLORIDE, 20MM MAGNESIUM SULPHATE, 1MM EDTA, 0.002% (W/V) PHENYL METHYLSULPHONYL FLUORIDE, 0.02%(W/V) SODIUM AZIDE, 10.5% (W/V) PEG MME 5000, 250UM AMP-PNP AND 5UM ADP.
Resolution 3.00 Å R-free 0.297
1QO1 Molecular Architecture of the Rotary Motor in ATP Synthase from Yeast Mitochondria Deposited 1999-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain G 26–69（44 aa）
Chain G 102–115（14 aa）
Chain G 234–297（64 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；0.1 M TRIS/CL PH8.0, 12% PEG 6000, 150 MM NACL, 1 MM AMP-PNP, 40 MICROM ADP, 1 MM DTT, 0.02% NAN3, MIXED 1:1 WITH PROTEIN SOLUTION UNDER PARAFFIN OIL IN MICROBATCH PLATE., pH 8.00
Resolution 3.90 Å
1W0J Beryllium fluoride inhibited bovine F1-ATPase Deposited 2004-06-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 4 BEF BERYLLIUM TRIFLUORIDE ION × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.20
Resolution 2.20 Å R-free 0.236
1W0K ADP inhibited bovine F1-ATPase Deposited 2004-06-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 3 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；CRYSTALS WERE GROWN IN THE PRESENCE OF AZIDE, A KNOWN INHIBITOR, BUT THIS HAS NOT BEEN LOCATED IN THE STRUCTURE., pH 8.20
Resolution 2.85 Å R-free 0.278
2CK3 Azide inhibited bovine F1-ATPase Deposited 2006-04-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 26–297（272 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 250 UM AMP-PNP, 5 UM ADP, 3 MM NAN3, 0.004% (W/V) PHENYLMETHYLSULFONYL FLUORIDE AND 9% (W/V) POLYETHYLENE GLYCOL 6000.
Resolution 1.95 Å R-free 0.226
2JDI Ground state structure of F1-ATPase from bovine heart mitochondria (Bovine F1-ATPase crystallised in the absence of azide) Deposited 2007-01-09 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 26–298（273 aa） Fragment：RESIDUES 26-298
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 250 UM AMP-PNP, 5 UM ADP, 0.004% (W/V) PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 1.90 Å R-free 0.220
2JIZ The Structure of F1-ATPase inhibited by resveratrol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 STL RESVERATROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.30 Å R-free 0.217
2JIZ The Structure of F1-ATPase inhibited by resveratrol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain N 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 STL RESVERATROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.30 Å R-free 0.217
2JJ1 The Structure of F1-ATPase inhibited by piceatannol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 PIT PICEATANNOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.70 Å R-free 0.269
2JJ1 The Structure of F1-ATPase inhibited by piceatannol. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain N 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 PIT PICEATANNOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.70 Å R-free 0.269
2JJ2 The Structure of F1-ATPase inhibited by quercetin. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 QUE 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.40 Å R-free 0.238
2JJ2 The Structure of F1-ATPase inhibited by quercetin. Deposited 2007-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain N 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 GOL GLYCEROL × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AZI AZIDE ION × 1 PO4 PHOSPHATE ION × 1 QUE 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.40 Å R-free 0.238
2V7Q The structure of F1-ATPase inhibited by I1-60HIS, a monomeric form of the inhibitor protein, IF1. Deposited 2007-07-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain G 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.10 Å R-free 0.245
2W6E Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration:hydration state 1. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–298（298 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.50 Å R-free 0.285
2W6F Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 2. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–298（298 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.00 Å R-free 0.343
2W6G Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 3. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–298（298 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 6.00 Å
2W6H Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 4A. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 1–298（298 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 5.00 Å
2W6I Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 4B. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 1–298（298 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 4.00 Å R-free 0.300
2W6J Low resolution structures of bovine mitochondrial F1-ATPase during controlled dehydration: Hydration State 5. Deposited 2008-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 1–298（298 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；50 MM TRIS-HCL PH 8.2, 200 MM NACL, 20 MM MGSO4, 1 MM ADP, 1 MM ALCL3, 6 MM NAF 0.004% (W/V)PHENYLMETHYLSULFONYL FLUORIDE AND 12% (W/V) POLYETHYLENE GLYCOL 6000
Resolution 3.84 Å
2WSS The structure of the membrane extrinsic region of bovine ATP synthase Deposited 2009-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain G 26–297（272 aa） Fragment：HEART ISOFORM, RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；MICROBATCH UNDER OIL
Resolution 3.20 Å R-free 0.271
2WSS The structure of the membrane extrinsic region of bovine ATP synthase Deposited 2009-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain P 26–297（272 aa） Fragment：HEART ISOFORM, RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；MICROBATCH UNDER OIL
Resolution 3.20 Å R-free 0.271
2XND Crystal structure of bovine F1-c8 sub-complex of ATP Synthase Deposited 2010-08-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain G 26–297（272 aa） Fragment：RESIDUES 26-297
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 GOL GLYCEROL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；CRYSTALS WERE GROWN UNDER OIL BY MIXING EQUAL VOLUMES OF PROTEIN (10MG/ML IN 20MM TRIS PH 8.0, 10% GLYCEROL, 1MM ADP, 1MM AMP-PNP, 2MM MGSO4, 0.02% NAN3, 5.7MM TDM) AND PRECIPITANT SOLUTION (50MM HEPES PH 7.0, 14% PEG4600, 50MM K2HPO4)
Resolution 3.50 Å R-free 0.304
4ASU F1-ATPase in which all three catalytic sites contain bound nucleotide, with magnesium ion released in the Empty site Deposited 2012-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 323–595（273 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å R-free 0.289
4TSF The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: Nonameric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；Tris-HCl, PEG 4000, magnesium chloride, EDTA, NaCl, spermidine
Resolution 3.20 Å R-free 0.272
4TT3 The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: Decameric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；PEG 4000, Tris-HCl, magnesium chloride, EDTA, ATP, NaCl, spermidine
Resolution 3.21 Å R-free 0.283
4YXW Bovine heart mitochondrial F1-ATPase inhibited by AMP-PNP and ADP in the presence of thiophosphate. Deposited 2015-03-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 26–298（273 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 1 TS6 Monothiophosphate × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 8.2；295 K；PEG 6000, sodium chloride, magnesium chloride, Tris-HCl, AMP-PNP, ADP, sodium monothiophosphate
Resolution 3.10 Å R-free 0.273
4Z1M Bovine F1-ATPase inhibited by three copies of the inhibitor protein IF1 crystallised in the presence of thiophosphate. Deposited 2015-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 CL CHLORIDE ION × 11 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；295 K；Tris.HCl, MgCl2, EDTA, sodium monothiophosphate, ATP NaCl, spermidine, PEG 4000
Resolution 3.30 Å R-free 0.275
5ARA Bovine mitochondrial ATP synthase state 1a Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 26–298（273 aa） Fragment：UNP RESIDUES 26-298
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5ARE Bovine mitochondrial ATP synthase state 1b Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 26–298（273 aa） Fragment：UNP RESIDUES 26-298
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 6.70 Å
5ARH Bovine mitochondrial ATP synthase state 2a Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 26–298（273 aa） Fragment：UNP RESIDUES 26-298
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.20 Å
5ARI Bovine mitochondrial ATP synthase state 2b Deposited 2015-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 26–298（273 aa） Fragment：UNP RESIDUES 26-298
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5FIJ Bovine mitochondrial ATP synthase state 2c Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 26–298（273 aa） Fragment：UNP RESIDUES 26-298
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.40 Å
5FIK Bovine mitochondrial ATP synthase state 3a Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 26–298（273 aa） Fragment：UNP RESIDUES 26-298
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 6.40 Å
5FIL Bovine mitochondrial ATP synthase state 3b Deposited 2015-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 26–298（273 aa） Fragment：UNP RESIDUES 26-298
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) GLYCEROL, 0.05% (WT/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3；pH 7.2；20 MM TRIS-HCL, 100 MM NACL, 10% (V/V) GLYCEROL, 0.05% (WT/V) DODECYLMALTOSIDE, 2 MM ATP, 0.02% (WT/V) NAN3
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；VITRIFICATION 1 -- CRYOGEN- ETHANE-PROPANE MIXTURE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT MARK III, METHOD- BLOT FOR 27 SECONDS BEFORE PLUNGING,
Resolution 7.10 Å
6YY0 bovine ATP synthase F1-peripheral stalk domain, state 1 Deposited 2020-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.23 Å
6Z1R bovine ATP synthase F1-peripheral stalk domain, state 2 Deposited 2020-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6Z1U bovine ATP synthase F1c8-peripheral stalk domain, state 3 Deposited 2020-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.47 Å
6ZG7 bovine ATP synthase rotor domain, state 1 Deposited 2020-06-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 26–298（273 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.49 Å
6ZG8 bovine ATP synthase rotor domain state 2 Deposited 2020-06-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 26–298（273 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holes support and to distribute to both sides of the grid surface for ~15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.49 Å
6ZIK bovine ATP synthase rotor domain, state 3 Deposited 2020-06-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 26–298（273 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.66 Å
6ZPO bovine ATP synthase monomer state 1 (combined) Deposited 2020-07-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
6ZQM bovine ATP synthase monomer state 2 (combined) Deposited 2020-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6ZQN bovine ATP synthase monomer state 3 (combined) Deposited 2020-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
7AJB bovine ATP synthase dimer state1:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.20 Å
7AJC bovine ATP synthase dimer state1:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.90 Å
7AJD bovine ATP synthase dimer state1:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.00 Å
7AJE bovine ATP synthase dimer state2:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
7AJF bovine ATP synthase dimer state2:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.45 Å
7AJG bovine ATP synthase dimer state2:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.70 Å
7AJH bovine ATP synthase dimer state3:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.70 Å
7AJI bovine ATP synthase dimer state3:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.40 Å
7AJJ bovine ATP synthase dimer state3:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AG 26–298（273 aa）
Chain G 26–298（273 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 13.10 Å
9W2R Cryo-EM structure of FoF1-ATPase monomer state 1 on the bovine heart submitochondrial particles (FoF1-1) Deposited 2025-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 26–298（273 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9W2S Cryo-EM structure of FoF1-ATPase monomer state 3 on the bovine heart submitochondrial particles (FoF1-2) Deposited 2025-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 26–298（273 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å

58 other PDB entries and 62 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATPG_BOVIN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain G； PDBConstruct 1–272； UniProt 26–297

ATPase inhibitor, mitochondrial

Bos taurus

UniProt P01096

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain H； UniProt 26–109 Not recorded ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.6；PROTEIN 20MG/ML IN 100MM PIPES-NAOH PH6.6, 40MM MGSO4, 0.04% NA AZIDE, 10% GLYCEROL, 0.002% PMSF. DROPS EQUAL VOLUME OF PROTEIN AND 10MM AMP-PNP, 300MM NACL, 16% PEG 4000, 5MM SPERMIDINE. BATCH METHOD., pH 6.60 Resolution 2.80 Å R-free 0.280

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1OHH Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1GMJ The structure of bovine IF1, the regulatory subunit of mitochondrial F-ATPase Deposited 2001-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 26–109（84 aa）
Chain B 26–109（84 aa）
Mutation：YES Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；296 K；CRYSTALS WERE GROWN BY EQUILIBRATING A IF1-H49K SOLUTION, AT 6 MG/ML IN BUFFER 10 MM TRIS-HCL PH 8.0, RESERVOIR CONTAINING 0.8 M MONO-SODIUM DIHYDROGEN PHOSPHAT AGAINST A 0.8 M MONO-POTASSIUM DIHYDROGEN PHOSPHATE AND 0.1 M HEPES-NA BUFFER PH 8, AT 23C, IN SITTING-DROP VAPOR-DIFFUSION TRAYS.
Resolution 2.20 Å R-free 0.280
1GMJ The structure of bovine IF1, the regulatory subunit of mitochondrial F-ATPase Deposited 2001-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 26–109（84 aa）
Chain D 26–109（84 aa）
Mutation：YES Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；296 K；CRYSTALS WERE GROWN BY EQUILIBRATING A IF1-H49K SOLUTION, AT 6 MG/ML IN BUFFER 10 MM TRIS-HCL PH 8.0, RESERVOIR CONTAINING 0.8 M MONO-SODIUM DIHYDROGEN PHOSPHAT AGAINST A 0.8 M MONO-POTASSIUM DIHYDROGEN PHOSPHATE AND 0.1 M HEPES-NA BUFFER PH 8, AT 23C, IN SITTING-DROP VAPOR-DIFFUSION TRAYS.
Resolution 2.20 Å R-free 0.280
1HF9 C-Terminal Coiled-Coil Domain from Bovine IF1 Deposited 2000-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–109（41 aa） Fragment：C-TERMINAL DOMAIN (44-84)
Chain B 69–109（41 aa） Fragment：C-TERMINAL DOMAIN (44-84)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；300 K；Pressure 1
Resolution not provided
2V7Q The structure of F1-ATPase inhibited by I1-60HIS, a monomeric form of the inhibitor protein, IF1. Deposited 2007-07-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain J 26–85（60 aa） Fragment：RESIDUES 26-85
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；pH 8.2
Resolution 2.10 Å R-free 0.245
4TSF The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: Nonameric
Chain H 26–85（60 aa） Fragment：UNP residues 26-85
Chain I 26–85（60 aa） Fragment：UNP residues 26-85
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；Tris-HCl, PEG 4000, magnesium chloride, EDTA, NaCl, spermidine
Resolution 3.20 Å R-free 0.272
4TT3 The Pathway of Binding of the Intrinsically Disordered Mitochondrial Inhibitor Protein to F1-ATPase Deposited 2014-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: Decameric
Chain H 26–85（60 aa） Fragment：UNP residues 36-85
Chain I 26–85（60 aa） Fragment：UNP residues 36-85
Chain J 26–85（60 aa） Fragment：UNP residues 36-85
Mutation：K39A Mutation：K39A Mutation：K39A ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8.2；295 K；PEG 4000, Tris-HCl, magnesium chloride, EDTA, ATP, NaCl, spermidine
Resolution 3.21 Å R-free 0.283
4Z1M Bovine F1-ATPase inhibited by three copies of the inhibitor protein IF1 crystallised in the presence of thiophosphate. Deposited 2015-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain H 26–85（60 aa）
Chain I 26–85（60 aa）
Chain J 26–85（60 aa）
Mutation：K39A Mutation：K39A Mutation：K39A ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 GOL GLYCEROL × 2 CL CHLORIDE ION × 11 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；295 K；Tris.HCl, MgCl2, EDTA, sodium monothiophosphate, ATP NaCl, spermidine, PEG 4000
Resolution 3.30 Å R-free 0.275
6YY0 bovine ATP synthase F1-peripheral stalk domain, state 1 Deposited 2020-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain J 26–85（60 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.23 Å
6Z1R bovine ATP synthase F1-peripheral stalk domain, state 2 Deposited 2020-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 26–85（60 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6Z1U bovine ATP synthase F1c8-peripheral stalk domain, state 3 Deposited 2020-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 26–85（60 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.47 Å
6ZPO bovine ATP synthase monomer state 1 (combined) Deposited 2020-07-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 26–85（60 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
6ZQM bovine ATP synthase monomer state 2 (combined) Deposited 2020-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 26–85（60 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 3.29 Å
6ZQN bovine ATP synthase monomer state 3 (combined) Deposited 2020-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 26–85（60 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 CDL CARDIOLIPIN × 3 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；The sample was allowed to penetrate through the holey support and to distribute to both sides of the grid surface for ca. 15 sec. Then the grids were blotted with filter paper for 8-10 sec before blotting.
Resolution 4.00 Å
7AJB bovine ATP synthase dimer state1:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.20 Å
7AJC bovine ATP synthase dimer state1:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.90 Å
7AJD bovine ATP synthase dimer state1:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.00 Å
7AJE bovine ATP synthase dimer state2:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
7AJF bovine ATP synthase dimer state2:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–109（84 aa）
Chain J 26–109（84 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.45 Å
7AJG bovine ATP synthase dimer state2:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.70 Å
7AJH bovine ATP synthase dimer state3:state1 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.70 Å
7AJI bovine ATP synthase dimer state3:state2 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.40 Å
7AJJ bovine ATP synthase dimer state3:state3 Deposited 2020-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric
Chain AJ 26–85（60 aa）
Chain J 26–85（60 aa）
Not recorded CDL CARDIOLIPIN × 6 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 13.10 Å
9W2R Cryo-EM structure of FoF1-ATPase monomer state 1 on the bovine heart submitochondrial particles (FoF1-1) Deposited 2025-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 26–85（60 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9W2S Cryo-EM structure of FoF1-ATPase monomer state 3 on the bovine heart submitochondrial particles (FoF1-2) Deposited 2025-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 26–85（60 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å

23 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ATIF1_BOVIN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain H； PDBConstruct 1–84； UniProt 26–109

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1ohh

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1ohh
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1ohh
Deposition date deposition_date2003-05-27
Structure title titleBOVINE MITOCHONDRIAL F1-ATPASE complexed with the inhibitor protein IF1
Keywords keywordsSYNTHASE, ATP PHOSPHORYLASE, ATP PHOSPHORYLASE (H+ TRANSPORTING), ATP SYNTHASE, F1FO ATP SYNTHASE, F1-ATPASE; SYNTHASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier41.36 Å
Radius of gyration Rg (electron density) rg_electron40.74 Å
Forward intensity I(0) i05904320000.00
Molecular weight molecular_weight650710.0 kDa
Excluded volume excluded_volume816900 ų
Envelope volume envelope_volume566720 ų
Hydration-shell volume shell_volume103480 ų
Envelope diameter envelope_diameter136.9 Å
Shell Rg shell_rg53.52 Å
Envelope Rg envelope_rg41.37 Å
Shape Rg shape_rg40.76 Å
Total Rg total_rg40.98 Å
Total atoms total_atoms45703
Residues n_residues5969
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax123.1 Å
Rg (real space) rg_real41.07 Å
Rg uncertainty (real space) rg_real_error0.49 Å
I(0) (real space) i0_real5.9040e+09
I(0) uncertainty (real space) i0_real_error8.8860e+07
Rg (reciprocal space) rg_reciprocal41.36 Å
I(0) (reciprocal space) i0_reciprocal5906000000.0000
Solution quality estimate total_estimate0.8949
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary55.1 Å
Skewness Skewness skewness0.025
Kurtosis Kurtosis kurtosis-0.566
Angular range angular_range— – 0.1900 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha417300000.0000
Real-space data points n_real_points39
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.882
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

▼

7. Fold Classification (SCOP + CATH) 39 domains

SCOP 2.08 (20 domains)

Domain ID domain_idd1ohha1
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohha2
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohha3
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd1ohhb1
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhb2
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhb3
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd1ohhc1
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhc2
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhc3
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd1ohhd1
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhd2
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhd3
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd1ohhe1
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhe2
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhe3
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd1ohhf1
Class classa — All alpha proteins
Fold Fold folda.69 — Left-handed superhelix
Superfamily Superfamily superfamilya.69.1 — C-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familya.69.1.1 — C-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhf2
Class classb — All beta proteins
Fold Fold foldb.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamilyb.49.1 — N-terminal domain of alpha and beta (or A/B) subunits of rotary ATPases
Family Family familyb.49.1.1 — N-terminal domain of alpha and beta subunits of F1 ATP synthase
Domain ID domain_idd1ohhf3
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.11 — RecA protein-like (ATPase-domain)
Domain ID domain_idd1ohhg_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamilyc.49.2 — ATP synthase (F1-ATPase), gamma subunit
Family Family familyc.49.2.1 — ATP synthase (F1-ATPase), gamma subunit
Domain ID domain_idd1ohhh_
Class classh — Coiled coil proteins
Fold Fold foldh.4 — Antiparallel coiled-coil
Superfamily Superfamily superfamilyh.4.8 — F1 ATPase inhibitor, IF1, C-terminal domain
Family Family familyh.4.8.1 — F1 ATPase inhibitor, IF1, C-terminal domain

CATH v4.4 (19 domains)

Domain ID domain_id1ohhA01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id1ohhA02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id1ohhA03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id1ohhB01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id1ohhB02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id1ohhB03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id1ohhC01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily20 —
Domain ID domain_id1ohhC02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id1ohhC03
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology150 — Lysin
Homologous superfamily homologous superfamily20 — ATP synthase alpha/beta chain, C-terminal domain
Domain ID domain_id1ohhD01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id1ohhD02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id1ohhD03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id1ohhE01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id1ohhE02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id1ohhE03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id1ohhF01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily170 —
Domain ID domain_id1ohhF02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id1ohhF03
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1140 — Bovine Mitochondrial F1-ATPase, ATP Synthase Beta Chain; Chain D, domain3
Homologous superfamily homologous superfamily10 — Bovine Mitochondrial F1-atpase; Atp Synthase Beta Chain; Chain D, domain 3
Domain ID domain_id1ohhG00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily80 — ATP synthase, gamma subunit, helix hairpin domain
▶

8. Citations (4)

▶

9. Files and Curves (10)
