6zpo

bovine ATP synthase monomer state 1 (combined)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase protein 8

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP8_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 8； PDBConstruct 1–66； UniProt 1–66

ATP synthase subunit alpha, mitochondrial

OrganismNot specified

UniProt P19483

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPA_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 44–553 Author chain B； PDBConstruct 1–510； UniProt 44–553 Author chain C； PDBConstruct 1–510； UniProt 44–553

ATP synthase subunit beta, mitochondrial

OrganismNot specified

UniProt P00829

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPB_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–482； UniProt 47–528 Author chain E； PDBConstruct 1–482； UniProt 47–528 Author chain F； PDBConstruct 1–482； UniProt 47–528

ATP synthase subunit gamma, mitochondrial

Bos taurus

UniProt P05631

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPG_BOVIN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–273； UniProt 26–298

ATP synthase subunit delta, mitochondrial

OrganismNot specified

UniProt P05630

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPD_BOVIN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain H； PDBConstruct 1–146； UniProt 23–168

ATP synthase subunit epsilon, mitochondrial

OrganismNot specified

UniProt P05632

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5E_BOVIN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain I； PDBConstruct 1–50； UniProt 2–51

ATPase inhibitor, mitochondrial

Bos taurus

UniProt P01096

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATIF1_BOVIN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain J； PDBConstruct 1–60； UniProt 26–85

ATP synthase F(0) complex subunit C1, mitochondrial

OrganismNot specified

UniProt P32876

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AT5G1_BOVIN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain K； PDBConstruct 1–75； UniProt 62–136 Author chain L； PDBConstruct 1–75； UniProt 62–136 Author chain M； PDBConstruct 1–75； UniProt 62–136 Author chain N； PDBConstruct 1–75； UniProt 62–136 Author chain O； PDBConstruct 1–75； UniProt 62–136 Author chain P； PDBConstruct 1–75； UniProt 62–136 Author chain Q； PDBConstruct 1–75； UniProt 62–136 Author chain R； PDBConstruct 1–75； UniProt 62–136

ATP synthase subunit O, mitochondrial

OrganismNot specified

UniProt P13621

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPO_BOVIN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain S； PDBConstruct 1–190； UniProt 24–213

ATP synthase subunit a

OrganismNot specified

UniProt P00847

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP6_BOVIN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain a； PDBConstruct 1–226； UniProt 1–226

ATP synthase F(0) complex subunit B1, mitochondrial

OrganismNot specified

UniProt P13619

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AT5F1_BOVIN
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain b； PDBConstruct 1–214； UniProt 43–256

ATP synthase subunit d, mitochondrial

OrganismNot specified

UniProt P13620

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5H_BOVIN
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain d； PDBConstruct 1–160； UniProt 2–161

ATP synthase subunit e, mitochondrial

OrganismNot specified

UniProt Q00361

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5I_BOVIN
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain e； PDBConstruct 1–70； UniProt 2–71

ATP synthase subunit f, mitochondrial

OrganismNot specified

UniProt Q28851

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPK_BOVIN
Isoform	—
PDB entities	14
Chains and sequence ranges	Author chain f； PDBConstruct 1–87； UniProt 2–88

ATP synthase subunit g, mitochondrial

OrganismNot specified

UniProt Q28852

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5L_BOVIN
Isoform	—
PDB entities	15
Chains and sequence ranges	Author chain g； PDBConstruct 1–102； UniProt 2–103

ATP synthase-coupling factor 6, mitochondrial

OrganismNot specified

UniProt P02721

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5J_BOVIN
Isoform	—
PDB entities	16
Chains and sequence ranges	Author chain h； PDBConstruct 1–76； UniProt 33–108

ATP synthase subunit ATP5MPL, mitochondrial

OrganismNot specified

UniProt P14790

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase membrane subunit DAPIT, mitochondrial × 1 （Q3ZBI7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP68_BOVIN
Isoform	—
PDB entities	17
Chains and sequence ranges	Author chain j； PDBConstruct 1–60； UniProt 1–60

ATP synthase membrane subunit DAPIT, mitochondrial

OrganismNot specified

UniProt Q3ZBI7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 29	ATP synthase protein 8 × 1 （P03929） ATP synthase subunit alpha, mitochondrial × 3 （P19483） ATP synthase subunit beta, mitochondrial × 3 （P00829） ATP synthase subunit gamma, mitochondrial × 1 （P05631） ATP synthase subunit delta, mitochondrial × 1 （P05630） ATP synthase subunit epsilon, mitochondrial × 1 （P05632） ATPase inhibitor, mitochondrial × 1 （P01096） ATP synthase F(0) complex subunit C1, mitochondrial × 8 （P32876） ATP synthase subunit O, mitochondrial × 1 （P13621） ATP synthase subunit a × 1 （P00847） ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P13619） ATP synthase subunit d, mitochondrial × 1 （P13620） ATP synthase subunit e, mitochondrial × 1 （Q00361） ATP synthase subunit f, mitochondrial × 1 （Q28851） ATP synthase subunit g, mitochondrial × 1 （Q28852） ATP synthase-coupling factor 6, mitochondrial × 1 （P02721） ATP synthase subunit ATP5MPL, mitochondrial × 1 （P14790） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 3 CARDIOLIPIN × 3 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATPMD_BOVIN
Isoform	—
PDB entities	18
Chains and sequence ranges	Author chain k； PDBConstruct 1–57； UniProt 2–58

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6zpo
Deposition date deposition_date	2020-07-09
Structure title title	bovine ATP synthase monomer state 1 (combined)
Keywords keywords	ATP synthase, mitochondria, mammalian, complex, HYDROLASE; HYDROLASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6zpo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

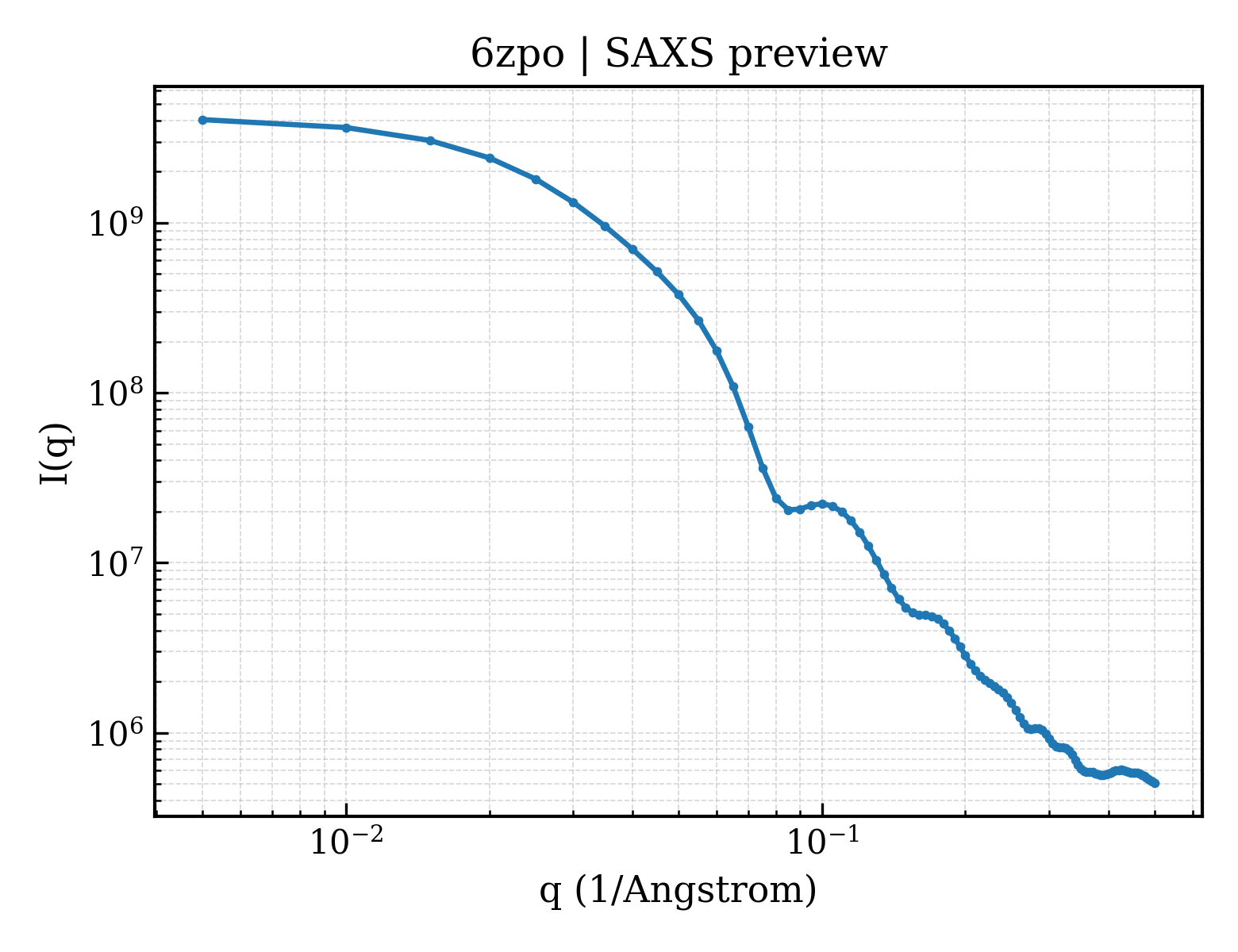

6zpo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

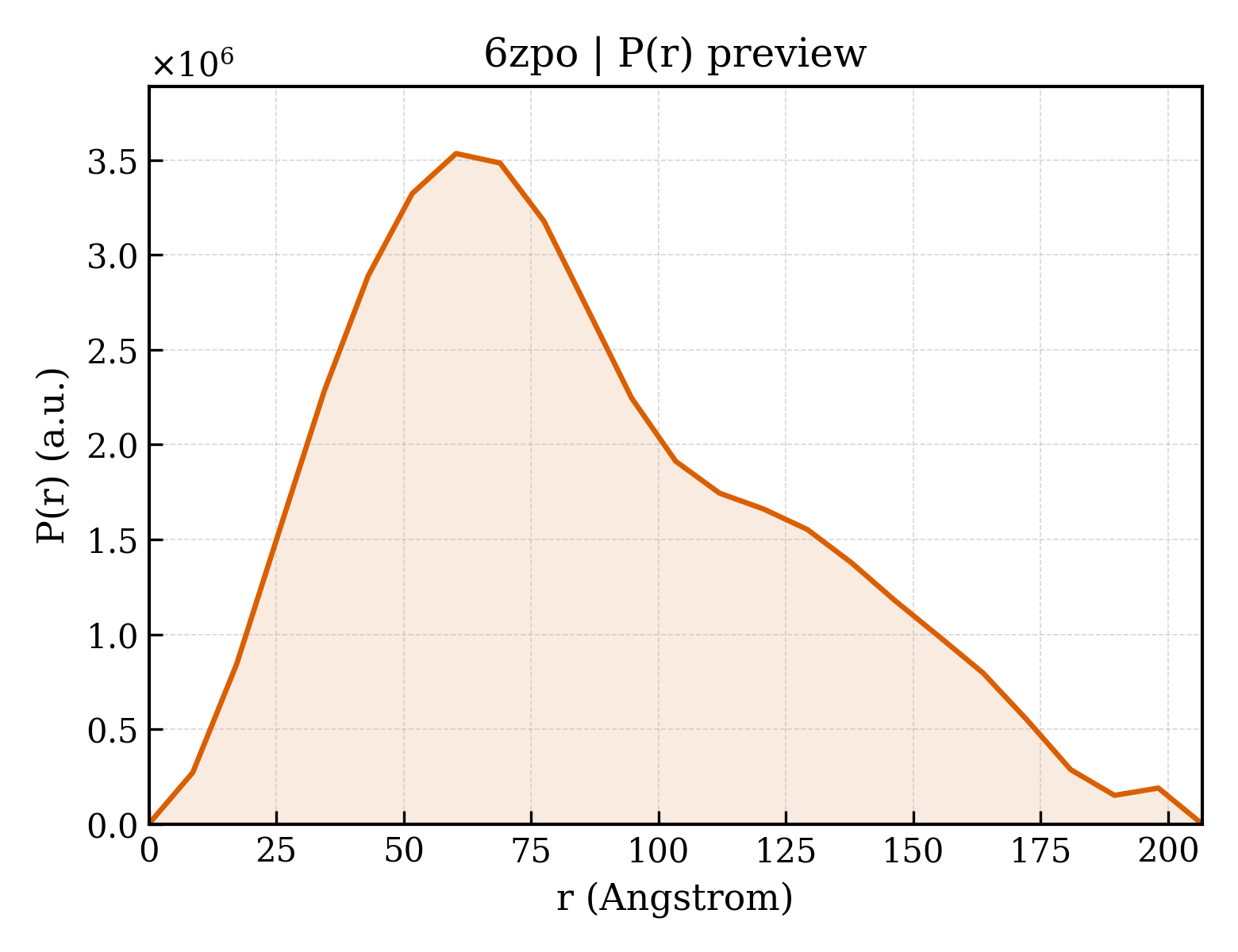

6zpo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.10 Å
Rg (electron density)	66.95 Å
Total Rg	67.01 Å
Atom count	81035
Residues	5142
Excluded volume	720610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6zpo__assembly_1__model_1`	29-meric （29）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (24)

Entity 1 Entity 1 polymer

Description description	ATP synthase protein 8
Molecular weight formula_weight	7944.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	8
Atom count atom_count	81052

MPQLDTSTWLTMILSMFLTLFIIFQLKVSKHNFYHNPELTPTKMLKQNTPWETKWTKIYLPLLLPL

Entity 2 Entity 2 polymer

Description description	ATP synthase subunit alpha, mitochondrial
Molecular weight formula_weight	55332.2 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C

EKTGTAEVSSILEERILGADTSVDLEETGRVLSIGDGIARVHGLRNVQAEEMVEFSSGLKGMSLNLEPDNVGVVVFGNDKLIKEGDIVKRTGAIVDVPVGEELLGRVVDALGNAIDGKGPIGSKARRRVGLKAPGIIPRISVREPMQTGIKAVDSLVPIGRGQRELIIGDRQTGKTSIAIDTIINQKRFNDGTDEKKKLYCIYVAIGQKRSTVAQLVKRLTDADAMKYTIVVSATASDAAPLQYLAPYSGCSMGEYFRDNGKHALIIYDDLSKQAVAYRQMSLLLRRPPGREAYPGDVFYLHSRLLERAAKMNDAFGGGSLTALPVIETQAGDVSAYIPTNVISITDGQIFLETELFYKGIRPAINVGLSVSRVGSAAQTRAMKQVAGTMKLELAQYREVAAFAQFGSDLDAATQQLLSRGVRLTELLKQGQYSPMAIEEQVAVIYAGVRGYLDKLEPSKITKFENAFLSHVISQHQALLSKIRTDGKISEESDAKLKEIVTNFLAGFEA

Entity 3 Entity 3 polymer

Description description	ATP synthase subunit beta, mitochondrial
Molecular weight formula_weight	51757.8 kDa
EC 编号 ec_number	7.1.2.2
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

AAQASPSPKAGATTGRIVAVIGAVVDVQFDEGLPPILNALEVQGRETRLVLEVAQHLGESTVRTIAMDGTEGLVRGQKVLDSGAPIRIPVGPETLGRIMNVIGEPIDERGPIKTKQFAAIHAEAPEFVEMSVEQEILVTGIKVVDLLAPYAKGGKIGLFGGAGVGKTVLIMELINNVAKAHGGYSVFAGVGERTREGNDLYHEMIESGVINLKDATSKVALVYGQMNEPPGARARVALTGLTVAEYFRDQEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAVGYQPTLATDMGTMQERITTTKKGSITSVQAIYVPADDLTDPAPATTFAHLDATTVLSRAIAELGIYPAVDPLDSTSRIMDPNIVGSEHYDVARGVQKILQDYKSLQDIIAILGMDELSEEDKLTVSRARKIQRFLSQPFQVAEVFTGHLGKLVPLKETIKGFQQILAGEYDHLPEQAFYMVGPIEEAVAKADKLAEEHS

Entity 4 Entity 4 polymer

Description description	ATP synthase subunit gamma, mitochondrial
Molecular weight formula_weight	30300.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ATLKDITRRLKSIKNIQKITKSMKMVAAAKYARAERELKPARVYGVGSLALYEKADIKTPEDKKKHLIIGVSSDRGLCGAIHSSVAKQMKSEAANLAAAGKEVKIIGVGDKIRSILHRTHSDQFLVTFKEVGRRPPTFGDASVIALELLNSGYEFDEGSIIFNRFRSVISYKTEEKPIFSLDTISSAESMSIYDDIDADVLRNYQEYSLANIIYYSLKESTTSEQSARMTAMDNASKNASEMIDKLTLTFNRTRQAVITKELIEIISGAAALD

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	ATP synthase subunit delta, mitochondrial
Molecular weight formula_weight	15074.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

AEAAAAQAPAAGPGQMSFTFASPTQVFFNSANVRQVDVPTQTGAFGILAAHVPTLQVLRPGLVVVHAEDGTTSKYFVSSGSVTVNADSSVQLLAEEAVTLDMLDLGAAKANLEKAQSELLGAADEATRAEIQIRIEANEALVKALE

Entity 6 Entity 6 polymer

Description description	ATP synthase subunit epsilon, mitochondrial
Molecular weight formula_weight	5662.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

VAYWRQAGLSYIRYSQICAKAVRDALKTEFKANAMKTSGSTIKIVKVKKE

Entity 7 Entity 7 polymer

Description description	ATPase inhibitor, mitochondrial
Molecular weight formula_weight	7462.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

GSESGDNVRSSAGAVRDAGGAFGKREQAEEERYFRARAKEQLAALKKHHENEISHHAKEIHHHHHH

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	ATP synthase F(0) complex subunit C1, mitochondrial
Molecular weight formula_weight	7653.0 kDa
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,L,M,N,O,P,Q,R

DIDTAAKFIGAGAATVGVAGSGAGIGTVFGSLIIGYARNPSLKQQLFSYAILGFALSEAMGLFCLMVAFLILFAM

Entity 9 Entity 9 polymer

Description description	ATP synthase subunit O, mitochondrial
Molecular weight formula_weight	20959.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

FAKLVRPPVQIYGIEGRYATALYSAASKQNKLEQVEKELLRVGQILKEPKMAASLLNPYVKRSVKVKSLSDMTAKEKFSPLTSNLINLLAENGRLTNTPAVISAFSTMMSVHRGEVPCTVTTASALDEATLTELKTVLKSFLSKGQVLKLEVKIDPSIMGGMIVRIGEKYVDMSAKTKIQKLSRAMREIL

Entity 10 Entity 10 polymer

Description description	ATP synthase subunit a
Molecular weight formula_weight	24801.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a

MNENLFTSFITPVILGLPLVTLIVLFPSLLFPTSNRLVSNRFVTLQQWMLQLVSKQMMSIHNSKGQTWTLMLMSLILFIGSTNLLGLLPHSFTPTTQLSMNLGMAIPLWAGAVITGFRNKTKASLAHFLPQGTPTPLIPMLVIIETISLFIQPMALAVRLTANITAGHLLIHLIGGATLALMSISTTTALITFTILILLTILEFAVAMIQAYVFTLLVSLYLHDNT

Entity 11 Entity 11 polymer

Description description	ATP synthase F(0) complex subunit B1, mitochondrial
Molecular weight formula_weight	24702.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b

PVPPLPEHGGKVRFGLIPEEFFQFLYPKTGVTGPYVLGTGLILYLLSKEIYVITPETFSAISTIGFLVYIVKKYGASVGEFADKLNEQKIAQLEEVKQASIKQIQDAIDMEKSQQALVQKRHYLFDVQRNNIAMALEVTYRERLHRVYREVKNRLDYHISVQNMMRQKEQEHMINWVEKRVVQSISAQQEKETIAKCIADLKLLSKKAQAQPVM

Entity 12 Entity 12 polymer

Description description	ATP synthase subunit d, mitochondrial
Molecular weight formula_weight	18588.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	d

AGRKLALKTIDWVAFGEIIPRNQKAVANSLKSWNETLTSRLATLPEKPPAIDWAYYKANVAKAGLVDDFEKKFNALKVPIPEDKYTAQVDAEEKEDVKSCAEFLTQSKTRIQEYEKELEKMRNIIPFDQMTIEDLNEVFPETKLDKKKYPYWPHRPIETL

Entity 13 Entity 13 polymer

Description description	ATP synthase subunit e, mitochondrial
Molecular weight formula_weight	8205.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	e

VPPVQVSPLIKLGRYSALFLGMAYGAKRYNYLKPRAEEERRLAAEEKKKRDEQKRIERELAEAQEDTILK

Entity 14 Entity 14 polymer

Description description	ATP synthase subunit f, mitochondrial
Molecular weight formula_weight	10184.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	f

ASVVPLKEKKLLEVKLGELPSWILMRDFTPSGIAGAFQRGYYRYYNKYVNVKKGSIAGLSMVLAAYVFLNYCRSYKELKHERLRKYH

Entity 15 Entity 15 polymer

Description description	ATP synthase subunit g, mitochondrial
Molecular weight formula_weight	11298.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	g

AEFVRNLAEKAPALVNAAVTYSKPRLATFWYYAKVELVPPTPAEIPTAIQSLKKIINSAKTGSFKQLTVKEALLNGLVATEVWMWFYVGEIIGKRGIIGYDV

Entity 16 Entity 16 polymer

Description description	ATP synthase-coupling factor 6, mitochondrial
Molecular weight formula_weight	8971.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	h

NKELDPVQKLFVDKIREYRTKRQTSGGPVDAGPEYQQDLDRELFKLKQMYGKADMNTFPNFTFEDPKFEVVEKPQS

Entity 17 Entity 17 polymer

Description description	ATP synthase subunit ATP5MPL, mitochondrial
Molecular weight formula_weight	6846.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	j

MLQSLIKKVWIPMKPYYTQAYQEIWVGTGLMAYIVYKIRSADKRSKALKASSAAPAHGHH

Entity 18 Entity 18 polymer

Description description	ATP synthase membrane subunit DAPIT, mitochondrial
Molecular weight formula_weight	6312.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	k

AGPEADAQFHFTGIKKYFNSYTLTGRMNCVLATYGSIALIVLYFKLRSKKTPAVKAT

Entity 19 Entity 19 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 20 Entity 20 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	nat
Copy count entity_count	5

Entity 21 Entity 21 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 22 Entity 22 non-polymer

Description description	CARDIOLIPIN
Molecular weight formula_weight	1464.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 23 Entity 23 non-polymer

Description description	1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE
Molecular weight formula_weight	723.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 24 Entity 24 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	17

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	4.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	101165

bovine ATP synthase monomer state 1 (combined)

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase protein 8

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit alpha, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit beta, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit gamma, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit delta, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit epsilon, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATPase inhibitor, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase F(0) complex subunit C1, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit O, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATP synthase subunit a

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
