SAXSdb — 1cow

▼

1. Structure Basics

entry_id	1cow
deposition_date	1996-05-08
title	BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH AUROVERTIN B
keywords	ATP PHOSPHORYLASE, HYDROGEN ION TRANSPORT, ATP SYNTHASE, F1F ATP SYNTHASE, F1-ATPASE; HYDROGEN ION TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	41.88 Å
rg_electron	41.05 Å
i0	1531280000.00
molecular_weight	326610.0 kDa
excluded_volume	410510 Å³
envelope_volume	519760 Å³
shell_volume	97280 Å³
envelope_diameter	133.6 Å
shell_rg	52.07 Å
envelope_rg	40.58 Å
shape_rg	41.06 Å
total_rg	41.47 Å
total_atoms	22944
n_residues	2987
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	125.6 Å
rg_real	41.57 Å
rg_real_error	0.53 Å
i0_real	1.5310e+09
i0_real_error	2.6790e+07
rg_reciprocal	41.88 Å
i0_reciprocal	1532000000.0000
total_estimate	0.8950
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	56.2 Å
skewness	0.017
kurtosis	-0.563
angular_range	— – 0.1900 Å⁻¹
current_alpha	0.0000
highest_alpha	373100000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.922

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	BOVINE MITOCHONDRIAL F1-ATPASE
formula_weight	55302.2 kDa
ec_number	3.6.1.34
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	23462

EKTGTAEVSSILEERILGADTSVDLEETGRVLSIGDGIARVHGLRNVQAEEMVEFSSGLKGMSLNLEPDNVGVVVFGNDKLIKEGDIVKRTGAIVDVPVGEELLGRVVDALGNAIDGKGPIGSKARRRVGLKAPGIIPRISVREPMQTGIKAVDSLVPIGRGQRELIIGDRQTGKTSIAIDTIINQKRFNDGTDEKKKLYCIYVAIGQKRSTVAQLVKRLTDADAMKYTIVVSATASDAAPLQYLAPYSGCSMGEYFRDNGKHALIIYDDLSKQAVAYRQMSLLLRRPPGREAYPGDVFYLHSRLLERAAKMNDAFGGGSLTALPVIETQAGDVSAYIPTNVISITDGQIFLETELFYKGIRPAINVGLSVSRVGSAAQTRAMKQVAGTMKLELAQYREVAAFAQFGSDLDAATQQLLSRGVRLTELLKQGQYSPMAIEEQVAVIYAGVRGYLDKLEPSKITKFENAFLSHVISQHQALLGKIRTDGKISEESDAKLKEIVTNFLAGFEA

Entity 2 polymer

description	BOVINE MITOCHONDRIAL F1-ATPASE
formula_weight	51757.8 kDa
ec_number	3.6.1.34
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	D,E,F

AAQASPSPKAGATTGRIVAVIGAVVDVQFDEGLPPILNALEVQGRETRLVLEVAQHLGESTVRTIAMDGTEGLVRGQKVLDSGAPIRIPVGPETLGRIMNVIGEPIDERGPIKTKQFAAIHAEAPEFVEMSVEQEILVTGIKVVDLLAPYAKGGKIGLFGGAGVGKTVLIMELINNVAKAHGGYSVFAGVGERTREGNDLYHEMIESGVINLKDATSKVALVYGQMNEPPGARARVALTGLTVAEYFRDQEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAVGYQPTLATDMGTMQERITTTKKGSITSVQAIYVPADDLTDPAPATTFAHLDATTVLSRAIAELGIYPAVDPLDSTSRIMDPNIVGSEHYDVARGVQKILQDYKSLQDIIAILGMDELSEEDKLTVSRARKIQRFLSQPFQVAEVFTGHLGKLVPLKETIKGFQQILAGEYDHLPEQAFYMVGPIEEAVAKADKLAEEHS

Entity 3 polymer

description	BOVINE MITOCHONDRIAL F1-ATPASE
formula_weight	30185.7 kDa
ec_number	3.6.1.34
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

ATLKDITRRLKSIKNIQKITKSMKMVAAAKYARAERELKPARVYGVGSLALYEKADIKTPEDKKKHLIIGVSSDRGLCGAIHSSVAKQMKSEAANLAAAGKEVKIIGVGDKIRSILHRTHSDQFLVTFKEVGRRPPTFGDASVIALELLNSGYEFDEGSIIFNRFRSVISYKTEEKPIFSLDTISSAESMSIYDDIDADVLRNYQEYSLANIIYYSLKESTTSEQSARMTAMDNASKNASEMIDKLTLTFNRTRQAVITKELIEIISGAAAL

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	5

Entity 5 non-polymer

description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
formula_weight	506.2 kDa
src_method	syn
entity_count	4

Entity 6 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	AUROVERTIN B
formula_weight	460.5 kDa
src_method	syn
entity_count	2

Entity 8 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	518

▶

6. Citations (4)

▶

length_a	283.400 Å
length_b	107.600 Å
length_c	140.200 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	3.100 Å
resolution_low	20.000 Å
r_factor	—
r_work	—
r_free	0.2800

fit	/app/data/saxs_computation/co/1cow/1cow.fit
pddf	/app/data/pr_computation/co/1cow/1cow.pr.out
profile	/app/data/saxs_computation/co/1cow/1cow.dat

BOVINE MITOCHONDRIAL F1-ATPASE COMPLEXED WITH AUROVERTIN B

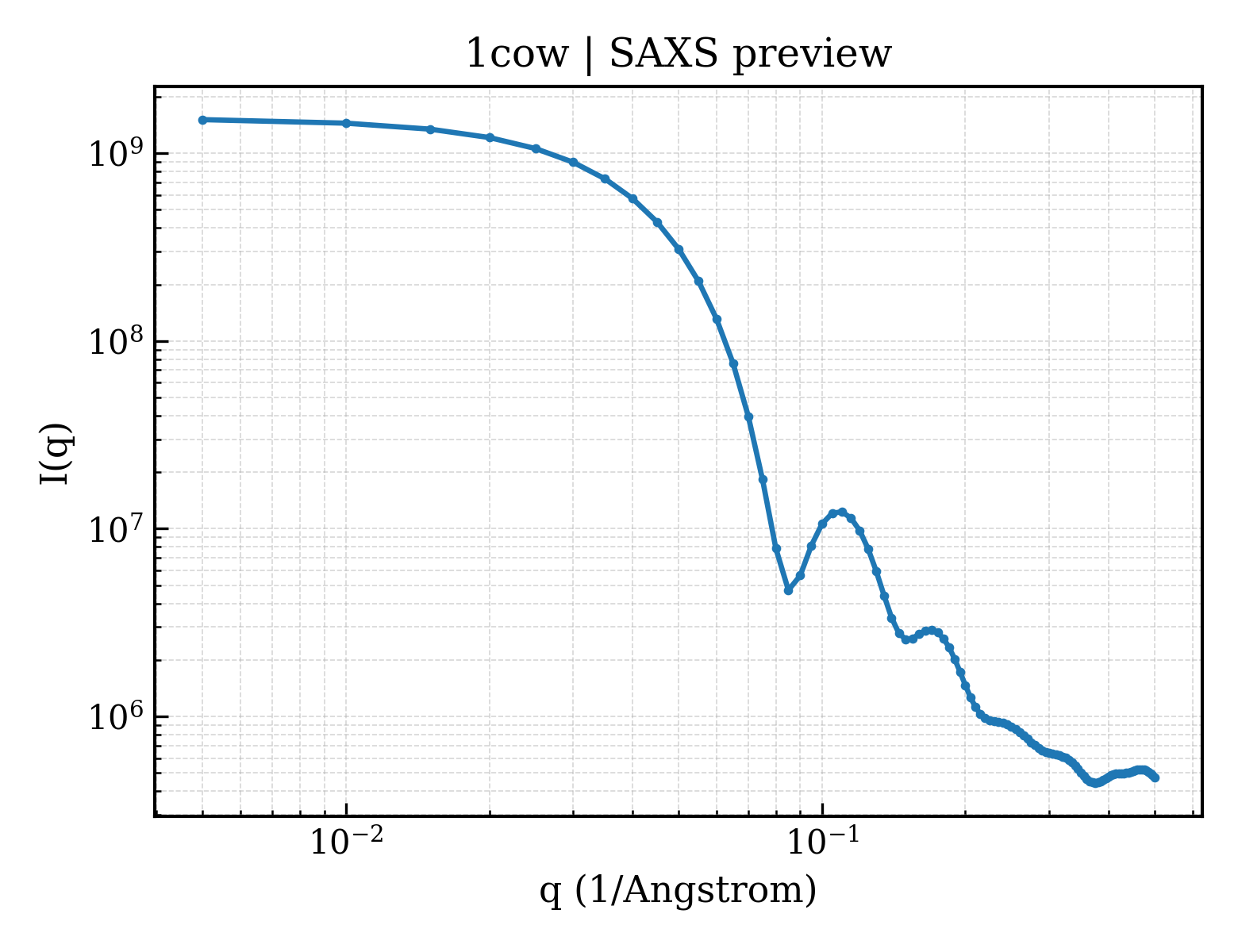

SAXS Profile

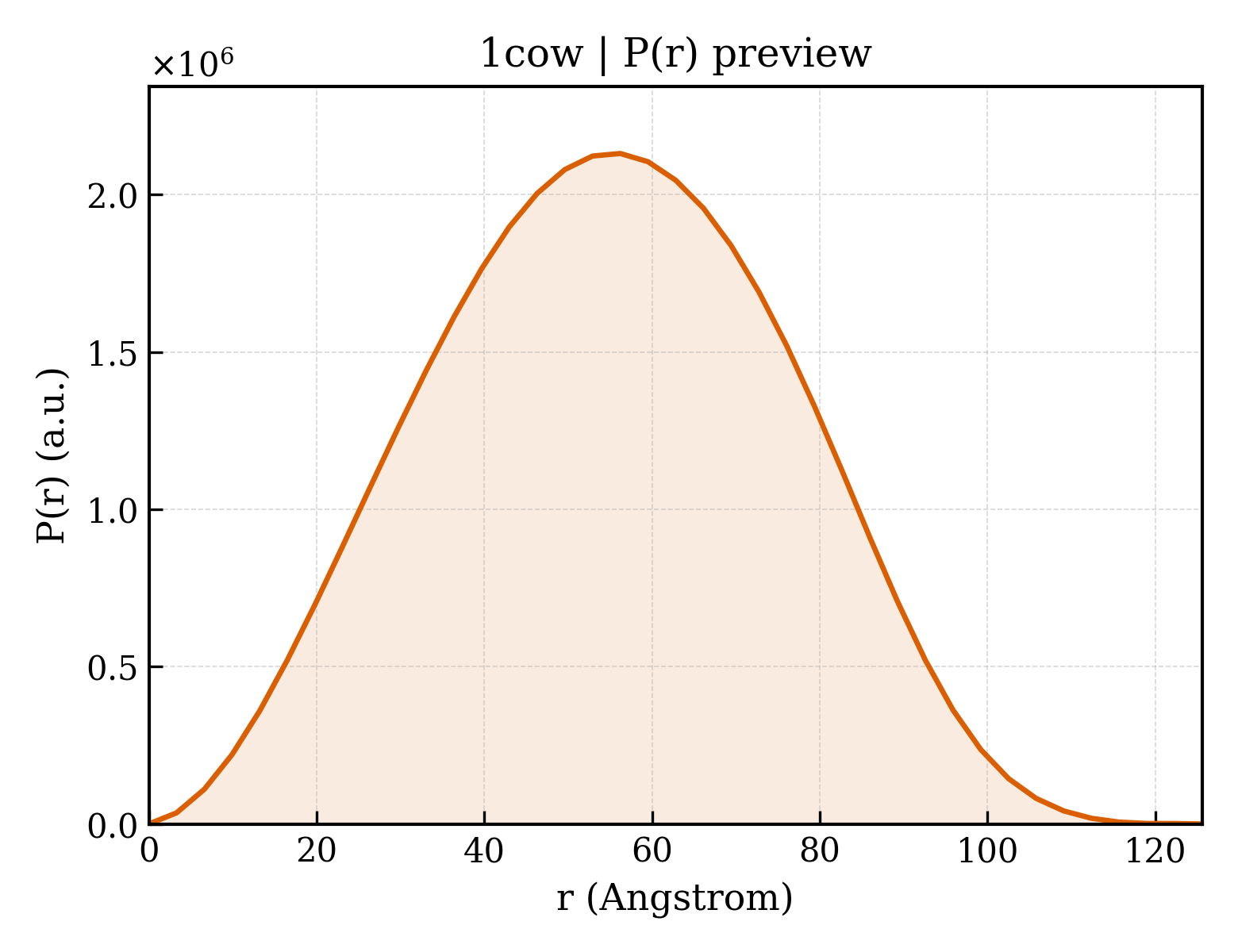

P(r) Distribution
