9w2s

Cryo-EM structure of FoF1-ATPase monomer state 3 on the bovine heart submitochondrial particles (FoF1-2)

Method: ELECTRON MICROSCOPY D_max: 215.1 Å Quality: GOOD

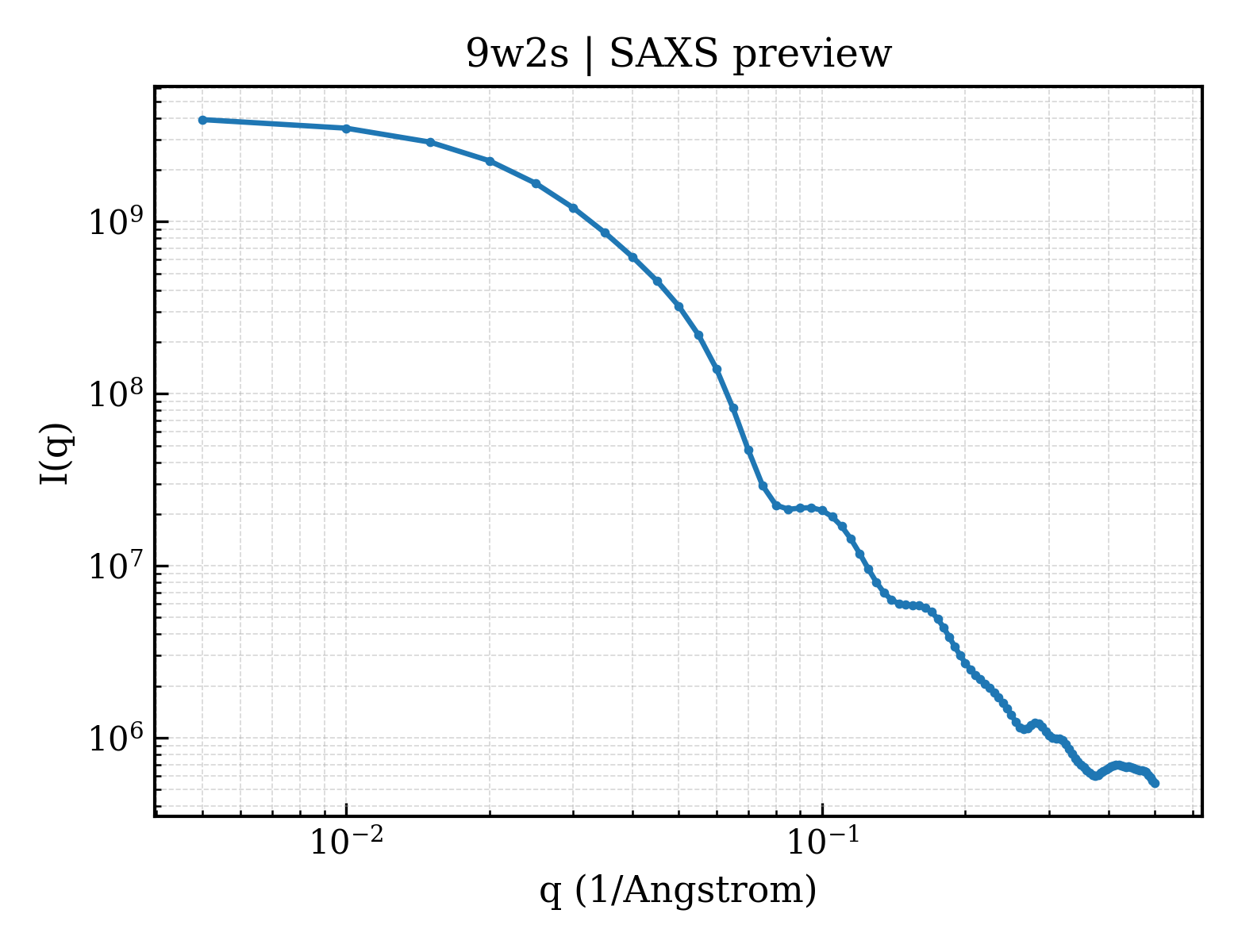

SAXS Profile

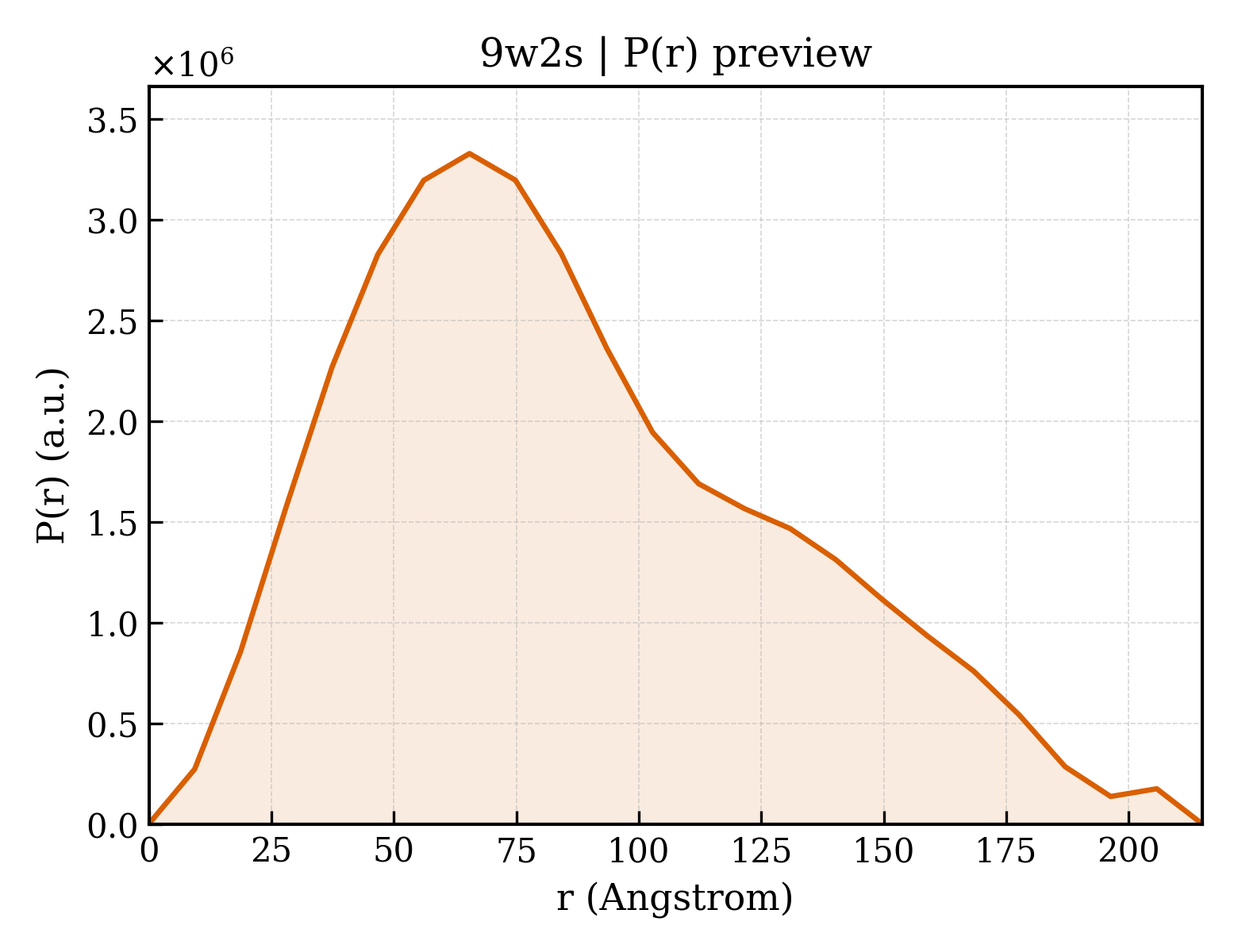

P(r) Distribution

▼

1. Structure Basics

entry_id	9w2s
deposition_date	2025-07-28
title	Cryo-EM structure of FoF1-ATPase monomer state 3 on the bovine heart submitochondrial particles (FoF1-2)
keywords	ATP synthase, FoF1-ATPase, submitochondrial particles, MOTOR PROTEIN; MOTOR PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	67.66 Å
rg_electron	68.54 Å
i0	4070460000.00
molecular_weight	555810.0 kDa
excluded_volume	703650 Å³
envelope_volume	1107300 Å³
shell_volume	137450 Å³
envelope_diameter	244.8 Å
shell_rg	65.63 Å
envelope_rg	68.36 Å
shape_rg	68.54 Å
total_rg	68.47 Å
total_atoms	39116
n_residues	5147
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	215.1 Å
rg_real	67.91 Å
rg_real_error	1.67 Å
i0_real	4.0690e+09
i0_real_error	8.6130e+07
rg_reciprocal	66.47 Å
i0_reciprocal	4059000000.0000
total_estimate	0.7995
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	65.5 Å
skewness	0.548
kurtosis	-0.387
angular_range	— – 0.1150 Å⁻¹
current_alpha	0.0009
highest_alpha	576300000.0000
n_real_points	24
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.038

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (18)

Entity 1 polymer

description	ATP synthase F(0) complex subunit 8
formula_weight	7944.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	8
atom_count	39116

MPQLDTSTWLTMILSMFLTLFIIFQLKVSKHNFYHNPELTPTKMLKQNTPWETKWTKIYLPLLLPL

Entity 2 polymer

description	ATP synthase F(1) complex subunit alpha, mitochondrial
formula_weight	55331.2 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	C,A,B

QKTGTAEVSSILEERILGADTSVDLEETGRVLSIGDGIARVHGLRNVQAEEMVEFSSGLKGMSLNLEPDNVGVVVFGNDKLIKEGDIVKRTGAIVDVPVGEELLGRVVDALGNAIDGKGPIGSKARRRVGLKAPGIIPRISVREPMQTGIKAVDSLVPIGRGQRELIIGDRQTGKTSIAIDTIINQKRFNDGTDEKKKLYCIYVAIGQKRSTVAQLVKRLTDADAMKYTIVVSATASDAAPLQYLAPYSGCSMGEYFRDNGKHALIIYDDLSKQAVAYRQMSLLLRRPPGREAYPGDVFYLHSRLLERAAKMNDAFGGGSLTALPVIETQAGDVSAYIPTNVISITDGQIFLETELFYKGIRPAINVGLSVSRVGSAAQTRAMKQVAGTMKLELAQYREVAAFAQFGSDLDAATQQLLSRGVRLTELLKQGQYSPMAIEEQVAVIYAGVRGYLDKLEPSKITKFENAFLSHVISQHQALLSKIRTDGKISEESDAKLKEIVTNFLAGFEA

Entity 3 polymer

description	ATP synthase F(1) complex catalytic subunit beta, mitochondrial
formula_weight	51757.8 kDa
ec_number	7.1.2.2
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	F,D,E

AAQASPSPKAGATTGRIVAVIGAVVDVQFDEGLPPILNALEVQGRETRLVLEVAQHLGESTVRTIAMDGTEGLVRGQKVLDSGAPIRIPVGPETLGRIMNVIGEPIDERGPIKTKQFAAIHAEAPEFVEMSVEQEILVTGIKVVDLLAPYAKGGKIGLFGGAGVGKTVLIMELINNVAKAHGGYSVFAGVGERTREGNDLYHEMIESGVINLKDATSKVALVYGQMNEPPGARARVALTGLTVAEYFRDQEGQDVLLFIDNIFRFTQAGSEVSALLGRIPSAVGYQPTLATDMGTMQERITTTKKGSITSVQAIYVPADDLTDPAPATTFAHLDATTVLSRAIAELGIYPAVDPLDSTSRIMDPNIVGSEHYDVARGVQKILQDYKSLQDIIAILGMDELSEEDKLTVSRARKIQRFLSQPFQVAEVFTGHLGKLVPLKETIKGFQQILAGEYDHLPEQAFYMVGPIEEAVAKADKLAEEHS

Entity 4 polymer

description	ATP synthase F(1) complex subunit gamma, mitochondrial
formula_weight	30300.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

ATLKDITRRLKSIKNIQKITKSMKMVAAAKYARAERELKPARVYGVGSLALYEKADIKTPEDKKKHLIIGVSSDRGLCGAIHSSVAKQMKSEAANLAAAGKEVKIIGVGDKIRSILHRTHSDQFLVTFKEVGRRPPTFGDASVIALELLNSGYEFDEGSIIFNRFRSVISYKTEEKPIFSLDTISSAESMSIYDDIDADVLRNYQEYSLANIIYYSLKESTTSEQSARMTAMDNASKNASEMIDKLTLTFNRTRQAVITKELIEIISGAAALD

Entity 5 polymer

description	ATP synthase F(1) complex subunit delta, mitochondrial
formula_weight	15074.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

AEAAAAQAPAAGPGQMSFTFASPTQVFFNSANVRQVDVPTQTGAFGILAAHVPTLQVLRPGLVVVHAEDGTTSKYFVSSGSVTVNADSSVQLLAEEAVTLDMLDLGAAKANLEKAQSELLGAADEATRAEIQIRIEANEALVKALE

Entity 6 polymer

description	ATP synthase F(1) complex subunit epsilon, mitochondrial
formula_weight	5662.7 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

VAYWRQAGLSYIRYSQICAKAVRDALKTEFKANAMKTSGSTIKIVKVKKE

Entity 7 polymer

description	ATPase inhibitor, mitochondrial
formula_weight	6633.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	J

GSESGDNVRSSAGAVRDAGGAFGKREQAEEERYFRARAKEQLAALKKHHENEISHHAKEI

Entity 8 polymer

description	ATP synthase F(0) complex subunit C1, mitochondrial
formula_weight	7653.0 kDa
src_method	nat
entity_count	8

Polymer

type	polypeptide(L)
strand_id	K,L,M,N,O,P,Q,R

DIDTAAKFIGAGAATVGVAGSGAGIGTVFGSLIIGYARNPSLKQQLFSYAILGFALSEAMGLFCLMVAFLILFAM

Entity 9 polymer

description	ATP synthase peripheral stalk subunit OSCP, mitochondrial
formula_weight	20959.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	S

FAKLVRPPVQIYGIEGRYATALYSAASKQNKLEQVEKELLRVGQILKEPKMAASLLNPYVKRSVKVKSLSDMTAKEKFSPLTSNLINLLAENGRLTNTPAVISAFSTMMSVHRGEVPCTVTTASALDEATLTELKTVLKSFLSKGQVLKLEVKIDPSIMGGMIVRIGEKYVDMSAKTKIQKLSRAMREIL

Entity 10 polymer

description	ATP synthase F(0) complex subunit a
formula_weight	24801.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	a

MNENLFTSFITPVILGLPLVTLIVLFPSLLFPTSNRLVSNRFVTLQQWMLQLVSKQMMSIHNSKGQTWTLMLMSLILFIGSTNLLGLLPHSFTPTTQLSMNLGMAIPLWAGAVITGFRNKTKASLAHFLPQGTPTPLIPMLVIIETISLFIQPMALAVRLTANITAGHLLIHLIGGATLALMSISTTTALITFTILILLTILEFAVAMIQAYVFTLLVSLYLHDNT

Entity 11 polymer

description	ATP synthase peripheral stalk subunit b, mitochondrial
formula_weight	24702.7 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	b

PVPPLPEHGGKVRFGLIPEEFFQFLYPKTGVTGPYVLGTGLILYLLSKEIYVITPETFSAISTIGFLVYIVKKYGASVGEFADKLNEQKIAQLEEVKQASIKQIQDAIDMEKSQQALVQKRHYLFDVQRNNIAMALEVTYRERLHRVYREVKNRLDYHISVQNMMRQKEQEHMINWVEKRVVQSISAQQEKETIAKCIADLKLLSKKAQAQPVM

Entity 12 polymer

description	ATP synthase peripheral stalk subunit d, mitochondrial
formula_weight	18588.3 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	d

AGRKLALKTIDWVAFGEIIPRNQKAVANSLKSWNETLTSRLATLPEKPPAIDWAYYKANVAKAGLVDDFEKKFNALKVPIPEDKYTAQVDAEEKEDVKSCAEFLTQSKTRIQEYEKELEKMRNIIPFDQMTIEDLNEVFPETKLDKKKYPYWPHRPIETL

Entity 13 polymer

description	ATP synthase F(0) complex subunit e, mitochondrial
formula_weight	8205.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	e

VPPVQVSPLIKLGRYSALFLGMAYGAKRYNYLKPRAEEERRLAAEEKKKRDEQKRIERELAEAQEDTILK

Entity 14 polymer

description	ATP synthase F(0) complex subunit f, mitochondrial
formula_weight	10184.0 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	f

ASVVPLKEKKLLEVKLGELPSWILMRDFTPSGIAGAFQRGYYRYYNKYVNVKKGSIAGLSMVLAAYVFLNYCRSYKELKHERLRKYH

Entity 15 polymer

description	ATP synthase F(0) complex subunit g, mitochondrial
formula_weight	11298.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	g

AEFVRNLAEKAPALVNAAVTYSKPRLATFWYYAKVELVPPTPAEIPTAIQSLKKIINSAKTGSFKQLTVKEALLNGLVATEVWMWFYVGEIIGKRGIIGYDV

Entity 16 polymer

description	ATP synthase peripheral stalk subunit F6, mitochondrial
formula_weight	8971.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	h

NKELDPVQKLFVDKIREYRTKRQTSGGPVDAGPEYQQDLDRELFKLKQMYGKADMNTFPNFTFEDPKFEVVEKPQS

Entity 17 polymer

description	ATP synthase F(0) complex subunit j, mitochondrial
formula_weight	6846.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	j

MLQSLIKKVWIPMKPYYTQAYQEIWVGTGLMAYIVYKIRSADKRSKALKASSAAPAHGHH

Entity 18 polymer

description	ATP synthase F(0) complex subunit k, mitochondrial
formula_weight	6312.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	k

AGPEADAQFHFTGIKKYFNSYTLTGRMNCVLATYGSIALIVLYFKLRSKKTPAVKAT

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.000 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.00 Å
resolution_method	—
num_particles	328822

fit	/app/data/saxs_computation/w2/9w2s/9w2s.fit
pddf	/app/data/pr_computation/w2/9w2s/9w2s.pr.out
profile	/app/data/saxs_computation/w2/9w2s/9w2s.dat
