1eur
SIALIDASE

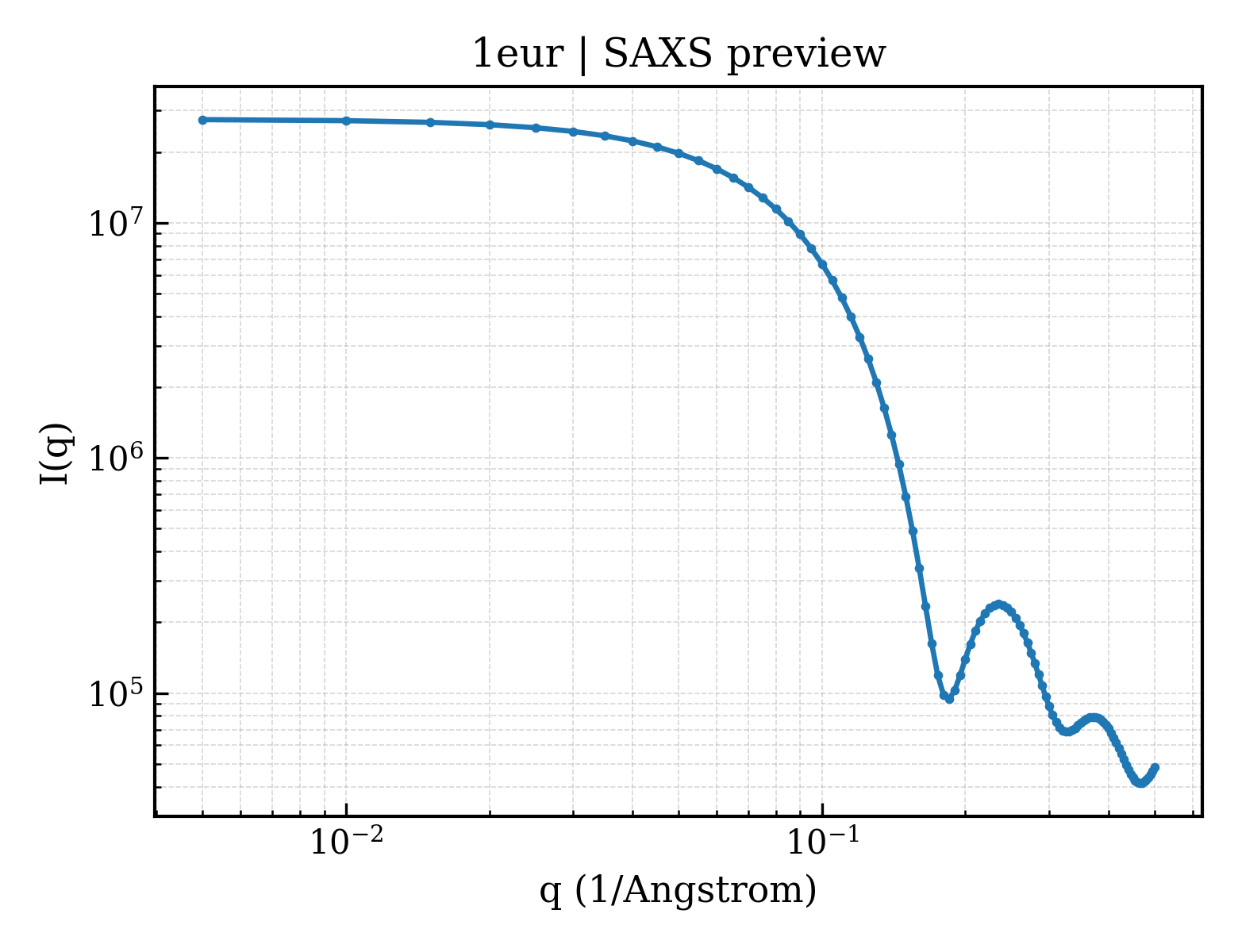

SAXS Profile

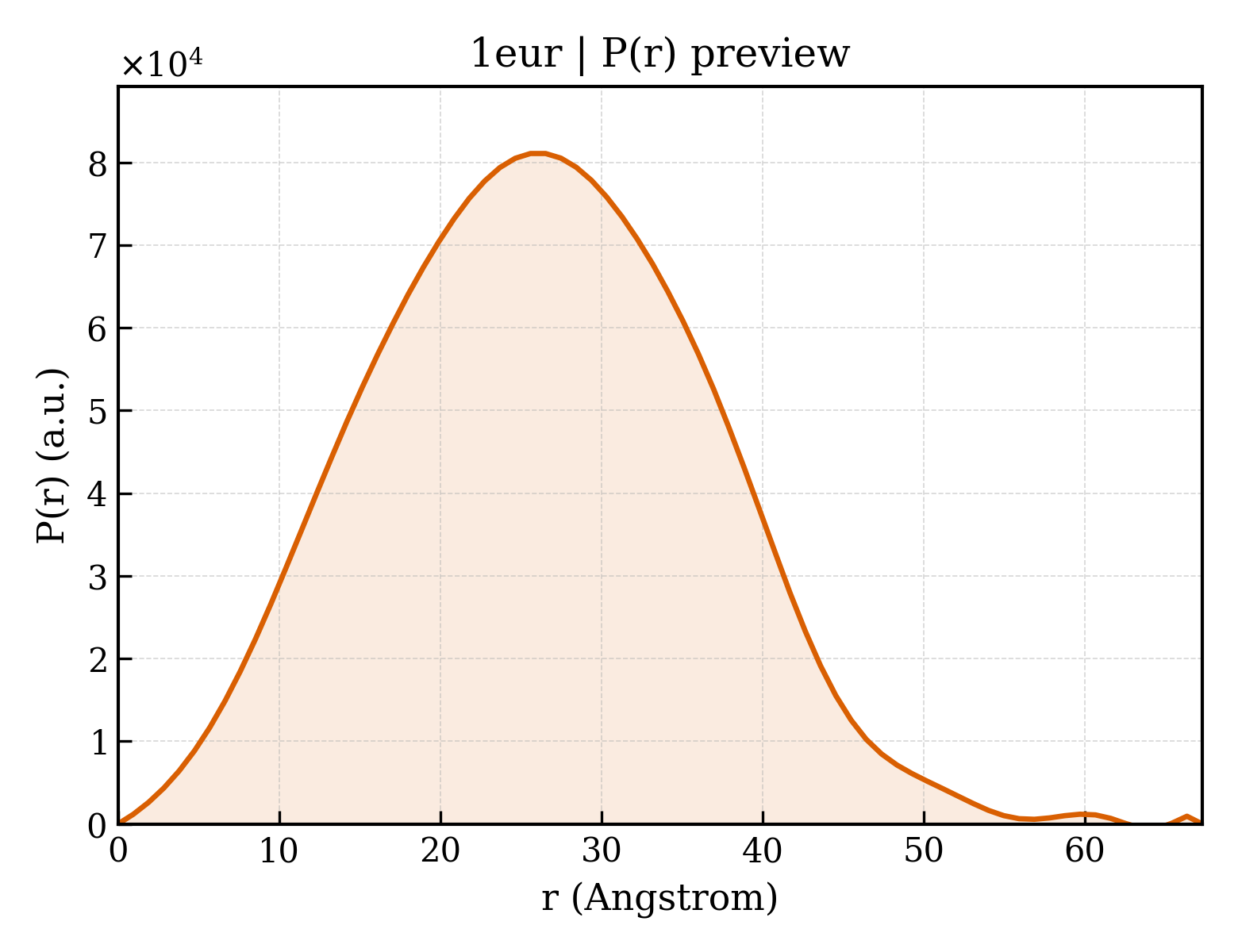

P(r) Distribution
1. Structure Basics
| entry_id | 1eur |
| deposition_date | 1996-06-21 |
| title | SIALIDASE |
| keywords | NEURAMINIDASE, SIALIDASE, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.99 Å |
| rg_electron | 18.90 Å |
| i0 | 27545100.00 |
| molecular_weight | 38501.0 kDa |
| excluded_volume | 47342 ų |
| envelope_volume | 53491 ų |
| shell_volume | 22791 ų |
| envelope_diameter | 71.1 Å |
| shell_rg | 26.23 Å |
| envelope_rg | 19.24 Å |
| shape_rg | 18.87 Å |
| total_rg | 19.88 Å |
| total_atoms | 2719 |
| n_residues | 361 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 67.3 Å |
| rg_real | 19.82 Å |
| rg_real_error | 0.36 Å |
| i0_real | 2.7550e+07 |
| i0_real_error | 3.6190e+05 |
| rg_reciprocal | 19.85 Å |
| i0_reciprocal | 27550000.0000 |
| total_estimate | 0.5986 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 59.7 Å |
| skewness | 0.135 |
| kurtosis | -0.277 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8258000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 0.210; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
