2bzd

Galactose recognition by the carbohydrate-binding module of a bacterial sialidase.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BACTERIAL SIALIDASE

MICROMONOSPORA VIRIDIFACIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SODIUM ION × 1 beta-D-galactopyranose × 1 GLYCEROL × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SODIUM ION × 1 beta-D-galactopyranose × 1 GLYCEROL × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	SODIUM ION × 1 beta-D-galactopyranose × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NANH_MICVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–601； UniProt 47–647 Author chain B； PDBConstruct 1–601； UniProt 47–647 Author chain C； PDBConstruct 1–601； UniProt 47–647

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bzd
Deposition date deposition_date	2005-08-16
Structure title title	Galactose recognition by the carbohydrate-binding module of a bacterial sialidase.
Keywords keywords	SIALIDASE, HYDROLASE, CARBOHYDRATE BINDING MODULE, GLYCOSIDASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bzd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bzd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

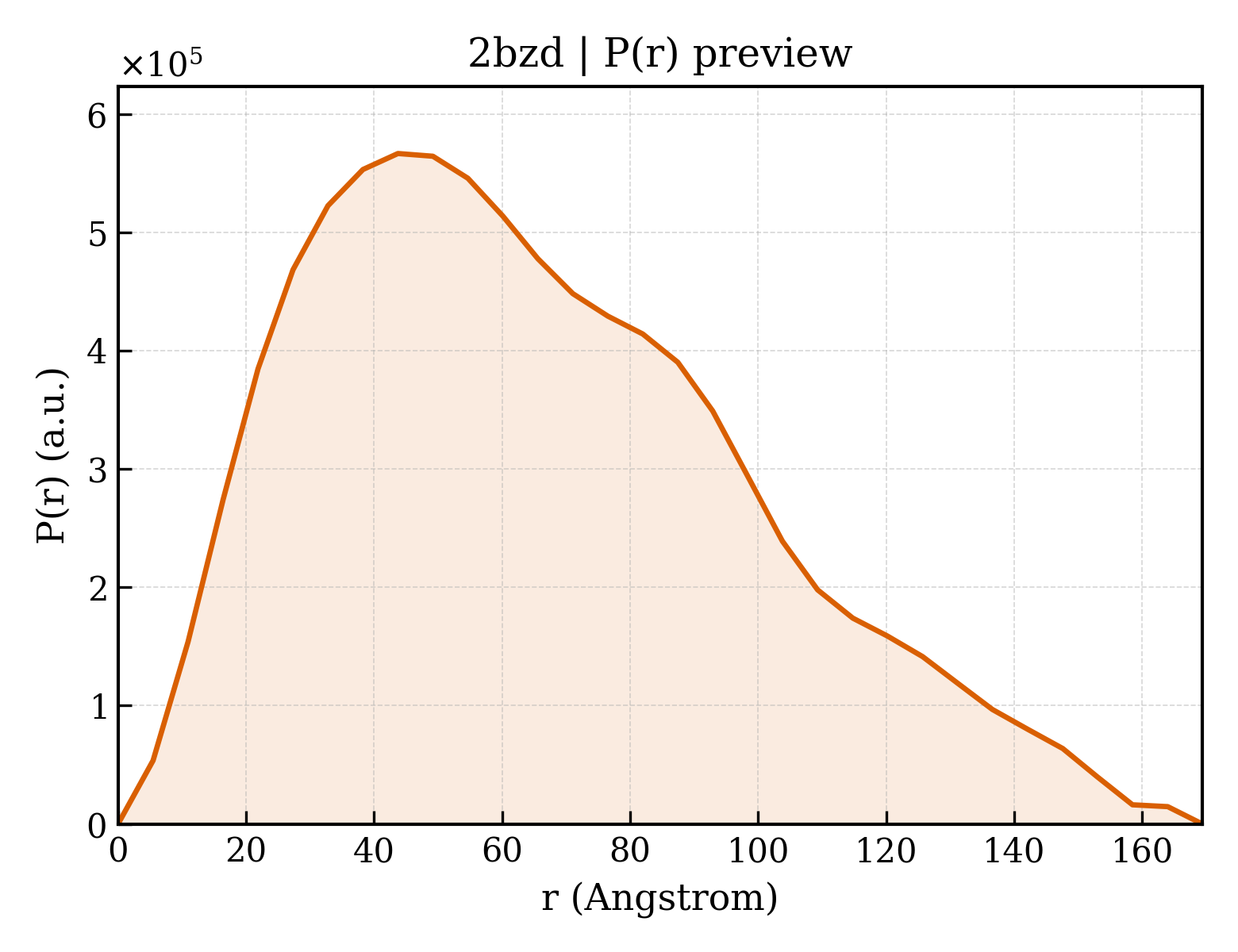

2bzd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.29 Å
Rg (electron density)	26.53 Å
Total Rg	27.27 Å
Atom count	4550
Residues	601
Excluded volume	79417 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bzd__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2bzd__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2bzd__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	BACTERIAL SIALIDASE
Molecular weight formula_weight	64240.6 kDa
EC 编号 ec_number	3.2.1.18
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	15216

GEPLYTEQDLAVNGREGFPNYRIPALTVTPDGDLLASYDGRPTGIDAPGPNSILQRRSTDGGRTWGEQQVVSAGQTTAPIKGFSDPSYLVDRETGTIFNFHVYSQRQGFAGSRPGTDPADPNVLHANVATSTDGGLTWSHRTITADITPDPGWRSRFAASGEGIQLRYGPHAGRLIQQYTIINAAGAFQAVSVYSDDHGRTWRAGEAVGVGMDANKTVELSDGRVLLNSRDSARSGYRKVAVSTDGGHSYGPVTIDRDLPDPTNNASIIRAFPDAPAGSARAKVLLFSNAASQTSRSQGTIRMSCDDGQTWPVSKVFQPGSMSYSTLTALPDGTYGLLYEPGTGIRYANFNLAWLGGICAPFTIPDVALEPGQQVTVPVAVTNQSGIAVPKPSLQLDASPDWQVQGSVEPLMPGRQAKGQVTITVPAGTTPGRYRVGATLRTSAGNASTTFTVTVGLLDQARMSIADVDSEETAREDGRASNVIDGNPSTFWHTEWSRADAPGYPHRISLDLGGTHTISGLQYTRRQNSANEQVADYEIYTSLNGTTWDGPVASGRFTTSLAPQRAVFPARDARYIRLVALSEQTGHKYAAVAELEVEGQR

Source Source

Source organism organism	MICROMONOSPORA VIRIDIFACIENS
NCBI taxonomy ID ncbi_taxonomy_id	1881
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	beta-D-galactopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1496

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d2bzda1
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.1 — Sialidases
Family Family family	b.68.1.1 — Sialidases (neuraminidases)

Domain ID domain_id	d2bzda2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.0 — automated matches

Domain ID domain_id	d2bzda3
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

Domain ID domain_id	d2bzdb1
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.1 — Sialidases
Family Family family	b.68.1.1 — Sialidases (neuraminidases)

Domain ID domain_id	d2bzdb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.0 — automated matches

Domain ID domain_id	d2bzdb3
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

Domain ID domain_id	d2bzdc1
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.1 — Sialidases
Family Family family	b.68.1.1 — Sialidases (neuraminidases)

Domain ID domain_id	d2bzdc2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.0 — automated matches

Domain ID domain_id	d2bzdc3
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

CATH v4.4 (9 domains)

Domain ID domain_id	2bzdA01
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2bzdA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2bzdA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2bzdB01
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2bzdB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2bzdB03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2bzdC01
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2bzdC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2bzdC03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

Unit-cell length a length_a	141.457 Å
Unit-cell length b length_b	141.457 Å
Unit-cell length c length_c	158.880 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	122.170 Å
R factor r_factor	0.1970
R_work r_work	0.1930
R_free r_free	0.2670
