SAXSdb — 1h3f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TYROSYL-TRNA SYNTHETASE

THERMUS THERMOPHILUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 5 4-[(2S)-2-amino-3-hydroxypropyl]phenol × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYY_THETH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–432； UniProt 1–432 Author chain B； PDBConstruct 1–432； UniProt 1–432

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h3f
Deposition date deposition_date	2002-08-28
Structure title title	Tyrosyl-tRNA synthetase from Thermus thermophilus complexed with tyrosinol
Keywords keywords	LIGASE, AMINOACYL-TRNA SYNTHETASE, ATP + L-TYROSINE + TRNA(TYR)->AMP + PPI + L-TYROSYL-TRNA(TY CLASS I AMINOACYL-TRNA SYNTHETASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h3f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h3f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

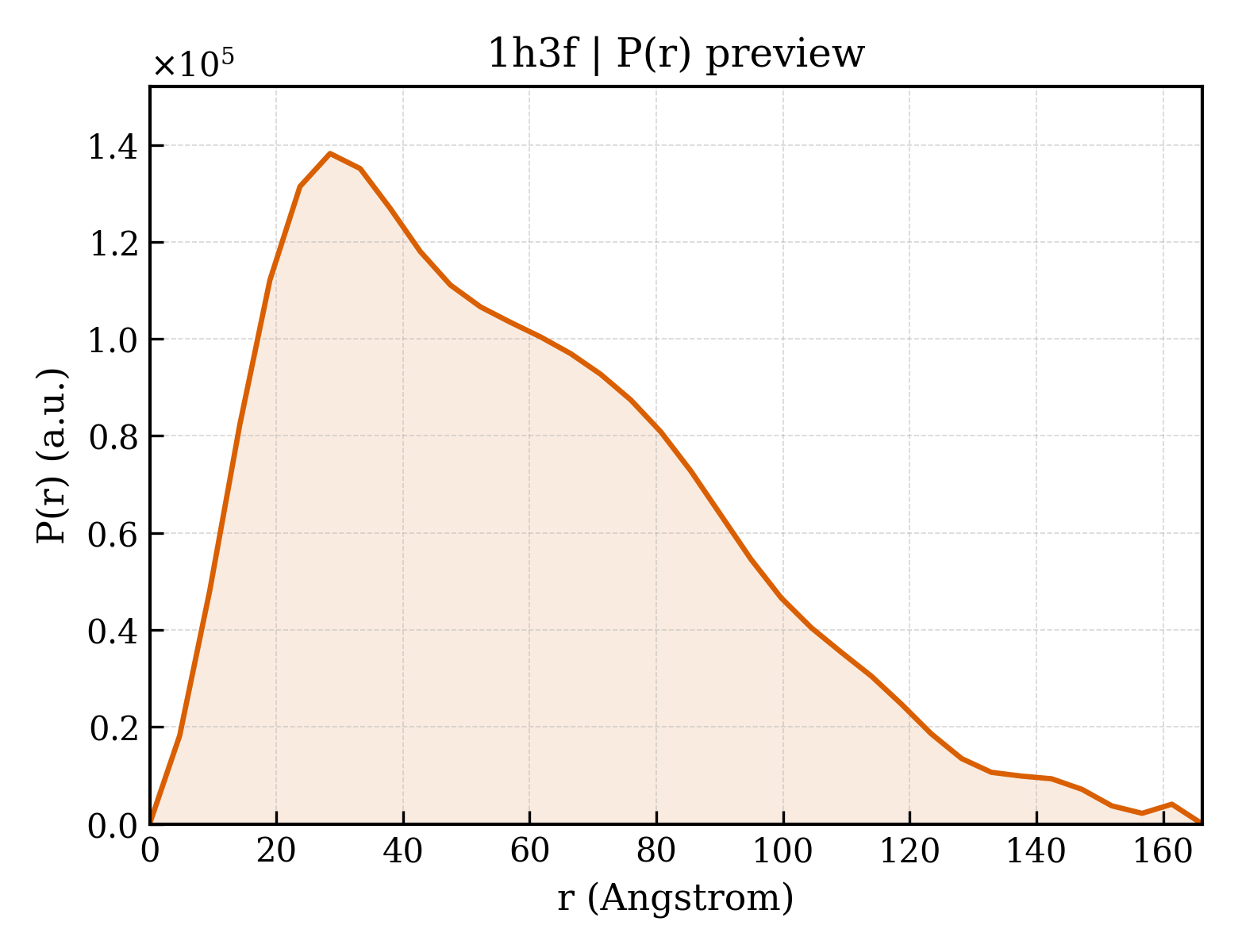

1h3f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.16 Å
Rg (electron density)	45.89 Å
Total Rg	45.69 Å
Atom count	6523
Residues	809
Excluded volume	116730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h3f__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	TYROSYL-TRNA SYNTHETASE
Molecular weight formula_weight	48786.2 kDa
EC 编号 ec_number	6.1.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6777

MAGTGHTPEEALALLKRGAEEIVPEEELLAKLKEGRPLTVKLGADPTRPDLHLGHAVVLRKMRQFQELGHKVVLIIGDFTGMIGDPSGRSKTRPPLTLEETRENAKTYVAQAGKILRQEPHLFELRYNSEWLEGLTFKEVVRLTSLMTVAQMLEREDFKKRYEAGIPISLHELLYPFAQAYDSVAIRADVEMGGTDQRFNLLVGREVQRAYGQSPQVCFLMPLLVGLDGREKMSKSLDNYIGLTEPPEAMFKKLMRVPDPLLPSYFRLLTDLEEEEIEALLKAGPVPAHRVLARLLTAAYALPQIPPRIDRAFYESLGYAWEAFGRDKEAGPEEVRRAEARYDEVAKGGIPEEIPEVTIPASELKEGRIWVARLFTLAGLTPSNAEARRLIQNRGLRLDGEVLTDPMLQVDLSRPRILQRGKDRFVRVRLSD

Source Source

Source organism organism	THERMUS THERMOPHILUS
NCBI taxonomy ID ncbi_taxonomy_id	262724
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	4-[(2S)-2-amino-3-hydroxypropyl]phenol
Molecular weight formula_weight	167.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	254

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1h3fa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

Domain ID domain_id	d1h3fa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.66 — Alpha-L RNA-binding motif
Superfamily Superfamily superfamily	d.66.1 — Alpha-L RNA-binding motif
Family Family family	d.66.1.4 — Tyrosyl-tRNA synthetase (TyrRS), C-terminal domain

Domain ID domain_id	d1h3fb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

Domain ID domain_id	d1h3fb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.66 — Alpha-L RNA-binding motif
Superfamily Superfamily superfamily	d.66.1 — Alpha-L RNA-binding motif
Family Family family	d.66.1.4 — Tyrosyl-tRNA synthetase (TyrRS), C-terminal domain

CATH v4.4 (6 domains)

Domain ID domain_id	1h3fA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1h3fA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	240 — Tyrosyl-Transfer RNA Synthetase
Homologous superfamily homologous superfamily	10 — Tyrosyl-Transfer RNA Synthetase

Domain ID domain_id	1h3fA03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	10 — RNA-binding S4 domain

Domain ID domain_id	1h3fB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1h3fB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	240 — Tyrosyl-Transfer RNA Synthetase
Homologous superfamily homologous superfamily	10 — Tyrosyl-Transfer RNA Synthetase

Domain ID domain_id	1h3fB03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	10 — RNA-binding S4 domain

▶

Unit-cell length a length_a	67.794 Å
Unit-cell length b length_b	111.050 Å
Unit-cell length c length_c	141.226 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2340
R_work r_work	0.2340
R_free r_free	0.2610

Tyrosyl-tRNA synthetase from Thermus thermophilus complexed with tyrosinol
