SAXSdb — 1h9i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	TRYPSIN INHIBITOR II × 1 （P12071） CALCIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRYP_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–223； UniProt 9–231

TRYPSIN INHIBITOR II

OrganismNot specified

UniProt P12071

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	TRYPSIN × 1 （P00761） CALCIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITR2_ECBEL
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 1–30； UniProt 1–30

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h9i
Deposition date deposition_date	2001-03-12
Structure title title	COMPLEX OF EETI-II MUTANT WITH PORCINE TRYPSIN
Keywords keywords	HYDROLASE/INHIBITOR, COMPLEX (SERINE PROTEASE-INHIBITOR), TRYPSIN, SQUASH INHIBITOR, CYSTINE KNOT, HYDROLASE-INHIBITOR complex; HYDROLASE/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h9i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

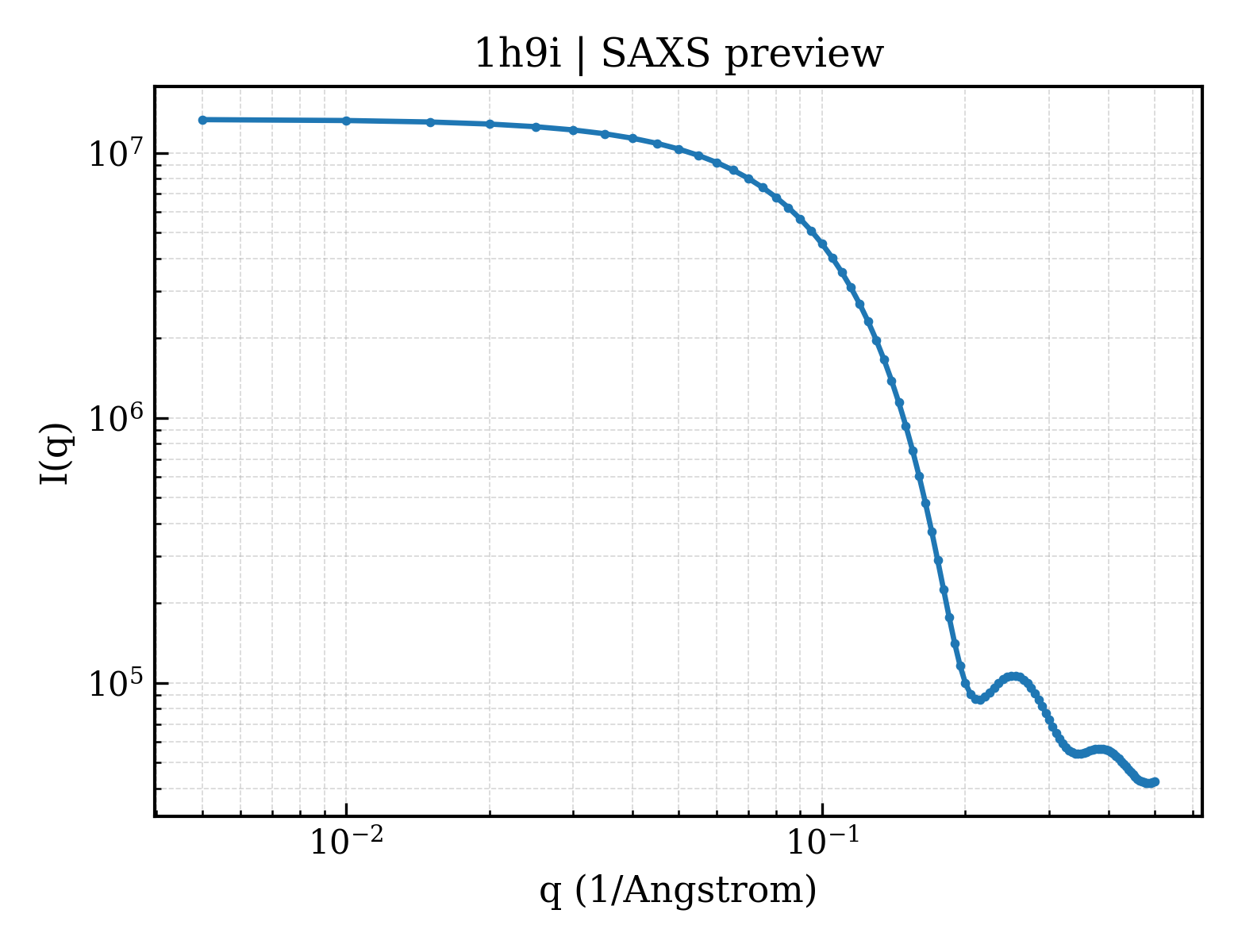

1h9i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1h9i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.62 Å
Rg (electron density)	16.48 Å
Total Rg	17.43 Å
Atom count	1834
Residues	253
Excluded volume	32435 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h9i__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	TRYPSIN
Molecular weight formula_weight	23493.5 kDa
EC 编号 ec_number	3.4.21.4
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E
Atom count atom_count	2019

IVGGYTCAANSIPYQVSLNSGSHFCGGSLINSQWVVSAAHCYKSRIQVRLGEHNIDVLEGNEQFINAAKIITHPNFNGNTLDNDIMLIKLSSPATLNSRVATVSLPRSCAAAGTECLISGWGNTKSSGSSYPSLLQCLKAPVLSDSSCKSSYPGQITGNMICVGFLEGGKDSCQGDSGGPVVCNGQLQGIVSWGYGCAQKNKPGVYTKVCNYVNWIQQTIAAN

Entity 2 Entity 2 polymer

Description description	TRYPSIN INHIBITOR II
Molecular weight formula_weight	4035.7 kDa
Mutation mutation	YES
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

GCPRILIRCKQDSDCLAGCVCTNNKFCGSPHHHHHH

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	135

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1h9ie_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1h9ii_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.2 — Plant inhibitors of proteinases and amylases
Family Family family	g.3.2.1 — Plant inhibitors of proteinases and amylases

CATH v4.4 (2 domains)

Domain ID domain_id	1h9iE01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1h9iE02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	139.862 Å
Unit-cell length b length_b	139.862 Å
Unit-cell length c length_c	33.667 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 4
Space-group number int_tables_number	79
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1416
R_work r_work	—
R_free r_free	0.1755

COMPLEX OF EETI-II MUTANT WITH PORCINE TRYPSIN
