1tfx

COMPLEX OF THE SECOND KUNITZ DOMAIN OF TISSUE FACTOR PATHWAY INHIBITOR WITH PORCINE TRYPSIN

Method: X-RAY DIFFRACTION D_max: 109.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSIN

Sus scrofa

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 9–231	Not recorded	TISSUE FACTOR PATHWAY INHIBITOR × 1 （P10646） CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；pH 8.0	Resolution 2.60 Å
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 9–231	Not recorded	TISSUE FACTOR PATHWAY INHIBITOR × 1 （P10646） CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；pH 8.0	Resolution 2.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1TFX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AKS CRYSTAL STRUCTURE OF THE FIRST ACTIVE AUTOLYSATE FORM OF THE PORCINE ALPHA TRYPSIN Deposited 1996-07-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 9–133（125 aa） Chain B 134–231（98 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1AN1 LEECH-DERIVED TRYPTASE INHIBITOR/TRYPSIN COMPLEX Deposited 1997-06-26	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 9–231（223 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；30% V/V 2-PROPANOL, 0.2M AMMONIUM ACETATE, 0.1M TRIS-HCL, PH 8.5 ROOM TEMPERATURE 27 MONTHS FOR GROWTH.	Resolution 2.03 Å R-free 0.228
1AVW COMPLEX PORCINE PANCREATIC TRYPSIN/SOYBEAN TRYPSIN INHIBITOR, ORTHORHOMBIC CRYSTAL FORM Deposited 1997-09-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 1.75 Å R-free 0.214
1AVX COMPLEX PORCINE PANCREATIC TRYPSIN/SOYBEAN TRYPSIN INHIBITOR, TETRAGONAL CRYSTAL FORM Deposited 1997-09-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 1.90 Å R-free 0.280
1C9P COMPLEX OF BDELLASTASIN WITH PORCINE TRYPSIN Deposited 1999-08-03	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1M HEPES, 10% 2-PROPANOL, 20% PEG 4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.80 Å R-free 0.227
1EJA STRUCTURE OF PORCINE TRYPSIN COMPLEXED WITH BDELLASTASIN, AN ANTISTASIN-TYPE INHIBITOR Deposited 2000-03-02	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.7；298 K；4.0 M Na-formate, pH 7.7, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.248
1EPT REFINED 1.8 ANGSTROMS RESOLUTION CRYSTAL STRUCTURE OF PORCINE EPSILON-TRYPSIN Deposited 1994-06-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 9–51（43 aa） Chain B 52–133（82 aa） Chain C 134–231（98 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1FMG CRYSTAL STRUCTURE OF PORCINE BETA TRYPSIN WITH 0.04% POLYDOCANOL Deposited 2000-08-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；pH 6.70, VAPOR DIFFUSION, HANGING DROP	Resolution 1.90 Å R-free 0.234
1FN6 CRYSTAL STRUCTURE OF PORCINE BETA TRYPSIN WITH 0.1% POLYDOCANOL Deposited 2000-08-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 2 MOH METHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；pH 6.70, VAPOR DIFFUSION, HANGING DROP	Resolution 1.80 Å R-free 0.242
1FNI CRYSTAL STRUCTURE OF PORCINE BETA TRYPSIN WITH 0.01% POLYDOCANOL Deposited 2000-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；pH 6.70, VAPOR DIFFUSION, HANGING DROP	Resolution 1.60 Å R-free 0.233
1H9H COMPLEX OF EETI-II WITH PORCINE TRYPSIN Deposited 2001-03-12	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；pH 6.70	Resolution 1.50 Å R-free 0.276
1H9I COMPLEX OF EETI-II MUTANT WITH PORCINE TRYPSIN Deposited 2001-03-12	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；pH 6.70	Resolution 1.90 Å R-free 0.175
1LDT COMPLEX OF LEECH-DERIVED TRYPTASE INHIBITOR WITH PORCINE TRYPSIN Deposited 1997-05-15	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；10% PEG 6000, 2.3M PHOSPHATE, PH 8.0	Resolution 1.90 Å
1MCT THE REFINED 1.6 ANGSTROMS RESOLUTION CRYSTAL STRUCTURE OF THE COMPLEX FORMED BETWEEN PORCINE BETA-TRYPSIN AND MCTI-A, A TRYPSIN INHIBITOR OF SQUASH FAMILY Deposited 1992-10-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
1QQU CRYSTAL STRUCTURE OF PORCINE BETA TRYPSIN WITH BOUND ACETATE ION Deposited 1999-06-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.7；pH 6.70	Resolution 1.63 Å R-free 0.255
1S5S Porcine trypsin complexed with guanidine-3-propanol inhibitor Deposited 2004-01-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 PG3 GUANIDINE-3-PROPANOL × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；298 K；1.8M MgSO4, 50mM HEPES, 5mM CaCl2, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K, pH 8.00	Resolution 1.40 Å R-free 0.181
1S6F PORCINE TRYPSIN COVALENT COMPLEX WITH BORATE AND GUANIDINE-3 INHIBITOR Deposited 2004-01-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 2 SBP [3-(1,3,2-DIOXABOROLAN-2-YLOXY)PROPYL]GUANIDINE × 1 EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.8M MgCl2, 50mM HEPES, 5mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.198
1S6H PORCINE TRYPSIN COMPLEXED WITH GUANIDINE-3-PROPANOL INHIBITOR Deposited 2004-01-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	SO4 SULFATE ION × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 4BZ 4-(HYDROXYMETHYL)BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.8M MgCl2, 50mM HEPES, 5mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.45 Å R-free 0.179
1S81 PORCINE TRYPSIN WITH NO INHIBITOR BOUND Deposited 2004-01-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 NA SODIUM ION × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.8M MgCl2, 50mM HEPES, 5mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.70 Å R-free 0.216
1S82 PORCINE TRYPSIN COMPLEXED WITH BORATE AND ETHYLENE GLYCOL Deposited 2004-01-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 2 NA SODIUM ION × 1 EDO 1,2-ETHANEDIOL × 7 SBE 1,3,2-DIOXABOROLAN-2-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.8M MgCl2, 50mM HEPES, 5mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.85 Å R-free 0.214
1S83 PORCINE TRYPSIN COMPLEXED WITH 4-AMINO PROPANOL Deposited 2004-01-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 1 4HA 4-HYDROXYBUTAN-1-AMINIUM × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.8M MgCl2, 50mM HEPES, 5mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.25 Å R-free 0.178
1S84 PORCINE TRYPSIN COVALENT COMPLEX WITH 4-AMINO BUTANOL, BORATE AND ETHYLENE GLYCOL Deposited 2004-01-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 6 DYB 4-(1,3,2-DIOXABOROLAN-2-YLOXY)BUTAN-1-AMINIUM × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.8M MgCl2, 50mM HEPES, 5mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.85 Å R-free 0.177
1S85 PORCINE TRYPSIN COMPLEXED WITH P-HYDROXYMETHYL BENZAMIDINE AND BORATE Deposited 2004-01-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 1 SBZ [4-(1,3,2-DIOXABOROLAN-2-YLOXY)METHYL]BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.8M MgCl2, 50mM HEPES, 5mM CaCl2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.20 Å R-free 0.254
1TX6 trypsin:BBI complex Deposited 2004-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 9–231（223 aa） Chain B 9–231（223 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.59；291 K；PEG 8000, sodium citrate, DTT, pH 5.59, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.274
1TX6 trypsin:BBI complex Deposited 2004-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 9–231（223 aa） Chain D 9–231（223 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.59；291 K；PEG 8000, sodium citrate, DTT, pH 5.59, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.274
1UHB Crystal structure of porcine alpha trypsin bound with auto catalyticaly produced native peptide at 2.15 A resolution Deposited 2003-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 9–133（125 aa） Chain B 134–231（98 aa） Chain P 177–185（9 aa）	Not recorded	CA CALCIUM ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；293 K；1.5M ammonium sulphate, pH 6.70, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.15 Å R-free 0.228
1V6D The crystal structure of the trypsin complex with synthetic heterochiral peptide Deposited 2003-11-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 ACT ACETATE ION × 1 TBF TERT-BUTYL FORMATE × 1 NME METHYLAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；293 K；2M ammonium sulphate, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.178
1YF4 Crystal Structure of trypsin-vasopressin complex Deposited 2004-12-30	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；acetate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.98 Å R-free 0.226
1Z7K Crystal Structure of Trypsin- Ovomucoid turkey egg white inhibitor complex Deposited 2005-03-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 9–231（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；293 K；1.5M ammonium sulphate, 10mM zinc acetate, 50mM Acetate buffer, pH 5.30, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.188
2A31 Trypsin in complex with borate Deposited 2005-06-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 MG MAGNESIUM ION × 3 NA SODIUM ION × 1 SO4 SULFATE ION × 1 BO4 BORATE ION × 2 PG3 GUANIDINE-3-PROPANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；300 K；MgSO4, HEPES, CaCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 1.25 Å R-free 0.162
2A32 Trypsin in complex with benzene boronic acid Deposited 2005-06-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–231（223 aa）	Not recorded	CA CALCIUM ION × 1 NA SODIUM ION × 1 PG3 GUANIDINE-3-PROPANOL × 1 PBC PHENYL BORONIC ACID × 2 BO4 BORATE ION × 1 CXS 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；300 K；MgSO4, HEPES, CaCl2, the crystal while grown at pH 8.0 was soaked in a solution at pH 10.5 before freezing and data collection. pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 1.50 Å R-free 0.188
3MYW The Bowman-Birk type inhibitor from mung bean in ternary complex with porcine trypsin Deposited 2010-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 9–231（223 aa） Chain B 9–231（223 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；1.5M ammonium sulfate, 0.2M sodium potassium phosphate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å
4AN7 Kunitz type trypsin inhibitor complex with porcine trypsin Deposited 2012-03-15	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M AMMONIUM PHOSPHATE, 20% PEG3350	Resolution 2.23 Å R-free 0.246
4DOQ Crystal structure of the complex of Porcine Pancreatic Trypsin with 1/2SLPI Deposited 2012-02-10	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–231（223 aa）	Not recorded	XPE 3,6,9,12,15,18,21,24,27-NONAOXANONACOSANE-1,29-DIOL × 1 SO4 SULFATE ION × 3 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；25% PEG4000, 0.1M Na-Citrate, 200mM Ammonium Sulfate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.242
4DOQ Crystal structure of the complex of Porcine Pancreatic Trypsin with 1/2SLPI Deposited 2012-02-10	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 9–231（223 aa）	Not recorded	SO4 SULFATE ION × 3 CA CALCIUM ION × 1 P6G HEXAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；25% PEG4000, 0.1M Na-Citrate, 200mM Ammonium Sulfate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.242
4DOQ Crystal structure of the complex of Porcine Pancreatic Trypsin with 1/2SLPI Deposited 2012-02-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 9–231（223 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；25% PEG4000, 0.1M Na-Citrate, 200mM Ammonium Sulfate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.242
5XW1 Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, PRN, at pH10 Deposited 2017-06-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–133（133 aa） Fragment：UNP residues 1-133 Chain B 134–231（98 aa） Fragment：UNP residues 134-231	Not recorded	CA CALCIUM ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；300 K；0.1M CHES PH10, 70% MPD	Resolution 1.90 Å R-free 0.173
5XW8 Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, PRN, at pH 7 Deposited 2017-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–133（133 aa） Fragment：UNP residues 1-133 Chain B 134–231（98 aa） Fragment：UNP residues 134-231	Not recorded	CA CALCIUM ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；300 K；0.1M HEPES pH 7.5, 70% MPD	Resolution 2.00 Å R-free 0.178
5XW9 Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, PRY, at pH 7 Deposited 2017-06-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–133（133 aa） Fragment：UNP residues 1-133 Chain B 134–231（98 aa） Fragment：UNP residues 134-231	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；300 K；0.1M HEPES pH 7.5, 70% MPD	Resolution 2.00 Å R-free 0.194
5XWA Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, PRY, at pH 10 Deposited 2017-06-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–133（133 aa） Fragment：UNP residues 1-133 Chain B 134–231（98 aa） Fragment：UNP residues 134-231	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；300 K；0.1M CHES pH 10, 70% MPD	Resolution 1.90 Å R-free 0.182
5XWJ Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, TRE, at pH 7 Deposited 2017-06-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；300 K；0.1M HEPES pH7.5, 70% MPD	Resolution 1.80 Å R-free 0.182
5XWJ Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, TRE, at pH 7 Deposited 2017-06-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；300 K；0.1M HEPES pH7.5, 70% MPD	Resolution 1.80 Å R-free 0.182
5XWL Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, TRE, at pH 10 Deposited 2017-06-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；300 K；0.1M CHES pH 10, 70% MPD	Resolution 2.10 Å R-free 0.194
5XWL Crystal Structure of Porcine pancreatic trypsin with tripeptide inhibitor, TRE, at pH 10 Deposited 2017-06-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；300 K；0.1M CHES pH 10, 70% MPD	Resolution 2.10 Å R-free 0.194
9CT1 Complex between the porcine trypsin and M271 a Kunitz-STI from Solanum tuberosum Deposited 2024-07-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 4.6；293 K；0.085 M Sodium acetate trihydrate pH 4.6, 0.17 M Ammonium acetate, 25.5% w/v Polyethylene glycol 4,000, 15% v/v Glycerol	Resolution 2.42 Å R-free 0.244
9CT1 Complex between the porcine trypsin and M271 a Kunitz-STI from Solanum tuberosum Deposited 2024-07-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 4.6；293 K；0.085 M Sodium acetate trihydrate pH 4.6, 0.17 M Ammonium acetate, 25.5% w/v Polyethylene glycol 4,000, 15% v/v Glycerol	Resolution 2.42 Å R-free 0.244
9PCT Structure of Porcine Trypsin Crystals Grown from PEG Complexed with Crystallization Additives III Deposited 2025-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1 BEN BENZAMIDINE × 3 FLC CITRATE ANION × 2 PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 9 GOL GLYCEROL × 2 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 5 MLT D-MALATE × 3 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 ACT ACETATE ION × 3 PO4 PHOSPHATE ION × 1 TAR D(-)-TARTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；Sitting drop vapor diffusion in Cryschem plates with 0.6 ml reservoirs of 30% PEG 3350 buffered at pH 6.5 with 0.1 M HEPES. Drops 3 ul of reservoir, 2 ul of additive mix ( TACSIMATE, glycerol, sucrose, sorbitol), 3 ul of 40 mg/ml stock protein solution buffered at pH 6.5 with 0.1 M HEPES.	Resolution 1.41 Å R-free 0.170
9PD9 The Structure of Porcine Trypsin in Complex with Crystallization Additives I Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1 BEN BENZAMIDINE × 4 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 4 PEG DI(HYDROXYETHYL)ETHER × 15 PG4 TETRAETHYLENE GLYCOL × 8 OXL OXALATE ION × 1 A1CHW 4-aminobenzene-1-sulfonic acid × 1 OXM OXAMIC ACID × 6 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；Sitting drop vapor diffusion in Cryschem plates. Reservoirs 30% PEG 3350. Drops 3.0 ul of reservoir, plus 2 ul additives oxalic acid, sulfanilic acid, 4-amino benzoic acid mix, plus 3.0 ul of 40 mg/ml stock protein solution of 0.1 M HEPES at pH 6.5.	Resolution 1.28 Å R-free 0.147
9PDA Structure of Porcine Trypsin Crystals Grown From PEG and Complexed With Crystallization Additives IV Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–231（231 aa）	Not recorded	BEN BENZAMIDINE × 1 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 3 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 PEG DI(HYDROXYETHYL)ETHER × 8 CA CALCIUM ION × 1 MLI MALONATE ION × 1 PG4 TETRAETHYLENE GLYCOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；Sitting drop vapor diffusion in Cryschem plates with reservoirs of 30% PEG 3350 buffered at pH 6.5 with 0.1 M HEPES. Drops composed of 3 ul reservoir, 2 ul of additive mix (oxalic acid, malic acid, oxaloacetic acid, pyromellitic acid), and 3 ul of a 40 mg/ml protein stock	Resolution 1.18 Å R-free 0.230
9PDA Structure of Porcine Trypsin Crystals Grown From PEG and Complexed With Crystallization Additives IV Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–231（231 aa）	Not recorded	BEN BENZAMIDINE × 3 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 4 PEG DI(HYDROXYETHYL)ETHER × 18 CA CALCIUM ION × 1 MLI MALONATE ION × 1 PG4 TETRAETHYLENE GLYCOL × 3 PMA PYROMELLITIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；Sitting drop vapor diffusion in Cryschem plates with reservoirs of 30% PEG 3350 buffered at pH 6.5 with 0.1 M HEPES. Drops composed of 3 ul reservoir, 2 ul of additive mix (oxalic acid, malic acid, oxaloacetic acid, pyromellitic acid), and 3 ul of a 40 mg/ml protein stock	Resolution 1.18 Å R-free 0.230
9PDA Structure of Porcine Trypsin Crystals Grown From PEG and Complexed With Crystallization Additives IV Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–231（231 aa）	Not recorded	BEN BENZAMIDINE × 3 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 2 PEG DI(HYDROXYETHYL)ETHER × 15 CA CALCIUM ION × 1 MLI MALONATE ION × 1 PG4 TETRAETHYLENE GLYCOL × 5 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；Sitting drop vapor diffusion in Cryschem plates with reservoirs of 30% PEG 3350 buffered at pH 6.5 with 0.1 M HEPES. Drops composed of 3 ul reservoir, 2 ul of additive mix (oxalic acid, malic acid, oxaloacetic acid, pyromellitic acid), and 3 ul of a 40 mg/ml protein stock	Resolution 1.18 Å R-free 0.230
9PDA Structure of Porcine Trypsin Crystals Grown From PEG and Complexed With Crystallization Additives IV Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–231（231 aa）	Not recorded	BEN BENZAMIDINE × 3 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 3 PEG DI(HYDROXYETHYL)ETHER × 20 CA CALCIUM ION × 2 MLI MALONATE ION × 1 PG4 TETRAETHYLENE GLYCOL × 6 PMA PYROMELLITIC ACID × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；Sitting drop vapor diffusion in Cryschem plates with reservoirs of 30% PEG 3350 buffered at pH 6.5 with 0.1 M HEPES. Drops composed of 3 ul reservoir, 2 ul of additive mix (oxalic acid, malic acid, oxaloacetic acid, pyromellitic acid), and 3 ul of a 40 mg/ml protein stock	Resolution 1.18 Å R-free 0.230
9PDC Porcine Trypsin grown from PEG and Complexed with Crystallization Additives II Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–231（231 aa）	Not recorded	CA CALCIUM ION × 1 TLA L(+)-TARTARIC ACID × 2 PEG DI(HYDROXYETHYL)ETHER × 28 PG4 TETRAETHYLENE GLYCOL × 10 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 2 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 1 BEN BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；Sitting drop vapor diffusion in Cryschem plates. Reservoirs 30% PEG 3350 buffered with 0.1 M HEPES at pH 6.5. Drops 3 ul of reservoir, 2 ul of additive mix ( TACSIMATE, PEG 3350), 3 ul of 40 mg/ml stock protein solution buffered with 0.1 M HEPES pH 6.5.	Resolution 1.27 Å R-free 0.154

44 other PDB entries and 53 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRYP_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–223； UniProt 9–231 Author chain B； PDBConstruct 1–223； UniProt 9–231

TISSUE FACTOR PATHWAY INHIBITOR

Homo sapiens

UniProt P10646

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 121–178	Fragment：FACTOR XA-BINDING DOMAIN, DOMAIN II	TRYPSIN × 1 （P00761） CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；pH 8.0	Resolution 2.60 Å
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 121–178	Fragment：FACTOR XA-BINDING DOMAIN, DOMAIN II	TRYPSIN × 1 （P00761） CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；pH 8.0	Resolution 2.60 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1TFX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ADZ THE SOLUTION STRUCTURE OF THE SECOND KUNITZ DOMAIN OF TISSUE FACTOR PATHWAY INHIBITOR, NMR, 30 STRUCTURES Deposited 1997-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 107–182（76 aa） Fragment：FACTOR XA-BINDING DOMAIN (DOMAIN II)	Mutation：N-TERMINAL INS(DYKDDDDKL)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；310 K；Pressure 1	Resolution not provided
1IRH The Solution Structure of The Third Kunitz Domain of Tissue Factor Pathway Inhibitor Deposited 2001-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 210–270（61 aa） Fragment：the third kunitz domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1mM the third kunitz domain of tissue factor pathway inhibitor U-15N; 20mM Na-phosphate buffer; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM the third kunitz domain of tissue factor pathway inhibitor U-15N, 13C; 20mM Na-phosphate buffer; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
4DTG Hemostatic effect of a monoclonal antibody mAb 2021 blocking the interaction between FXa and TFPI in a rabbit hemophilia model Deposited 2012-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 119–178（60 aa） Fragment：Kunitz-type protease inhibitor domain 2 (UNP residues 119-178)	Not recorded	GOL GLYCEROL × 10 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 PGE TRIETHYLENE GLYCOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；295 K；0.05 M CALCIUM CHLORIDE, 0.1 M MES, pH 6.0, 45% V/V PEG 200, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.80 Å R-free 0.236
5NMV Crystal structure of 2F22 Fab fragment against TFPI1 Deposited 2017-04-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 29–107（79 aa）	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20 % PEG 3350 200 mM Potassium formate	Resolution 1.65 Å R-free 0.202
6BX8 Human Mesotrypsin (PRSS3) Complexed with Tissue Factor Pathway Inhibitor Variant (TFPI1-KD1-K15R-I17C-I34C) Deposited 2017-12-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–107（58 aa）	Mutation：K64R, M66C, I83C	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；0.2M Lithium Sulfate, 0.1M BIS-Tris-HCl pH 4.6, 25% v/v PEG 3350 (Anatrace Top96-27)	Resolution 1.98 Å R-free 0.221
6BX8 Human Mesotrypsin (PRSS3) Complexed with Tissue Factor Pathway Inhibitor Variant (TFPI1-KD1-K15R-I17C-I34C) Deposited 2017-12-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 50–107（58 aa）	Mutation：K64R, M66C, I83C	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；0.2M Lithium Sulfate, 0.1M BIS-Tris-HCl pH 4.6, 25% v/v PEG 3350 (Anatrace Top96-27)	Resolution 1.98 Å R-free 0.221
6BX8 Human Mesotrypsin (PRSS3) Complexed with Tissue Factor Pathway Inhibitor Variant (TFPI1-KD1-K15R-I17C-I34C) Deposited 2017-12-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 50–107（58 aa）	Mutation：K64R, M66C, I83C	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；0.2M Lithium Sulfate, 0.1M BIS-Tris-HCl pH 4.6, 25% v/v PEG 3350 (Anatrace Top96-27)	Resolution 1.98 Å R-free 0.221
6BX8 Human Mesotrypsin (PRSS3) Complexed with Tissue Factor Pathway Inhibitor Variant (TFPI1-KD1-K15R-I17C-I34C) Deposited 2017-12-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 50–107（58 aa）	Mutation：K64R, M66C, I83C	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；0.2M Lithium Sulfate, 0.1M BIS-Tris-HCl pH 4.6, 25% v/v PEG 3350 (Anatrace Top96-27)	Resolution 1.98 Å R-free 0.221
7V1N Structure of the Clade 2 C. difficile TcdB in complex with its receptor TFPI Deposited 2021-08-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 1–251（251 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9P0X Nanodisc-embedded human TF/FVIIa/XK1 in complex with 10H10 Fab (nanodisc-subtracted) Deposited 2025-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain K 40–107（68 aa）	Not recorded	MG MAGNESIUM ION × 4 CA CALCIUM ION × 12 BGC beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

7 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TFPI1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–58； UniProt 121–178 Author chain D； PDBConstruct 1–58； UniProt 121–178

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

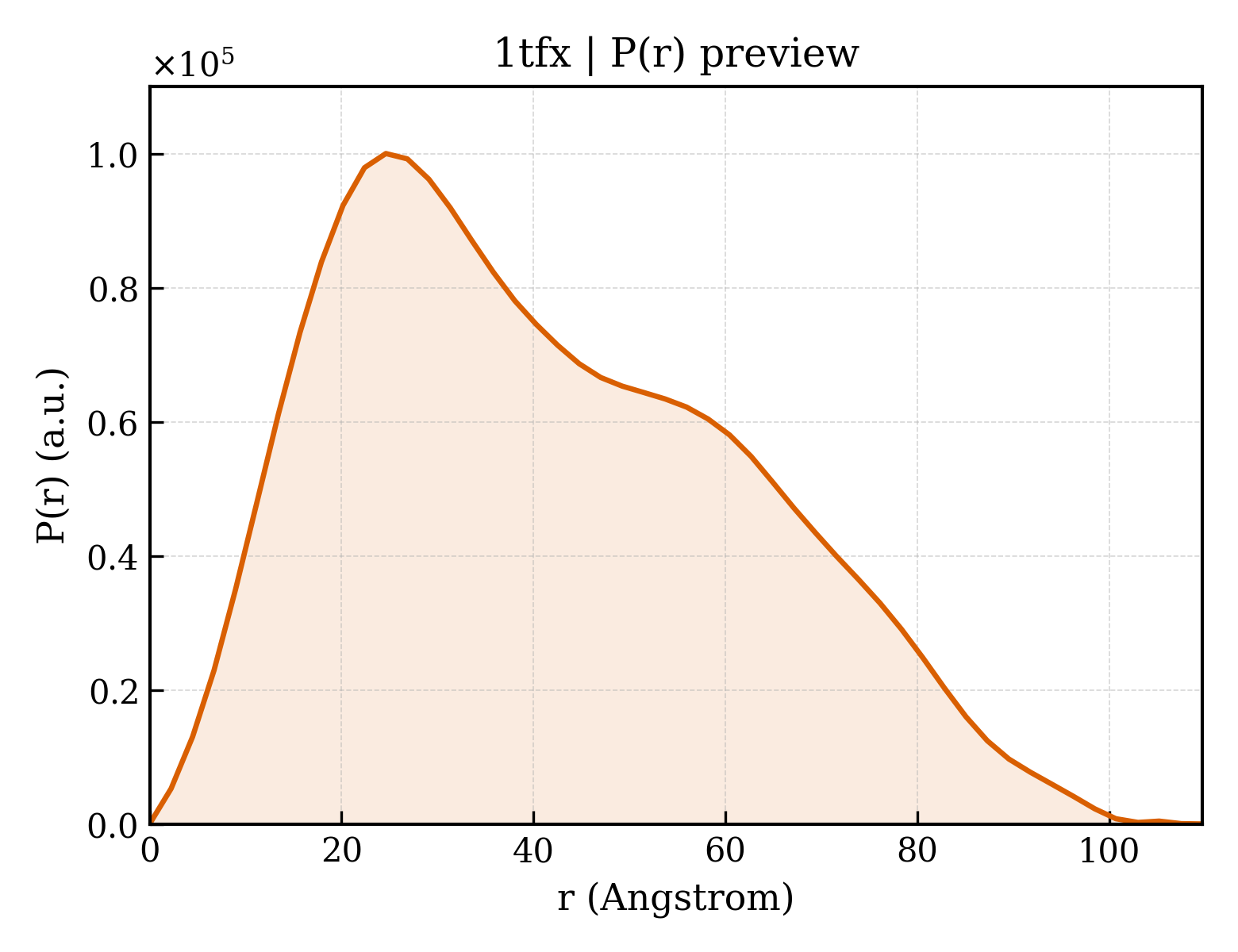

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tfx
Deposition date deposition_date	1997-01-21
Structure title title	COMPLEX OF THE SECOND KUNITZ DOMAIN OF TISSUE FACTOR PATHWAY INHIBITOR WITH PORCINE TRYPSIN
Keywords keywords	COMPLEX (SERINE PROTEASE-INHIBITOR), HYDROLASE, INHIBITOR, BLOOD COAGULATION, COMPLEX (SERINE PROTEASE-INHIBITOR) complex; COMPLEX (SERINE PROTEASE/INHIBITOR)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.36 Å
Radius of gyration Rg (electron density) rg_electron	32.32 Å
Forward intensity I(0) i0	63676500.00
Molecular weight molecular_weight	60725.0 kDa
Excluded volume excluded_volume	74780 Å³
Envelope volume envelope_volume	95510 Å³
Hydration-shell volume shell_volume	25927 Å³
Envelope diameter envelope_diameter	111.3 Å
Shell Rg shell_rg	37.25 Å
Envelope Rg envelope_rg	31.86 Å
Shape Rg shape_rg	32.31 Å
Total Rg total_rg	32.74 Å
Total atoms total_atoms	4240
Residues n_residues	556
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.7 Å
Rg (real space) rg_real	32.70 Å
Rg uncertainty (real space) rg_real_error	1.17 Å
I(0) (real space) i0_real	6.3680e+07
I(0) uncertainty (real space) i0_real_error	9.7690e+05
Rg (reciprocal space) rg_reciprocal	32.56 Å
I(0) (reciprocal space) i0_reciprocal	63670000.0000
Solution quality estimate total_estimate	0.8077
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.6 Å
Skewness Skewness skewness	0.424
Kurtosis Kurtosis kurtosis	-0.660
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8398000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.687; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.581; Smooth: 0.860

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	TRYPSIN
Molecular weight formula_weight	23493.5 kDa
EC 编号 ec_number	3.4.21.4
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4383

IVGGYTCAANSIPYQVSLNSGSHFCGGSLINSQWVVSAAHCYKSRIQVRLGEHNIDVLEGNEQFINAAKIITHPNFNGNTLDNDIMLIKLSSPATLNSRVATVSLPRSCAAAGTECLISGWGNTKSSGSSYPSLLQCLKAPVLSDSSCKSSYPGQITGNMICVGFLEGGKDSCQGDSGGPVVCNGQLQGIVSWGYGCAQKNKPGVYTKVCNYVNWIQQTIAAN

来源 Source

来源生物 organism	Sus scrofa
通用名 common_name	pig
NCBI Class编号 ncbi_taxonomy_id	9823
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	TISSUE FACTOR PATHWAY INHIBITOR
Molecular weight formula_weight	6853.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

KPDFCFLEEDPGICRGYITRYFYNNQTKQCERFKYGGCLGNMNNFETLEECKNICEDG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	143

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1tfxa_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1tfxb_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1tfxc_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1tfxd_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

CATH v4.4 (6 domains)

Domain ID domain_id	1tfxA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1tfxA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1tfxB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1tfxB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1tfxC00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1tfxD00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

▶

8. Citations (7)

The second Kunitz domain of human tissue factor pathway inhibitor: cloning, structure determination and interaction with factor Xa.

J.Mol.Biol. (1997)

PMID: 9199408 · DOI: 10.1006/jmbi.1997.1029 PRIMARY

;The Three-Dimensional Structure of Recombinant Leech-Derived Tryptase Inhibitor in Complex with Trypsin. Implications for the Structure of Human Mast Cell Tryptase and its Inhibition ;

J.Biol.Chem. (1997)

X-Ray Structure of Active Site-Inhibited Clotting Factor Xa. Implications for Drug Design and Substrate Recognition

J.Biol.Chem. (1996)

Structural Aspects of Factor Xa Inhibition

Curr.Pharm.Des. (1996)

The Ornithodorin-Thrombin Crystal Structure, a Key to the Tap Enigma?

Embo J. (1996)

;Crystal Structures of Factor Xa Specific Inhibitors in Complex with Trypsin: Structural Grounds for Inhibition of Factor Xa and Selectivity Against Thrombin ;

FEBS Lett. (1995)

Structure of Human Des(1-45) Factor Xa at 2.2 A Resolution

J.Mol.Biol. (1993)

▶

Unit-cell length a length_a	41.900 Å
Unit-cell length b length_b	96.200 Å
Unit-cell length c length_c	137.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1620
R_work r_work	0.1620
R_free r_free	—

fit	/app/data/saxs_computation/tf/1tfx/1tfx.fit
pddf	/app/data/pr_computation/tf/1tfx/1tfx.pr.out
profile	/app/data/saxs_computation/tf/1tfx/1tfx.dat

COMPLEX OF THE SECOND KUNITZ DOMAIN OF TISSUE FACTOR PATHWAY INHIBITOR WITH PORCINE TRYPSIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSIN

State in the Current Structure

Other States of the Same Protein in the Database

TISSUE FACTOR PATHWAY INHIBITOR

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

CATH v4.4 (6 domains)

8. Citations (7)

9. Files and Curves (10)

Files (7)

Curves (3)
