9pda

Structure of Porcine Trypsin Crystals Grown From PEG and Complexed With Crystallization Additives IV

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Trypsin

Sus scrofa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	BENZAMIDINE × 1 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 3 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 DI(HYDROXYETHYL)ETHER × 8 CALCIUM ION × 1 MALONATE ION × 1 TETRAETHYLENE GLYCOL × 4 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	BENZAMIDINE × 3 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 4 DI(HYDROXYETHYL)ETHER × 18 CALCIUM ION × 1 MALONATE ION × 1 TETRAETHYLENE GLYCOL × 3 PYROMELLITIC ACID × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	BENZAMIDINE × 3 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 2 DI(HYDROXYETHYL)ETHER × 15 CALCIUM ION × 1 MALONATE ION × 1 TETRAETHYLENE GLYCOL × 5 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	BENZAMIDINE × 3 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 3 DI(HYDROXYETHYL)ETHER × 20 CALCIUM ION × 2 MALONATE ION × 1 TETRAETHYLENE GLYCOL × 6 PYROMELLITIC ACID × 1 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CHLORIDE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRYP_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–231； UniProt 1–231 Author chain B； PDBConstruct 1–231； UniProt 1–231 Author chain C； PDBConstruct 1–231； UniProt 1–231 Author chain D； PDBConstruct 1–231； UniProt 1–231

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9pda
Deposition date deposition_date	2025-06-30
Structure title title	Structure of Porcine Trypsin Crystals Grown From PEG and Complexed With Crystallization Additives IV
Keywords keywords	Crystallization, additives, PEG, Silver Bullets, ligands, solvent regions, refinement, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9pda__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9pda__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

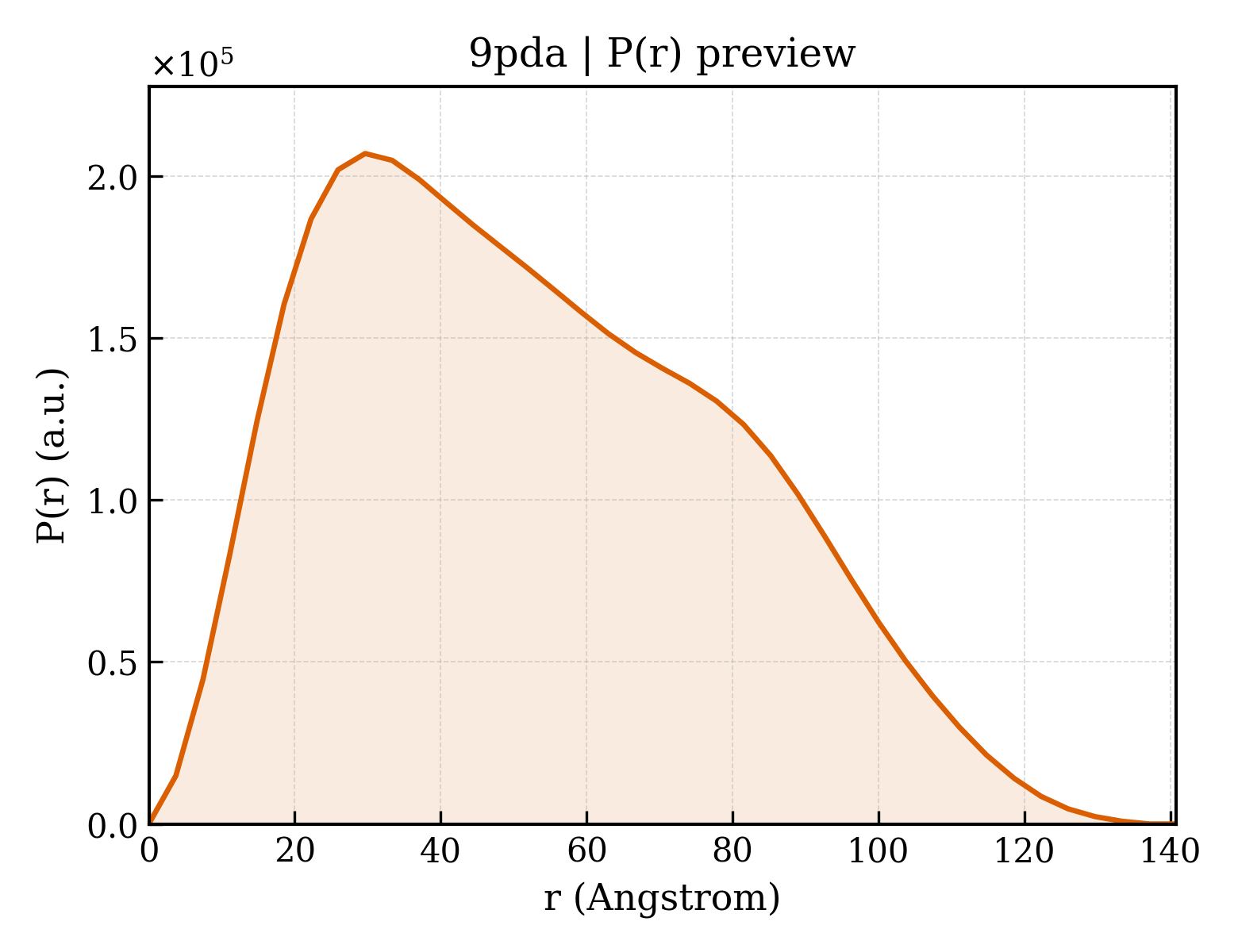

9pda__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.87 Å
Rg (electron density)	16.87 Å
Total Rg	18.10 Å
Atom count	3655
Residues	223
Excluded volume	32685 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9pda__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9pda__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`9pda__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`9pda__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	Trypsin
Molecular weight formula_weight	24428.4 kDa
EC 编号 ec_number	3.4.21.4
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	16671

FPTDDDDKIVGGYTCAANSIPYQVSLNSGSHFCGGSLINSQWVVSAAHCYKSRIQVRLGEHNIDVLEGNEQFINAAKIITHPNFNGNTLDNDIMLIKLSSPATLNSRVATVSLPRSCAAAGTECLISGWGNTKSSGSSYPSLLQCLKAPVLSDSSCKSSYPGQITGNMICVGFLEGGKDSCQGDSGGPVVCNGQLQGIVSWGYGCAQKNKPGVYTKVCNYVNWIQQTIAAN

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Sus scrofa

Entity 2 Entity 2 non-polymer

Description description	BENZAMIDINE
Molecular weight formula_weight	120.2 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 3 Entity 3 non-polymer

Description description	1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE
Molecular weight formula_weight	178.2 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 non-polymer

Description description	1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE
Molecular weight formula_weight	266.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	61

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 7 Entity 7 non-polymer

Description description	MALONATE ION
Molecular weight formula_weight	102.0 kDa
Source method src_method	nat
Copy count entity_count	4

Entity 8 Entity 8 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 9 Entity 9 non-polymer

Description description	PYROMELLITIC ACID
Molecular weight formula_weight	254.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 12 Entity 12 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1257

▶

Unit-cell length a length_a	70.660 Å
Unit-cell length b length_b	50.720 Å
Unit-cell length c length_c	125.690 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.52 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	1.180 Å
Low-resolution limit resolution_low	39.250 Å
R factor r_factor	0.1965
R_work r_work	0.1948
R_free r_free	0.2303
