SAXSdb — 1i1r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INTERLEUKIN-6 RECEPTOR BETA CHAIN

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 23–325	Fragment：DOMAINS 1, 2, 3 OF THE GP130 EXTRACELLULAR DOMAIN (RESIDUES 1-303)	VIRAL IL-6 × 2 （Q98823）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；MPEG 2000, sodium citrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1I1R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BJ8 THIRD N-TERMINAL DOMAIN OF GP130, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-07-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 219–325（107 aa） Fragment：THIRD N-TERMINAL DOMAIN	Mutation：V1M, Y2D	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 200 mM NACL；Pressure 1 NMR sample composition WATER	Resolution not provided
1BQU CYTOKYNE-BINDING REGION OF GP130 Deposited 1998-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 119–333（215 aa） Fragment：CYTOKINE-BINDING REGION DOMAINS Chain B 119–333（215 aa） Fragment：CYTOKINE-BINDING REGION DOMAINS	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；1.8-2.1M AMMONIUM SULFATE, 0.1M TRIS PH 8.0	Resolution 2.00 Å R-free 0.255
1P9M Crystal structure of the hexameric human IL-6/IL-6 alpha receptor/gp130 complex Deposited 2003-05-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–321（299 aa） Fragment：extracellular domains D1 - D3	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；Sodium formate, Sodium acetate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.65 Å R-free 0.334
1PVH Crystal structure of leukemia inhibitory factor in complex with gp130 Deposited 2003-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 123–323（201 aa） Fragment：domains D2 and D3	Not recorded	IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3350, Sodium iodide, Imidazole, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.289
1PVH Crystal structure of leukemia inhibitory factor in complex with gp130 Deposited 2003-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 123–323（201 aa） Fragment：domains D2 and D3	Not recorded	IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3350, Sodium iodide, Imidazole, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.289
3L5H Crystal structure of the full ectodomain of human gp130: New insights into the molecular assembly of receptor complexes Deposited 2009-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–612（589 aa） Fragment：ecotodomain	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；298 K；1.5-2.0M (NH4)2SO4, 0.1M imidazole-malonate buffer, pH 6.0, EVAPORATION, temperature 298K	Resolution 3.60 Å R-free 0.335
3L5I Crystal structure of FnIII domains of human GP130 (Domains 4-6) Deposited 2009-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 323–612（290 aa） Fragment：UNP residues 323-612	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 17 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG 8000, NaCl, Tris-HCl, pH 8.5, vapor diffusion, hanging drop, temperature 293K	Resolution 1.90 Å R-free 0.222
3L5J Crystal structure of FnIII domains of human GP130 (Domains 4-6) Deposited 2009-12-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 323–610（288 aa） Fragment：UNP residues 323-610	Not recorded	EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG 8000, NaCl, Tris-HCl, pH 8.5, vapor diffusion, hanging drop, temperature 293K	Resolution 3.04 Å R-free 0.265
3L5J Crystal structure of FnIII domains of human GP130 (Domains 4-6) Deposited 2009-12-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 323–610（288 aa） Fragment：UNP residues 323-610	Not recorded	CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG 8000, NaCl, Tris-HCl, pH 8.5, vapor diffusion, hanging drop, temperature 293K	Resolution 3.04 Å R-free 0.265
7U7N IL-27 quaternary receptor signaling complex Deposited 2022-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 23–321（299 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；The grids were blotted for 3 seconds with an offset of 3.	Resolution 3.47 Å
8D6A Cryo-EM structure of human LIF signaling complex: model containing the interaction core region Deposited 2022-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
8D74 Cryo-EM structure of human CNTF signaling complex: model containing the interaction core region Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8D7R Cryo-EM structure of human CLCF1 signaling complex: model containing the interaction core region Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8D82 Cryo-EM structure of human IL-6 signaling complex in detergent: model containing full extracellular domains Deposited 2022-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–700（678 aa） Chain E 23–700（678 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å
8D85 Cryo-EM structure of human IL-27 signaling complex: model containing the interaction core region Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.81 Å
8DPS The structure of the interleukin 11 signalling complex, truncated gp130 Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–324（303 aa） Chain D 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5；TBS pH 85 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
8DPT The structure of the IL-11 signalling complex, with full-length extracellular gp130 Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–612（591 aa） Chain D 22–612（591 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8DPU The crystal structure of the IL-11 signalling complex Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–324（303 aa） Chain D 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.25；293 K；180 mM magnesium chloride, 15.3% PEG 3350, 100 mM potassium sodium tartrate, 90 mM sodium HEPES pH 7.25 and 1.8% tert-butanol	Resolution 3.78 Å R-free 0.295
8DPU The crystal structure of the IL-11 signalling complex Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 22–324（303 aa） Chain J 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.25；293 K；180 mM magnesium chloride, 15.3% PEG 3350, 100 mM potassium sodium tartrate, 90 mM sodium HEPES pH 7.25 and 1.8% tert-butanol	Resolution 3.78 Å R-free 0.295
8DPU The crystal structure of the IL-11 signalling complex Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain M 22–324（303 aa） Chain P 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.25；293 K；180 mM magnesium chloride, 15.3% PEG 3350, 100 mM potassium sodium tartrate, 90 mM sodium HEPES pH 7.25 and 1.8% tert-butanol	Resolution 3.78 Å R-free 0.295
8UPA Structure of gp130 in complex with a de novo designed IL-6 mimetic Deposited 2023-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 124–321（198 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.04M Potassium phosphate monobasic, 16% Polyethylene glycol 8,000, 20% Glycerol	Resolution 3.30 Å R-free 0.236
8UPA Structure of gp130 in complex with a de novo designed IL-6 mimetic Deposited 2023-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 124–321（198 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.04M Potassium phosphate monobasic, 16% Polyethylene glycol 8,000, 20% Glycerol	Resolution 3.30 Å R-free 0.236
8V29 Cryo-EM structure of human type I OSM receptor complex: model for full extracellular assembly Deposited 2023-11-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.99 Å
8V2A Cryo-EM structure of human type I OSM receptor complex: model for assembly core region Deposited 2023-11-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å

19 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL6RB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–303； UniProt 23–325

VIRAL IL-6

Human herpesvirus 8

UniProt Q98823

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 24–204	Not recorded	INTERLEUKIN-6 RECEPTOR BETA CHAIN × 2 （P40189）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；MPEG 2000, sodium citrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q98823_HHV8
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–181； UniProt 24–204

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i1r
Deposition date deposition_date	2001-02-02
Structure title title	CRYSTAL STRUCTURE OF A CYTOKINE/RECEPTOR COMPLEX
Keywords keywords	cytokine-receptor complex, gp130, viral IL-6, CYTOKINE; CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.96 Å
Radius of gyration Rg (electron density) rg_electron	34.22 Å
Forward intensity I(0) i0	43761300.00
Molecular weight molecular_weight	53630.0 kDa
Excluded volume excluded_volume	67740 Å³
Envelope volume envelope_volume	92244 Å³
Hydration-shell volume shell_volume	25526 Å³
Envelope diameter envelope_diameter	119.7 Å
Shell Rg shell_rg	35.78 Å
Envelope Rg envelope_rg	34.66 Å
Shape Rg shape_rg	34.22 Å
Total Rg total_rg	34.34 Å
Total atoms total_atoms	3781
Residues n_residues	468
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

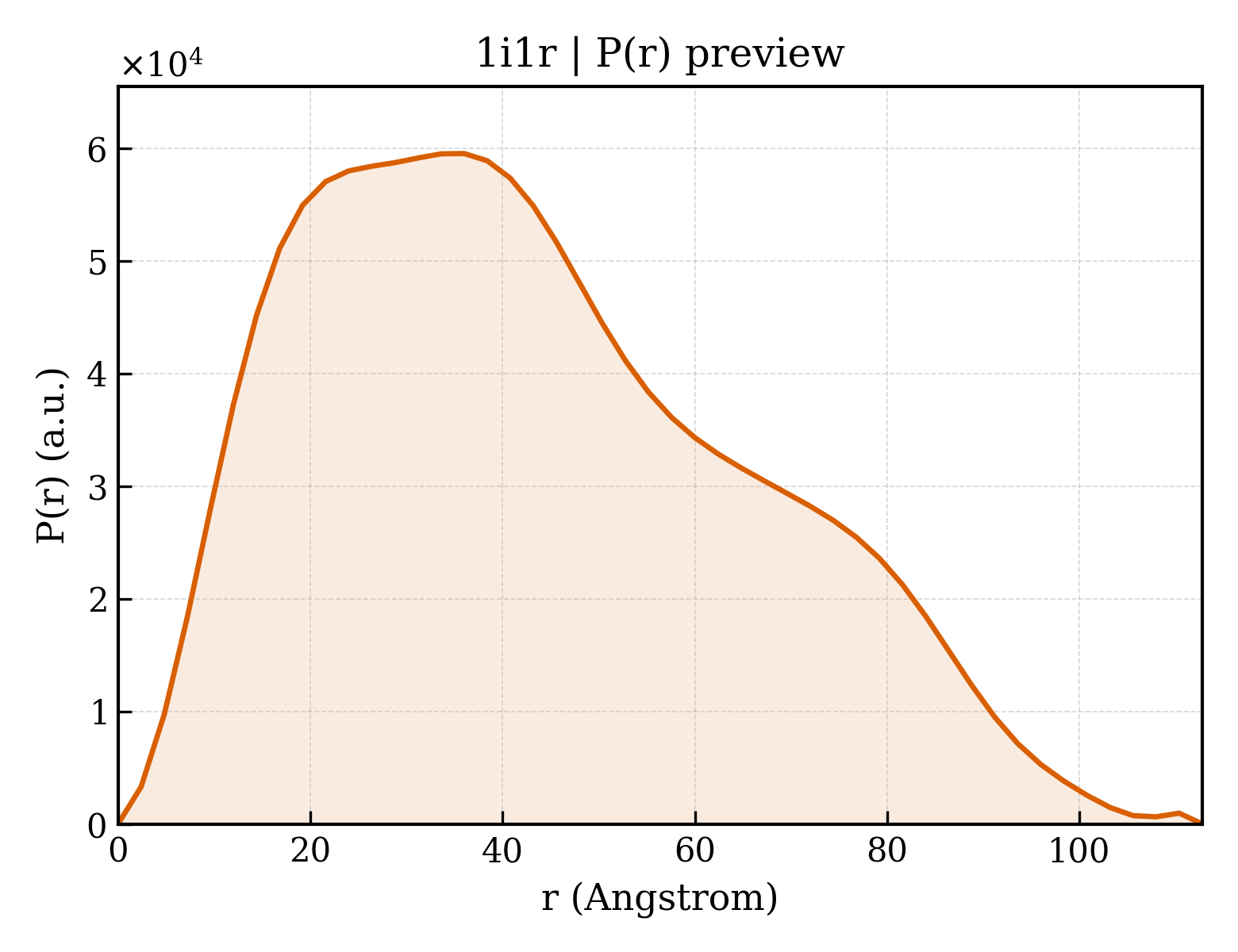

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	112.8 Å
Rg (real space) rg_real	34.27 Å
Rg uncertainty (real space) rg_real_error	1.09 Å
I(0) (real space) i0_real	4.3760e+07
I(0) uncertainty (real space) i0_real_error	7.3080e+05
Rg (reciprocal space) rg_reciprocal	34.08 Å
I(0) (reciprocal space) i0_reciprocal	43750000.0000
Solution quality estimate total_estimate	0.8174
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	36.0 Å
Skewness Skewness skewness	0.454
Kurtosis Kurtosis kurtosis	-0.592
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2745000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.779; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.529; Smooth: 0.757

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	INTERLEUKIN-6 RECEPTOR BETA CHAIN
Molecular weight formula_weight	34664.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4151

ELLDPCGYISPESPVVQLHSNFTAVCVLKEKCMDYFHVNANYIVWKTNHFTIPKEQYTIINRTASSVTFTDIASLNIQLTCNILTFGQLEQNVYGITIISGLPPEKPKNLSCIVNEGKKMRCEWDGGRETHLETNFTLKSEWATHKFADCKAKRDTPTSCTVDYSTVYFVNIEVWVEAENALGKVTSDHINFDPVYKVKPNPPHNLSVINSEELSSILKLTWTNPSIKSVIILKYNIQYRTKDASTWSQIPPEDTASTRSSFTVQDLKPFTEYVFRIRCMKEDGKGYWSDWSEEASGITYEDR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	VIRAL IL-6
Molecular weight formula_weight	20857.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

LPDAPEFEKDLLIQRLNWMLWVIDECFRDLCYRTGICKGILEPAAIFHLKLPAINDTDHCGLIGFNETSCLKKLADGFFEFEVLFKFLTTEFGKSVINVDVMELLTKTLGWDIQEELNKLTKTHYSPPKFDRGLLGRLQGLKYWVRHFASFYVLSAMEKFAGQAVRVLDSIPDVTPDVHDK

来源 Source

来源生物 organism	Human herpesvirus 8
NCBI Class编号 ncbi_taxonomy_id	37296
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	370

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1i1ra1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1i1ra2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1i1ra3
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1i1rb_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.1 — Long-chain cytokines

CATH v4.4 (4 domains)

Domain ID domain_id	1i1rA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1i1rA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1i1rA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1i1rB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	103.000 Å
Unit-cell length b length_b	123.310 Å
Unit-cell length c length_c	76.790 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	112.03 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2560

fit	/app/data/saxs_computation/i1/1i1r/1i1r.fit
pddf	/app/data/pr_computation/i1/1i1r/1i1r.pr.out
profile	/app/data/saxs_computation/i1/1i1r/1i1r.dat
