SAXSdb — 1pvh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-6 receptor beta chain

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 123–323	Fragment：domains D2 and D3	Leukemia inhibitory factor × 1 （P15018） IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3350, Sodium iodide, Imidazole, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.289
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 123–323	Fragment：domains D2 and D3	Leukemia inhibitory factor × 1 （P15018） IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3350, Sodium iodide, Imidazole, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.289

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1PVH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BJ8 THIRD N-TERMINAL DOMAIN OF GP130, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 219–325（107 aa） Fragment：THIRD N-TERMINAL DOMAIN	Mutation：V1M, Y2D	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 200 mM NACL；Pressure 1 NMR sample composition WATER	Resolution not provided
1BQU CYTOKYNE-BINDING REGION OF GP130 Deposited 1998-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 119–333（215 aa） Fragment：CYTOKINE-BINDING REGION DOMAINS Chain B 119–333（215 aa） Fragment：CYTOKINE-BINDING REGION DOMAINS	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；1.8-2.1M AMMONIUM SULFATE, 0.1M TRIS PH 8.0	Resolution 2.00 Å R-free 0.255
1I1R CRYSTAL STRUCTURE OF A CYTOKINE/RECEPTOR COMPLEX Deposited 2001-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 23–325（303 aa） Fragment：DOMAINS 1, 2, 3 OF THE GP130 EXTRACELLULAR DOMAIN (RESIDUES 1-303)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；MPEG 2000, sodium citrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.256
1P9M Crystal structure of the hexameric human IL-6/IL-6 alpha receptor/gp130 complex Deposited 2003-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–321（299 aa） Fragment：extracellular domains D1 - D3	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；Sodium formate, Sodium acetate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.65 Å R-free 0.334
3L5H Crystal structure of the full ectodomain of human gp130: New insights into the molecular assembly of receptor complexes Deposited 2009-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–612（589 aa） Fragment：ecotodomain	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；298 K；1.5-2.0M (NH4)2SO4, 0.1M imidazole-malonate buffer, pH 6.0, EVAPORATION, temperature 298K	Resolution 3.60 Å R-free 0.335
3L5I Crystal structure of FnIII domains of human GP130 (Domains 4-6) Deposited 2009-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 323–612（290 aa） Fragment：UNP residues 323-612	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 17 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG 8000, NaCl, Tris-HCl, pH 8.5, vapor diffusion, hanging drop, temperature 293K	Resolution 1.90 Å R-free 0.222
3L5J Crystal structure of FnIII domains of human GP130 (Domains 4-6) Deposited 2009-12-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 323–610（288 aa） Fragment：UNP residues 323-610	Not recorded	EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG 8000, NaCl, Tris-HCl, pH 8.5, vapor diffusion, hanging drop, temperature 293K	Resolution 3.04 Å R-free 0.265
3L5J Crystal structure of FnIII domains of human GP130 (Domains 4-6) Deposited 2009-12-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 323–610（288 aa） Fragment：UNP residues 323-610	Not recorded	CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG 8000, NaCl, Tris-HCl, pH 8.5, vapor diffusion, hanging drop, temperature 293K	Resolution 3.04 Å R-free 0.265
7U7N IL-27 quaternary receptor signaling complex Deposited 2022-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 23–321（299 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；The grids were blotted for 3 seconds with an offset of 3.	Resolution 3.47 Å
8D6A Cryo-EM structure of human LIF signaling complex: model containing the interaction core region Deposited 2022-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
8D74 Cryo-EM structure of human CNTF signaling complex: model containing the interaction core region Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8D7R Cryo-EM structure of human CLCF1 signaling complex: model containing the interaction core region Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8D82 Cryo-EM structure of human IL-6 signaling complex in detergent: model containing full extracellular domains Deposited 2022-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–700（678 aa） Chain E 23–700（678 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å
8D85 Cryo-EM structure of human IL-27 signaling complex: model containing the interaction core region Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.81 Å
8DPS The structure of the interleukin 11 signalling complex, truncated gp130 Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–324（303 aa） Chain D 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5；TBS pH 85 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
8DPT The structure of the IL-11 signalling complex, with full-length extracellular gp130 Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–612（591 aa） Chain D 22–612（591 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8DPU The crystal structure of the IL-11 signalling complex Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–324（303 aa） Chain D 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.25；293 K；180 mM magnesium chloride, 15.3% PEG 3350, 100 mM potassium sodium tartrate, 90 mM sodium HEPES pH 7.25 and 1.8% tert-butanol	Resolution 3.78 Å R-free 0.295
8DPU The crystal structure of the IL-11 signalling complex Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 22–324（303 aa） Chain J 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.25；293 K；180 mM magnesium chloride, 15.3% PEG 3350, 100 mM potassium sodium tartrate, 90 mM sodium HEPES pH 7.25 and 1.8% tert-butanol	Resolution 3.78 Å R-free 0.295
8DPU The crystal structure of the IL-11 signalling complex Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain M 22–324（303 aa） Chain P 22–324（303 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.25；293 K；180 mM magnesium chloride, 15.3% PEG 3350, 100 mM potassium sodium tartrate, 90 mM sodium HEPES pH 7.25 and 1.8% tert-butanol	Resolution 3.78 Å R-free 0.295
8UPA Structure of gp130 in complex with a de novo designed IL-6 mimetic Deposited 2023-10-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 124–321（198 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.04M Potassium phosphate monobasic, 16% Polyethylene glycol 8,000, 20% Glycerol	Resolution 3.30 Å R-free 0.236
8UPA Structure of gp130 in complex with a de novo designed IL-6 mimetic Deposited 2023-10-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 124–321（198 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.04M Potassium phosphate monobasic, 16% Polyethylene glycol 8,000, 20% Glycerol	Resolution 3.30 Å R-free 0.236
8V29 Cryo-EM structure of human type I OSM receptor complex: model for full extracellular assembly Deposited 2023-11-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.99 Å
8V2A Cryo-EM structure of human type I OSM receptor complex: model for assembly core region Deposited 2023-11-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–619（597 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å

19 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL6RB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–201； UniProt 123–323 Author chain C； PDBConstruct 1–201； UniProt 123–323

Leukemia inhibitory factor

Homo sapiens

UniProt P15018

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 34–202	Not recorded	Interleukin-6 receptor beta chain × 1 （P40189） IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3350, Sodium iodide, Imidazole, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.289
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 34–202	Not recorded	Interleukin-6 receptor beta chain × 1 （P40189） IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3350, Sodium iodide, Imidazole, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.289

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1PVH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EMR CRYSTAL STRUCTURE OF HUMAN LEUKEMIA INHIBITORY FACTOR (LIF) Deposited 2000-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 44–202（159 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；200 mM sodium acetate, 100 mM cacodylate buffer, 30% w/v PEG 8000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.50 Å R-free 0.293
2Q7N Crystal structure of Leukemia inhibitory factor in complex with LIF receptor (domains 1-5) Deposited 2007-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–202（180 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；1.5M sodium malonate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 4.00 Å R-free 0.287
2Q7N Crystal structure of Leukemia inhibitory factor in complex with LIF receptor (domains 1-5) Deposited 2007-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–202（180 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；1.5M sodium malonate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 4.00 Å R-free 0.287
7N0A Structure of Human Leukaemia Inhibitory Factor with Fab MSC1 Deposited 2021-05-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 23–202（180 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277.15 K；19% (v/v) isopropanol, 19% (w/v) PEG 4000, 5% (v/v) glycerol, 0.095 M sodium citrate, pH 5.6	Resolution 3.10 Å R-free 0.284
8D6A Cryo-EM structure of human LIF signaling complex: model containing the interaction core region Deposited 2022-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 24–202（179 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LIF_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–169； UniProt 34–202 Author chain D； PDBConstruct 1–169； UniProt 34–202

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1pvh
Deposition date deposition_date	2003-06-27
Structure title title	Crystal structure of leukemia inhibitory factor in complex with gp130
Keywords keywords	cytokine, receptor, signaling, beta sheet, four helix bundle, signaling protein-cytokine COMPLEX; signaling protein/cytokine
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	45.21 Å
Radius of gyration Rg (electron density) rg_electron	45.37 Å
Forward intensity I(0) i0	102478000.00
Molecular weight molecular_weight	83065.0 kDa
Excluded volume excluded_volume	103960 Å³
Envelope volume envelope_volume	160170 Å³
Hydration-shell volume shell_volume	30495 Å³
Envelope diameter envelope_diameter	146.9 Å
Shell Rg shell_rg	48.72 Å
Envelope Rg envelope_rg	43.03 Å
Shape Rg shape_rg	45.37 Å
Total Rg total_rg	45.56 Å
Total atoms total_atoms	5834
Residues n_residues	740
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

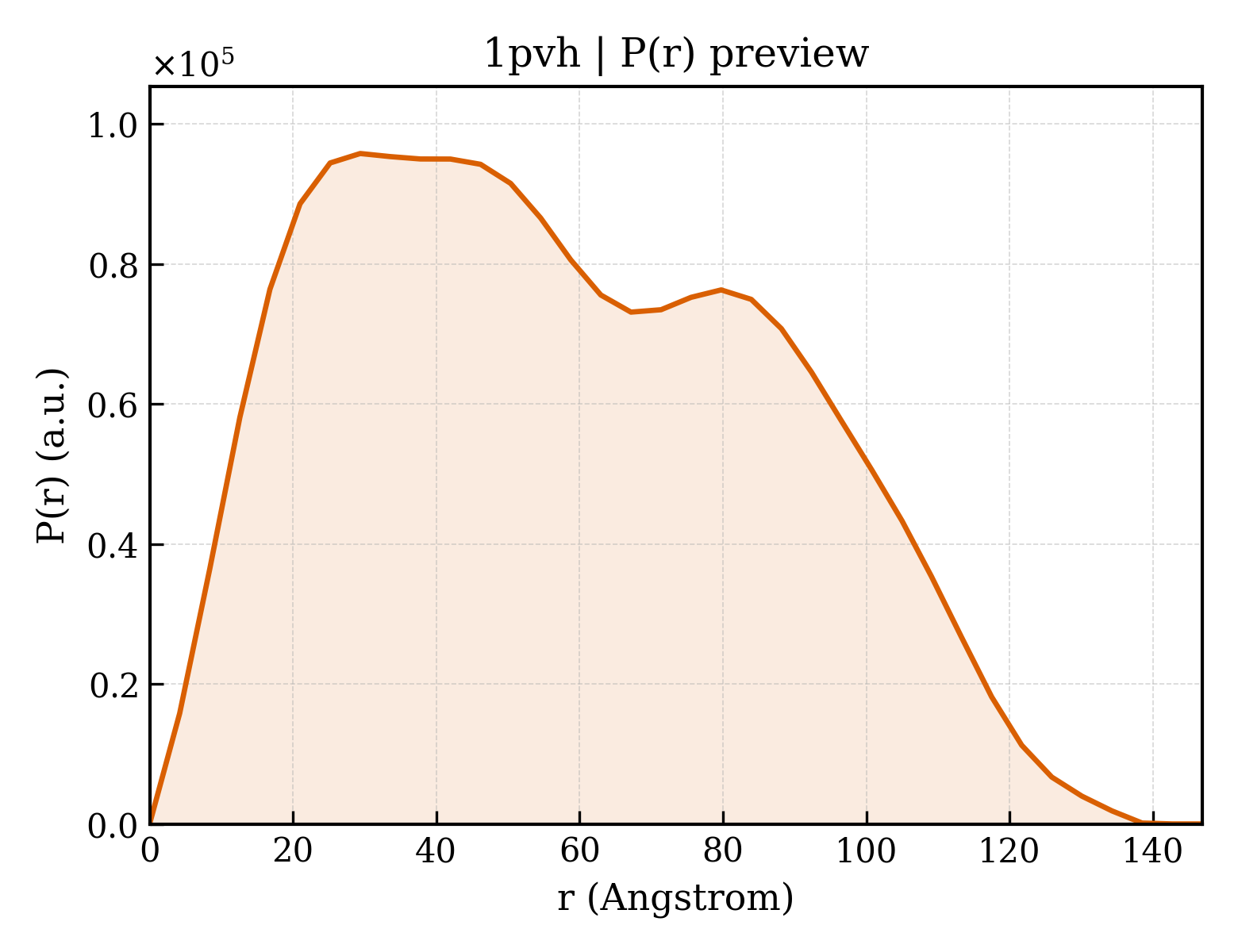

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	146.9 Å
Rg (real space) rg_real	45.54 Å
Rg uncertainty (real space) rg_real_error	1.71 Å
I(0) (real space) i0_real	1.0250e+08
I(0) uncertainty (real space) i0_real_error	1.8510e+06
Rg (reciprocal space) rg_reciprocal	45.21 Å
I(0) (reciprocal space) i0_reciprocal	102400000.0000
Solution quality estimate total_estimate	0.7950
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.4 Å
Skewness Skewness skewness	0.263
Kurtosis Kurtosis kurtosis	-0.892
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3096000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.805; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.586; Smooth: 0.333

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Interleukin-6 receptor beta chain
Molecular weight formula_weight	23069.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6026

GLPPEKPKNLSCIVNEGKKMRCEWDGGRETHLETNFTLKSEWATHKFADCKAKRDTPTSCTVDYSTVYFVNIEVWVEAENALGKVTSDHINFDPVYKVKPNPPHNLSVINSEELSSILKLTWTNPSIKSVIILKYNIQYRTKDASTWSQIPPEDTASTRSSFTVQDLKPFTEYVFRIRCMKEDGKGYWSDWSEEASGITYE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Leukemia inhibitory factor
Molecular weight formula_weight	18648.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

CAIRHPCHNNLMNQIRSQLAQLNGSANALFILYYTAQGEPFPNNLDKLCGPNVTDFPPFHANGTEKAKLVELYRIVVYLGTSLGNITRDQKILNPSALSLHSKLNATADILRGLLSNVLCRLCSKYHVGHVDVTYGPDTSGKDVFQKKKLGCQLLGKYKQIIAVLAQAF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	IODIDE ION
Molecular weight formula_weight	126.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	192

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1pvha1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1pvha2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1pvhb_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.1 — Long-chain cytokines

Domain ID domain_id	d1pvhc1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1pvhc2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1pvhd_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.1 — Long-chain cytokines

CATH v4.4 (6 domains)

Domain ID domain_id	1pvhA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1pvhA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1pvhB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1pvhC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1pvhC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1pvhD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	79.710 Å
Unit-cell length b length_b	86.700 Å
Unit-cell length c length_c	146.430 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	39.860 Å
R factor r_factor	0.2480
R_work r_work	0.2480
R_free r_free	0.2890

fit	/app/data/saxs_computation/pv/1pvh/1pvh.fit
pddf	/app/data/pr_computation/pv/1pvh/1pvh.pr.out
profile	/app/data/saxs_computation/pv/1pvh/1pvh.dat

Crystal structure of leukemia inhibitory factor in complex with gp130

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-6 receptor beta chain

State in the Current Structure

Other States of the Same Protein in the Database

Leukemia inhibitory factor

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
