1iru

Crystal Structure of the mammalian 20S proteasome at 2.75 A resolution

Method: X-RAY DIFFRACTION D_max: 197.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

20S proteasome

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 28 PDB declaration: 28-meric（28） Consistent with protein copy count	Chain J； UniProt 1–192 Chain X； UniProt 1–192	Not recorded	20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 20S proteasome × 2 MG MAGNESIUM ION × 30	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；MPD, Mg acetate, Na cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.75 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1IRU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7DR6 PA28alpha-beta in complex with immunoproteasome Deposited 2020-12-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain H 1–205（205 aa） Chain S 1–205（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7DR7 bovine 20S immunoproteasome Deposited 2020-12-26	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain H 1–205（205 aa） Chain S 1–205（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7DRW Bovine 20S immunoproteasome in complex with two human PA28alpha-beta activators Deposited 2020-12-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 42 PDB declaration: 42-meric	Chain S 1–205（205 aa） Chain k 1–205（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8AZK Bovine 20S proteasome, untreated Deposited 2022-09-06	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain J 1–205（205 aa） Chain X 1–205（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8FZ5 The PI31-free Bovine 20S proteasome Deposited 2023-01-27	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain J 1–205（205 aa） Chain X 1–205（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM Tris, pH 7.5, 5 mM MgCl2, 100 mM KCl, 1mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.23 Å
8FZ6 The human PI31 complexed with bovine 20S proteasome Deposited 2023-01-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain J 1–205（205 aa） Chain X 1–205（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM Tris, pH 7.5, 5 mM MgCl2, 100 mM KCl, 1mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.54 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PSB3_BOVIN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain J； PDBConstruct 14–205； UniProt 1–192 Author chain X； PDBConstruct 14–205； UniProt 1–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

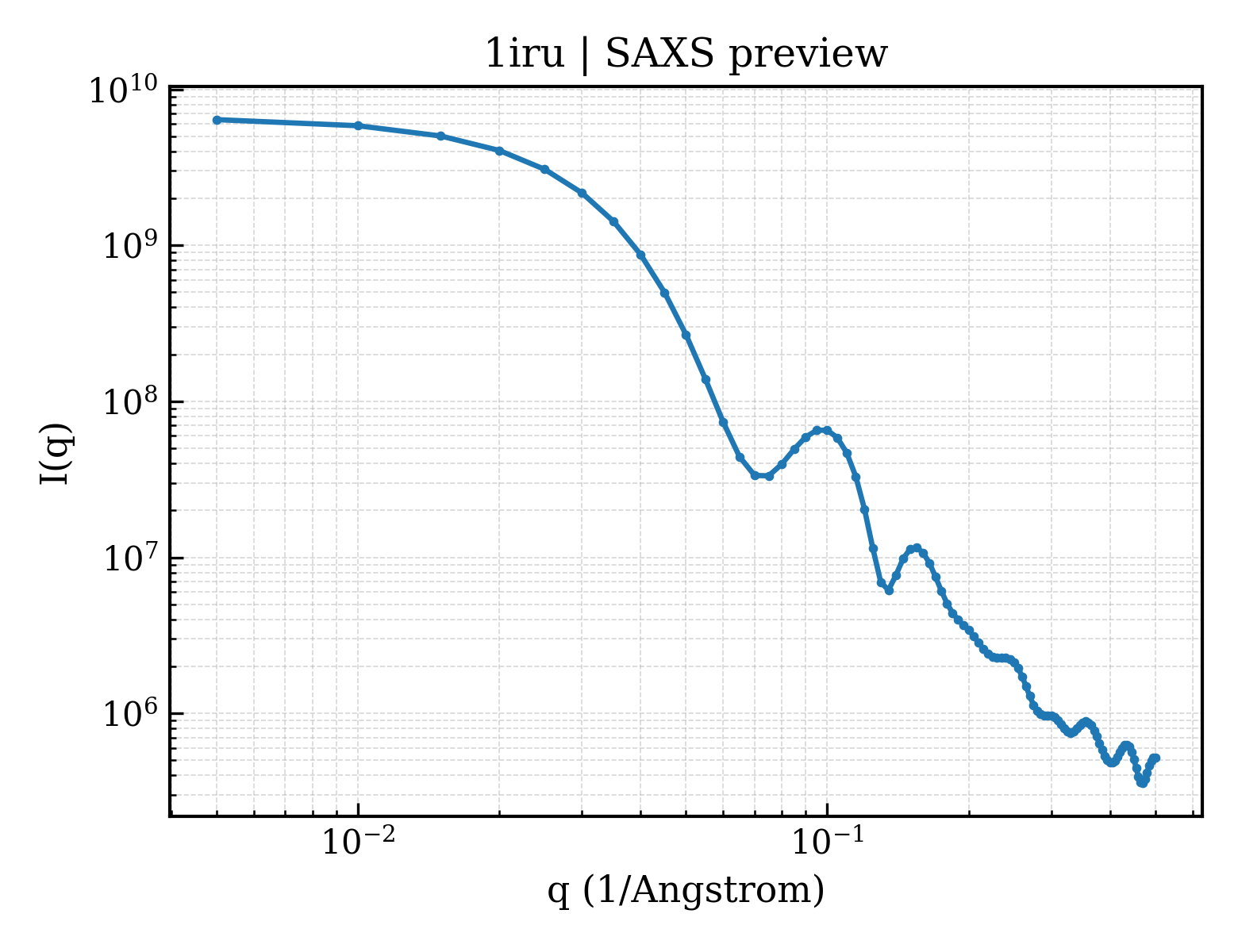

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1iru
Deposition date deposition_date	2001-10-24
Structure title title	Crystal Structure of the mammalian 20S proteasome at 2.75 A resolution
Keywords keywords	20S proteasome, cell cycle, Immune response, proteolysis, ubiquitin, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	60.09 Å
Radius of gyration Rg (electron density) rg_electron	59.51 Å
Forward intensity I(0) i0	6582370000.00
Molecular weight molecular_weight	677610.0 kDa
Excluded volume excluded_volume	844520 Å³
Envelope volume envelope_volume	1215000 Å³
Hydration-shell volume shell_volume	164510 Å³
Envelope diameter envelope_diameter	199.0 Å
Shell Rg shell_rg	67.04 Å
Envelope Rg envelope_rg	57.47 Å
Shape Rg shape_rg	59.54 Å
Total Rg total_rg	59.58 Å
Total atoms total_atoms	47592
Residues n_residues	6286
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	197.5 Å
Rg (real space) rg_real	59.83 Å
Rg uncertainty (real space) rg_real_error	1.44 Å
I(0) (real space) i0_real	6.5820e+09
I(0) uncertainty (real space) i0_real_error	1.2150e+08
Rg (reciprocal space) rg_reciprocal	60.29 Å
I(0) (reciprocal space) i0_reciprocal	6587000000.0000
Solution quality estimate total_estimate	0.8554
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	76.0 Å
Skewness Skewness skewness	0.227
Kurtosis Kurtosis kurtosis	-0.398
Angular range angular_range	— – 0.1300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	894000000.0000
Real-space data points n_real_points	27
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.772; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.846

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (16)

Entity 1 Entity 1 polymer

Description description	20S proteasome
Molecular weight formula_weight	27432.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,O
Atom count atom_count	47757

MSRGSSAGFDRHITIFSPEGRLYQVEYAFKAINQGGLTSVAVRGKDCAVIVTQKKVPDKLLDSSTVTHLFKITENIGCVMTGMTADSRSQVQRARYEAANWKYKYGYEIPVDMLCKRIADISQVYTQNAEMRPLGCCMILIGIDEEQGPQVYKCDPAGYYCGFKATAAGVKQTESTSFLEKKVKKKFDWTFEQTVETAITCLSTVLSIDFKPSEIEVGVVTVENPKFRILTEAEIDAHLVALAERD

Entity 2 Entity 2 polymer

Description description	20S proteasome
Molecular weight formula_weight	25796.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,P

AERGYSFSLTTFSPSGKLVQIEYALAAVAGGAPSVGIKAANGVVLATEKKQKSILYDERSVHKVEPITKHIGLVYSGMGPDYRVLVHRARKLAQQYYLVYQEPIPTAQLVQRVASVMQEYTQSGGVRPFGVSLLICGWNEGRPYLFQSDPSGAYFAWKATAMGKNYVNGKTFLEKRYNEDLELEDAIHTAILTLKESFEGQMTEDNIEVGICNEAGFRRLTPTEVKDYLAAIA

Entity 3 Entity 3 polymer

Description description	20S proteasome
Molecular weight formula_weight	29525.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,Q

MSRRYDSRTTIFSPEGRLYQVEYAMEAIGHAGTCLGILANDGVLLAAERRNIHKLLDEVFFSEKIYKLNEDMACSVAGITSDANVLTNELRLIAQRYLLQYQEPIPCEQLVTALCDIKQAYTQFGGKRPFGVSLLYIGWDKHYGFQLYQSDPSGNYGGWKATCIGNNSAAAVSMLKQDYKEGEMTLKSALALAIKVLNKTMDVSKLSAEKVEIATLTRENGKTVIRVLKQKEVEQLIKKHEEEEAKAEREKKEKEQKEKDK

Entity 4 Entity 4 polymer

Description description	20S proteasome
Molecular weight formula_weight	27929.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,R

MSYDRAITVFSPDGHLFQVEYAQEAVKKGSTAVGVRGRDIVVLGVEKKSVAKLQDERTVRKICALDDNVCMAFAGLTADARIVINRARVECQSHRLTVEDPVTVEYITRYIASLKQRYTQSNGRRPFGISALIVGFDFDGTPRLYQTDPSGTYHAWKANAIGRGAKSVREFLEKNYTDEAIETDDLTIKLVIKALLEVVQSGGKNIELAVMRRDQSLKILNPEEIEKYVAEIEKEKEENEKKKQKKAS

Entity 5 Entity 5 polymer

Description description	20S proteasome
Molecular weight formula_weight	26494.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,S

MFLTRSEYDRGVNTFSPEGRLFQVEYDIEAIKLGSTAIGIQTSEGVCLAVEKRITSPLMEPSSIEKIVEIDAHIGCAMSGLIADAKTLIDKARVETQNHWFTYNETMTVESVTQAVSNLALQFGEEDADPGAMSRPFGVALLFGGVDEKGPQLFHMDPSGTFVQCDARAIGSASEGAQSSLQELYHKSMTLKEAIKSSLIILKQVMEEKLNATNIELATVQPGQNFHMFTKEELEEVIKDI

Entity 6 Entity 6 polymer

Description description	20S proteasome
Molecular weight formula_weight	29595.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,T

MFRNQYDNDVTVWSPQGRIHQIEYAMEAVKQGSATVGLKSKTHAVLVALKRAQSELAAHQKKILHVDNHIGISIAGLTADARLLCNFMRQECLDSRFVFDRPLPVSRLVSLIGSKTQIPTQRYGRRPYGVGLLIAGYDDMGPHIFQTCPSANYFDCRAMSIGARSQSARTYLERHMSEFMECNLNELVKHGLRALRETLPAEQDLTTKNVSIGIVGKDLEFTIYDDDDVSPFLEGLEERPQRKAQPAQPADEPAEKADEPMEH

Entity 7 Entity 7 polymer

Description description	20S proteasome
Molecular weight formula_weight	28338.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,U

SSIGTGYDLSASTFSPDGRVFQVEYAMKAVENSSTAIGIRCKDGVVFGVEKLVLSKLYEEGSNKRLFNVDRHVGMAVAGLLADARSLADIAREEASNFRSNFGYNIPLKHLADRVAMYVHAYTLYSAVRPFGCSFMLGSYSVNDGAQLYMIDPSGVSYGYWGCAIGKARQAAKTEIEKLQMKEMTCRDIVKEVAKIIYIVHDEVKDKAFELELSWVGELTNGRHEIVPKDIREEAEKYAKESLKEEDESDDDNM

Entity 8 Entity 8 polymer

Description description	20S proteasome
Molecular weight formula_weight	21921.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,V

TTIMAVQFDGGVVLGADSRTTTGSYIANRVTDKLTPIHDRIFCCRSGSAADTQAVADAVTYQLGFHSIELNEPPLVHTAASLFKEMCYRYREDLMAGIIIAGWDPQEGGQVYSVPMGGMMVRQSFAIGGSGSSYIYGYVDATYREGMTKEECLQFTANALALAMERDGSSGGVIRLAAIAESGVERQVLLGDQIPKFAVATLPPA

Entity 9 Entity 9 polymer

Description description	20S proteasome
Molecular weight formula_weight	25351.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,W

TTIAGVVYKDGIVLGADTRATEGMVVADKNCSKIHFISPNIYCCGAGTAADTDMTTQLISSNLELHSLSTGRLPRVVTANRMLKQMLFRYRGYIGAALVLGGVDVTGPHLYSIYPHGSTDKLPYVTMGSGSLAAMAVFEDKFRPDMEEEEAKNLVSEAIAAGIFNDLGSGSNIDLCVISKNKLDFLRPYTVPNKKGTRLGRYRCEKGTTAVLTEKITPLEIEVLEETVQTMDTS

Entity 10 Entity 10 polymer

Description description	20S proteasome
Molecular weight formula_weight	22954.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,X

MSIMSYNGGAVMAMKGKNCVAIAADRRFGIQAQLVTTDFQKIFPMGDRLYIGLAGLATDVQTVAQRLKFRLNLYELKEGRQIKPYTLMSMVANLLYEKRFGPYYTEPVIAGLDPKTFKPFICSLDLIGCPMVTDDFVVSGTCAEQMYGMCESLWEPNMDPDHLFETISQAMLNAVDRDAVSGMGVIVHIIEKDKITTRTLKARMD

Entity 11 Entity 11 polymer

Description description	20S proteasome
Molecular weight formula_weight	22864.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,Y

MEYLIGIQGPDYVLVASDRVAASNIVQMKDDHDKMFKMSEKILLLCVGEAGDTVQFAEYIQKNVQLYKMRNGYELSPTAAANFTRRNLADCLRSRTPYHVNLLLAGYDEHEGPALYYMDYLAALAKAPFAAHGYGAFLTLSILDRYYTPTISRERAVELLRKCLEELQKRFILNLPTFSVRIIDKNGIHDLDNISFPKQGS

Entity 12 Entity 12 polymer

Description description	20S proteasome
Molecular weight formula_weight	22484.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,Z

TTTLAFKFRHGVIVAADSRATAGAYIASQTVKKVIEINPYLLGTMAGGAADCSFWERLLARQCRIYELRNKERISVAAASKLLANMVYQYKGMGLSMGTMICGWDKRGPGLYYVDSEGNRISGATFSVGSGSVYAYGVMDRGYSYDLEVEQAYDLARRAIYQATYRDAYSGGAVNLYHVREDGWIRVSSDNVADLHEKYSGSTP

Entity 13 Entity 13 polymer

Description description	20S proteasome
Molecular weight formula_weight	23579.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,1

RFSPYVFNGGTILAIAGEDFAIVASDTRLSEGFSIHTRDSPKCYKLTDKTVIGCSGFHGDCLTLTKIIEARLKMYKHSNNKAMTTGAIAAMLSTILYSRRFFPYYVYNIIGGLDEEGKGAVYSFDPVGSYQRDSFKAGGSASAMLQPLLDNQVGFKNMQNVEHVPLSLDRAMRLVKDVFISAAERDVYTGDALRICIVTKEGIREETVSLRKD

Entity 14 Entity 14 polymer

Description description	20S proteasome
Molecular weight formula_weight	24402.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,2

TQNPMVTGTSVLGVKFEGGVVIAADMLGSYGSLARFRNISRIMRVNNSTMLGASGDYADFQYLKQVLGQMVIDEELLGDGHSYSPRAIHSWLTRAMYSRRSKMNPLWNTMVIGGYADGESFLGYVDMLGVAYEAPSLATGYGAYLAQPLLREVLEKQPVLSQTEARDLVERCMRVLYYRDARSYNRFQTATVTEKGVEIEGPLSTETNWDIAHMISGFE

Entity 15 Entity 15 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	30

Entity 16 Entity 16 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	165

▼

7. Fold Classification (SCOP + CATH) 56 domains

SCOP 2.08 (28 domains)

Domain ID domain_id	d1iru1_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iru2_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irua_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irub_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irud_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irue_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irug_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irui_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruk_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irul_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irum_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irun_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruo_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irup_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruq_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irur_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irus_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irut_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruu_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruv_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruw_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1irux_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruy_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1iruz_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

CATH v4.4 (28 domains)

Domain ID domain_id	1iru100
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iru200
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruA00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruB00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruC00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruD00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruE00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruF00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruG00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruH00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruI00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruJ00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruK00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruL00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruM00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruN00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruO00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruP00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruQ00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruR00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruS00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruT00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruU00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruV00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruW00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruX00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruY00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1iruZ00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	316.700 Å
Unit-cell length b length_b	205.900 Å
Unit-cell length c length_c	116.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	65.000 Å
R factor r_factor	0.2520
R_work r_work	0.2500
R_free r_free	0.2940

fit	/app/data/saxs_computation/ir/1iru/1iru.fit
pddf	/app/data/pr_computation/ir/1iru/1iru.pr.out
profile	/app/data/saxs_computation/ir/1iru/1iru.dat

Crystal Structure of the mammalian 20S proteasome at 2.75 A resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

20S proteasome

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (16)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

Entity 6 Entity 6 polymer

Polymer Polymer

Entity 7 Entity 7 polymer

Polymer Polymer

Entity 8 Entity 8 polymer

Polymer Polymer

Entity 9 Entity 9 polymer

Polymer Polymer

Entity 10 Entity 10 polymer

Polymer Polymer

Entity 11 Entity 11 polymer

Polymer Polymer

Entity 12 Entity 12 polymer

Polymer Polymer

Entity 13 Entity 13 polymer

Polymer Polymer

Entity 14 Entity 14 polymer

Polymer Polymer

Entity 15 Entity 15 non-polymer

Entity 16 Entity 16 water

7. Fold Classification (SCOP + CATH) 56 domains

SCOP 2.08 (28 domains)

CATH v4.4 (28 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
