1j70

CRYSTAL STRUCTURE OF YEAST ATP SULFURYLASE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP SULPHURYLASE

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	PHOSPHATE ION × 6 SODIUM ION × 3 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	PHOSPHATE ION × 6 SODIUM ION × 12 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MET3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–514； UniProt 1–511 Author chain B； PDBConstruct 4–514； UniProt 1–511 Author chain C； PDBConstruct 4–514； UniProt 1–511

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1j70
Deposition date deposition_date	2001-05-15
Structure title title	CRYSTAL STRUCTURE OF YEAST ATP SULFURYLASE
Keywords keywords	nucleotide binding fold and kinase fold, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1j70__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1j70__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

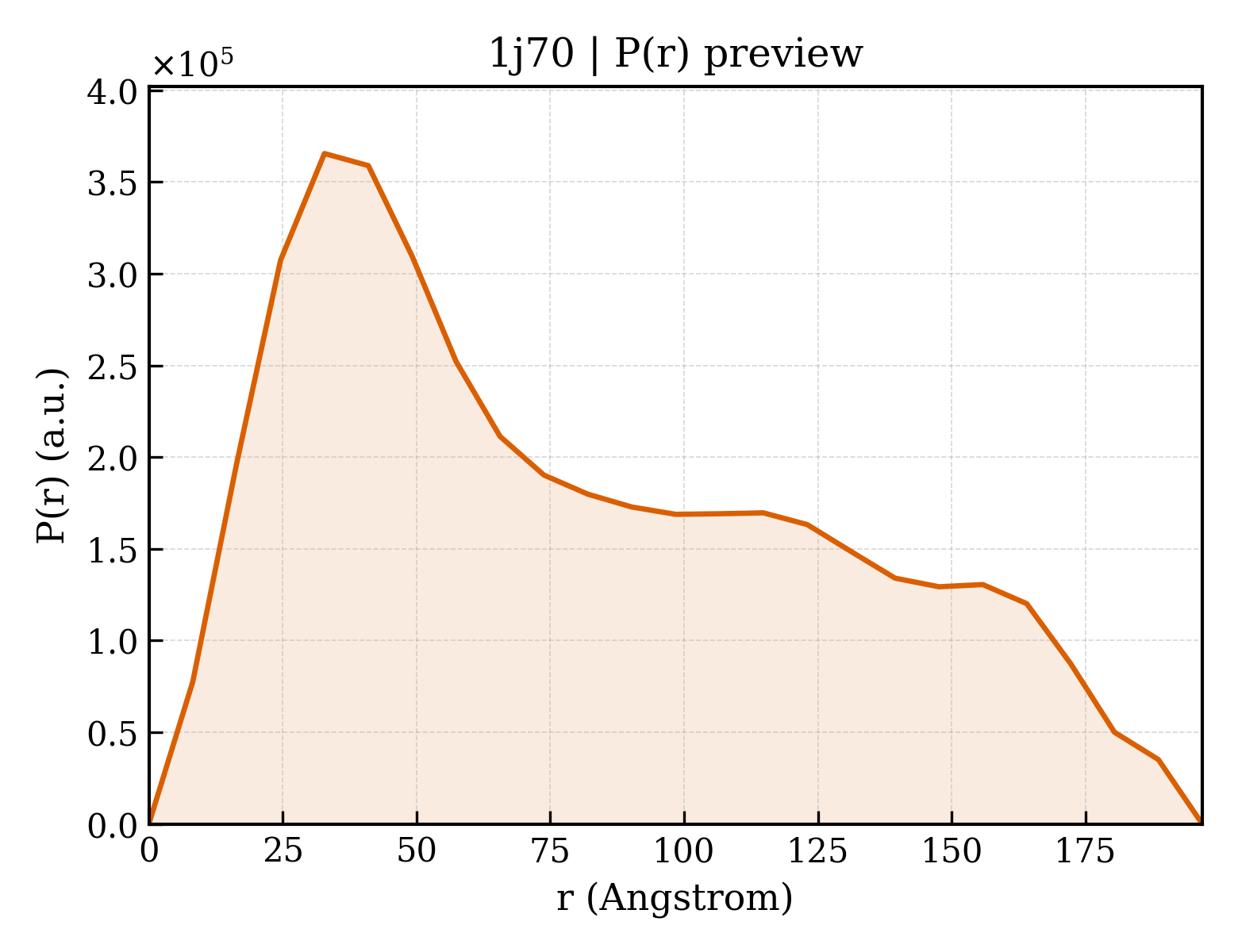

1j70__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.20 Å
Rg (electron density)	47.54 Å
Total Rg	47.82 Å
Atom count	24591
Residues	3072
Excluded volume	436770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1j70__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1j70__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ATP SULPHURYLASE
Molecular weight formula_weight	58074.5 kDa
EC 编号 ec_number	2.7.7.4
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	12832

GSHMPAPHGGILQDLIARDALKKNELLSEAQSSDILVWNLTPRQLCDIELILNGGFSPLTGFLNENDYSSVVTDSRLADGTLWTIPITLDVDEAFANQIKPDTRIALFQDDEIPIAILTVQDVYKPNKTIEAEKVFRGDPEHPAISYLFNVAGDYYVGGSLEAIQLPQHYDYPGLRKTPAQLRLEFQSRQWDRVVAFQTRNPMHRAHRELTVRAAREANAKVLIHPVVGLTKPGDIDHHTRVRVYQEIIKRYPNGIAFLSLLPLAMRMSGDREAVWHAIIRKNYGASHFIVGRDHAGPGKNSKGVDFYGPYDAQELVESYKHELDIEVVPFRMVTYLPDEDRYAPIDQIDTTKTRTLNISGTELRRRLRVGGEIPEWFSYPEVVKILRESNPPRPKQGFSIVLGNSLTVSREQLSIALLSTFLQFGGGRYYKIFEHNNKTELLSLIQDFIGSGSGLIIPNQWEDDKDSVVGKQNVYLLDTSSSADIQLESADEPISHIVQKVVLFLEDNGFFVF

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	545

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (11 domains)

Domain ID domain_id	d1j70a1
Class class	b — All beta proteins
Fold Fold fold	b.122 — PUA domain-like
Superfamily Superfamily superfamily	b.122.1 — PUA domain-like
Family Family family	b.122.1.3 — ATP sulfurylase N-terminal domain

Domain ID domain_id	d1j70a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.5 — ATP sulfurylase catalytic domain

Domain ID domain_id	d1j70a3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.15 — ATP sulfurylase C-terminal domain

Domain ID domain_id	d1j70a4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1j70b1
Class class	b — All beta proteins
Fold Fold fold	b.122 — PUA domain-like
Superfamily Superfamily superfamily	b.122.1 — PUA domain-like
Family Family family	b.122.1.3 — ATP sulfurylase N-terminal domain

Domain ID domain_id	d1j70b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.5 — ATP sulfurylase catalytic domain

Domain ID domain_id	d1j70b3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.15 — ATP sulfurylase C-terminal domain

Domain ID domain_id	d1j70b4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1j70c1
Class class	b — All beta proteins
Fold Fold fold	b.122 — PUA domain-like
Superfamily Superfamily superfamily	b.122.1 — PUA domain-like
Family Family family	b.122.1.3 — ATP sulfurylase N-terminal domain

Domain ID domain_id	d1j70c2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.5 — ATP sulfurylase catalytic domain

Domain ID domain_id	d1j70c3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.15 — ATP sulfurylase C-terminal domain

CATH v4.4 (9 domains)

Domain ID domain_id	1j70A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1j70A02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	400 — Sulfate adenylyltransferase
Homologous superfamily homologous superfamily	10 — Sulfate adenylyltransferase

Domain ID domain_id	1j70A03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1j70B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1j70B02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	400 — Sulfate adenylyltransferase
Homologous superfamily homologous superfamily	10 — Sulfate adenylyltransferase

Domain ID domain_id	1j70B03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1j70C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1j70C02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	400 — Sulfate adenylyltransferase
Homologous superfamily homologous superfamily	10 — Sulfate adenylyltransferase

Domain ID domain_id	1j70C03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	230.850 Å
Unit-cell length b length_b	230.850 Å
Unit-cell length c length_c	69.710 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	29.840 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2670
