1jee
Crystal Structure of ATP Sulfurylase in complex with chlorate
SAXS 散射曲线 SAXS Profile

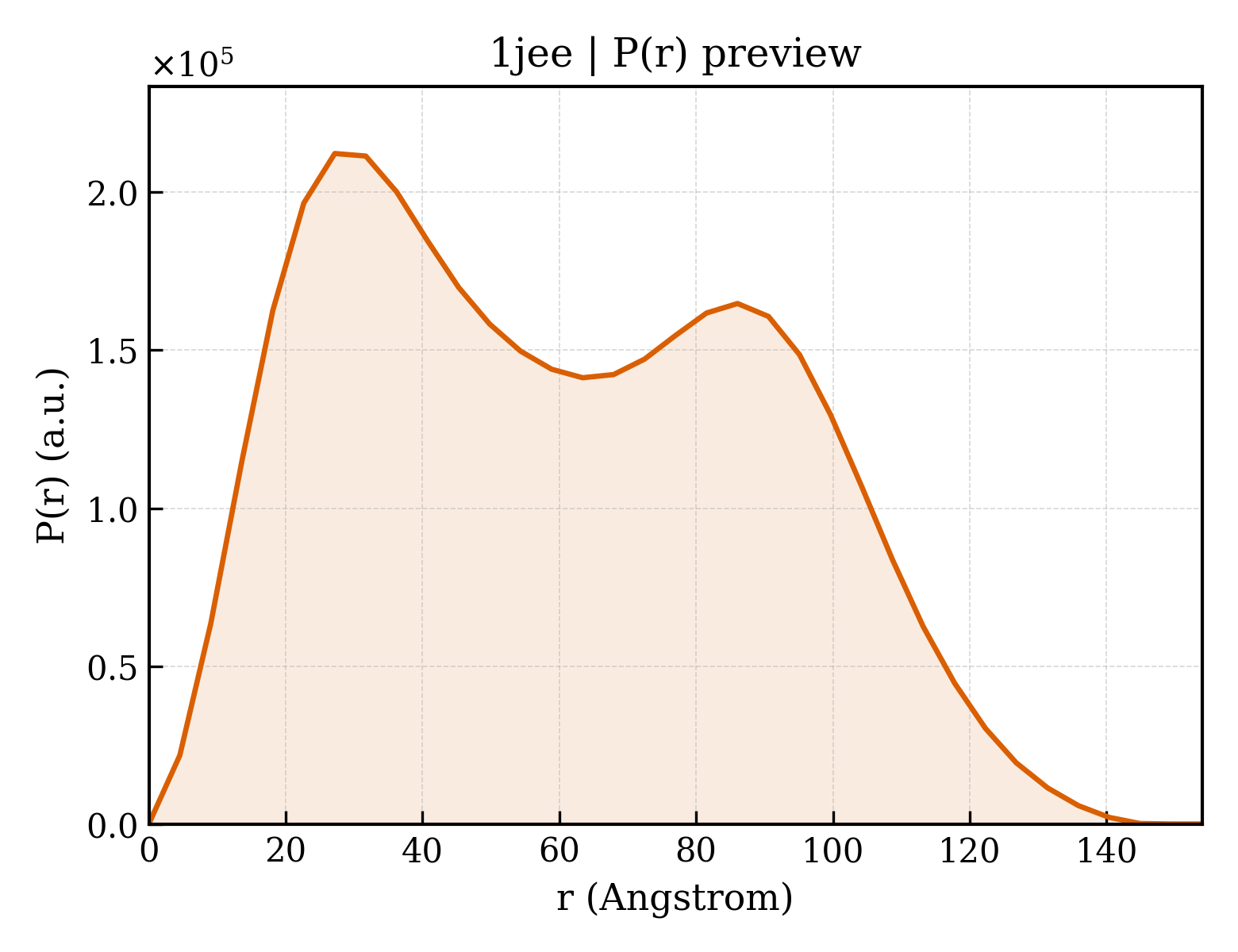

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1jee |
| 沉积日期 deposition_date | 2001-06-17 |
| 结构标题 title | Crystal Structure of ATP Sulfurylase in complex with chlorate |
| 关键词 keywords | alpha-beta protein, beta-barrel, Rossmann-fold, inhibitor complex, chlorate, TRANSFERASE; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 47.04 Å |
| 回转半径 Rg (电子) rg_electron | 47.20 Å |
| 零角强度 I(0) i0 | 211031000.00 |
| 分子量 molecular_weight | 119480.0 kDa |
| 排除体积 excluded_volume | 148650 ų |
| 包络体积 envelope_volume | 212370 ų |
| 水化壳体积 shell_volume | 36978 ų |
| 包络直径 envelope_diameter | 155.4 Å |
| 壳层 Rg shell_rg | 53.29 Å |
| 包络 Rg envelope_rg | 45.21 Å |
| 形状 Rg shape_rg | 47.17 Å |
| 总 Rg total_rg | 47.53 Å |
| 总原子数 total_atoms | 8337 |
| 残基数 n_residues | 1020 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 154.0 Å |
| Rg (实空间) rg_real | 47.38 Å |
| Rg 误差 (实空间) rg_real_error | 1.79 Å |
| I(0) (实空间) i0_real | 2.1100e+08 |
| I(0) 误差 (实空间) i0_real_error | 4.5480e+06 |
| Rg (倒空间) rg_reciprocal | 47.05 Å |
| I(0) (倒空间) i0_reciprocal | 210900000.0000 |
| 解质量估计 total_estimate | 0.7499 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 27.2 Å |
| 偏度 Skewness skewness | 0.231 |
| 峰度 Kurtosis kurtosis | -0.999 |
| 角度范围 angular_range | — – 0.1700 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 11330000.0000 |
| 实空间数据点数 n_real_points | 35 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.521; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.621; Smooth: 0.562 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (11)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1jeea1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.122 — PUA domain-like |
| 超家族 Superfamily superfamily | b.122.1 — PUA domain-like |
| 家族 Family family | b.122.1.3 — ATP sulfurylase N-terminal domain |
| 结构域编号 domain_id | d1jeea2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.26 — Adenine nucleotide alpha hydrolase-like |
| 超家族 Superfamily superfamily | c.26.1 — Nucleotidylyl transferase |
| 家族 Family family | c.26.1.5 — ATP sulfurylase catalytic domain |
| 结构域编号 domain_id | d1jeea3 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.15 — ATP sulfurylase C-terminal domain |
| 结构域编号 domain_id | d1jeeb1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.122 — PUA domain-like |
| 超家族 Superfamily superfamily | b.122.1 — PUA domain-like |
| 家族 Family family | b.122.1.3 — ATP sulfurylase N-terminal domain |
| 结构域编号 domain_id | d1jeeb2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.26 — Adenine nucleotide alpha hydrolase-like |
| 超家族 Superfamily superfamily | c.26.1 — Nucleotidylyl transferase |
| 家族 Family family | c.26.1.5 — ATP sulfurylase catalytic domain |
| 结构域编号 domain_id | d1jeeb3 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.15 — ATP sulfurylase C-terminal domain |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1jeeA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 1jeeA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 400 — Sulfate adenylyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Sulfate adenylyltransferase |
| 结构域编号 domain_id | 1jeeA03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| 结构域编号 domain_id | 1jeeB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 1jeeB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 400 — Sulfate adenylyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Sulfate adenylyltransferase |
| 结构域编号 domain_id | 1jeeB03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
