1jec

Crystal Structure of ATP Sulfurylase in complex with thiosulfate

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SULFATE ADENYLYLTRANSFERASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	CADMIUM ION × 42 CALCIUM ION × 18 MAGNESIUM ION × 6 SODIUM ION × 18 SULFATE ION × 6 THIOSULFATE × 6 ACETIC ACID × 72 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MET3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 2–511

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jec
Deposition date deposition_date	2001-06-17
Structure title title	Crystal Structure of ATP Sulfurylase in complex with thiosulfate
Keywords keywords	alpha-beta protein, beta-barrel, Rossmann-fold, inhibitor complex, thiosulfate, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jec__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

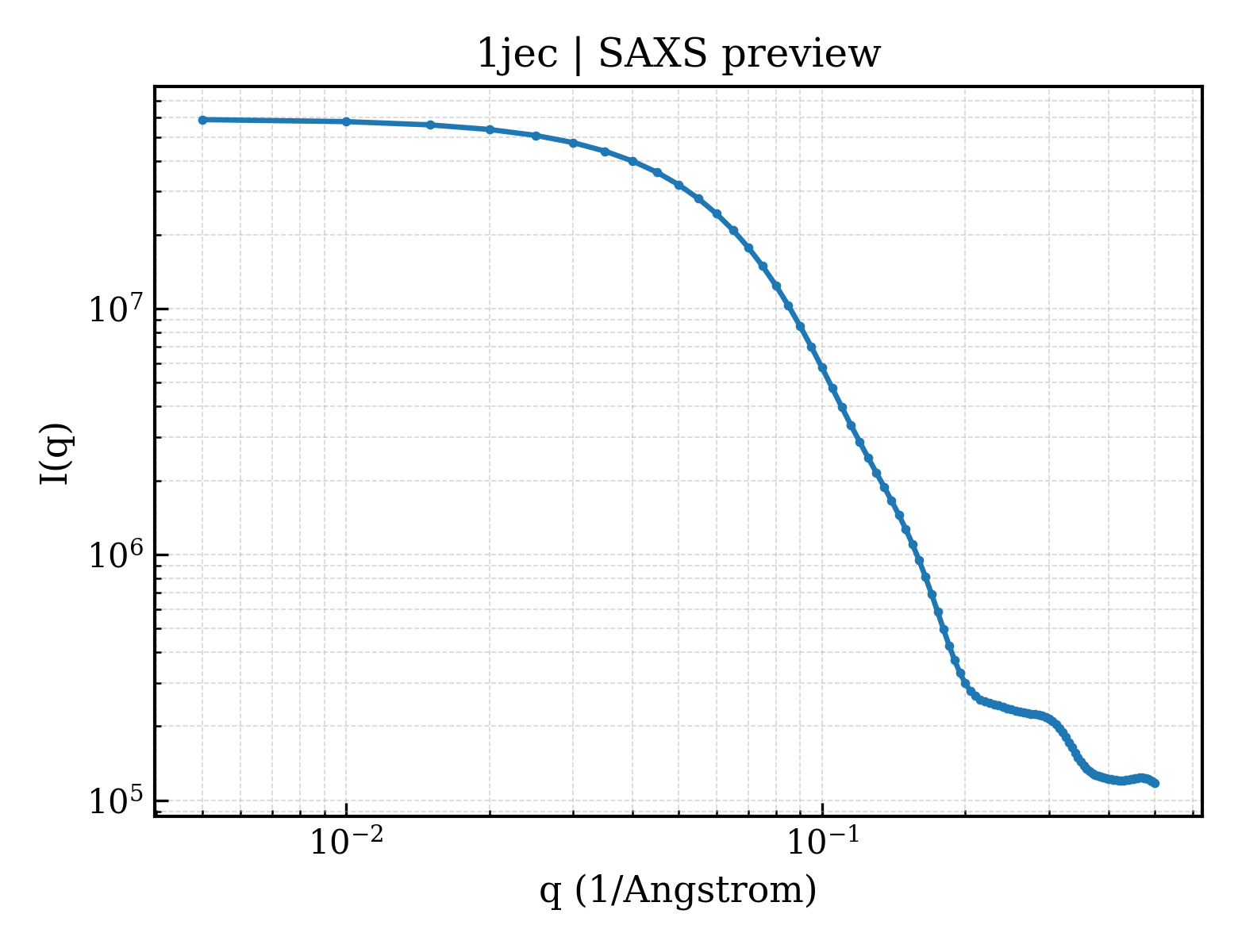

1jec__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

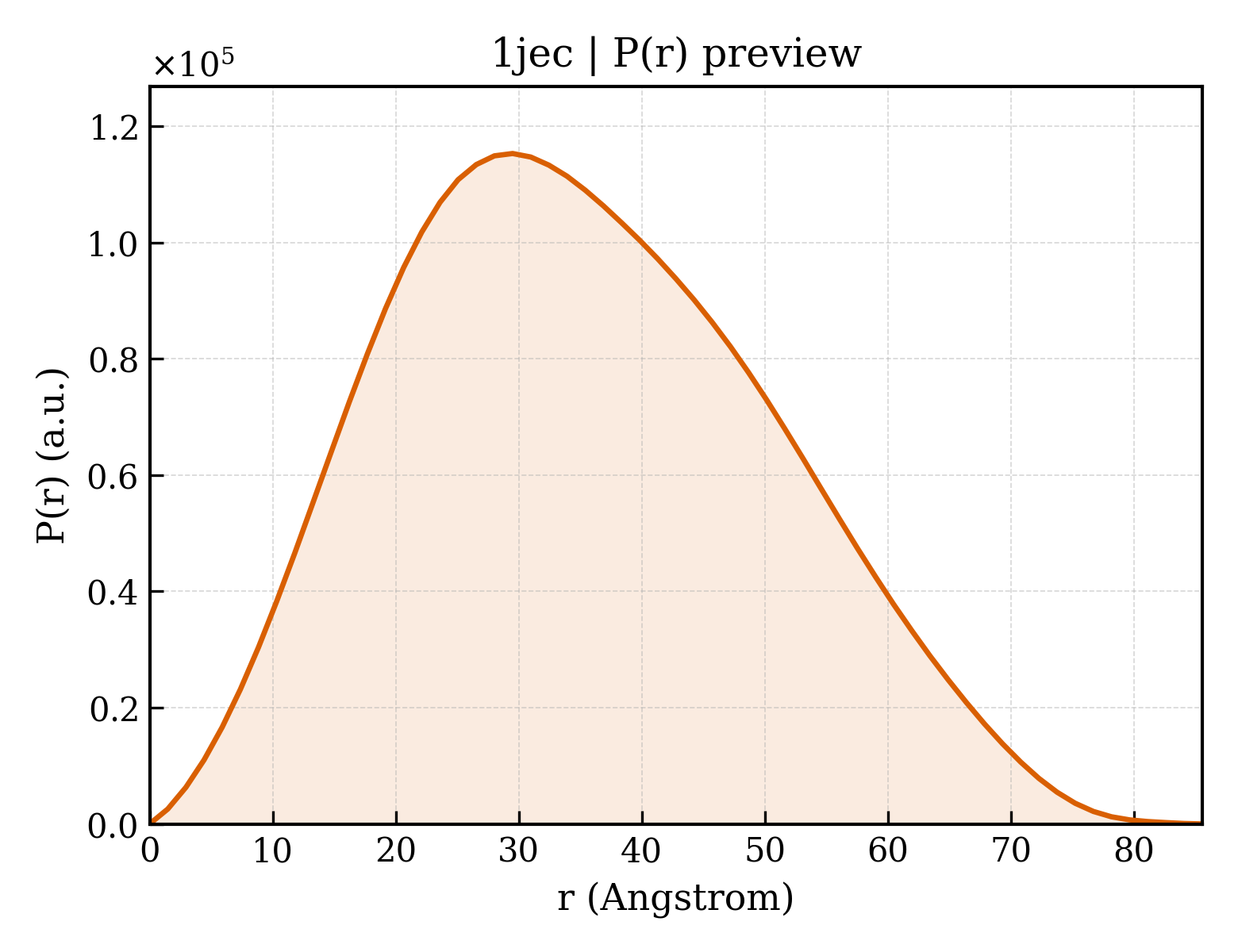

1jec__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.40 Å
Rg (electron density)	47.75 Å
Total Rg	48.07 Å
Atom count	24879
Residues	3060
Excluded volume	444050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jec__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	SULFATE ADENYLYLTRANSFERASE
Molecular weight formula_weight	57661.0 kDa
EC 编号 ec_number	2.7.7.4
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4585

PAPHGGILQDLIARDALKKNELLSEAQSSDILVWNLTPRQLCDIELILNGGFSPLTGFLNENDYSSVVTDSRLADGTLWTIPITLDVDEAFANQIKPDTRIALFQDDEIPIAILTVQDVYKPNKTIEAEKVFRGDPEHPAISYLFNVAGDYYVGGSLEAIQLPQHYDYPGLRKTPAQLRLEFQSRQWDRVVAFQTRNPMHRAHRELTVRAAREANAKVLIHPVVGLTKPGDIDHHTRVRVYQEIIKRYPNGIAFLSLLPLAMRMSGDREAVWHAIIRKNYGASHFIVGRDHAGPGKNSKGVDFYGPYDAQELVESYKHELDIEVVPFRMVTYLPDEDRYAPIDQIDTTKTRTLNISGTELRRRLRVGGEIPEWFSYPEVVKILRESNPPRPKQGFSIVLGNSLTVSREQLSIALLSTFLQFGGGRYYKIFEHNNKTELLSLIQDFIGSGSGLIIPNQWEDDKDSVVGKQNVYLLDTSSSADIQLESADEPISHIVQKVVLFLEDNGFFVF

Entity 2 Entity 2 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	THIOSULFATE
Molecular weight formula_weight	112.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	438

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1jeca1
Class class	b — All beta proteins
Fold Fold fold	b.122 — PUA domain-like
Superfamily Superfamily superfamily	b.122.1 — PUA domain-like
Family Family family	b.122.1.3 — ATP sulfurylase N-terminal domain

Domain ID domain_id	d1jeca2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.5 — ATP sulfurylase catalytic domain

Domain ID domain_id	d1jeca3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.15 — ATP sulfurylase C-terminal domain

CATH v4.4 (3 domains)

Domain ID domain_id	1jecA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1jecA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	400 — Sulfate adenylyltransferase
Homologous superfamily homologous superfamily	10 — Sulfate adenylyltransferase

Domain ID domain_id	1jecA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	186.688 Å
Unit-cell length b length_b	186.688 Å
Unit-cell length c length_c	115.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	24.340 Å
R factor r_factor	0.1780
R_work r_work	0.1780
R_free r_free	0.2360

Crystal Structure of ATP Sulfurylase in complex with thiosulfate
