1jt0

Crystal structure of a cooperative QacR-DNA complex

Method: X-RAY DIFFRACTION D_max: 122.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

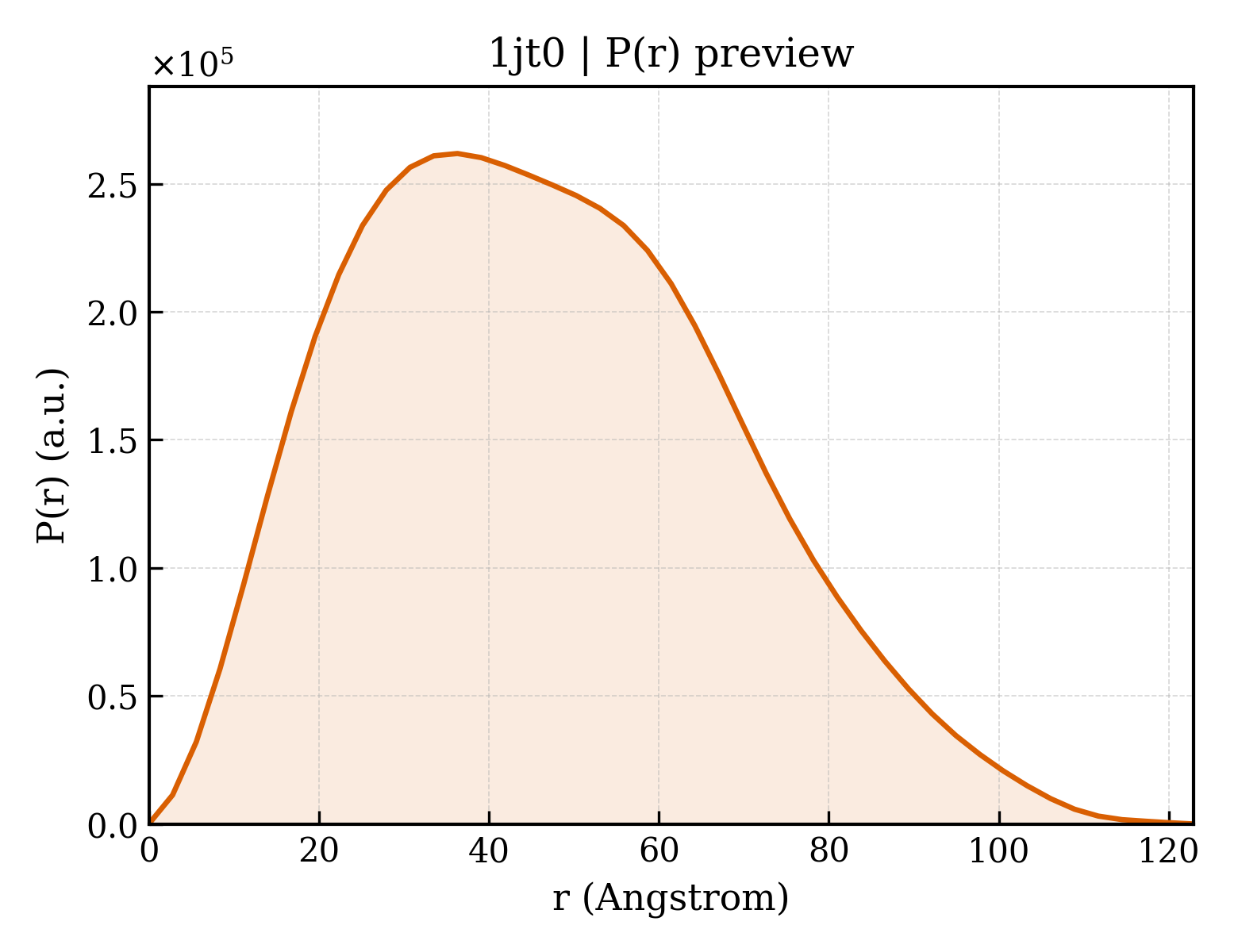

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jt0
沉积日期 deposition_date	2001-08-20
结构标题 title	Crystal structure of a cooperative QacR-DNA complex
关键词 keywords	multidrug binding protein, cooperative DNA binding, dimer of dimers, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.25 Å
回转半径 Rg (电子) rg_electron	36.48 Å
零角强度 I(0) i0	198481000.00
分子量 molecular_weight	105820.0 kDa
排除体积 excluded_volume	128710 Å³
包络体积 envelope_volume	168130 Å³
水化壳体积 shell_volume	39275 Å³
包络直径 envelope_diameter	126.2 Å
壳层 Rg shell_rg	41.60 Å
包络 Rg envelope_rg	36.18 Å
形状 Rg shape_rg	36.50 Å
总 Rg total_rg	36.72 Å
总原子数 total_atoms	7406
残基数 n_residues	805
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	122.9 Å
Rg (实空间) rg_real	36.36 Å
Rg 误差 (实空间) rg_real_error	1.42 Å
I(0) (实空间) i0_real	1.9850e+08
I(0) 误差 (实空间) i0_real_error	3.6330e+06
Rg (倒空间) rg_reciprocal	36.30 Å
I(0) (倒空间) i0_reciprocal	198500000.0000
解质量估计 total_estimate	0.8773
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.3 Å
偏度 Skewness skewness	0.355
峰度 Kurtosis kurtosis	-0.450
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	22050000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.875; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.894; Smooth: 0.884

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	QACA operator
分子量 formula_weight	8604.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,F
原子数 atom_count	7451

CTTATAGACCGATCGATCGGTCTATAAG

Entity 2 polymer

描述 description	;HYPOTHETICAL TRANSCRIPTIONAL REGULATOR IN QACA 5'REGION ;
分子量 formula_weight	22983.0 kDa
突变 mutation	C72A, C141S
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D

MNLKDKILGVAKELFIKNGYNATTTGEIVKLSESSKGNLYYHFKTKENLFLEILNIEESKWQEQWKKEQIKAKTNREKFYLYNELSLTTEYYYPLQNAIIEFYTEYYKTNSINEKMNKLENKYIDAYHVIFKEGNLNGEWSINDVNAVSKIAANAVNGIVTFTHEQNINERIKLMNKFSQIFLNGLSKHHHHHH

来源 Source

来源生物 organism	Staphylococcus aureus
NCBI 分类编号 ncbi_taxonomy_id	1280
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	45

▼

6. 折叠分类 (SCOP + CATH) 19 domains

SCOP 2.08 (11 domains)

结构域编号 domain_id	d1jt0a1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.1 — Homeodomain-like
家族 Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

结构域编号 domain_id	d1jt0a2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
超家族 Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
家族 Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

结构域编号 domain_id	d1jt0a3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1jt0b1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.1 — Homeodomain-like
家族 Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

结构域编号 domain_id	d1jt0b2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
超家族 Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
家族 Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

结构域编号 domain_id	d1jt0b3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1jt0c1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.1 — Homeodomain-like
家族 Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

结构域编号 domain_id	d1jt0c2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
超家族 Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
家族 Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

结构域编号 domain_id	d1jt0c3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1jt0d1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.1 — Homeodomain-like
家族 Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

结构域编号 domain_id	d1jt0d2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
超家族 Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
家族 Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1jt0A01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	60 — Homeodomain-like

结构域编号 domain_id	1jt0A02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	357 — Tetracycline Repressor; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

结构域编号 domain_id	1jt0B01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	60 — Homeodomain-like

结构域编号 domain_id	1jt0B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	357 — Tetracycline Repressor; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

结构域编号 domain_id	1jt0C01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	60 — Homeodomain-like

结构域编号 domain_id	1jt0C02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	357 — Tetracycline Repressor; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

结构域编号 domain_id	1jt0D01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	60 — Homeodomain-like

结构域编号 domain_id	1jt0D02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	357 — Tetracycline Repressor; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	174.700 Å
晶胞边长 b length_b	174.700 Å
晶胞边长 c length_c	151.950 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 65
空间群编号 int_tables_number	170
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	75.730 Å
R 因子 r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2580

fit	/app/data/saxs_computation/jt/1jt0/1jt0.fit
pddf	/app/data/pr_computation/jt/1jt0/1jt0.pr.out
profile	/app/data/saxs_computation/jt/1jt0/1jt0.dat
