1jtx

Crystal structure of the multidrug binding transcriptional regulator QacR bound to crystal violet

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;HYPOTHETICAL TRANSCRIPTIONAL REGULATOR IN QACA 5'REGION ;

Staphylococcus aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 13 CRYSTAL VIOLET × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 11 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	QACR_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–188； UniProt 1–188 Author chain B； PDBConstruct 1–188； UniProt 1–188 Author chain D； PDBConstruct 1–188； UniProt 1–188 Author chain E； PDBConstruct 1–188； UniProt 1–188

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jtx
Deposition date deposition_date	2001-08-22
Structure title title	Crystal structure of the multidrug binding transcriptional regulator QacR bound to crystal violet
Keywords keywords	multidrug binding, repressor, S. aureus, QacA, QacR, multidrug recognition, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jtx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jtx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

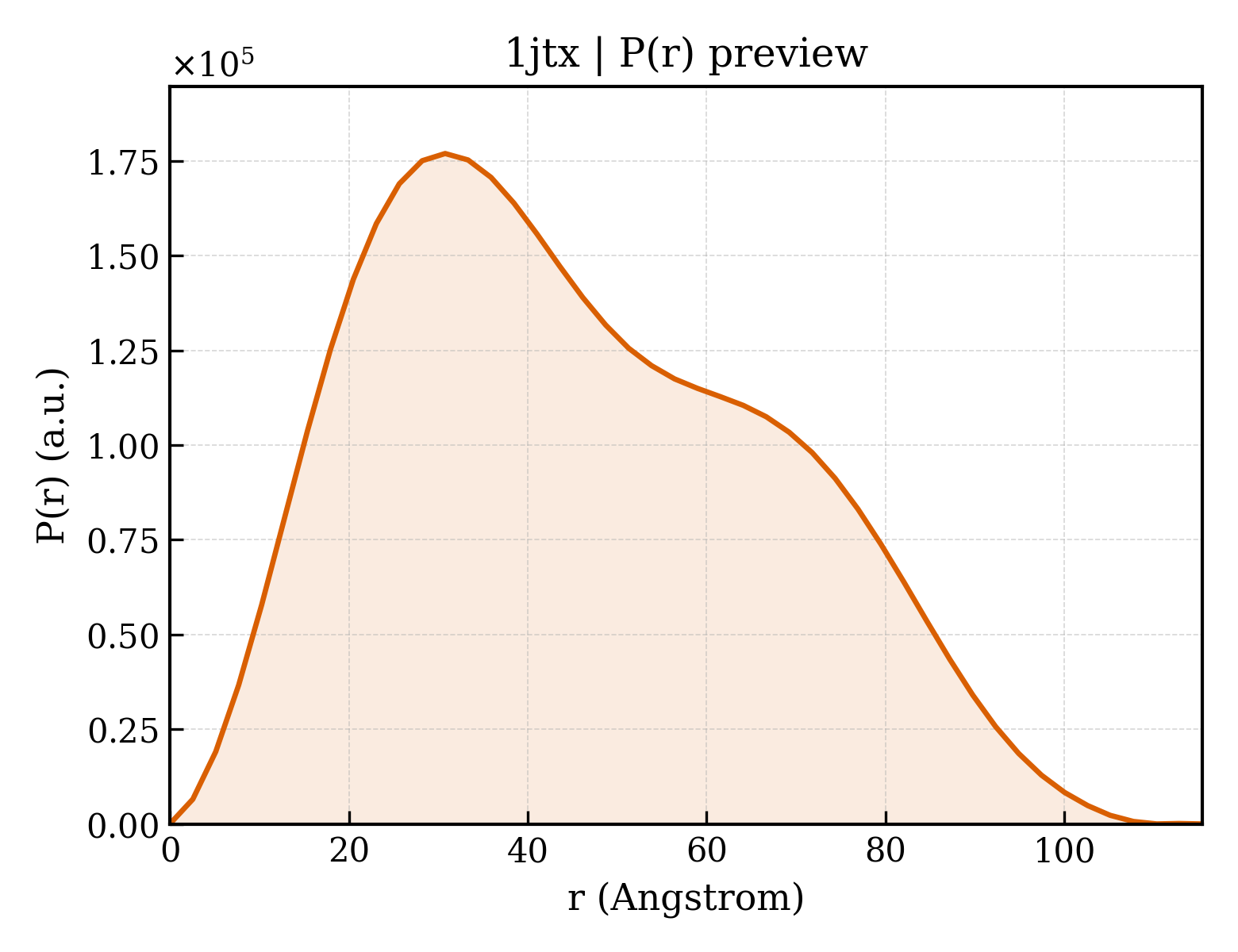

1jtx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.56 Å
Rg (electron density)	22.24 Å
Total Rg	23.45 Å
Atom count	3187
Residues	372
Excluded volume	56728 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jtx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jtx__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;HYPOTHETICAL TRANSCRIPTIONAL REGULATOR IN QACA 5'REGION ;
Molecular weight formula_weight	22983.0 kDa
Mutation mutation	C72A, C141S
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,A,E
Atom count atom_count	6400

MNLKDKILGVAKELFIKNGYNATTTGEIVKLSESSKGNLYYHFKTKENLFLEILNIEESKWQEQWKKEQIKAKTNREKFYLYNELSLTTEYYYPLQNAIIEFYTEYYKTNSINEKMNKLENKYIDAYHVIFKEGNLNGEWSINDVNAVSKIAANAVNGIVTFTHEQNINERIKLMNKFSQIFLNGLSKHHHHHH

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	24

Entity 3 Entity 3 non-polymer

Description description	CRYSTAL VIOLET
Molecular weight formula_weight	372.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	64

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1jtxa1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

Domain ID domain_id	d1jtxa2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

Domain ID domain_id	d1jtxb1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

Domain ID domain_id	d1jtxb2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

Domain ID domain_id	d1jtxd1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

Domain ID domain_id	d1jtxd2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

Domain ID domain_id	d1jtxe1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

Domain ID domain_id	d1jtxe2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	1jtxA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	1jtxA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

Domain ID domain_id	1jtxB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	1jtxB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

Domain ID domain_id	1jtxD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	1jtxD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

Domain ID domain_id	1jtxE01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	1jtxE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

▶

Unit-cell length a length_a	172.900 Å
Unit-cell length b length_b	172.900 Å
Unit-cell length c length_c	95.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	63.970 Å
R factor r_factor	—
R_work r_work	0.2270
R_free r_free	0.2840
