1jum
Crystal structure of the multidrug binding transcriptional repressor QacR bound to the natural drug berberine
SAXS 散射曲线 SAXS Profile

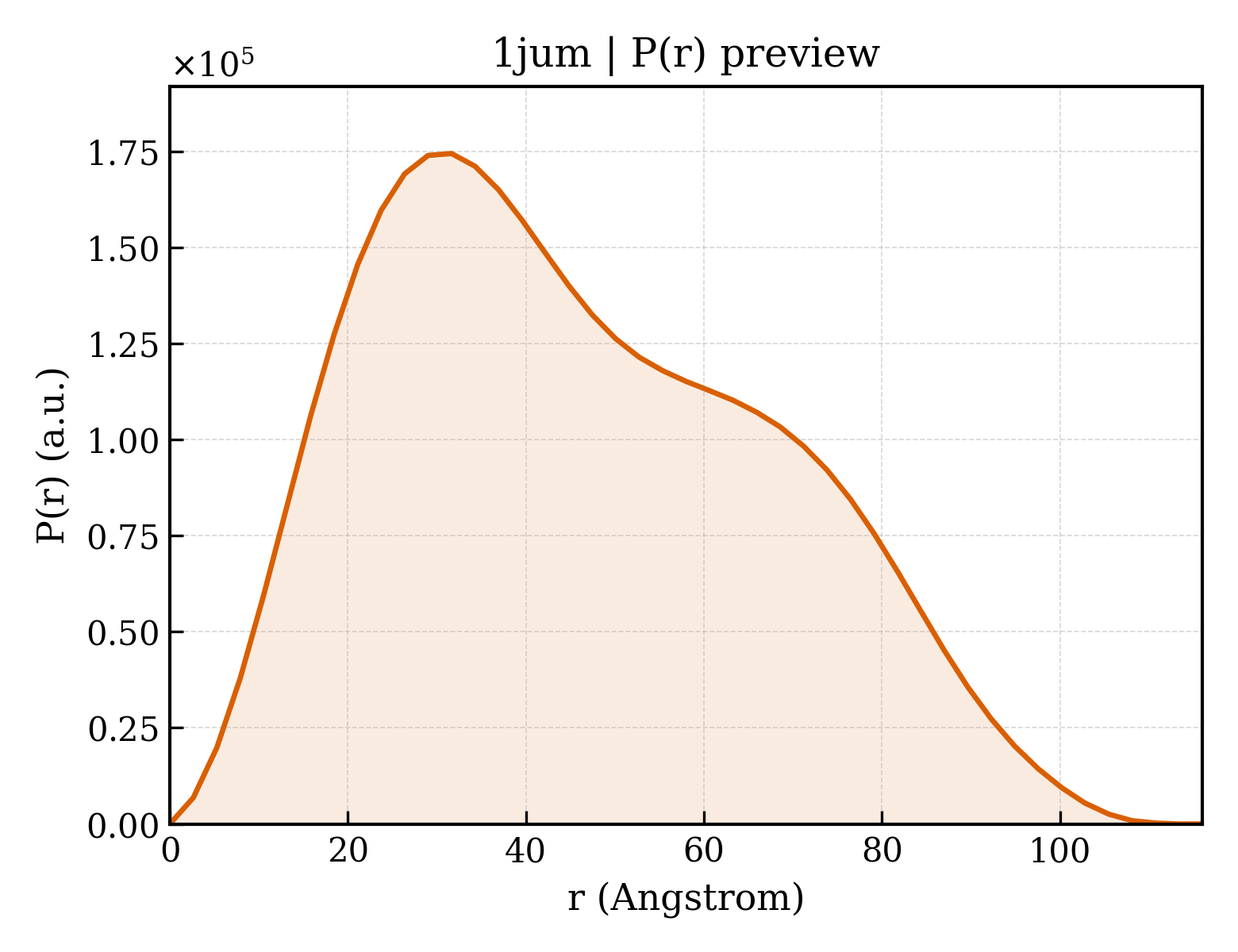

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1jum |
| 沉积日期 deposition_date | 2001-08-24 |
| 结构标题 title | Crystal structure of the multidrug binding transcriptional repressor QacR bound to the natural drug berberine |
| 关键词 keywords | multidrug binding, berberine, plant alkaloid, natural drug, QacR, multidrug recognition, S. aureus, TRANSCRIPTION; TRANSCRIPTION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 35.70 Å |
| 回转半径 Rg (电子) rg_electron | 35.39 Å |
| 零角强度 I(0) i0 | 123405000.00 |
| 分子量 molecular_weight | 89853.0 kDa |
| 排除体积 excluded_volume | 112540 ų |
| 包络体积 envelope_volume | 144100 ų |
| 水化壳体积 shell_volume | 35065 ų |
| 包络直径 envelope_diameter | 116.7 Å |
| 壳层 Rg shell_rg | 40.38 Å |
| 包络 Rg envelope_rg | 34.72 Å |
| 形状 Rg shape_rg | 35.37 Å |
| 总 Rg total_rg | 35.82 Å |
| 总原子数 total_atoms | 6323 |
| 残基数 n_residues | 744 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 116.0 Å |
| Rg (实空间) rg_real | 35.88 Å |
| Rg 误差 (实空间) rg_real_error | 0.95 Å |
| I(0) (实空间) i0_real | 1.2340e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.1430e+06 |
| Rg (倒空间) rg_reciprocal | 35.77 Å |
| I(0) (倒空间) i0_reciprocal | 123400000.0000 |
| 解质量估计 total_estimate | 0.8473 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 31.6 Å |
| 偏度 Skewness skewness | 0.350 |
| 峰度 Kurtosis kurtosis | -0.740 |
| 角度范围 angular_range | — – 0.2200 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 25000000.0000 |
| 实空间数据点数 n_real_points | 45 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.819; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.819; Smooth: 0.734 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 16 domains
SCOP 2.08 (8 domains)
| 结构域编号 domain_id | d1juma1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| 超家族 Superfamily superfamily | a.4.1 — Homeodomain-like |
| 家族 Family family | a.4.1.9 — Tetracyclin repressor-like, N-terminal domain |
| 结构域编号 domain_id | d1juma2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.121 — Tetracyclin repressor-like, C-terminal domain |
| 超家族 Superfamily superfamily | a.121.1 — Tetracyclin repressor-like, C-terminal domain |
| 家族 Family family | a.121.1.1 — Tetracyclin repressor-like, C-terminal domain |
| 结构域编号 domain_id | d1jumb1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| 超家族 Superfamily superfamily | a.4.1 — Homeodomain-like |
| 家族 Family family | a.4.1.9 — Tetracyclin repressor-like, N-terminal domain |
| 结构域编号 domain_id | d1jumb2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.121 — Tetracyclin repressor-like, C-terminal domain |
| 超家族 Superfamily superfamily | a.121.1 — Tetracyclin repressor-like, C-terminal domain |
| 家族 Family family | a.121.1.1 — Tetracyclin repressor-like, C-terminal domain |
| 结构域编号 domain_id | d1jumd1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| 超家族 Superfamily superfamily | a.4.1 — Homeodomain-like |
| 家族 Family family | a.4.1.9 — Tetracyclin repressor-like, N-terminal domain |
| 结构域编号 domain_id | d1jumd2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.121 — Tetracyclin repressor-like, C-terminal domain |
| 超家族 Superfamily superfamily | a.121.1 — Tetracyclin repressor-like, C-terminal domain |
| 家族 Family family | a.121.1.1 — Tetracyclin repressor-like, C-terminal domain |
| 结构域编号 domain_id | d1jume1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| 超家族 Superfamily superfamily | a.4.1 — Homeodomain-like |
| 家族 Family family | a.4.1.9 — Tetracyclin repressor-like, N-terminal domain |
| 结构域编号 domain_id | d1jume2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.121 — Tetracyclin repressor-like, C-terminal domain |
| 超家族 Superfamily superfamily | a.121.1 — Tetracyclin repressor-like, C-terminal domain |
| 家族 Family family | a.121.1.1 — Tetracyclin repressor-like, C-terminal domain |
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 1jumA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 10 — Arc Repressor Mutant, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 60 — Homeodomain-like |
| 结构域编号 domain_id | 1jumA02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 357 — Tetracycline Repressor; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetracycline Repressor, domain 2 |
| 结构域编号 domain_id | 1jumB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 10 — Arc Repressor Mutant, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 60 — Homeodomain-like |
| 结构域编号 domain_id | 1jumB02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 357 — Tetracycline Repressor; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetracycline Repressor, domain 2 |
| 结构域编号 domain_id | 1jumD01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 10 — Arc Repressor Mutant, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 60 — Homeodomain-like |
| 结构域编号 domain_id | 1jumD02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 357 — Tetracycline Repressor; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetracycline Repressor, domain 2 |
| 结构域编号 domain_id | 1jumE01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 10 — Arc Repressor Mutant, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 60 — Homeodomain-like |
| 结构域编号 domain_id | 1jumE02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 357 — Tetracycline Repressor; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetracycline Repressor, domain 2 |
