SAXSdb — 1kbu

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kbu
沉积日期 deposition_date	2001-11-06
结构标题 title	CRE RECOMBINASE BOUND TO A LOXP HOLLIDAY JUNCTION
关键词 keywords	;SITE-SPECIFIC RECOMBINASE, HOLLIDAY JUNCTION COMPLEX, DNA-PROTEIN CO-CRYSTAL, INT RECOMBINASE MECHANISM, HYDROLASE, LIGASE-DNA COMPLEX ;; HYDROLASE, LIGASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.53 Å
回转半径 Rg (电子) rg_electron	32.36 Å
零角强度 I(0) i0	184862000.00
分子量 molecular_weight	92858.0 kDa
排除体积 excluded_volume	109800 Å³
包络体积 envelope_volume	155810 Å³
水化壳体积 shell_volume	40439 Å³
包络直径 envelope_diameter	129.0 Å
壳层 Rg shell_rg	38.64 Å
包络 Rg envelope_rg	32.79 Å
形状 Rg shape_rg	32.31 Å
总 Rg total_rg	32.93 Å
总原子数 total_atoms	6436
残基数 n_residues	709
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	121.0 Å
Rg (实空间) rg_real	33.57 Å
Rg 误差 (实空间) rg_real_error	1.13 Å
I(0) (实空间) i0_real	1.8490e+08
I(0) 误差 (实空间) i0_real_error	3.0990e+06
Rg (倒空间) rg_reciprocal	33.55 Å
I(0) (倒空间) i0_reciprocal	184900000.0000
解质量估计 total_estimate	0.8512
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	41.2 Å
偏度 Skewness skewness	0.388
峰度 Kurtosis kurtosis	-0.152
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	28750000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.872; Smooth: 0.948

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	LOXP
分子量 formula_weight	10510.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C
原子数 atom_count	6837

ATAAGTTCGTATAATGTATGCTATACGAAGTTAT

Entity 2 polymer

描述 description	LOXP
分子量 formula_weight	10399.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D

ATAACTTCGTATAGCATACATTATACGAACTTAT

Entity 3 polymer

描述 description	CRE RECOMBINASE
分子量 formula_weight	39424.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MHHHHHHSNLLTVHQNLPALPVDATSDEVRKNLMDMFRDRQAFSEHTWKMLLSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGLPRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAFLGIAYNTLLRIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVERWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQRYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLEDGD

来源 Source

来源生物 organism	Enterobacteria phage P1
NCBI 分类编号 ncbi_taxonomy_id	10678
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	237

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1kbua1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1kbua2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

结构域编号 domain_id	d1kbub1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1kbub2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

CATH v4.4 (4 domains)

结构域编号 domain_id	1kbuA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1kbuA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

结构域编号 domain_id	1kbuB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1kbuB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	107.170 Å
晶胞边长 b length_b	121.600 Å
晶胞边长 c length_c	179.310 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	5.000 Å
R 因子 r_factor	0.2310
R_work r_work	0.2310
R_free r_free	0.2790

fit	/app/data/saxs_computation/kb/1kbu/1kbu.fit
pddf	/app/data/pr_computation/kb/1kbu/1kbu.pr.out
profile	/app/data/saxs_computation/kb/1kbu/1kbu.dat

CRE RECOMBINASE BOUND TO A LOXP HOLLIDAY JUNCTION

SAXS 散射曲线 SAXS Profile

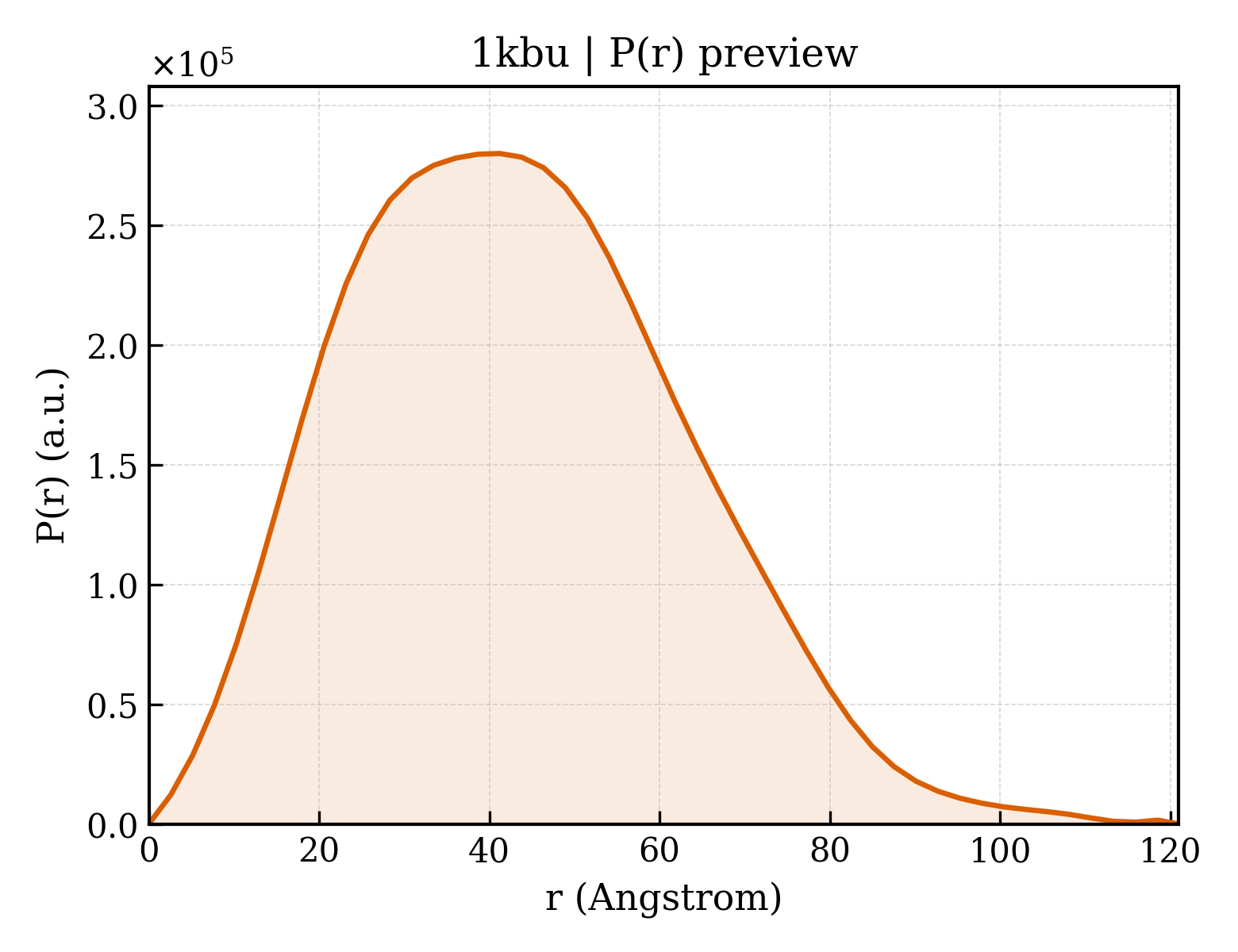

P(r) 距离分布 P(r) Distribution
