1nzb

Crystal structure of wild type Cre recombinase-loxP synapse

Method: X-RAY DIFFRACTION D_max: 135.5 Å Quality: GOOD

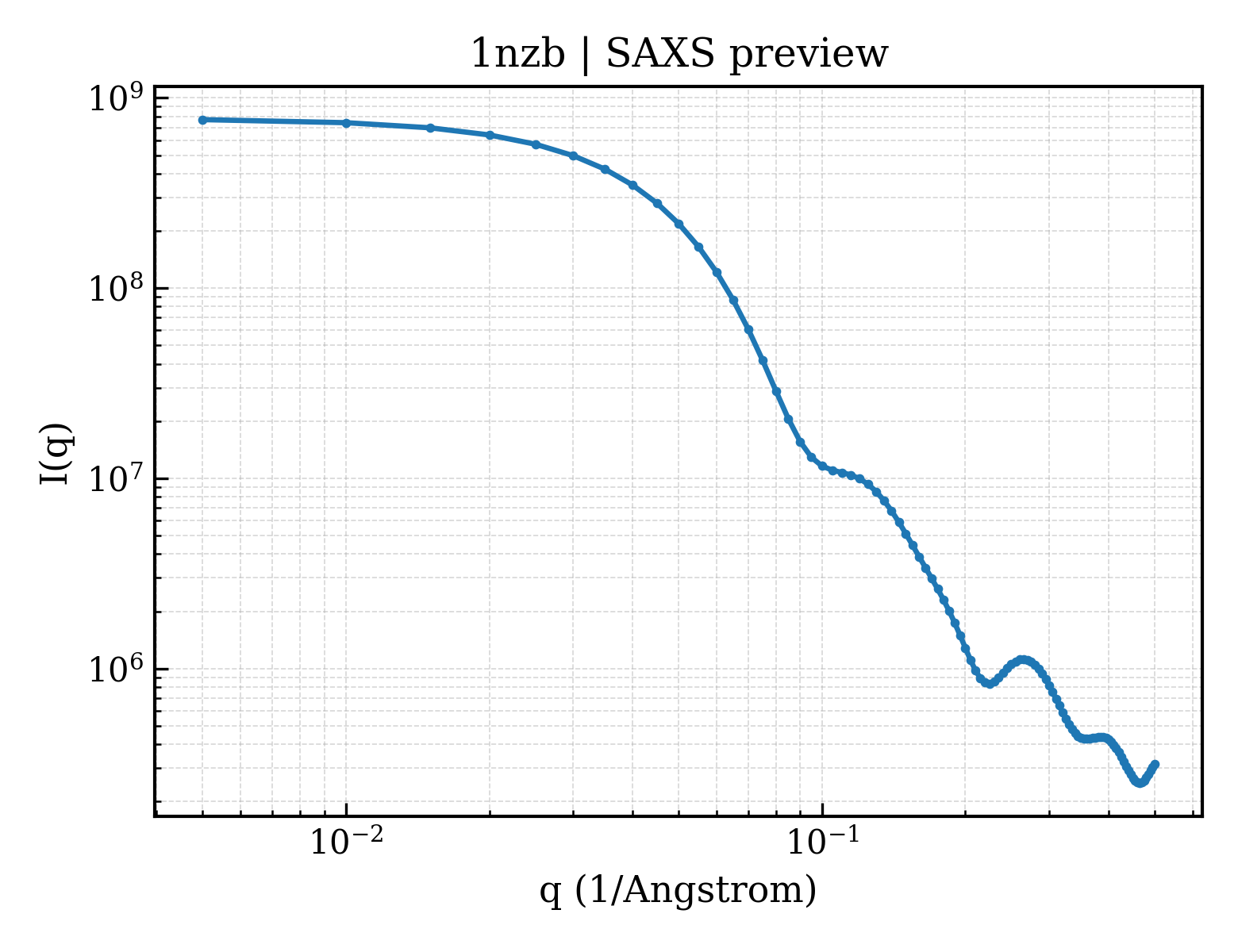

SAXS 散射曲线 SAXS Profile

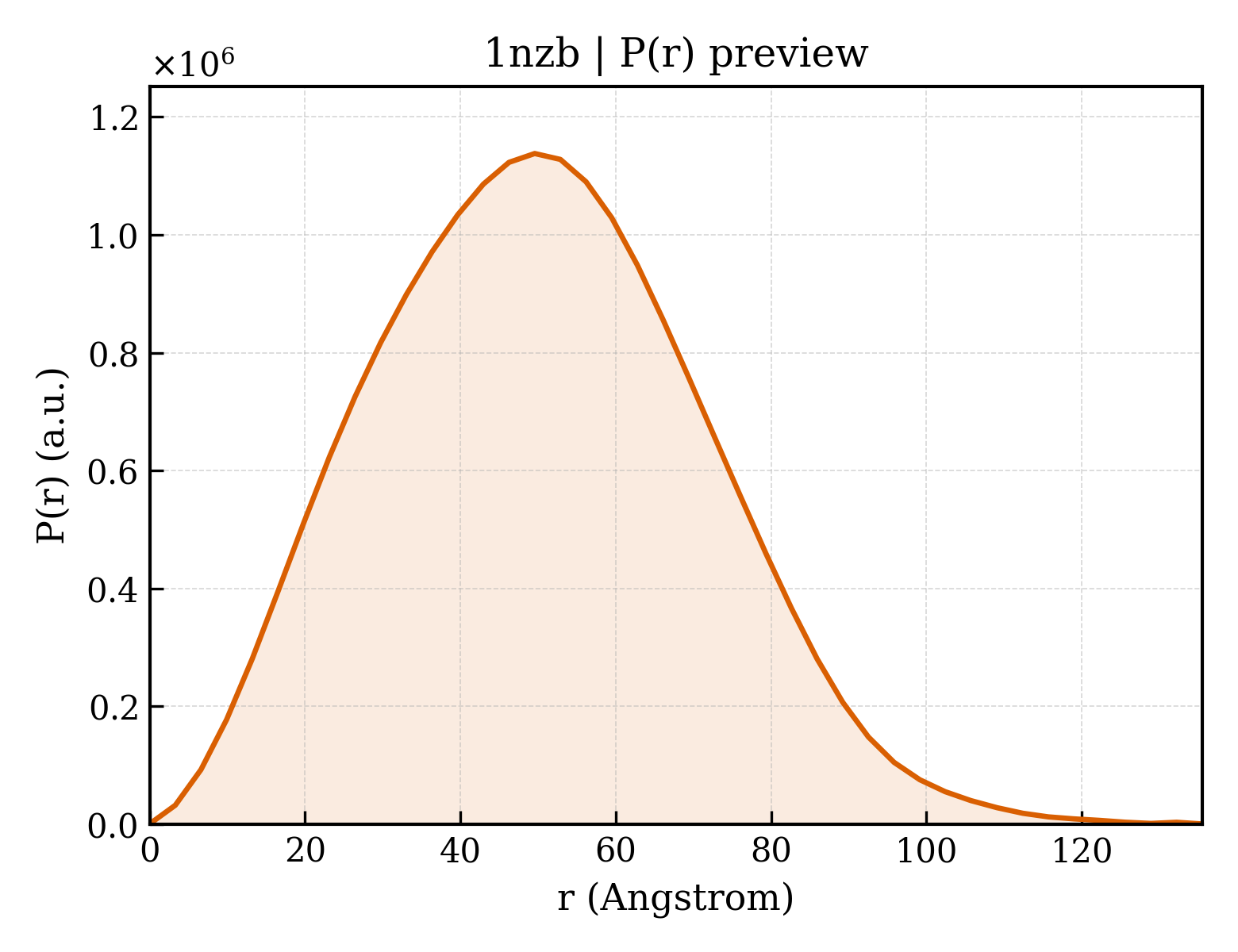

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1nzb
沉积日期 deposition_date	2003-02-17
结构标题 title	Crystal structure of wild type Cre recombinase-loxP synapse
关键词 keywords	Cre, recombinase, DNA, REPLICATION-DNA COMPLEX; REPLICATION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.55 Å
回转半径 Rg (电子) rg_electron	37.29 Å
零角强度 I(0) i0	778184000.00
分子量 molecular_weight	192370.0 kDa
排除体积 excluded_volume	226040 Å³
包络体积 envelope_volume	306770 Å³
水化壳体积 shell_volume	66249 Å³
包络直径 envelope_diameter	144.1 Å
壳层 Rg shell_rg	45.21 Å
包络 Rg envelope_rg	36.91 Å
形状 Rg shape_rg	37.26 Å
总 Rg total_rg	37.76 Å
总原子数 total_atoms	13296
残基数 n_residues	1443
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	135.5 Å
Rg (实空间) rg_real	38.38 Å
Rg 误差 (实空间) rg_real_error	1.29 Å
I(0) (实空间) i0_real	7.7820e+08
I(0) 误差 (实空间) i0_real_error	1.3430e+07
Rg (倒空间) rg_reciprocal	38.49 Å
I(0) (倒空间) i0_reciprocal	778300000.0000
解质量估计 total_estimate	0.8608
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	49.6 Å
偏度 Skewness skewness	0.238
峰度 Kurtosis kurtosis	-0.252
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	101900000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.733; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.987

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	loxP DNA
分子量 formula_weight	11364.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C,G
原子数 atom_count	13299

CGATAACUTCGTATAATGTATGCTATACGAAGTTATC

Entity 2 polymer

描述 description	loxP DNA
分子量 formula_weight	11387.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D,H

GGATAACTTCGTATAGCATACATTATACGAAGTTATC

Entity 3 polymer

描述 description	Cre recombinase
分子量 formula_weight	38595.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,E,F

MSNLLTVHQNLPALPVDATSDEVRKNLMDMFRDRQAFSEHTWKMLLSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGLPRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAFLGIAYNTLLRIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVERWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQRYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLEDGD

来源 Source

来源生物 organism	Enterobacteria phage P1
NCBI 分类编号 ncbi_taxonomy_id	10678
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	10

Entity 5 non-polymer

描述 description	IODIDE ION
分子量 formula_weight	126.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1nzba1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1nzba2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

结构域编号 domain_id	d1nzbb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1nzbb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

结构域编号 domain_id	d1nzbe1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1nzbe2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

结构域编号 domain_id	d1nzbf1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1nzbf2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

CATH v4.4 (8 domains)

结构域编号 domain_id	1nzbA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1nzbA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

结构域编号 domain_id	1nzbB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1nzbB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

结构域编号 domain_id	1nzbE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1nzbE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

结构域编号 domain_id	1nzbF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1nzbF02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	108.890 Å
晶胞边长 b length_b	163.530 Å
晶胞边长 c length_c	195.790 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	0.2121
R_work r_work	0.2120
R_free r_free	0.2570

fit	/app/data/saxs_computation/nz/1nzb/1nzb.fit
pddf	/app/data/pr_computation/nz/1nzb/1nzb.pr.out
profile	/app/data/saxs_computation/nz/1nzb/1nzb.dat
