SAXSdb — 1lqg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

URACIL-DNA GLYCOSYLASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	URACIL-DNA GLYCOSYLASE INHIBITOR × 1 （P14739） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	URACIL-DNA GLYCOSYLASE INHIBITOR × 1 （P14739） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	URACIL-DNA GLYCOSYLASE INHIBITOR × 2 （P14739） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UNG_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–229； UniProt 1–228 Author chain B； PDBConstruct 2–229； UniProt 1–228

URACIL-DNA GLYCOSYLASE INHIBITOR

Bacillus phage PBS2

UniProt P14739

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	URACIL-DNA GLYCOSYLASE × 1 （P12295） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	URACIL-DNA GLYCOSYLASE × 1 （P12295） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	URACIL-DNA GLYCOSYLASE × 2 （P12295） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UNGI_BPPB2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–84； UniProt 1–84 Author chain D； PDBConstruct 1–84； UniProt 1–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lqg
Deposition date deposition_date	2002-05-10
Structure title title	ESCHERICHIA COLI URACIL-DNA GLYCOSYLASE COMPLEX WITH URACIL-DNA GLYCOSYLASE INHIBITOR PROTEIN
Keywords keywords	GLYCOSYLASE, INHIBITOR, DNA REPAIR, BASE EXCISION, COMPLEX (HYDROLASE-INHIBITOR), HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1lqg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1lqg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

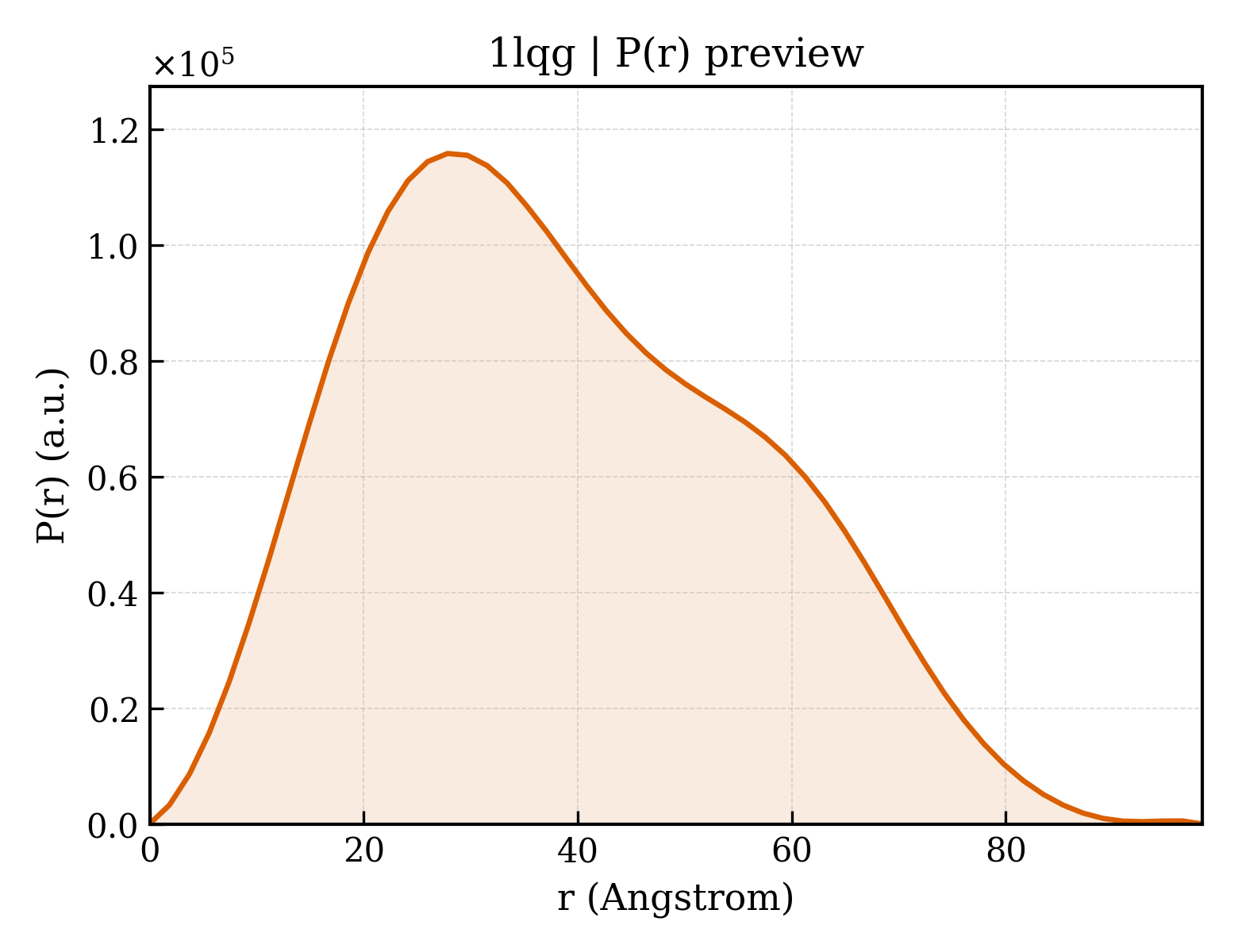

1lqg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.12 Å
Rg (electron density)	18.81 Å
Total Rg	19.85 Å
Atom count	2322
Residues	299
Excluded volume	41128 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1lqg__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1lqg__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1lqg__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	URACIL-DNA GLYCOSYLASE
Molecular weight formula_weight	25725.2 kDa
EC 编号 ec_number	3.2.2.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4765

MANELTWHDVLAEEKQQPYFLNTLQTVASERQSGVTIYPPQKDVFNAFRFTELGDVKVVILGQDPYHGPGQAHGLAFSVRPGIAIPPSLLNMYKELENTIPGFTRPNHGYLESWARQGVLLLNTVLTVRAGQAHSHASLGWETFTDKVISLINQHREGVVFLLWGSHAQKKGAIIDKQRHHVLKAPHPSPLSAHRGFFGCNHFVLANQWLEQRGETPIDWMPVLPAESE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	URACIL-DNA GLYCOSYLASE INHIBITOR
Molecular weight formula_weight	9482.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MTNLSDIIEKETGKQLVIQESILMLPEEVEEVIGNKPESDILVHTAYDESTDENVMLLTSDAPEYKPWALVIQDSNGENKIKML

Source Source

Source organism organism	Bacillus phage PBS2
NCBI taxonomy ID ncbi_taxonomy_id	10684
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	156

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1lqga_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.18 — Uracil-DNA glycosylase-like
Superfamily Superfamily superfamily	c.18.1 — Uracil-DNA glycosylase-like
Family Family family	c.18.1.1 — Uracil-DNA glycosylase

Domain ID domain_id	d1lqgb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.18 — Uracil-DNA glycosylase-like
Superfamily Superfamily superfamily	c.18.1 — Uracil-DNA glycosylase-like
Family Family family	c.18.1.1 — Uracil-DNA glycosylase

Domain ID domain_id	d1lqgc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1lqgd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

CATH v4.4 (4 domains)

Domain ID domain_id	1lqgA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	470 — Uracil-DNA Glycosylase, subunit E
Homologous superfamily homologous superfamily	10 — Uracil-DNA glycosylase-like domain

Domain ID domain_id	1lqgB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	470 — Uracil-DNA Glycosylase, subunit E
Homologous superfamily homologous superfamily	10 — Uracil-DNA glycosylase-like domain

Domain ID domain_id	1lqgC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1lqgD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

▶

Unit-cell length a length_a	51.164 Å
Unit-cell length b length_b	89.902 Å
Unit-cell length c length_c	141.776 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1830
R_work r_work	0.1830
R_free r_free	0.2770
