1ugi

URACIL-DNA GLYCOSYLASE INHIBITOR PROTEIN

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

URACIL-DNA GLYCOSYLASE INHIBITOR

Bacillus phage PBS2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	IMIDAZOLE × 2 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 IMIDAZOLE × 4 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 IMIDAZOLE × 3 water × 1	Consistent with protein count
5	Protein monomer	Monomer	Protein 1	SULFATE ION × 2 IMIDAZOLE × 4 water × 1	Consistent with protein count
6	Protein monomer	Monomer	Protein 1	IMIDAZOLE × 2 water × 1	Consistent with protein count
7	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 IMIDAZOLE × 1 water × 1	Consistent with protein count
8	Protein monomer	Monomer	Protein 1	IMIDAZOLE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UNGI_BPPB2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–84； UniProt 1–84 Author chain B； PDBConstruct 1–84； UniProt 1–84 Author chain C； PDBConstruct 1–84； UniProt 1–84 Author chain D； PDBConstruct 1–84； UniProt 1–84 Author chain E； PDBConstruct 1–84； UniProt 1–84 Author chain F； PDBConstruct 1–84； UniProt 1–84 Author chain G； PDBConstruct 1–84； UniProt 1–84 Author chain H； PDBConstruct 1–84； UniProt 1–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ugi
Deposition date deposition_date	1998-11-04
Structure title title	URACIL-DNA GLYCOSYLASE INHIBITOR PROTEIN
Keywords keywords	PROTEIN MIMICRY OF DNA, PROTEIN INHIBITOR, HYDROLASE INHIBITOR; HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ugi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ugi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

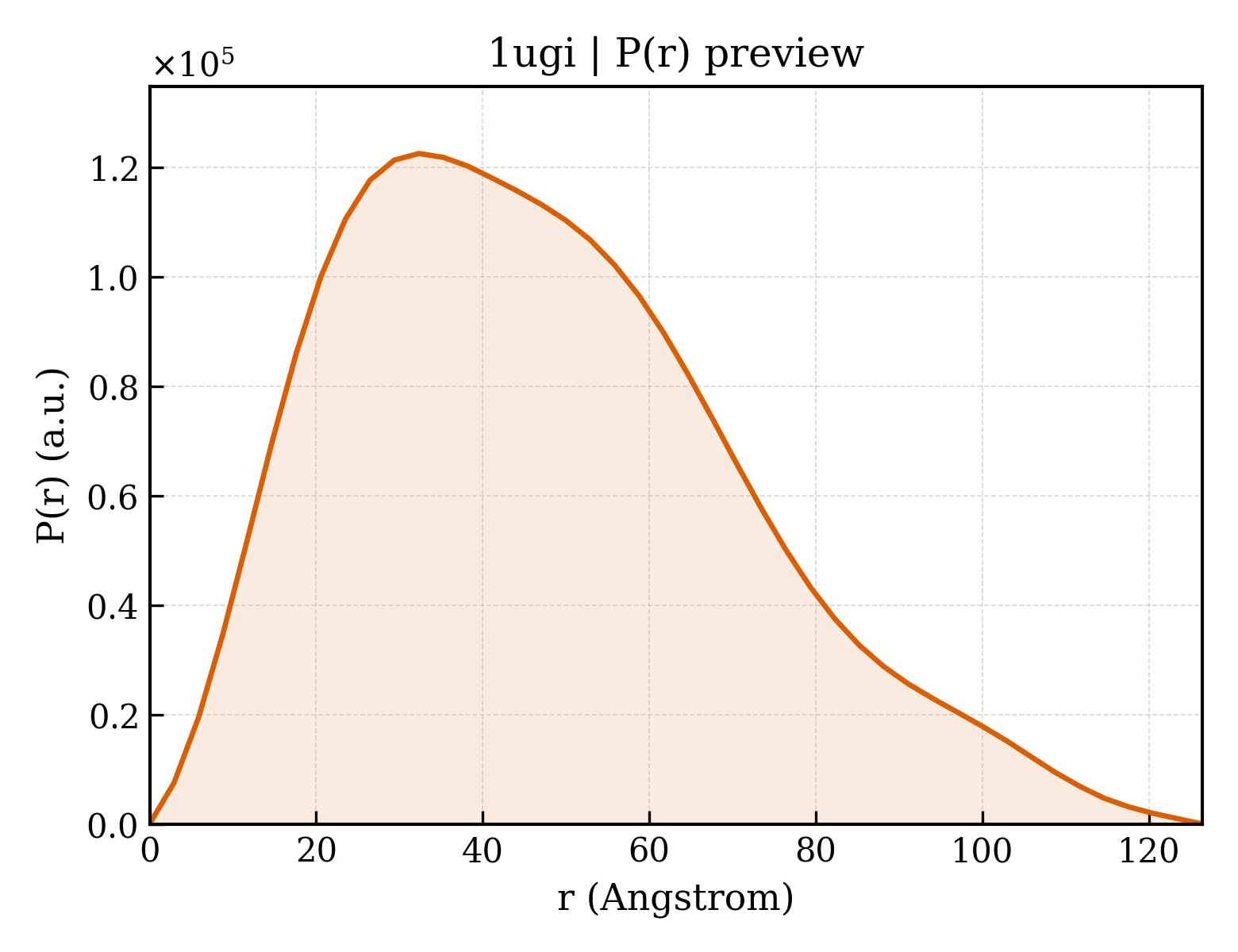

1ugi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.11 Å
Rg (electron density)	12.47 Å
Total Rg	13.76 Å
Atom count	659
Residues	83
Excluded volume	11749 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ugi__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ugi__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ugi__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1ugi__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1ugi__assembly_5__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1ugi__assembly_6__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`1ugi__assembly_7__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`1ugi__assembly_8__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	URACIL-DNA GLYCOSYLASE INHIBITOR
Molecular weight formula_weight	9482.7 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	6095

MTNLSDIIEKETGKQLVIQESILMLPEEVEEVIGNKPESDILVHTAYDESTDENVMLLTSDAPEYKPWALVIQDSNGENKIKML

Source Source

Source organism organism	Bacillus phage PBS2
NCBI taxonomy ID ncbi_taxonomy_id	10684
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	IMIDAZOLE
Molecular weight formula_weight	69.1 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	561

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ugia_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1ugib_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1ugic_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1ugid_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1ugie_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1ugif_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1ugig_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

Domain ID domain_id	d1ugih_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
Family Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

CATH v4.4 (8 domains)

Domain ID domain_id	1ugiA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1ugiB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1ugiC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1ugiD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1ugiE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1ugiF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1ugiG00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

Domain ID domain_id	1ugiH00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

▶

Unit-cell length a length_a	47.800 Å
Unit-cell length b length_b	59.400 Å
Unit-cell length c length_c	79.800 Å
Unit-cell angle α angle_alpha	73.67 °
Unit-cell angle β angle_beta	85.55 °
Unit-cell angle γ angle_gamma	66.46 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2218
R_work r_work	—
R_free r_free	0.2886
