1s0v

Structural basis for substrate selection by T7 RNA polymerase

Method: X-RAY DIFFRACTION D_max: 200.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

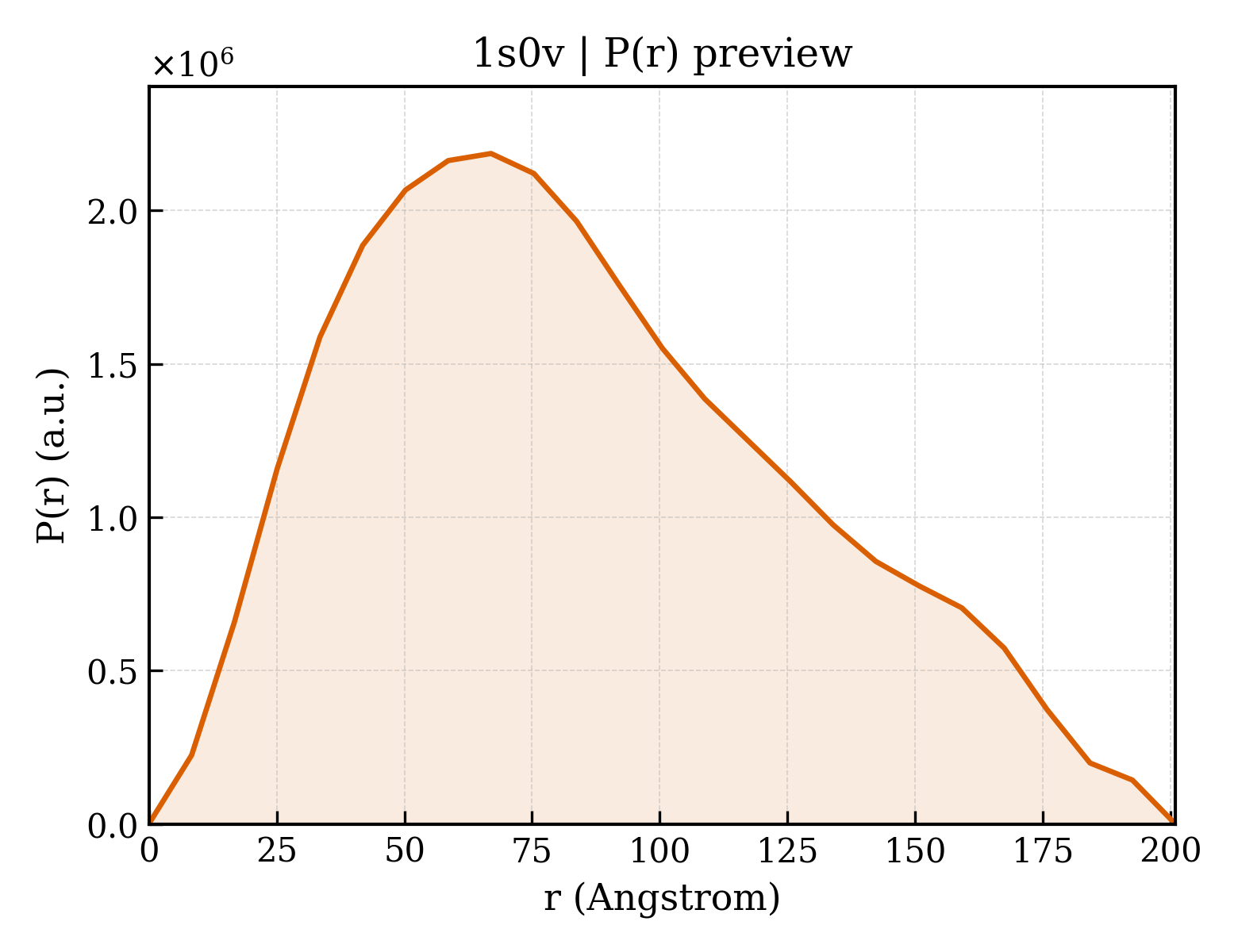

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1s0v
沉积日期 deposition_date	2004-01-05
结构标题 title	Structural basis for substrate selection by T7 RNA polymerase
关键词 keywords	;T7 RNA polymerase, DNA, RNA, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, Transferase-DNA-RNA COMPLEX, Transferase-DNA-RNA HYBRID complex ;; Transferase/DNA-RNA HYBRID
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.03 Å
回转半径 Rg (电子) rg_electron	67.01 Å
零角强度 I(0) i0	2912100000.00
分子量 molecular_weight	427280.0 kDa
排除体积 excluded_volume	523180 Å³
包络体积 envelope_volume	856510 Å³
水化壳体积 shell_volume	108050 Å³
包络直径 envelope_diameter	231.0 Å
壳层 Rg shell_rg	63.02 Å
包络 Rg envelope_rg	66.30 Å
形状 Rg shape_rg	67.00 Å
总 Rg total_rg	66.94 Å
总原子数 total_atoms	29900
残基数 n_residues	3564
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	200.9 Å
Rg (实空间) rg_real	66.66 Å
Rg 误差 (实空间) rg_real_error	1.63 Å
I(0) (实空间) i0_real	2.9120e+09
I(0) 误差 (实空间) i0_real_error	5.6630e+07
Rg (倒空间) rg_reciprocal	65.40 Å
I(0) (倒空间) i0_reciprocal	2905000000.0000
解质量估计 total_estimate	0.8325
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	67.0 Å
偏度 Skewness skewness	0.445
峰度 Kurtosis kurtosis	-0.571
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	142500000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.950; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	5'-D(GGPGPAPAPTPCPGPAPTPAPTPCPGPCPCPGPC)-3'
分子量 formula_weight	5541.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,H,K,N
原子数 atom_count	30899

GGGAATCGATATCGCCGC

Entity 2 polymer

描述 description	5'-R(APAPCPUGPCPGPGPCPGPAPU)-3'
分子量 formula_weight	3851.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	F,I,L,O

AACUGCGGCGAU

Entity 3 polymer

描述 description	5'-D(GPTPCPGPAPTPTPCPCPC)-3'
分子量 formula_weight	2996.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	G,J,M,P

GTCGATTCCC

Entity 4 polymer

描述 description	DNA-directed RNA polymerase
分子量 formula_weight	98984.2 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D

MNTINIAKNDFSDIELAAIPFNTLADHYGERLAREQLALEHESYEMGEARFRKMFERQLKAGEVADNAAAKPLITTLLPKMIARINDWFEEVKAKRGKRPTAFQFLQEIKPEAVAYITIKTTLACLTSADNTTVQAVASAIGRAIEDEARFGRIRDLEAKHFKKNVEEQLNKRVGHVYKKAFMQVVEADMLSKGLLGGEAWSSWHKEDSIHVGVRCIEMLIESTGMVSLHRQNAGVVGQDSETIELAPEYAEAIATRAGALAGISPMFQPCVVPPKPWTGITGGGYWANGRRPLALVRTHSKKALMRYEDVYMPEVYKAINIAQNTAWKINKKVLAVANVITKWKHCPVEDIPAIEREELPMKPEDIDMNPEALTAWKRAAAAVYRKDKARKSRRISLEFMLEQANKFANHKAIWFPYNMDWRGRVYAVSMFNPQGNDMTKGLLTLAKGKPIGKEGYYWLKIHGANCAGVDKVPFPERIKFIEENHENIMACAKSPLENTWWAEQDSPFCFLAFCFEYAGVQHHGLSYNCSLPLAFDGSCSGIQHFSAMLRDEVGGRAVNLLPSETVQDIYGIVAKKVNEILQADAINGTDNEVVTVTDENTGEISEKVKLGTKALAGQWLAYGVTRSVTKRSVMTLAYGSKEFGFRQQVLEDTIQPAIDSGKGLMFTQPNQAAGYMAKLIWESVSVTVVAAVEAMNWLKSAAKLLAAEVKDKKTGEILRKRCAVHWVTPDGFPVWQEYKKPIQTRLNLMFLGQFRLQPTINTNKDSEIDAHKQESGIAPNFVHSQDGSHLRKTVVWAHEKYGIESFALIHDSFGTIPADAANLFKAVRETMVDTYESCDVLADFYDQFADQLHESQLDKMPALPAKGNLNLRDILESDFAFA

来源 Source

来源生物 organism	Enterobacteria phage T7
NCBI 分类编号 ncbi_taxonomy_id	10760
宿主生物 host_organism	Escherichia coli

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 6 non-polymer

描述 description	DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
分子量 formula_weight	505.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	999

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1s0va_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.3 — T7 RNA polymerase

结构域编号 domain_id	d1s0vb_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.3 — T7 RNA polymerase

结构域编号 domain_id	d1s0vc_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.3 — T7 RNA polymerase

结构域编号 domain_id	d1s0vd_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.3 — T7 RNA polymerase

CATH v4.4 (20 domains)

结构域编号 domain_id	1s0vA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1320 — T7 RNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, N-terminal domain

结构域编号 domain_id	1s0vA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	260 —

结构域编号 domain_id	1s0vA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1s0vA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	280 —

结构域编号 domain_id	1s0vA05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	1s0vB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1320 — T7 RNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, N-terminal domain

结构域编号 domain_id	1s0vB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	260 —

结构域编号 domain_id	1s0vB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1s0vB04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	280 —

结构域编号 domain_id	1s0vB05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	1s0vC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1320 — T7 RNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, N-terminal domain

结构域编号 domain_id	1s0vC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	260 —

结构域编号 domain_id	1s0vC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1s0vC04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	280 —

结构域编号 domain_id	1s0vC05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	1s0vD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1320 — T7 RNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, N-terminal domain

结构域编号 domain_id	1s0vD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	260 —

结构域编号 domain_id	1s0vD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1s0vD04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	280 —

结构域编号 domain_id	1s0vD05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	81.133 Å
晶胞边长 b length_b	87.703 Å
晶胞边长 c length_c	206.531 Å
晶胞夹角 α angle_alpha	91.93 °
晶胞夹角 β angle_beta	91.02 °
晶胞夹角 γ angle_gamma	110.66 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2550
R_work r_work	0.2550
R_free r_free	0.3070

fit	/app/data/saxs_computation/s0/1s0v/1s0v.fit
pddf	/app/data/pr_computation/s0/1s0v/1s0v.pr.out
profile	/app/data/saxs_computation/s0/1s0v/1s0v.dat
