SAXSdb — 1txq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dynactin 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Microtubule-associated protein RP/EB family member 1 × 2 （Q15691） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DYNA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–93； UniProt 15–107

Microtubule-associated protein RP/EB family member 1

Homo sapiens

UniProt Q15691

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Dynactin 1 × 2 （Q14203） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MARE1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–86； UniProt 183–268

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1txq
Deposition date deposition_date	2004-07-06
Structure title title	Crystal structure of the EB1 C-terminal domain complexed with the CAP-Gly domain of p150Glued
Keywords keywords	PROTEIN COMPLEX, STRUCTURAL PROTEIN-PROTEIN BINDING COMPLEX; STRUCTURAL PROTEIN/PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1txq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

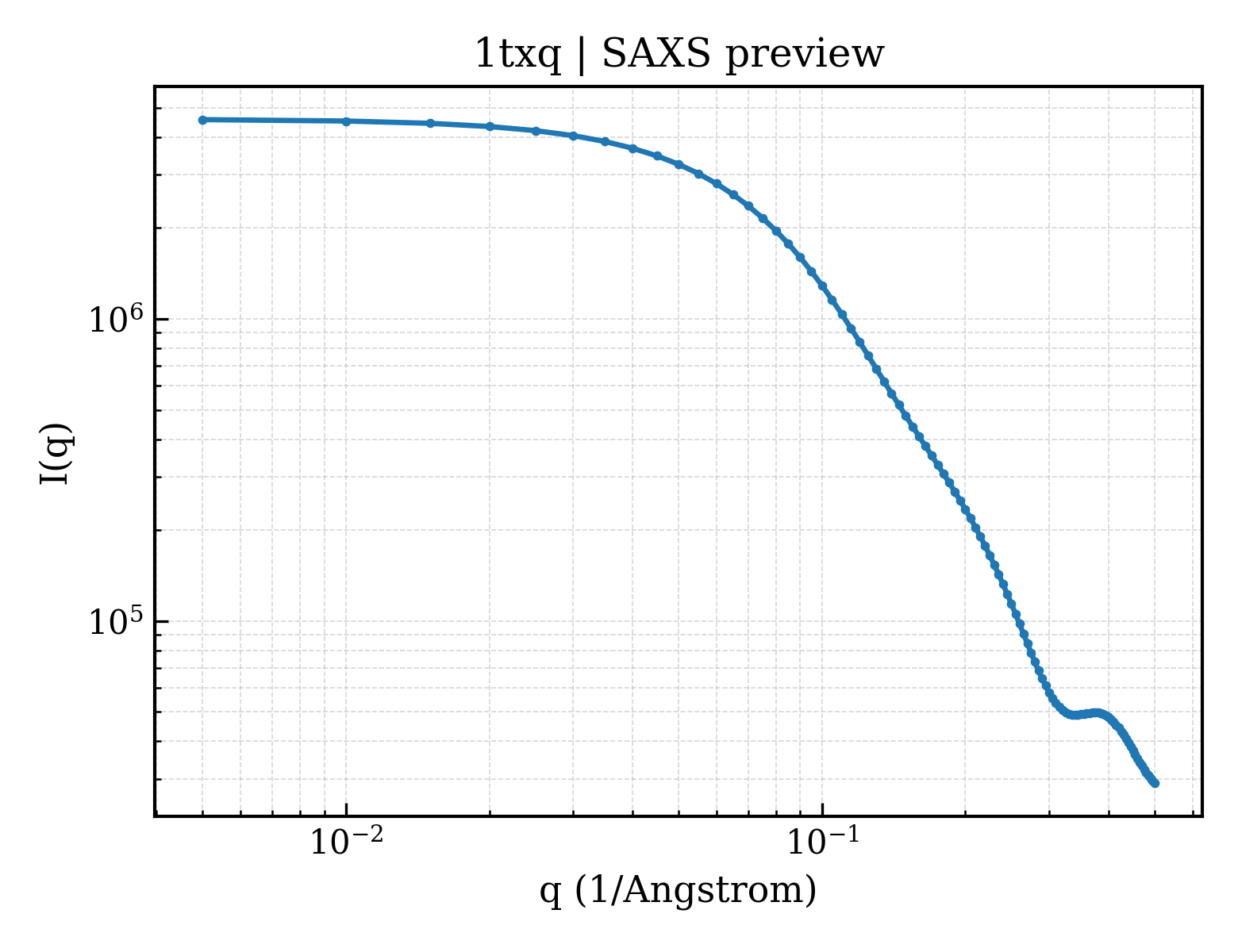

1txq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1txq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.98 Å
Rg (electron density)	22.12 Å
Total Rg	23.12 Å
Atom count	2188
Residues	276
Excluded volume	38903 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1txq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Dynactin 1
Molecular weight formula_weight	9928.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1175

GSRMSAEASARPLRVGSRVEVIGKGHRGTVAYVGATLFATGKWVGVILDEAKGKNDGTVQGRKYFTCDEGHGIFVRQSQIQVFEDGADTTSPE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Microtubule-associated protein RP/EB family member 1
Molecular weight formula_weight	9778.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

NPGVGNGDDEAAELMQQVNVLKLTVEDLEKERDFYFGKLRNIELICQENEGENDPVLQRIVDILYATDEGFVIPDEGGPQEEQEEY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	81

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1txqa1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.10 — Cap-Gly domain
Family Family family	b.34.10.1 — Cap-Gly domain

Domain ID domain_id	d1txqb1
Class class	a — All alpha proteins
Fold Fold fold	a.245 — EB1 dimerisation domain-like
Superfamily Superfamily superfamily	a.245.1 — EB1 dimerisation domain-like
Family Family family	a.245.1.1 — EB1 dimerisation domain-like

CATH v4.4 (2 domains)

Domain ID domain_id	1txqA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	190 — CAP Gly-rich-like domain

Domain ID domain_id	1txqB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1430 —

▶

Unit-cell length a length_a	53.085 Å
Unit-cell length b length_b	80.210 Å
Unit-cell length c length_c	39.239 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.52 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	17.930 Å
R factor r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2430

Crystal structure of the EB1 C-terminal domain complexed with the CAP-Gly domain of p150Glued
