2hkq
Crystal structure of the C-terminal domain of human EB1 in complex with the CAP-Gly domain of human Dynactin-1 (p150-Glued)

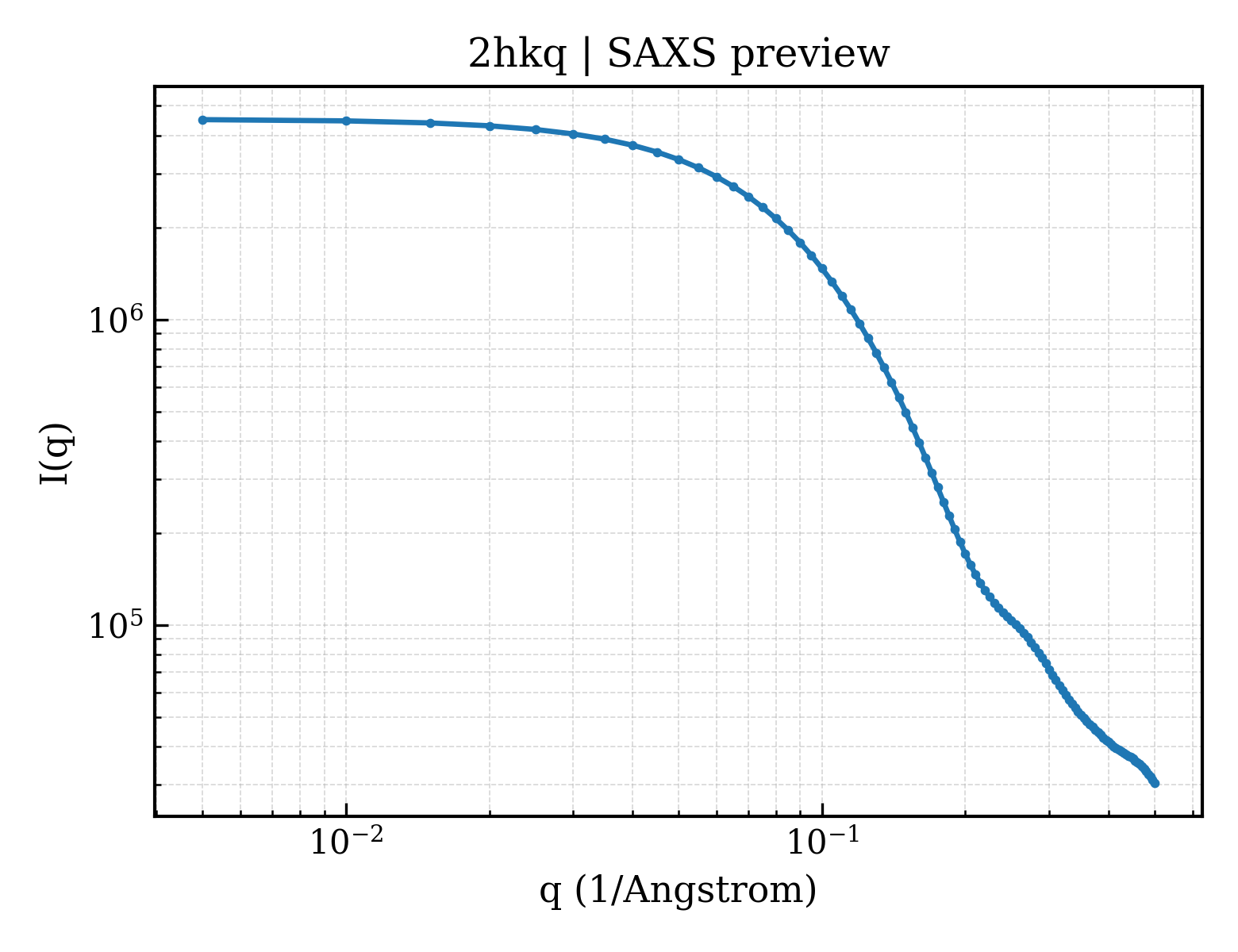

SAXS 散射曲线 SAXS Profile

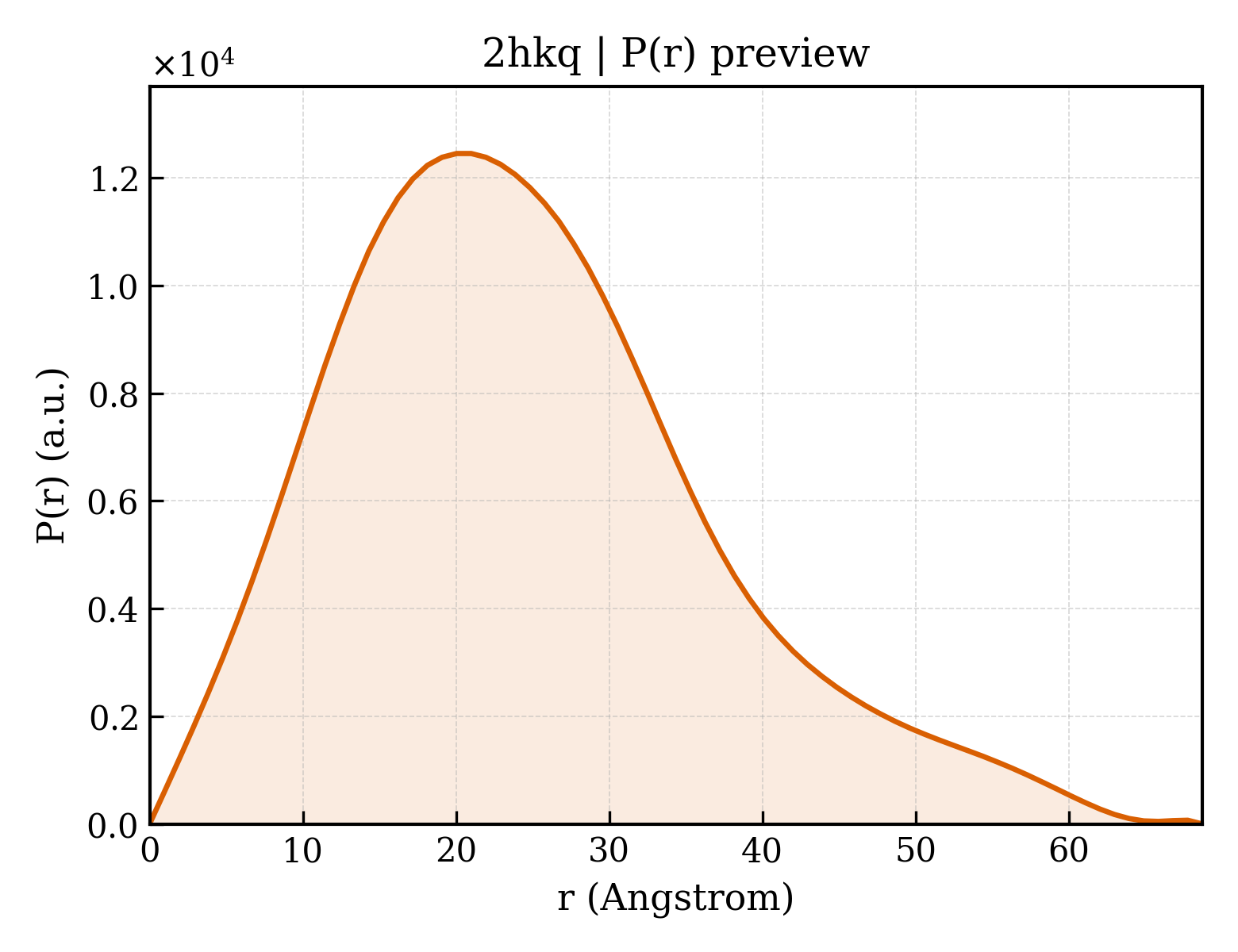

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2hkq |
| 沉积日期 deposition_date | 2006-07-05 |
| 结构标题 title | Crystal structure of the C-terminal domain of human EB1 in complex with the CAP-Gly domain of human Dynactin-1 (p150-Glued) |
| 关键词 keywords | microtubule binding, dynactin, cytoskeleton associated protein, p150Glued, EB1, +TIP protein Complex structure, structural protein; STRUCTURAL PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 19.08 Å |
| 回转半径 Rg (电子) rg_electron | 18.55 Å |
| 零角强度 I(0) i0 | 4514890.00 |
| 分子量 molecular_weight | 15226.0 kDa |
| 排除体积 excluded_volume | 19124 ų |
| 包络体积 envelope_volume | 24521 ų |
| 水化壳体积 shell_volume | 12533 ų |
| 包络直径 envelope_diameter | 67.8 Å |
| 壳层 Rg shell_rg | 22.42 Å |
| 包络 Rg envelope_rg | 19.21 Å |
| 形状 Rg shape_rg | 18.47 Å |
| 总 Rg total_rg | 19.52 Å |
| 总原子数 total_atoms | 1074 |
| 残基数 n_residues | 136 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 68.7 Å |
| Rg (实空间) rg_real | 19.29 Å |
| Rg 误差 (实空间) rg_real_error | 0.58 Å |
| I(0) (实空间) i0_real | 4.5150e+06 |
| I(0) 误差 (实空间) i0_real_error | 5.4660e+04 |
| Rg (倒空间) rg_reciprocal | 19.26 Å |
| I(0) (倒空间) i0_reciprocal | 4515000.0000 |
| 解质量估计 total_estimate | 0.8362 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 67.8 Å |
| 偏度 Skewness skewness | 0.619 |
| 峰度 Kurtosis kurtosis | 0.157 |
| 角度范围 angular_range | — – 0.4150 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 449000.0000 |
| 实空间数据点数 n_real_points | 73 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.716; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.730; Smooth: 0.989 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d2hkqa_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.245 — EB1 dimerisation domain-like |
| 超家族 Superfamily superfamily | a.245.1 — EB1 dimerisation domain-like |
| 家族 Family family | a.245.1.1 — EB1 dimerisation domain-like |
| 结构域编号 domain_id | d2hkqb_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.34 — SH3-like barrel |
| 超家族 Superfamily superfamily | b.34.10 — Cap-Gly domain |
| 家族 Family family | b.34.10.1 — Cap-Gly domain |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2hkqA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 1430 — |
| 结构域编号 domain_id | 2hkqB00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 190 — CAP Gly-rich-like domain |
