SAXSdb — 2hl5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Microtubule-associated protein RP/EB family member 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Dynactin-1 × 2 （Q14203） CHLORIDE ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MARE1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–80； UniProt 190–267 Author chain B； PDBConstruct 3–80； UniProt 190–267

Dynactin-1

Homo sapiens

UniProt Q14203

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Microtubule-associated protein RP/EB family member 1 × 2 （Q15691） CHLORIDE ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DYNA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 4–97； UniProt 18–111 Author chain D； PDBConstruct 4–97； UniProt 18–111

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hl5
Deposition date deposition_date	2006-07-06
Structure title title	Crystal structure of the C-terminal domain of human EB1 in complex with the A49M mutant CAP-Gly domain of human Dynactin-1 (p150-Glued)
Keywords keywords	microtubule binding, dynactin, cytoskeleton associated protein, p150Glued, EB1, +TIP protein Complex structure, structural protein; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hl5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hl5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

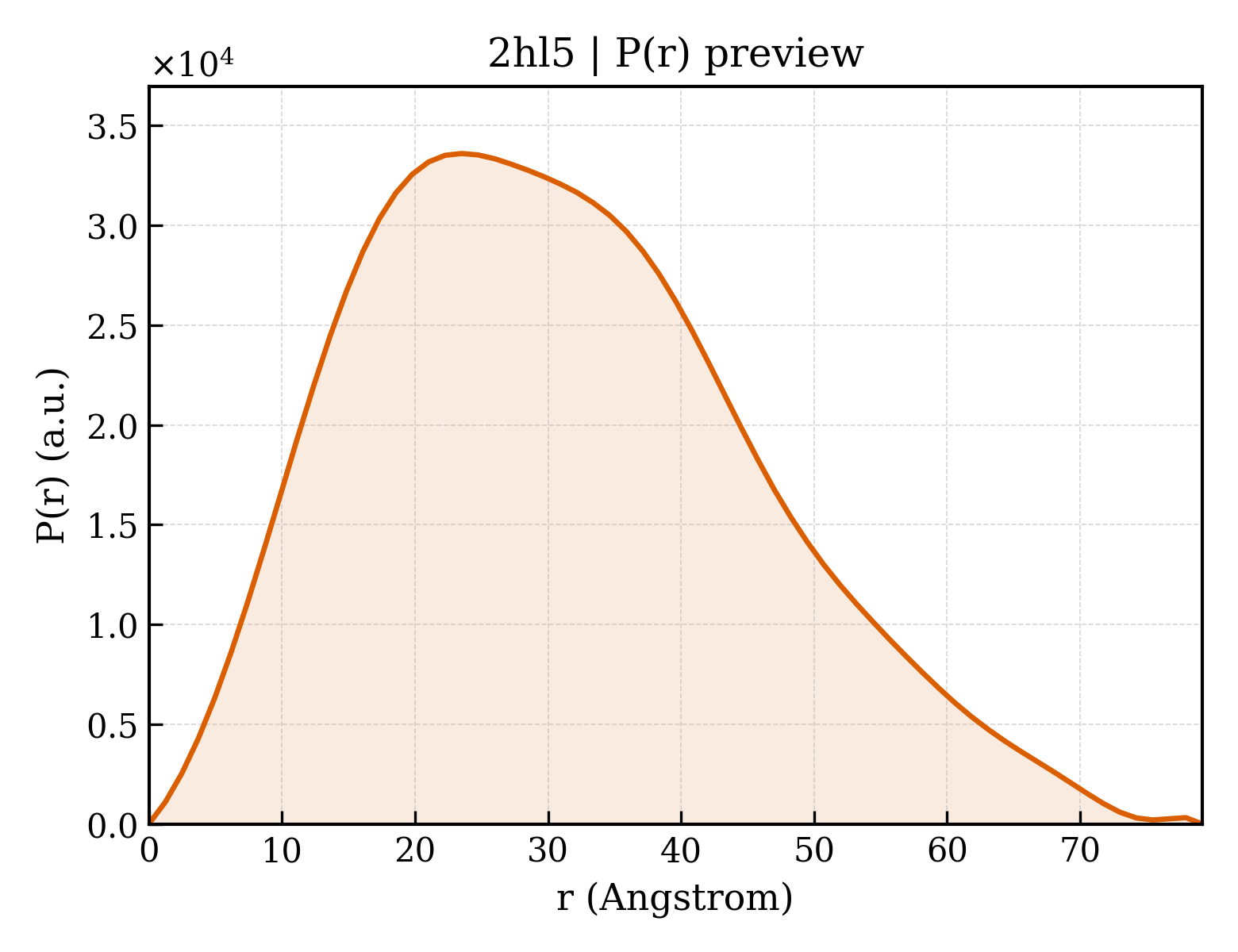

2hl5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.97 Å
Rg (electron density)	23.04 Å
Total Rg	23.92 Å
Atom count	2114
Residues	268
Excluded volume	37538 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hl5__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Microtubule-associated protein RP/EB family member 1
Molecular weight formula_weight	9212.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2272

GSDEAAELMQQVNVLKLTVEDLEKERDFYFGKLRNIELICQENEGENDPVLQRIVDILYATDEGFVIPDEGGPQEEQEEY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Dynactin-1
Molecular weight formula_weight	10369.5 kDa
Mutation mutation	A49M
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GSHMSAEASARPLRVGSRVEVIGKGHRGTVAYVGMTLFATGKWVGVILDEAKGKNDGTVQGRKYFTCDEGHGIFVRQSQIQVFEDGADTTSPETPDS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	151

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2hl5a_
Class class	a — All alpha proteins
Fold Fold fold	a.245 — EB1 dimerisation domain-like
Superfamily Superfamily superfamily	a.245.1 — EB1 dimerisation domain-like
Family Family family	a.245.1.1 — EB1 dimerisation domain-like

Domain ID domain_id	d2hl5b_
Class class	a — All alpha proteins
Fold Fold fold	a.245 — EB1 dimerisation domain-like
Superfamily Superfamily superfamily	a.245.1 — EB1 dimerisation domain-like
Family Family family	a.245.1.1 — EB1 dimerisation domain-like

Domain ID domain_id	d2hl5c_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.10 — Cap-Gly domain
Family Family family	b.34.10.1 — Cap-Gly domain

Domain ID domain_id	d2hl5d_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.10 — Cap-Gly domain
Family Family family	b.34.10.1 — Cap-Gly domain

CATH v4.4 (4 domains)

Domain ID domain_id	2hl5A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1430 —

Domain ID domain_id	2hl5B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1430 —

Domain ID domain_id	2hl5C00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	190 — CAP Gly-rich-like domain

Domain ID domain_id	2hl5D00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	190 — CAP Gly-rich-like domain

▶

Unit-cell length a length_a	86.409 Å
Unit-cell length b length_b	101.304 Å
Unit-cell length c length_c	40.047 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.930 Å
Low-resolution limit resolution_low	65.800 Å
R factor r_factor	0.2124
R_work r_work	0.2108
R_free r_free	0.2419

Crystal structure of the C-terminal domain of human EB1 in complex with the A49M mutant CAP-Gly domain of human Dynactin-1 (p150-Glued)
