1vjm
Deformation of helix C in the low-temperature L-intermediate of bacteriorhodopsin
SAXS 散射曲线 SAXS Profile

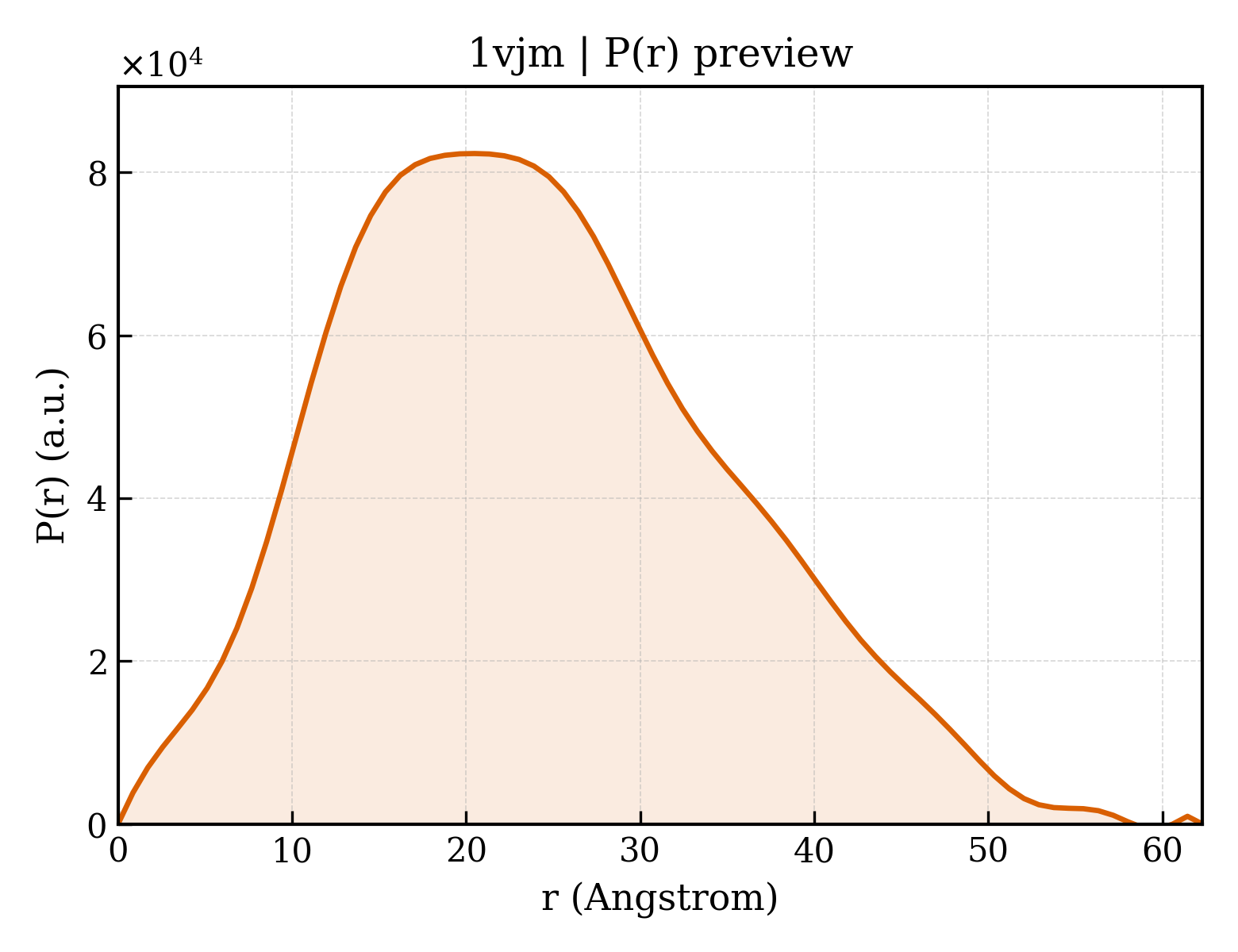

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1vjm |
| 沉积日期 deposition_date | 2004-03-12 |
| 结构标题 title | Deformation of helix C in the low-temperature L-intermediate of bacteriorhodopsin |
| 关键词 keywords | Ion transport, Photoreceptor, Transmembrane, RETINAL protein, Hydrogen ion Transport, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 18.52 Å |
| 回转半径 Rg (电子) rg_electron | 17.84 Å |
| 零角强度 I(0) i0 | 29010900.00 |
| 分子量 molecular_weight | 50042.0 kDa |
| 排除体积 excluded_volume | 65508 ų |
| 包络体积 envelope_volume | 36623 ų |
| 水化壳体积 shell_volume | 17196 ų |
| 包络直径 envelope_diameter | 65.0 Å |
| 壳层 Rg shell_rg | 24.12 Å |
| 包络 Rg envelope_rg | 18.46 Å |
| 形状 Rg shape_rg | 17.83 Å |
| 总 Rg total_rg | 18.45 Å |
| 总原子数 total_atoms | 3544 |
| 残基数 n_residues | 456 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 62.3 Å |
| Rg (实空间) rg_real | 18.54 Å |
| Rg 误差 (实空间) rg_real_error | 0.53 Å |
| I(0) (实空间) i0_real | 2.9010e+07 |
| I(0) 误差 (实空间) i0_real_error | 3.5520e+05 |
| Rg (倒空间) rg_reciprocal | 18.54 Å |
| I(0) (倒空间) i0_reciprocal | 29010000.0000 |
| 解质量估计 total_estimate | 0.7952 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 20.5 Å |
| 偏度 Skewness skewness | 0.369 |
| 峰度 Kurtosis kurtosis | -0.355 |
| 角度范围 angular_range | — – 0.4300 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1324000.0000 |
| 实空间数据点数 n_real_points | 74 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.949; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 2 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1vjma_ |
| 类 Class class | f — Membrane and cell surface proteins and peptides |
| 折叠类型 Fold fold | f.13 — Class A G protein-coupled receptor (GPCR)-like |
| 超家族 Superfamily superfamily | f.13.1 — Class A G protein-coupled receptor (GPCR)-like |
| 家族 Family family | f.13.1.1 — Bacteriorhodopsin-like |
CATH v4.4 (1 domains)
| 结构域编号 domain_id | 1vjmA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1070 — Rhopdopsin 7-helix transmembrane proteins |
| 同源超家族 H-superfamily homologous superfamily | 10 — Rhodopsin 7-helix transmembrane proteins |
