1x02

Solution structure of stereo array isotope labeled (SAIL) calmodulin

Method: SOLUTION NMR Dmax: 67.6 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

calmodulin

Xenopus laevis

UniProt P62155

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–148 Not recorded CA CALCIUM ION × 4 SOLUTION NMR NMR measurement conditions：pH 6.5；310 K；Pressure AMBIENT NMR sample composition：0.7mM SAIL calmodulin, 5mM MES-d13, 10mM bis-Tris-d19, 5mM CaCl2, 0.1mM NaN3 | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1X02 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1CFC CALCIUM-FREE CALMODULIN Deposited 1995-08-02 Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1CFD CALCIUM-FREE CALMODULIN Deposited 1995-10-18 Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1CFF NMR SOLUTION STRUCTURE OF A COMPLEX OF CALMODULIN WITH A BINDING PEPTIDE OF THE CA2+-PUMP Deposited 1999-03-18 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–149（148 aa）
Not recorded CA CALCIUM ION × 4 SOLUTION NMR
NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.115；Pressure 1
NMR sample composition 90% H2O/10% D2O, 100% D2O
Resolution not provided
1DMO CALMODULIN, NMR, 30 STRUCTURES Deposited 1996-04-24 Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1F70 REFINED SOLUTION STRUCTURE OF CALMODULIN N-TERMINAL DOMAIN Deposited 2000-06-24 Different construct Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–76（75 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100 mM KCL；Pressure ambient
NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepe buffer, 100 mM KCL | 90% H2O/10% D2O
NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepe buffer, 100 mM KCL; 21 mg/ml filamentous phage Pf1 | 90% H2O/10% D2O
Resolution not provided
1F71 REFINED SOLUTION STRUCTURE OF CALMODULIN C-TERMINAL DOMAIN Deposited 2000-06-24 Different construct Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 83–149（67 aa） Fragment：C-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100mM KCl；Pressure ambient
NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepes buffer, 100 mM KCl | 90% H2O/10% D2O
NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepes buffer, 100 mM KCl; 21 mg/ml filamentous phage pf1 | 90% H2O/10% D2O
Resolution not provided
1IQ5 Calmodulin/nematode CA2+/Calmodulin dependent kinase kinase fragment Deposited 2001-06-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–149（149 aa）
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；ammonium sulfate, citratet, sodium tartrae, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.80 Å R-free 0.248
1MUX SOLUTION NMR STRUCTURE OF CALMODULIN/W-7 COMPLEX: THE BASIS OF DIVERSITY IN MOLECULAR RECOGNITION, 30 STRUCTURES Deposited 1997-09-06 Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Not recorded CA CALCIUM ION × 4 WW7 N-(6-AMINOHEXYL)-5-CHLORO-1-NAPHTHALENESULFONAMIDE × 2 SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) KCL, 100mM；Pressure 1
Resolution not provided
1NWD Solution Structure of Ca2+/Calmodulin bound to the C-terminal Domain of Petunia Glutamate Decarboxylase Deposited 2003-02-06 Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–148（148 aa）
Not recorded CA CALCIUM ION × 4 SOLUTION NMR
NMR measurement conditions pH 6.3；308 K；Ionic strength (raw mmCIF value) 100 mM KCl, 10 mM CaCl2
NMR sample composition 1 mM Calmodulin; 2.2 mM GAD | 91% H2O, 9% D2O
Resolution not provided
1SY9 Structure of calmodulin complexed with a fragment of the olfactory CNG channel Deposited 2004-04-01 Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–148（148 aa）
Not recorded CA CALCIUM ION × 4 SOLUTION NMR
NMR measurement conditions pH 6.7；308 K
NMR measurement conditions pH 6.7；308 K
NMR sample composition 1.2 mM complex U-15N,13C, 6 mM CaCl2, 140 mM KCl, D2O | D2O
NMR sample composition 1.2 mM complex U-15N,13C, 6 mM CaCl2, 140 mM KCl, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 5–148（144 aa）
Not recorded MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K
Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–148（144 aa）
Not recorded MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K
Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 5–148（144 aa）
Not recorded MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K
Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 5–148（144 aa）
Not recorded MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K
Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 5–148（144 aa）
Not recorded MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K
Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 5–148（144 aa）
Not recorded MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K
Resolution 3.60 Å R-free 0.307
2COL Crystal structure analysis of CyaA/C-Cam with Pyrophosphate Deposited 2005-05-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 79–145（67 aa）
Not recorded MG MAGNESIUM ION × 2 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；278 K；PEG4000, Na Citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.20 Å R-free 0.293
2I08 Solvation effect in conformational changes of EF-hand proteins: X-ray structure of Ca2+-saturated double mutant Q41L-K75I of N-domain of calmodulin Deposited 2006-08-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–78（78 aa） Fragment：N-DOMAIN OF CALMODULIN
Mutation：F19Y, Q41L, K75I, A1M, D78Y CA CALCIUM ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；36% (v/v) PEG 400, 100 mM HEPES, 200 mM CaCl2, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.00 Å R-free 0.243
2K3S HADDOCK-derived structure of the CH-domain of the smoothelin-like 1 complexed with the C-domain of apocalmodulin Deposited 2008-05-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 83–149（67 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；293 K；Ionic strength (raw mmCIF value) 0；Pressure ambient
NMR sample composition 0.5 mM [U-100% 15N] entity_1, 0.6 mM calmodulin (full length), 20 mM Bis-Tris, 0.5 mM DSS, 10 mM [U-2H] DTT, 0.03 % sodium azide, 1 mM EDTA, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.6 mM entity_1, 0.5 mM [U-100% 15N] calmodulin (full length), 20 mM Bis-Tris, 0.5 mM DSS, 10 mM [U-2H] DTT, 0.03 % sodium azide, 1 mM EDTA, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2KDU Structural basis of the Munc13-1/Ca2+-Calmodulin interaction: A novel 1-26 calmodulin binding motif with a bipartite binding mode Deposited 2009-01-19 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–149（148 aa）
Not recorded CA CALCIUM ION × 4 SOLUTION NMR
NMR measurement conditions pH 6.8；308 K
NMR sample composition 10 mM calcium, 1.5 mM [U-99% 13C; U-99% 15N] calmodulin, 1.8 mM Munc13-1, 150 mM potassium chloride, 20 mM BIS-TRIS, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 10 mM calcium, 0.5 mM [U-99% 13C; U-99% 15N] Munc13-1, 0.6 mM calmodulin, 150 mM potassium chloride, 20 mM BIS-TRIS, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 10 mM calcium, 1.5 mM [U-99% 13C; U-99% 15N] calmodulin, 1.8 mM Munc13, 150 mM potassium chloride, 20 mM BIS-TRIS, 100% D2O | 100% D2O
Resolution not provided
2LLO Solution NMR-derived structure of calmodulin N-lobe bound with ER alpha peptide Deposited 2011-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–81（80 aa） Fragment：EF-hand domains 1 and 2, residues 2-81
Not recorded CA CALCIUM ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] TRIS, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2LLQ Solution nmr-derived structure of calmodulin c-lobe bound with er alpha peptide Deposited 2011-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 83–149（67 aa） Fragment：EF-hand domains 3 and 4, residues 83-149
Not recorded CA CALCIUM ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] protein, 93% H2O/7% D2O | 93% H2O/7% D2O
Resolution not provided
2MES Backbone 1H, 13C, 15N resonance assignments of calcium-bound calmodulin in complex with PSD95 N-terminal peptide Deposited 2013-09-26 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–149（148 aa）
Not recorded CA CALCIUM ION × 4 SOLUTION NMR
NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient
NMR sample composition 400 uM [U-99% 13C; U-99% 15N] Calmodulin, PSD95NT, DTT, Tris, CaCl2, 600 uM PSD95_N-terminal_peptide, 20 mM Tris-d11, 50 mM NaCl, 5 mM CaCl2, 5 mM DTT-d, 93 % H2O, 7 % D2O, 93% H2O/7% D2O | 93% H2O/7% D2O
Resolution not provided
2RRT Solution structure of Magnesium-bound form of calmodulin C-domain E104D/E140D mutant Deposited 2011-04-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 79–149（71 aa） Fragment：C-terminal domain, UNP residues 79-149
Mutation：E28D, E64D No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；323 K；Ionic strength (raw mmCIF value) 0.5；Pressure ambient
NMR sample composition 10 mM [U-2H] MES-1, 100 mM potassium chloride-2, 100 mM magnesium chloride-3, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
4R8G Crystal Structure of Myosin-1c tail in complex with Calmodulin Deposited 2014-09-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–149（148 aa）
Chain B 2–149（148 aa）
Chain H 2–149（148 aa）
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289.3 K；2.0M ammonium sulfate, 5% 1,4-dioxane, MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289.3K
Resolution 3.50 Å R-free 0.304
5J7J NMR Derived Structure of Ca2+ Calmodulin bound to Phosphorylated PSD-95 Deposited 2016-04-06 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–149（148 aa）
Not recorded CA CALCIUM ION × 4 SOLUTION NMR
NMR measurement conditions pH 7；318 K；Ionic strength (raw mmCIF value) 50；Pressure 1
NMR sample composition 500 uM [U-100% 13C; U-100% 15N] Calmodulin, 750 uM PSD-95 phosphorylated, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
5T0X Solution NMR-derived structure of calmodulin bound with ER alpha peptides Deposited 2016-08-16 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 2–149（148 aa）
Not recorded CA CALCIUM ION × 4 SOLUTION NMR
NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 50；Pressure 1
NMR sample composition 1 mM [U-99% 15N] 15N-labeled CaM/ERalpha | 90% H2O/10% D2O
NMR sample composition 1 mM [U-99% 13C; U-99% 15N] 13C/15N-CaM/ERalpha | 90% H2O/10% D2O
NMR sample composition 1 mM [U-99% 13C; U-99% 15N] 13C/15N-CaM/ERalpha | 100% D2O
Resolution not provided

22 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CALM_XENLA
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–148； UniProt 1–148

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1x02

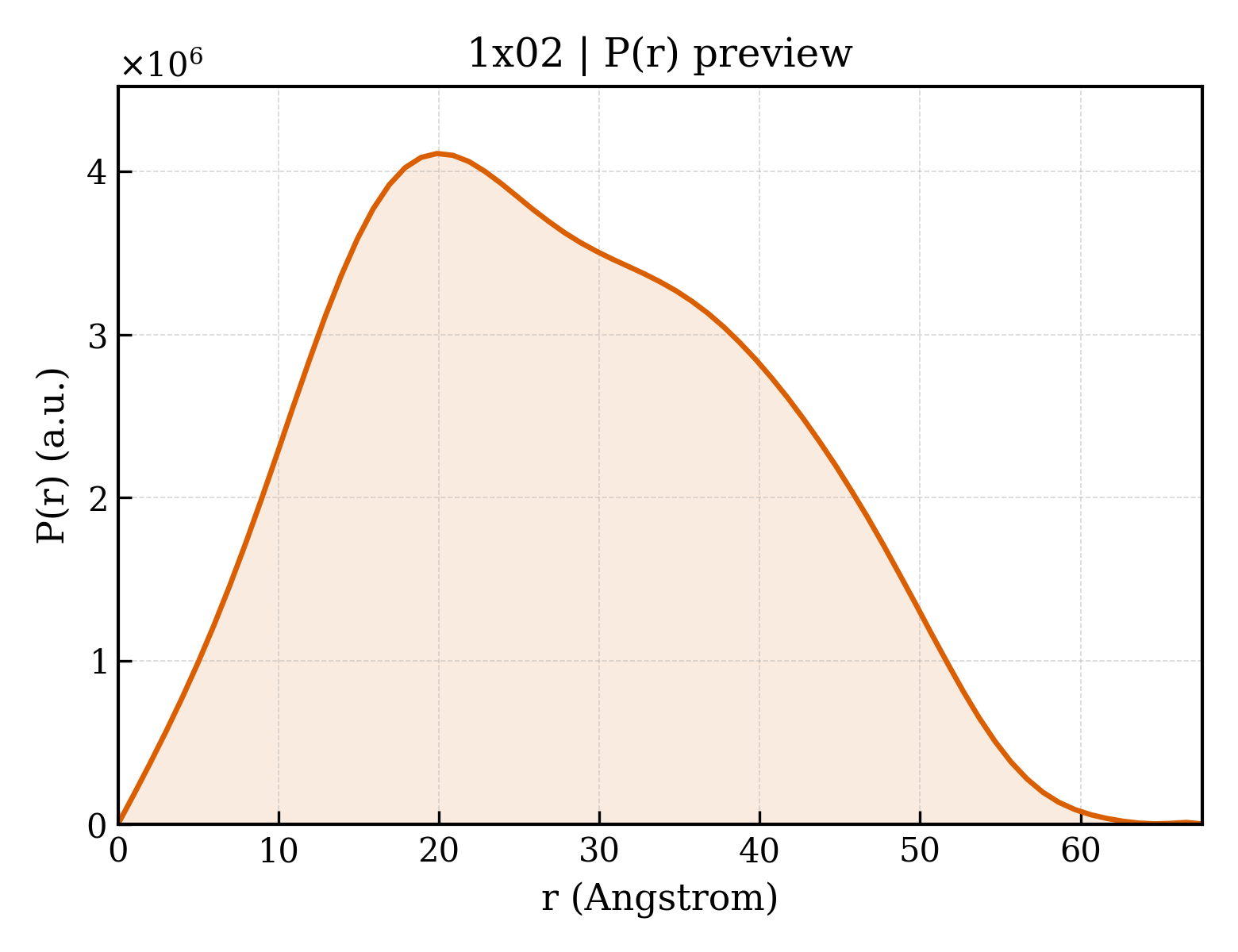

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1x02
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1x02
Deposition date deposition_date2005-03-11
Structure title titleSolution structure of stereo array isotope labeled (SAIL) calmodulin
Keywords keywordsSAIL, stereo array isotope labeling, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier21.38 Å
Radius of gyration Rg (electron density) rg_electron20.93 Å
Forward intensity I(0) i01788920000.00
Molecular weight molecular_weight336510.0 kDa
Excluded volume excluded_volume411320 ų
Envelope volume envelope_volume81066 ų
Hydration-shell volume shell_volume28077 ų
Envelope diameter envelope_diameter72.6 Å
Shell Rg shell_rg31.16 Å
Envelope Rg envelope_rg23.87 Å
Shape Rg shape_rg20.95 Å
Total Rg total_rg21.08 Å
Total atoms total_atoms45280
Residues n_residues2960
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax67.6 Å
Rg (real space) rg_real21.38 Å
Rg uncertainty (real space) rg_real_error0.49 Å
I(0) (real space) i0_real1.7890e+09
I(0) uncertainty (real space) i0_real_error2.2000e+07
Rg (reciprocal space) rg_reciprocal21.39 Å
I(0) (reciprocal space) i0_reciprocal1789000000.0000
Solution quality estimate total_estimate0.9042
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary19.9 Å
Skewness Skewness skewness0.203
Kurtosis Kurtosis kurtosis-0.752
Angular range angular_range— – 0.3700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha803500.0000
Real-space data points n_real_points69
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.949; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.929; Smooth: 0.975
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1x02a_
Class classa — All alpha proteins
Fold Fold folda.39 — EF Hand-like
Superfamily Superfamily superfamilya.39.1 — EF-hand
Family Family familya.39.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id1x02A01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology238 — Recoverin; domain 1
Homologous superfamily homologous superfamily10 — EF-hand
Domain ID domain_id1x02A02
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology238 — Recoverin; domain 1
Homologous superfamily homologous superfamily10 — EF-hand
▶

8. Citations (1)

▶

9. Files and Curves (10)
