1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin

Xenopus laevis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 79–149	Fragment：C-terminal domain, UNP residues 79-149 Mutation：E28D, E64D	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；323 K；Ionic strength (raw mmCIF value) 0.5；Pressure ambient NMR sample composition：10 mM [U-2H] MES-1, 100 mM potassium chloride-2, 100 mM magnesium chloride-3, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2RRT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CFC CALCIUM-FREE CALMODULIN Deposited 1995-08-02	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1CFD CALCIUM-FREE CALMODULIN Deposited 1995-10-18	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1CFF NMR SOLUTION STRUCTURE OF A COMPLEX OF CALMODULIN WITH A BINDING PEPTIDE OF THE CA2+-PUMP Deposited 1999-03-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.115；Pressure 1 NMR sample composition 90% H2O/10% D2O, 100% D2O	Resolution not provided
1DMO CALMODULIN, NMR, 30 STRUCTURES Deposited 1996-04-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1F70 REFINED SOLUTION STRUCTURE OF CALMODULIN N-TERMINAL DOMAIN Deposited 2000-06-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–76（75 aa） Fragment：N-TERMINAL DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100 mM KCL；Pressure ambient NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepe buffer, 100 mM KCL \| 90% H2O/10% D2O NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepe buffer, 100 mM KCL; 21 mg/ml filamentous phage Pf1 \| 90% H2O/10% D2O	Resolution not provided
1F71 REFINED SOLUTION STRUCTURE OF CALMODULIN C-TERMINAL DOMAIN Deposited 2000-06-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 83–149（67 aa） Fragment：C-TERMINAL DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100mM KCl；Pressure ambient NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepes buffer, 100 mM KCl \| 90% H2O/10% D2O NMR sample composition 1 mM Calmodulin U-15N,13C; 5 mM Hepes buffer, 100 mM KCl; 21 mg/ml filamentous phage pf1 \| 90% H2O/10% D2O	Resolution not provided
1IQ5 Calmodulin/nematode CA2+/Calmodulin dependent kinase kinase fragment Deposited 2001-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–149（149 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；ammonium sulfate, citratet, sodium tartrae, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.248
1MUX SOLUTION NMR STRUCTURE OF CALMODULIN/W-7 COMPLEX: THE BASIS OF DIVERSITY IN MOLECULAR RECOGNITION, 30 STRUCTURES Deposited 1997-09-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4 WW7 N-(6-AMINOHEXYL)-5-CHLORO-1-NAPHTHALENESULFONAMIDE × 2	SOLUTION NMR NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) KCL, 100mM；Pressure 1	Resolution not provided
1NWD Solution Structure of Ca2+/Calmodulin bound to the C-terminal Domain of Petunia Glutamate Decarboxylase Deposited 2003-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.3；308 K；Ionic strength (raw mmCIF value) 100 mM KCl, 10 mM CaCl2 NMR sample composition 1 mM Calmodulin; 2.2 mM GAD \| 91% H2O, 9% D2O	Resolution not provided
1SY9 Structure of calmodulin complexed with a fragment of the olfactory CNG channel Deposited 2004-04-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.7；308 K NMR measurement conditions pH 6.7；308 K NMR sample composition 1.2 mM complex U-15N,13C, 6 mM CaCl2, 140 mM KCl, D2O \| D2O NMR sample composition 1.2 mM complex U-15N,13C, 6 mM CaCl2, 140 mM KCl, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
1X02 Solution structure of stereo array isotope labeled (SAIL) calmodulin Deposited 2005-03-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.5；310 K；Pressure AMBIENT NMR sample composition 0.7mM SAIL calmodulin, 5mM MES-d13, 10mM bis-Tris-d19, 5mM CaCl2, 0.1mM NaN3 \| 90% H2O/10% D2O	Resolution not provided
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 5–148（144 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 5–148（144 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 5–148（144 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 5–148（144 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 5–148（144 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 5–148（144 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
2COL Crystal structure analysis of CyaA/C-Cam with Pyrophosphate Deposited 2005-05-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 79–145（67 aa）	Not recorded	MG MAGNESIUM ION × 2 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；278 K；PEG4000, Na Citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.20 Å R-free 0.293
2I08 Solvation effect in conformational changes of EF-hand proteins: X-ray structure of Ca2+-saturated double mutant Q41L-K75I of N-domain of calmodulin Deposited 2006-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–78（78 aa） Fragment：N-DOMAIN OF CALMODULIN	Mutation：F19Y, Q41L, K75I, A1M, D78Y	CA CALCIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；36% (v/v) PEG 400, 100 mM HEPES, 200 mM CaCl2, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.00 Å R-free 0.243
2K3S HADDOCK-derived structure of the CH-domain of the smoothelin-like 1 complexed with the C-domain of apocalmodulin Deposited 2008-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 83–149（67 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；293 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 0.5 mM [U-100% 15N] entity_1, 0.6 mM calmodulin (full length), 20 mM Bis-Tris, 0.5 mM DSS, 10 mM [U-2H] DTT, 0.03 % sodium azide, 1 mM EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.6 mM entity_1, 0.5 mM [U-100% 15N] calmodulin (full length), 20 mM Bis-Tris, 0.5 mM DSS, 10 mM [U-2H] DTT, 0.03 % sodium azide, 1 mM EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KDU Structural basis of the Munc13-1/Ca2+-Calmodulin interaction: A novel 1-26 calmodulin binding motif with a bipartite binding mode Deposited 2009-01-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.8；308 K NMR sample composition 10 mM calcium, 1.5 mM [U-99% 13C; U-99% 15N] calmodulin, 1.8 mM Munc13-1, 150 mM potassium chloride, 20 mM BIS-TRIS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 10 mM calcium, 0.5 mM [U-99% 13C; U-99% 15N] Munc13-1, 0.6 mM calmodulin, 150 mM potassium chloride, 20 mM BIS-TRIS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 10 mM calcium, 1.5 mM [U-99% 13C; U-99% 15N] calmodulin, 1.8 mM Munc13, 150 mM potassium chloride, 20 mM BIS-TRIS, 100% D2O \| 100% D2O	Resolution not provided
2LLO Solution NMR-derived structure of calmodulin N-lobe bound with ER alpha peptide Deposited 2011-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–81（80 aa） Fragment：EF-hand domains 1 and 2, residues 2-81	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] TRIS, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LLQ Solution nmr-derived structure of calmodulin c-lobe bound with er alpha peptide Deposited 2011-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 83–149（67 aa） Fragment：EF-hand domains 3 and 4, residues 83-149	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] protein, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2MES Backbone 1H, 13C, 15N resonance assignments of calcium-bound calmodulin in complex with PSD95 N-terminal peptide Deposited 2013-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 400 uM [U-99% 13C; U-99% 15N] Calmodulin, PSD95NT, DTT, Tris, CaCl2, 600 uM PSD95_N-terminal_peptide, 20 mM Tris-d11, 50 mM NaCl, 5 mM CaCl2, 5 mM DTT-d, 93 % H2O, 7 % D2O, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
4R8G Crystal Structure of Myosin-1c tail in complex with Calmodulin Deposited 2014-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–149（148 aa） Chain B 2–149（148 aa） Chain H 2–149（148 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289.3 K；2.0M ammonium sulfate, 5% 1,4-dioxane, MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289.3K	Resolution 3.50 Å R-free 0.304
5J7J NMR Derived Structure of Ca2+ Calmodulin bound to Phosphorylated PSD-95 Deposited 2016-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 7；318 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 500 uM [U-100% 13C; U-100% 15N] Calmodulin, 750 uM PSD-95 phosphorylated, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5T0X Solution NMR-derived structure of calmodulin bound with ER alpha peptides Deposited 2016-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 1 mM [U-99% 15N] 15N-labeled CaM/ERalpha \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 13C; U-99% 15N] 13C/15N-CaM/ERalpha \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 13C; U-99% 15N] 13C/15N-CaM/ERalpha \| 100% D2O	Resolution not provided

22 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–72； UniProt 79–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2rrt
Deposition date deposition_date	2011-04-27
Structure title title	Solution structure of Magnesium-bound form of calmodulin C-domain E104D/E140D mutant
Keywords keywords	;calmodulin, EF-hand, magnesium, Structural Genomics, PSI, Protein Structure Initiative, RIKEN Structural Genomics/Proteomics Initiative, RSGI, METAL BINDING PROTEIN, NPPSFA, National Project on Protein Structural and Functional Analyses ;; METAL BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.11 Å
Radius of gyration Rg (electron density) rg_electron	12.60 Å
Forward intensity I(0) i0	456183000.00
Molecular weight molecular_weight	164400.0 kDa
Excluded volume excluded_volume	198740 Å³
Envelope volume envelope_volume	25169 Å³
Hydration-shell volume shell_volume	13963 Å³
Envelope diameter envelope_diameter	50.6 Å
Shell Rg shell_rg	21.20 Å
Envelope Rg envelope_rg	15.86 Å
Shape Rg shape_rg	12.55 Å
Total Rg total_rg	12.93 Å
Total atoms total_atoms	22000
Residues n_residues	1440
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.0 Å
Rg (real space) rg_real	13.06 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	4.5620e+08
I(0) uncertainty (real space) i0_real_error	5.0640e+06
Rg (reciprocal space) rg_reciprocal	13.06 Å
I(0) (reciprocal space) i0_reciprocal	456200000.0000
Solution quality estimate total_estimate	0.7820
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	15.9 Å
Skewness Skewness skewness	0.224
Kurtosis Kurtosis kurtosis	-0.149
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	144400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.724; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2rrta1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2rrta2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

▶

8. Citations (1)

▶

Description description	Calmodulin
Molecular weight formula_weight	8259.0 kDa
Mutation mutation	E28D, E64D
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	22000

来源生物 organism	Xenopus laevis
通用名 common_name	clawed frog, common platanna, platanna
NCBI Class编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/rr/2rrt/2rrt.fit
pddf	/app/data/pr_computation/rr/2rrt/2rrt.pr.out
profile	/app/data/saxs_computation/rr/2rrt/2rrt.dat

Solution structure of Magnesium-bound form of calmodulin C-domain E104D/E140D mutant

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin

State in the Current Structure

Other States of the Same Protein in the Database

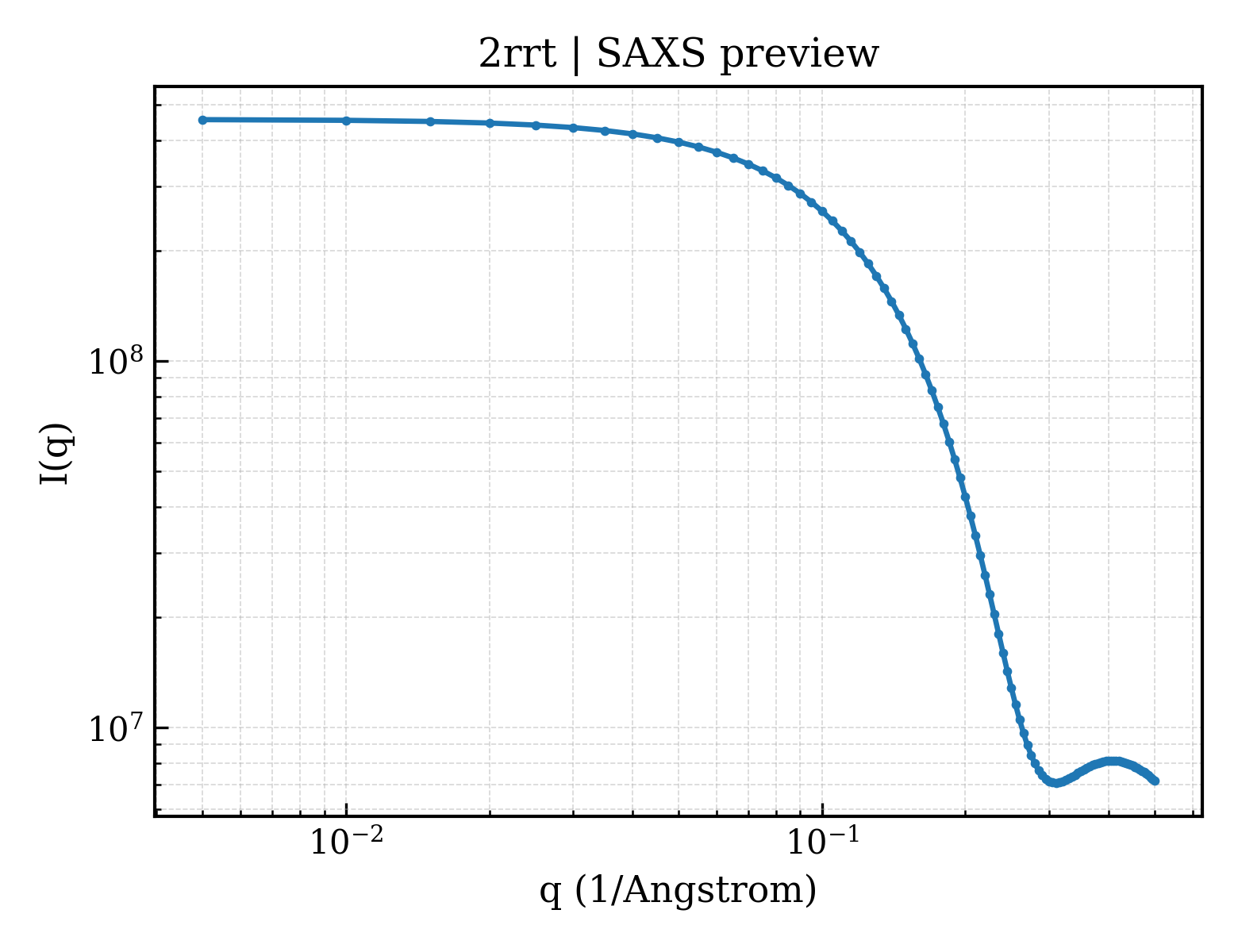

SAXS scattering curve SAXS Profile

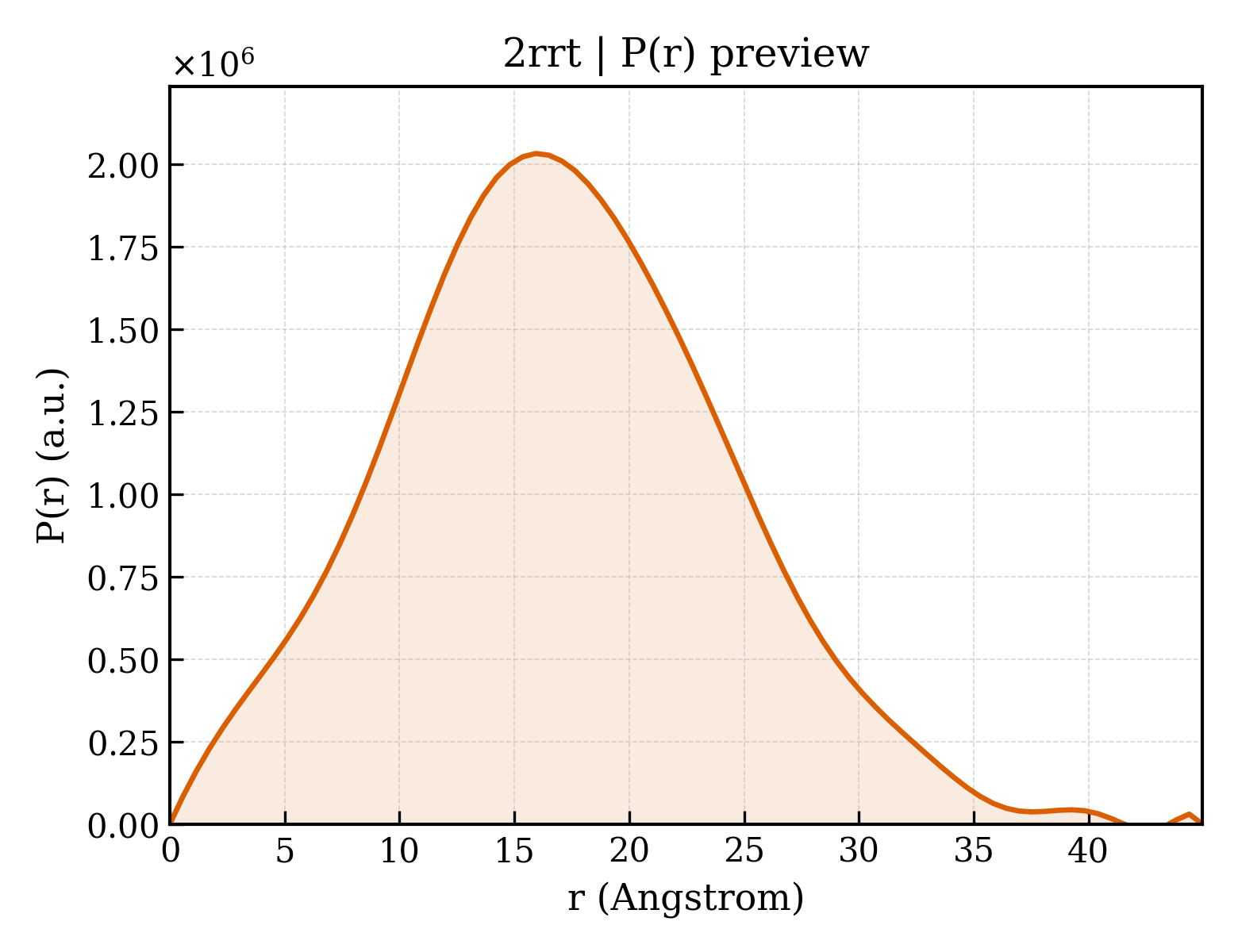

P(r) Distance Distribution P(r) Distribution
