1cfc
CALCIUM-FREE CALMODULIN

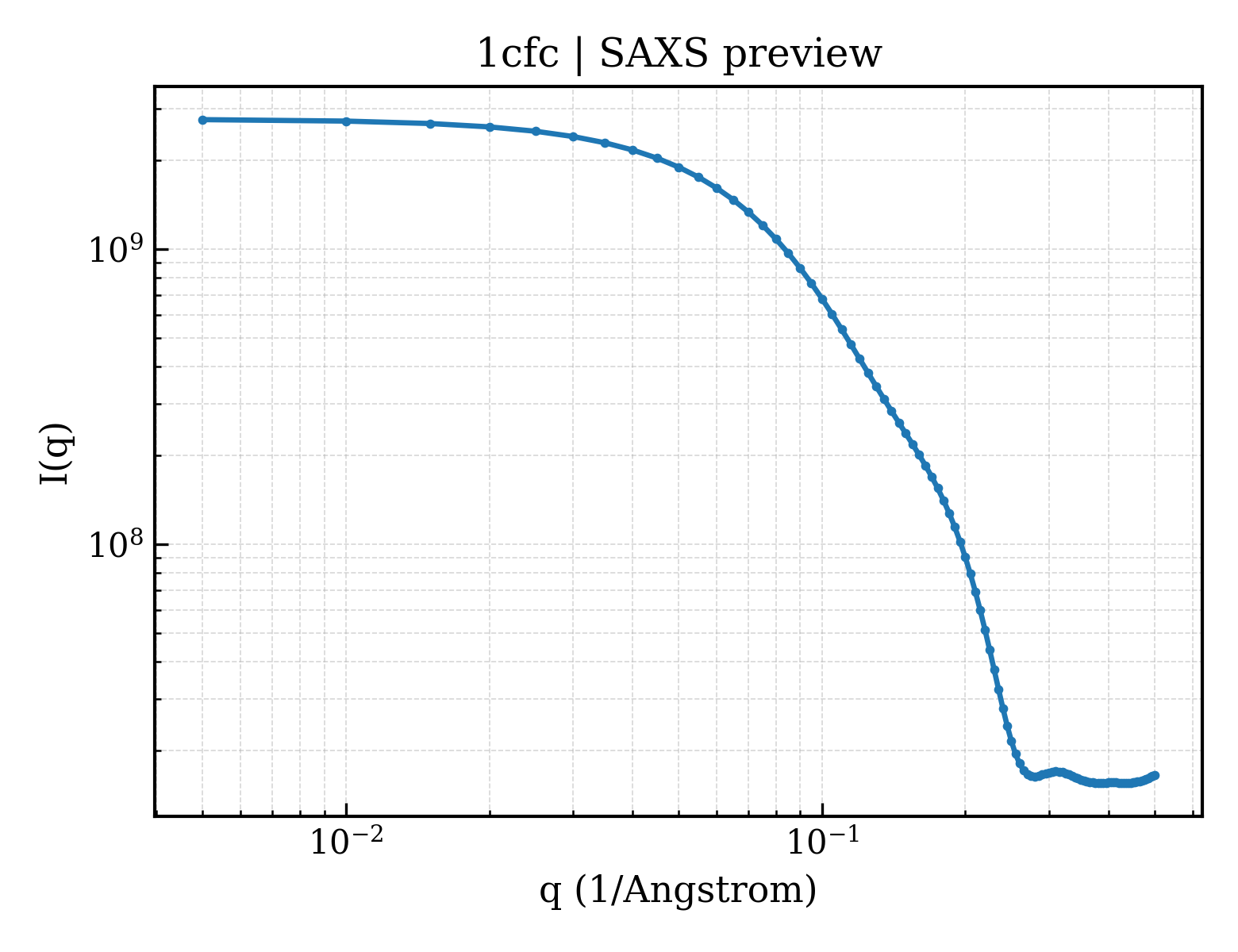

SAXS Profile

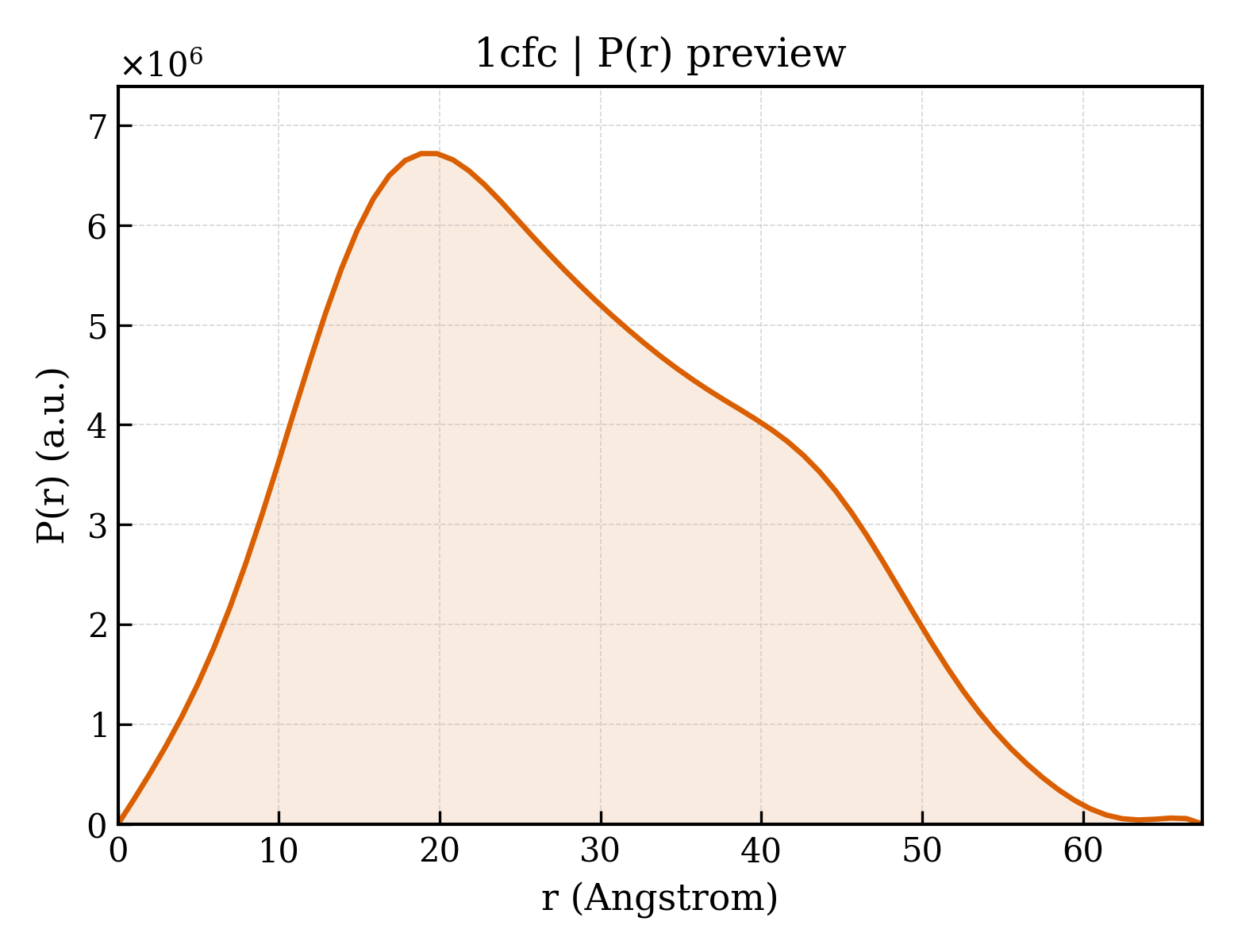

P(r) Distribution
1. Structure Basics
| entry_id | 1cfc |
| deposition_date | 1995-08-02 |
| title | CALCIUM-FREE CALMODULIN |
| keywords | CALCIUM-BINDING PROTEIN; CALCIUM-BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.21 Å |
| rg_electron | 20.71 Å |
| i0 | 2760040000.00 |
| molecular_weight | 417060.0 kDa |
| excluded_volume | 509340 ų |
| envelope_volume | 83470 ų |
| shell_volume | 28092 ų |
| envelope_diameter | 73.5 Å |
| shell_rg | 32.13 Å |
| envelope_rg | 24.97 Å |
| shape_rg | 20.76 Å |
| total_rg | 20.76 Å |
| total_atoms | 56550 |
| n_residues | 3700 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 67.4 Å |
| rg_real | 21.28 Å |
| rg_real_error | 0.44 Å |
| i0_real | 2.7600e+09 |
| i0_real_error | 3.5240e+07 |
| rg_reciprocal | 21.27 Å |
| i0_reciprocal | 2760000000.0000 |
| total_estimate | 0.8902 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.8 Å |
| skewness | 0.313 |
| kurtosis | -0.668 |
| angular_range | — – 0.3750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1934000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.896; Smooth: 0.992 |
