1zo1

IF2, IF1, and tRNA fitted to cryo-EM data OF E. COLI 70S initiation complex

Method: ELECTRON MICROSCOPY D_max: 159.1 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

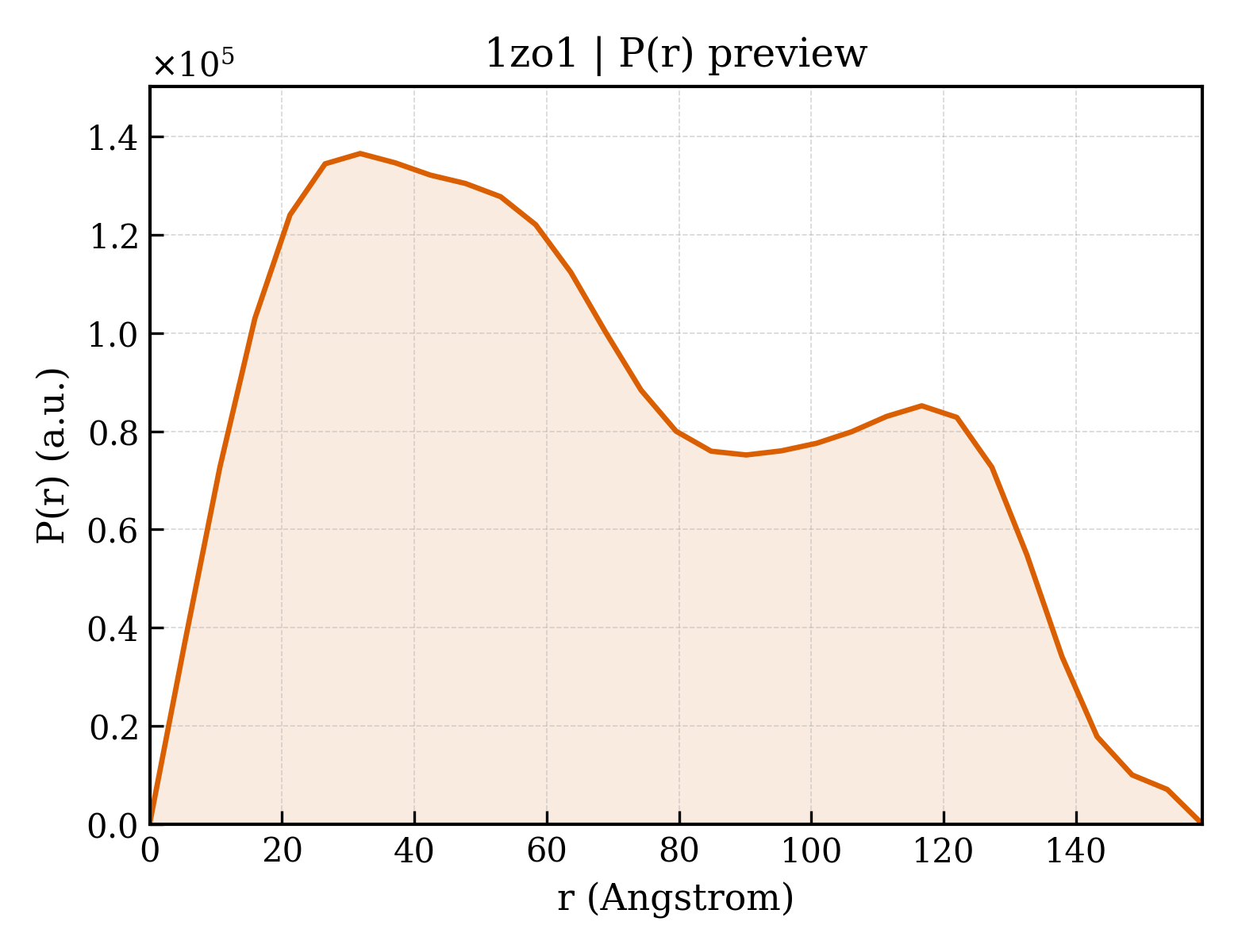

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1zo1
沉积日期 deposition_date	2005-05-12
结构标题 title	IF2, IF1, and tRNA fitted to cryo-EM data OF E. COLI 70S initiation complex
关键词 keywords	E. COLI, RIBOSOME, INITIATION OF PROTEIN SYNTHESIS, INITIATION FACTOR, CRYO-ELETRON MICROSCOPY, translation-RNA COMPLEX; translation/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	53.21 Å
回转半径 Rg (电子) rg_electron	52.07 Å
零角强度 I(0) i0	164526000.00
分子量 molecular_weight	86793.0 kDa
排除体积 excluded_volume	101040 Å³
包络体积 envelope_volume	188280 Å³
水化壳体积 shell_volume	34505 Å³
包络直径 envelope_diameter	168.2 Å
壳层 Rg shell_rg	46.81 Å
包络 Rg envelope_rg	49.01 Å
形状 Rg shape_rg	51.93 Å
总 Rg total_rg	52.23 Å
总原子数 total_atoms	5992
残基数 n_residues	648
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	159.1 Å
Rg (实空间) rg_real	53.73 Å
Rg 误差 (实空间) rg_real_error	1.67 Å
I(0) (实空间) i0_real	1.6450e+08
I(0) 误差 (实空间) i0_real_error	3.4880e+06
Rg (倒空间) rg_reciprocal	52.72 Å
I(0) (倒空间) i0_reciprocal	164300000.0000
解质量估计 total_estimate	0.7220
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.8 Å
偏度 Skewness skewness	0.338
峰度 Kurtosis kurtosis	-0.995
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2959000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.690; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.316; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	P/I-site tRNA
分子量 formula_weight	24518.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	F
原子数 atom_count	5992

GCGGAUUUAGCUCAGUUGGGAGAGCGCCAGACUGAAGAUCUGGAGGUCCUGUGUUCGAUCCACAGAAUUCGCACCA

Entity 2 polymer

描述 description	translation initiation factor 2
分子量 formula_weight	54209.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

EPRAPVVTIMGHVDHGKTSLLEYIRSTKVASGEAGGITQHIGAYHVETENGMITFLDTPGHAAFTSMRARGAQATDIVVLVVAADDGVMPQTIEAIQHAKAAQVPVVVAVNKIDKPEADPDRVKNELSQYGILPEEWGGESQFVHVSAKAGTGIDELLDAILLQAEVLELKAVRKGMASGAVIESFLDKGRGPVATVLVREGTLHKGDIVLCGFEYGRVRAMRNELGQEVLEAGPSIPVEILGLSGVPAAGDEVTVVRDEKKAREVALYRQGKFREVKLARQQKSKLENMFANMTEGEVHEVNIVLKADVQGSVEAISDSLLKLSTDEVKVKIIGSGVGGITETDATLAAASNAILVGFNVRADASARKVIEAESLDLRYYSVIYNLIDEVKAAMSGMLSPELKQQIIGLAEVRDVFKSPKFGAIAGCMVTEGVVKRHNPIRVLRDNVVIYEGELESLRRFKDDVNEVRNGMECGIGVKNYNDVRTGDVIEVFEIIEIQRT

Entity 3 polymer

描述 description	translation Initiation Factor 1
分子量 formula_weight	8116.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

AKEKDTIRTEGVVTEALPNATFRVKLDSGPEILAYISGKMRMHYIRILPGDRVVVEITPYDPTRGRIVYRK

▼

6. 折叠分类 (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

结构域编号 domain_id	d1zo1w1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.5 — Cold shock DNA-binding domain-like

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	1

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	13.80 Å
分辨率测定方法 resolution_method	MULTI-REFERENCE
颗粒数 num_particles	20283

fit	/app/data/saxs_computation/zo/1zo1/1zo1.fit
pddf	/app/data/pr_computation/zo/1zo1/1zo1.pr.out
profile	/app/data/saxs_computation/zo/1zo1/1zo1.dat
