2g56
crystal structure of human insulin-degrading enzyme in complex with insulin B chain

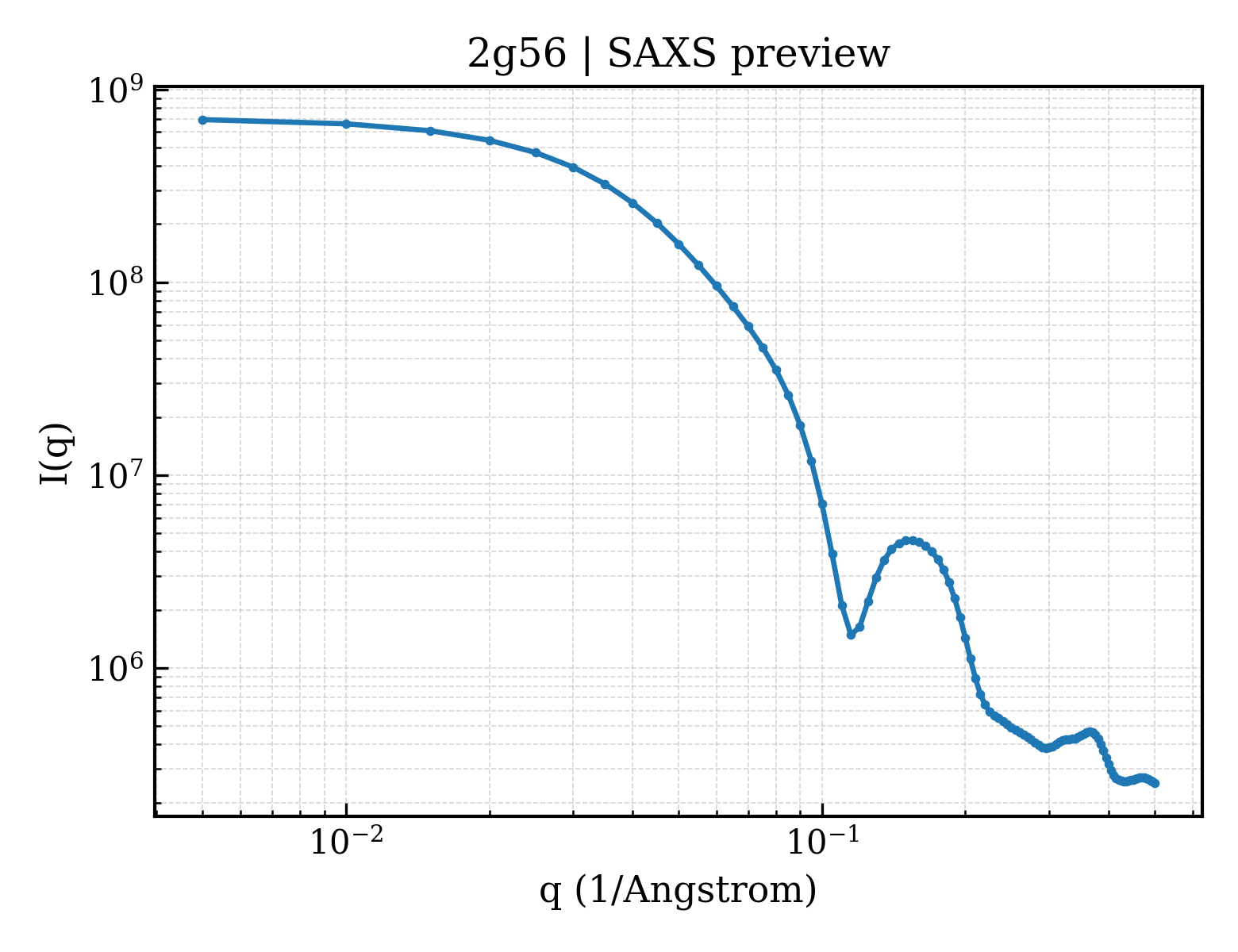

SAXS 散射曲线 SAXS Profile

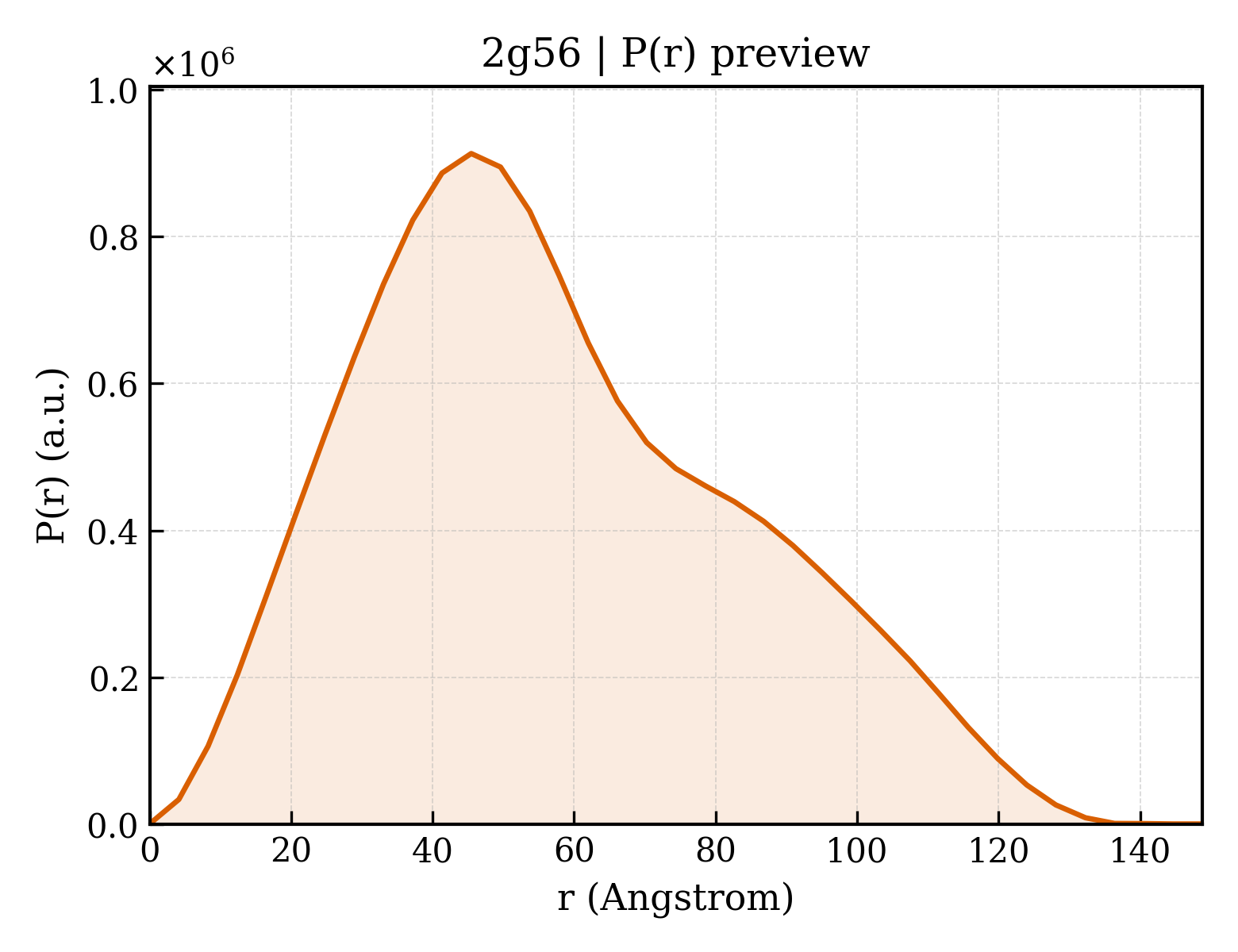

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2g56 |
| 沉积日期 deposition_date | 2006-02-22 |
| 结构标题 title | crystal structure of human insulin-degrading enzyme in complex with insulin B chain |
| 关键词 keywords | protein-peptide complex, HYDROLASE; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 44.40 Å |
| 回转半径 Rg (电子) rg_electron | 44.33 Å |
| 零角强度 I(0) i0 | 707656000.00 |
| 分子量 molecular_weight | 225510.0 kDa |
| 排除体积 excluded_volume | 284430 ų |
| 包络体积 envelope_volume | 369090 ų |
| 水化壳体积 shell_volume | 70330 ų |
| 包络直径 envelope_diameter | 146.8 Å |
| 壳层 Rg shell_rg | 48.39 Å |
| 包络 Rg envelope_rg | 43.43 Å |
| 形状 Rg shape_rg | 44.34 Å |
| 总 Rg total_rg | 44.47 Å |
| 总原子数 total_atoms | 15920 |
| 残基数 n_residues | 1965 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 148.8 Å |
| Rg (实空间) rg_real | 44.57 Å |
| Rg 误差 (实空间) rg_real_error | 1.47 Å |
| I(0) (实空间) i0_real | 7.0770e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.3720e+07 |
| Rg (倒空间) rg_reciprocal | 44.40 Å |
| I(0) (倒空间) i0_reciprocal | 707500000.0000 |
| 解质量估计 total_estimate | 0.8435 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 45.5 Å |
| 偏度 Skewness skewness | 0.437 |
| 峰度 Kurtosis kurtosis | -0.509 |
| 角度范围 angular_range | — – 0.1800 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 167400000.0000 |
| 实空间数据点数 n_real_points | 37 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.708; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.858 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 8 domains
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 2g56A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
| 结构域编号 domain_id | 2g56A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
| 结构域编号 domain_id | 2g56A03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
| 结构域编号 domain_id | 2g56A04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
| 结构域编号 domain_id | 2g56B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
| 结构域编号 domain_id | 2g56B02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
| 结构域编号 domain_id | 2g56B03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
| 结构域编号 domain_id | 2g56B04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 830 — Cytochrome Bc1 Complex; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Metalloenzyme, LuxS/M16 peptidase-like |
