2hii

heterotrimeric PCNA sliding clamp

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PCNA1 (SSO0397)

Sulfolobus solfataricus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PCNA2 (SSO1047) × 1 （Q97Z84） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	PCNA2 (SSO1047) × 1 （Q97Z84） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA2_SULSO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–249； UniProt 1–249 Author chain X； PDBConstruct 1–249； UniProt 1–249

PCNA2 (SSO1047)

Sulfolobus solfataricus

UniProt Q97Z84

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA3_SULSO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–245； UniProt 1–245 Author chain Y； PDBConstruct 1–245； UniProt 1–245

PCNA3 (SSO0405)

Sulfolobus solfataricus

UniProt P57765

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA2 (SSO1047) × 1 （Q97Z84）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA2 (SSO1047) × 1 （Q97Z84）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA1_SULSO
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–244； UniProt 1–244 Author chain Z； PDBConstruct 1–244； UniProt 1–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hii
Deposition date deposition_date	2006-06-29
Structure title title	heterotrimeric PCNA sliding clamp
Keywords keywords	sliding clamp, processivity factor, heterotrimeric, DNA replication, REPLICATION; REPLICATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hii__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hii__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

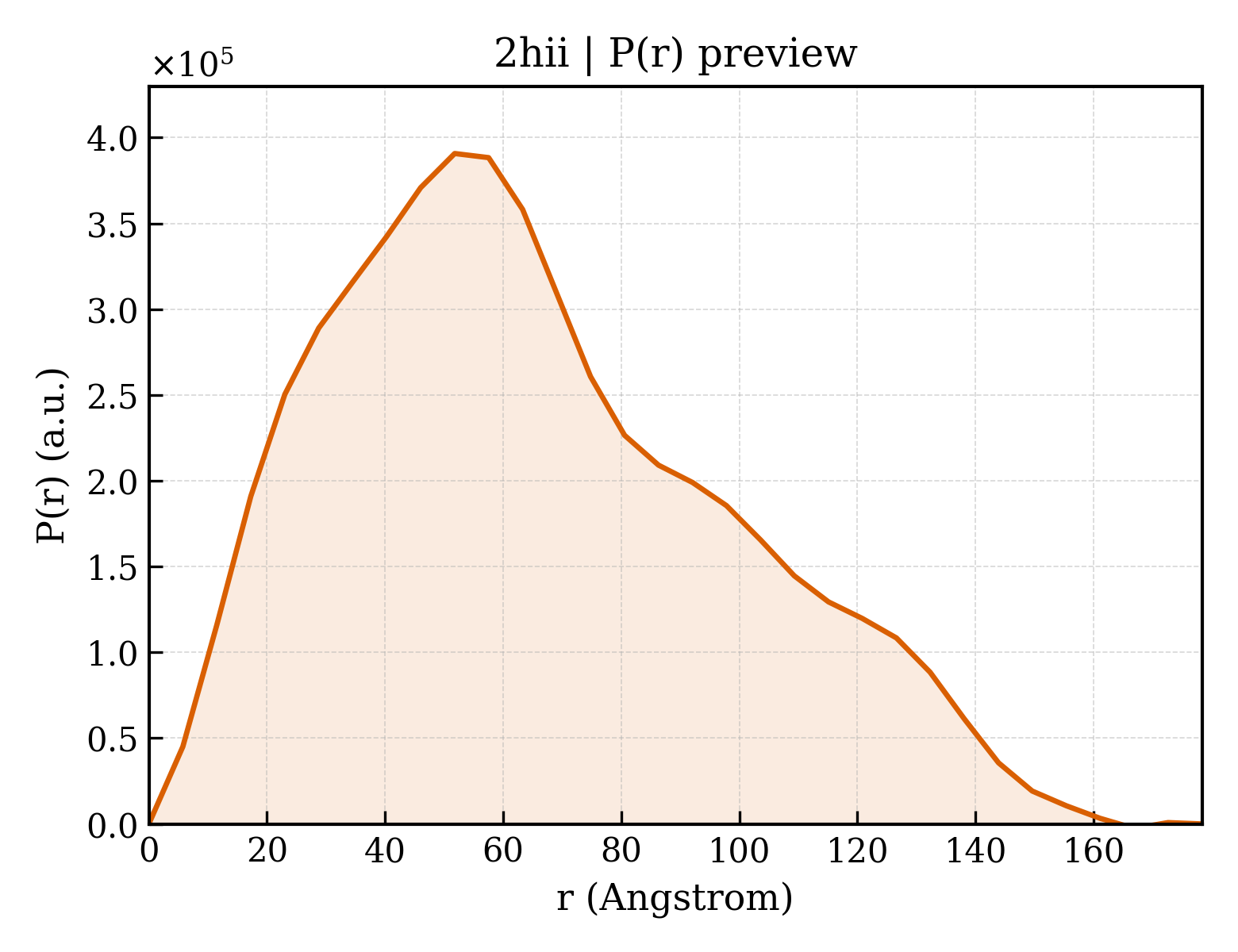

2hii__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.87 Å
Rg (electron density)	31.74 Å
Total Rg	32.43 Å
Atom count	5775
Residues	718
Excluded volume	104110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hii__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hii__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PCNA1 (SSO0397)
Molecular weight formula_weight	29062.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,X
Atom count atom_count	11550

MFKIVYPNAKDFFSFINSITNVTDSIILNFTEDGIFSRHLTEDKVLMAIMRIPKDVLSEYSIDSPTSVKLDVSSVKKILSKASSKKATIELTETDSGLKIIIRDEKSGAKSTIYIKAEKGQVEQLTEPKVNLAVNFTTDESVLNVIAADVTLVGEEMRISTEEDKIKIEAGEEGKRYVAFLMKDKPLKELSIDTSASSSYSAEMFKDAVKGLRGFSAPTMVSFGENLPMKIDVEAVSGGHMIFWIAPRLLEHHHHHH

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	PCNA2 (SSO1047)
Molecular weight formula_weight	27648.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,Y

MKAKVIDAVSFSYILRTVGDFLSEANFIVTKEGIRVSGIDPSRVVFLDIFLPSSYFEGFEVSQEKEIIGFKLEDVNDILKRVLKDDTLILSSNESKLTLTFDGEFTRSFELPLIQVESTQPPSVNLEFPFKAQLLTITFADIIDELSDLGEVLNIHSKENKLYFEVIGDLSTAKVELSTDNGTLLEASGADVSSSYGMEYVANTTKMRRASDSMELYFGSQIPLKLRFKLPQEGYGDFYIAPRAD

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	PCNA3 (SSO0405)
Molecular weight formula_weight	28747.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,Z

MKVVYDDVRVLKDIIQALARLVDEAVLKFKQDSVELVALDRAHISLISVNLPREMFKEYDVNDEFKFGFNTQYLMKILKVAKRKEAIEIASESPDSVIINIIGSTNREFNVRNLEVSEQEIPEINLQFDISATISSDGFKSAISEVSTVTDNVVVEGHEDRILIKAEGESEVEVEFSKDTGGLQDLEFSKESKNSYSAEYLDDVLSLTKLSDYVKISFGNQKPLQLFFNMEGGGKVTYLLAPKVLEHHHHHH

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2hiib1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

Domain ID domain_id	d2hiib2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

Domain ID domain_id	d2hiic1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

Domain ID domain_id	d2hiic2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

Domain ID domain_id	d2hiiy1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

Domain ID domain_id	d2hiiy2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

Domain ID domain_id	d2hiiz1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

Domain ID domain_id	d2hiiz2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.0 — automated matches

CATH v4.4 (6 domains)

Domain ID domain_id	2hiiA01
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hiiB00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hiiC00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hiiX01
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hiiY00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hiiZ00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	36.519 Å
Unit-cell length b length_b	87.179 Å
Unit-cell length c length_c	135.874 Å
Unit-cell angle α angle_alpha	89.80 °
Unit-cell angle β angle_beta	86.36 °
Unit-cell angle γ angle_gamma	78.33 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.790 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2180
R_work r_work	0.2150
R_free r_free	0.2820
