SAXSdb — 2hik

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PCNA1 (SSO0397)

Sulfolobus solfataricus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PCNA2 (SSO1047) × 1 （Q97Z84） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	PCNA2 (SSO1047) × 1 （Q97Z84） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	PCNA2 (SSO1047) × 1 （Q97Z84） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA2_SULSO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–249； UniProt 1–249 Author chain L； PDBConstruct 1–249； UniProt 1–249 Author chain X； PDBConstruct 1–249； UniProt 1–249

PCNA2 (SSO1047)

Sulfolobus solfataricus

UniProt Q97Z84

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA3 (SSO0405) × 1 （P57765）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA3_SULSO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–245； UniProt 1–245 Author chain M； PDBConstruct 1–245； UniProt 1–245 Author chain Y； PDBConstruct 1–245； UniProt 1–245

PCNA3 (SSO0405)

Sulfolobus solfataricus

UniProt P57765

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA2 (SSO1047) × 1 （Q97Z84）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA2 (SSO1047) × 1 （Q97Z84）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	PCNA1 (SSO0397) × 1 （P57766） PCNA2 (SSO1047) × 1 （Q97Z84）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA1_SULSO
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–244； UniProt 1–244 Author chain N； PDBConstruct 1–244； UniProt 1–244 Author chain Z； PDBConstruct 1–244； UniProt 1–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hik
Deposition date deposition_date	2006-06-29
Structure title title	heterotrimeric PCNA sliding clamp
Keywords keywords	PCNA sliding clamp, processivity factor, DNA replication, heterotrimer, REPLICATION; REPLICATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hik__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hik__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

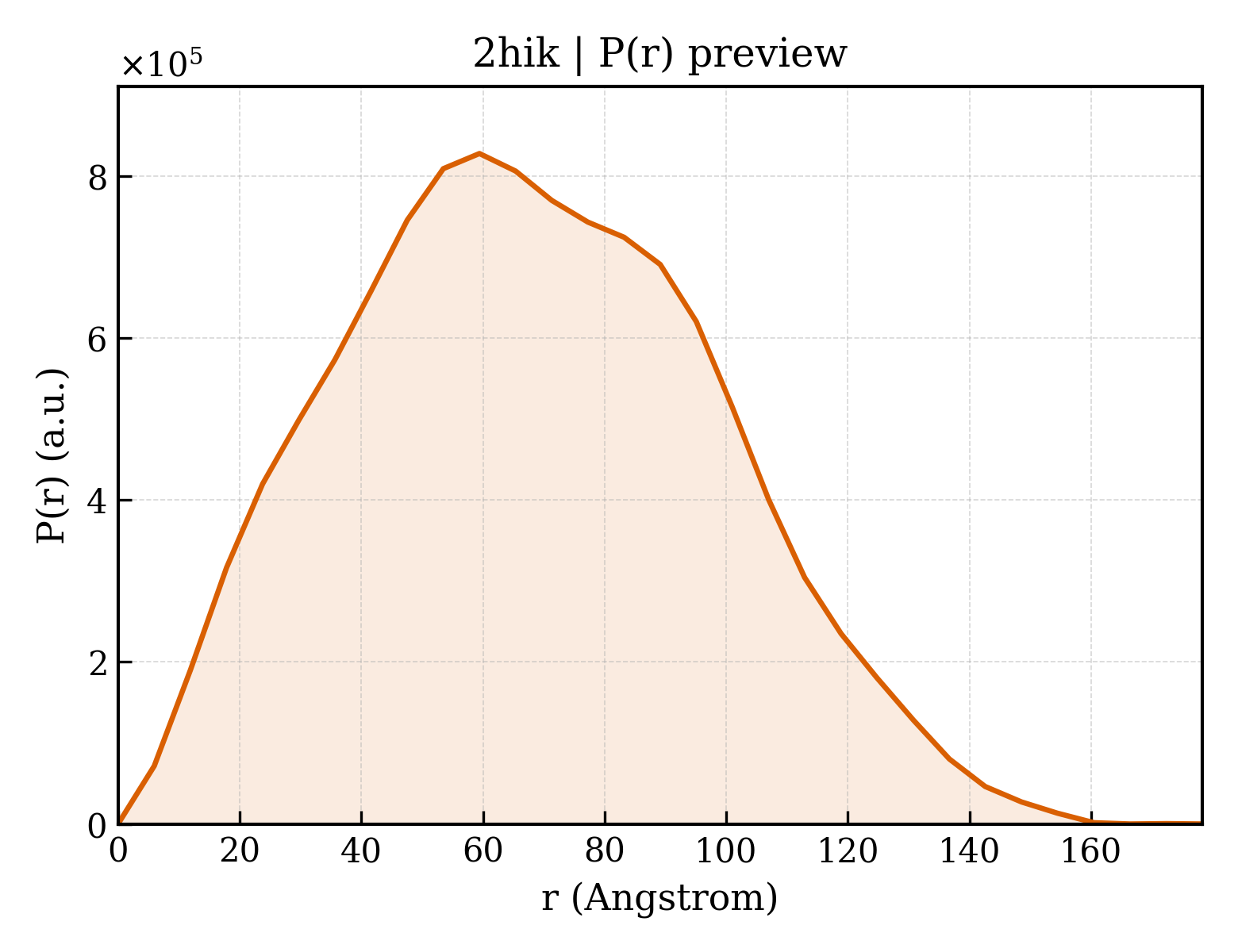

2hik__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.09 Å
Rg (electron density)	30.98 Å
Total Rg	31.65 Å
Atom count	5777
Residues	720
Excluded volume	104110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hik__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hik__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2hik__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PCNA1 (SSO0397)
Molecular weight formula_weight	29062.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,L,X
Atom count atom_count	17311

MFKIVYPNAKDFFSFINSITNVTDSIILNFTEDGIFSRHLTEDKVLMAIMRIPKDVLSEYSIDSPTSVKLDVSSVKKILSKASSKKATIELTETDSGLKIIIRDEKSGAKSTIYIKAEKGQVEQLTEPKVNLAVNFTTDESVLNVIAADVTLVGEEMRISTEEDKIKIEAGEEGKRYVAFLMKDKPLKELSIDTSASSSYSAEMFKDAVKGLRGFSAPTMVSFGENLPMKIDVEAVSGGHMIFWIAPRLLEHHHHHH

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	PCNA2 (SSO1047)
Molecular weight formula_weight	27648.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,M,Y

MKAKVIDAVSFSYILRTVGDFLSEANFIVTKEGIRVSGIDPSRVVFLDIFLPSSYFEGFEVSQEKEIIGFKLEDVNDILKRVLKDDTLILSSNESKLTLTFDGEFTRSFELPLIQVESTQPPSVNLEFPFKAQLLTITFADIIDELSDLGEVLNIHSKENKLYFEVIGDLSTAKVELSTDNGTLLEASGADVSSSYGMEYVANTTKMRRASDSMELYFGSQIPLKLRFKLPQEGYGDFYIAPRAD

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	PCNA3 (SSO0405)
Molecular weight formula_weight	28747.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,N,Z

MKVVYDDVRVLKDIIQALARLVDEAVLKFKQDSVELVALDRAHISLISVNLPREMFKEYDVNDEFKFGFNTQYLMKILKVAKRKEAIEIASESPDSVIINIIGSTNREFNVRNLEVSEQEIPEINLQFDISATISSDGFKSAISEVSTVTDNVVVEGHEDRILIKAEGESEVEVEFSKDTGGLQDLEFSKESKNSYSAEYLDDVLSLTKLSDYVKISFGNQKPLQLFFNMEGGGKVTYLLAPKVLEHHHHHH

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)

Domain ID domain_id	2hikA01
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikB00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikC00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikL01
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikM00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikN00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikX01
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikY00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2hikZ00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	142.275 Å
Unit-cell length b length_b	223.093 Å
Unit-cell length c length_c	79.140 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2390
R_work r_work	0.2360
R_free r_free	0.2990

heterotrimeric PCNA sliding clamp
