Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | SULFATE ION × 1 CHLORIDE ION × 2 water × 1 | Consistent with protein count |
| UniProt name | MPIP2_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–175； UniProt 391–564 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2ifd |
| Deposition date deposition_date | 2006-09-20 |
| Structure title title | Crystal structure of a remote binding site mutant, R492L, of CDC25B Phosphatase catalytic domain |
| Keywords keywords | PHOSPHATASE, DUAL SPECIFICITY, HYDROLASE; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

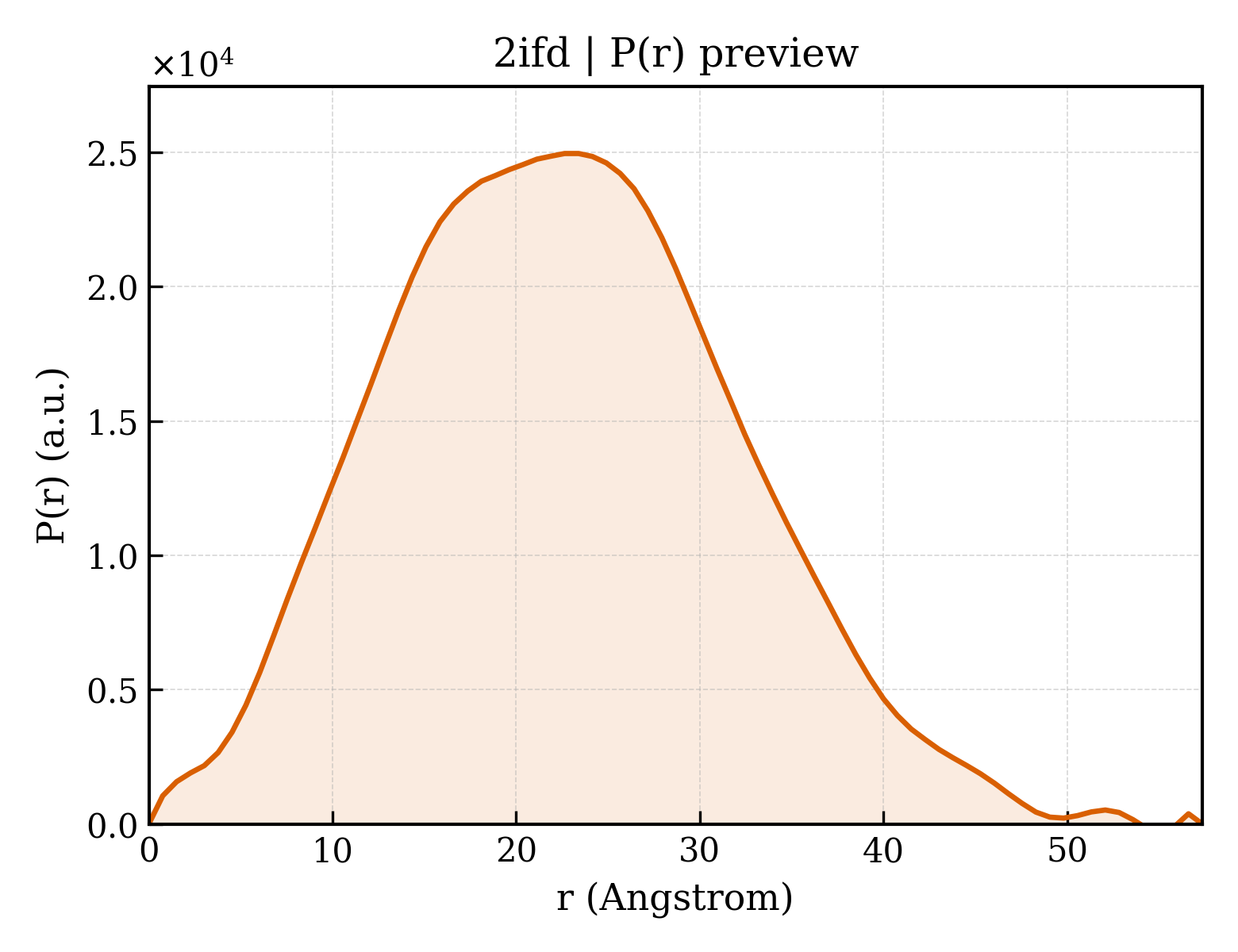

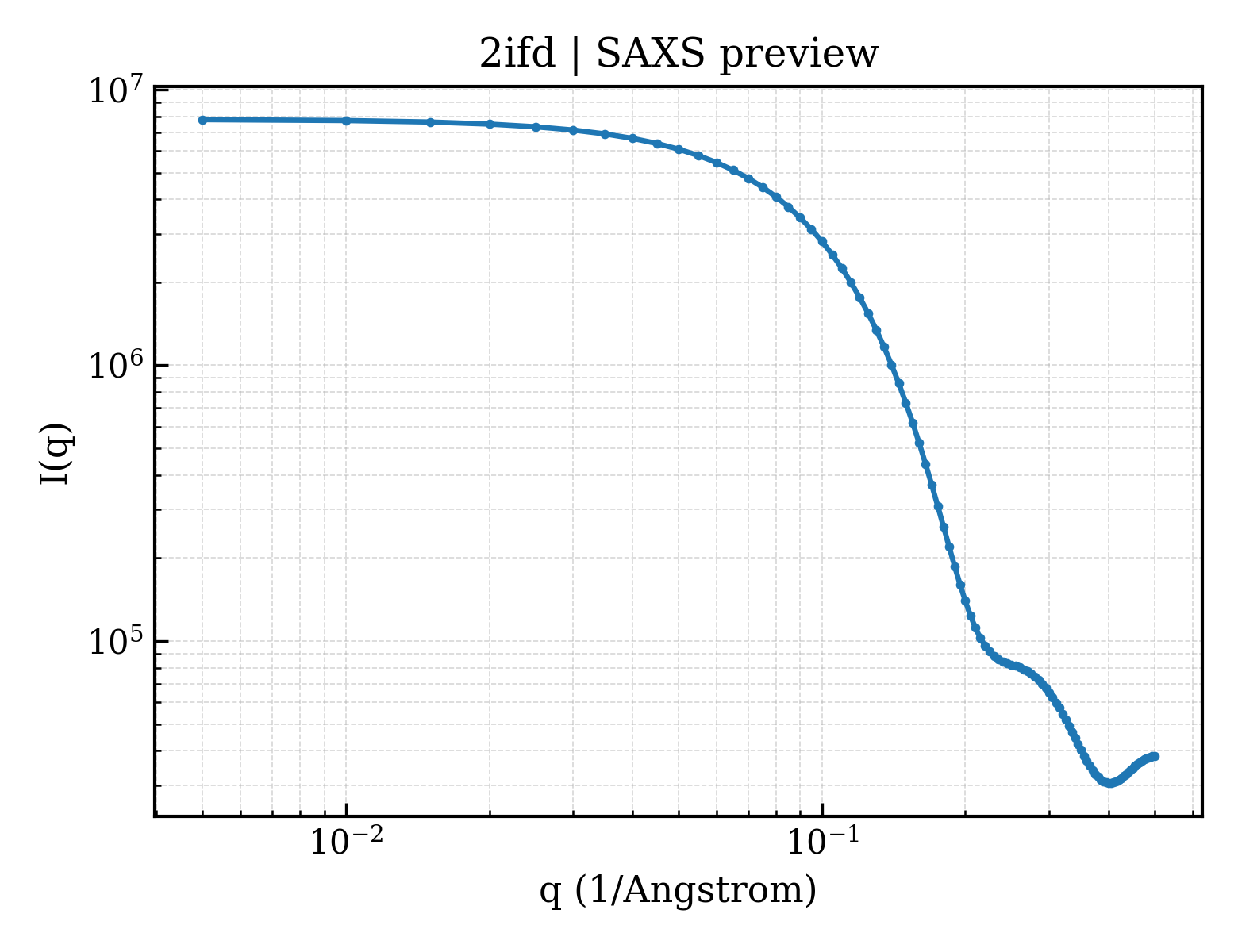

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.31 Å |
| Rg (electron density) | 16.19 Å |
| Total Rg | 17.21 Å |
| Atom count | 1459 |
| Residues | 175 |
| Excluded volume | 26106 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2ifda_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.46 — Rhodanese/Cell cycle control phosphatase |
| Superfamily Superfamily superfamily | c.46.1 — Rhodanese/Cell cycle control phosphatase |
| Family Family family | c.46.1.1 — Cell cycle control phosphatase, catalytic domain |
| Domain ID domain_id | 2ifdA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 250 — Oxidized Rhodanese; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Rhodanese-like domain |
