2j57

X-ray reduced Paraccocus denitrificans methylamine dehydrogenase N- quinol in complex with amicyanin.

Method: X-RAY DIFFRACTION D_max: 172.3 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2j57
沉积日期 deposition_date	2006-09-12
结构标题 title	X-ray reduced Paraccocus denitrificans methylamine dehydrogenase N- quinol in complex with amicyanin.
关键词 keywords	OXIDOREDUCTASE, PERIPLASMIC, METAL-BINDING, ELECTRON TRANSPORT, SINGLE CRYSTAL MICROSPECTROPHOTOMETRY; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	63.15 Å
回转半径 Rg (电子) rg_electron	63.25 Å
零角强度 I(0) i0	1057570000.00
分子量 molecular_weight	269260.0 kDa
排除体积 excluded_volume	333680 Å³
包络体积 envelope_volume	496540 Å³
水化壳体积 shell_volume	63242 Å³
包络直径 envelope_diameter	184.5 Å
壳层 Rg shell_rg	71.86 Å
包络 Rg envelope_rg	59.59 Å
形状 Rg shape_rg	63.26 Å
总 Rg total_rg	63.35 Å
总原子数 total_atoms	18916
残基数 n_residues	2440
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

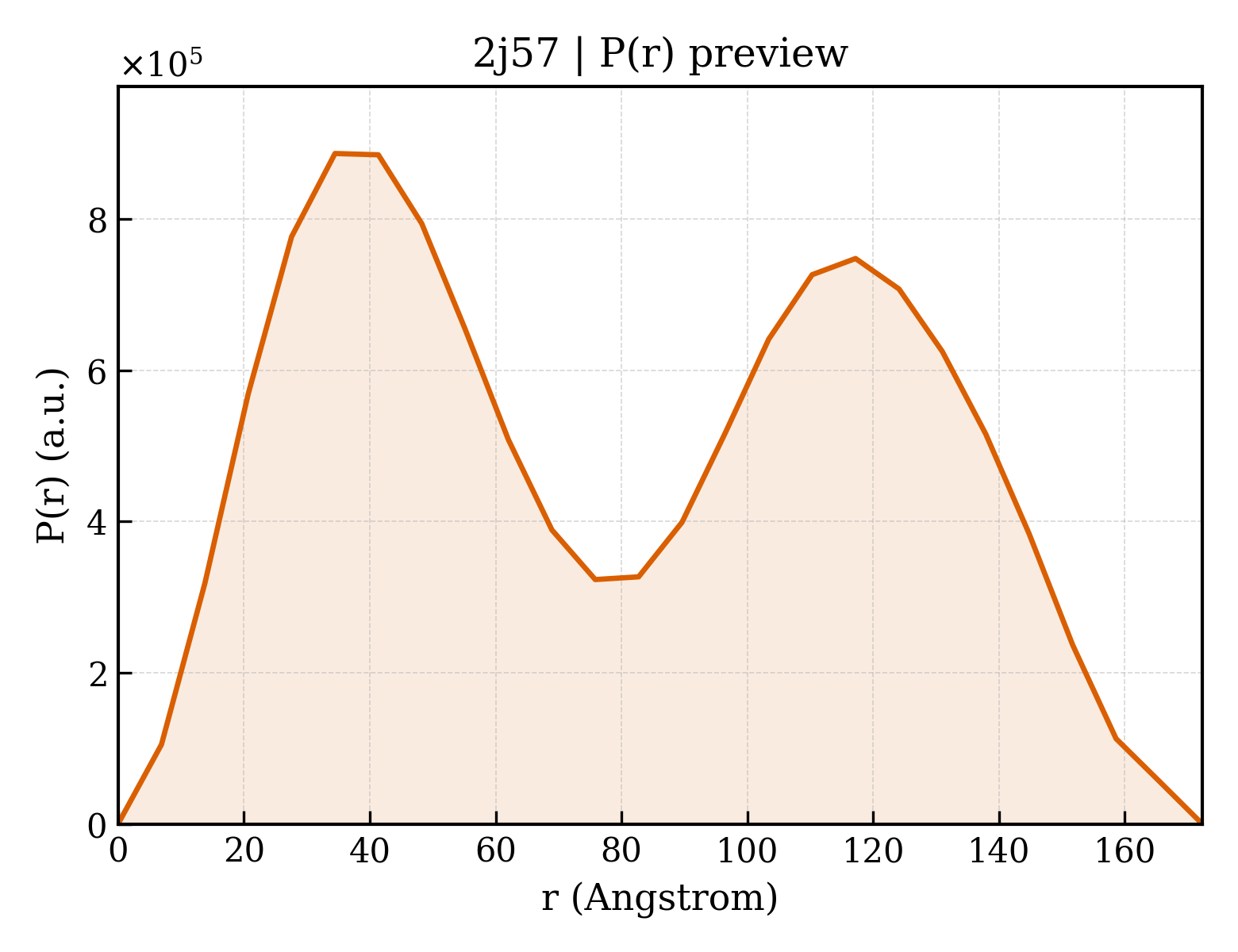

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	172.3 Å
Rg (实空间) rg_real	63.52 Å
Rg 误差 (实空间) rg_real_error	1.49 Å
I(0) (实空间) i0_real	1.0580e+09
I(0) 误差 (实空间) i0_real_error	1.9390e+07
Rg (倒空间) rg_reciprocal	62.69 Å
I(0) (倒空间) i0_reciprocal	1056000000.0000
解质量估计 total_estimate	0.6373
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.5 Å
偏度 Skewness skewness	0.106
峰度 Kurtosis kurtosis	-1.310
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	53020000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.313; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.342; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	AMICYANIN
分子量 formula_weight	11505.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	20786

DKATIPSESPFAAAEVADGAIVVDIAKMKYETPELHVKVGDTVTWINREAMPHNVHFVAGVLGEAALKGPMMKKEQAYSLTFTEAGTYDYHCTPHPFMRGKVVVE

Entity 2 polymer

描述 description	METHYLAMINE DEHYDROGENASE HEAVY CHAIN
分子量 formula_weight	42449.3 kDa
EC 编号 ec_number	1.4.99.3
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J

QDAPEAETQAQETQGQAAARAAAADLAAGQDDEPRILEAPAPDARRVYVNDPAHFAAVTQQFVIDGEAGRVIGMIDGGFLPNPVVADDGSFIAHASTVFSRIARGERTDYVEVFDPVTLLPTADIELPDAPRFLVGTYPWMTSLTPDGKTLLFYQFSPAPAVGVVDLEGKAFKRMLDVPDCYHIFPTAPDTFFMHCRDGSLAKVAFGTEGTPEITHTEVFHPEDEFLINHPAYSQKAGRLVWPTYTGKIHQIDLSSGDAKFLPAVEALTEAERADGWRPGGWQQVAYHRALDRIYLLVDQRDEWRHKTASRFVVVLDAKTGERLAKFEMGHEIDSINVSQDEKPLLYALSTGDKTLYIHDAESGEELRSVNQLGHGPQVITTADMG

Entity 3 polymer

描述 description	METHYLAMINE DEHYDROGENASE LIGHT CHAIN
分子量 formula_weight	14209.7 kDa
EC 编号 ec_number	1.4.99.3
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L,M,N

ADAPAGTDPRAKWVPQDNDIQACDYWRHCSIDGNICDCSGGSLTNCPPGTKLATASWVASCYNPTDGQSYLIAYRDCCGYNVSGRCPCLNTEGELPVYRPEFANDIIWCFGAEDDAMTYHCTISPIVGKAS

Entity 4 non-polymer

描述 description	COPPER (II) ION
分子量 formula_weight	63.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1866

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2j57a_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

结构域编号 domain_id	d2j57b_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

结构域编号 domain_id	d2j57c_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

结构域编号 domain_id	d2j57d_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

结构域编号 domain_id	d2j57g_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.2 — YVTN repeat-like/Quinoprotein amine dehydrogenase
家族 Family family	b.69.2.0 — automated matches

结构域编号 domain_id	d2j57h_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.2 — YVTN repeat-like/Quinoprotein amine dehydrogenase
家族 Family family	b.69.2.0 — automated matches

结构域编号 domain_id	d2j57i_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.2 — YVTN repeat-like/Quinoprotein amine dehydrogenase
家族 Family family	b.69.2.0 — automated matches

结构域编号 domain_id	d2j57j_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.2 — YVTN repeat-like/Quinoprotein amine dehydrogenase
家族 Family family	b.69.2.0 — automated matches

结构域编号 domain_id	d2j57k_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.21 — Methylamine dehydrogenase, L chain
超家族 Superfamily superfamily	g.21.1 — Methylamine dehydrogenase, L chain
家族 Family family	g.21.1.1 — Methylamine dehydrogenase, L chain

结构域编号 domain_id	d2j57l_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.21 — Methylamine dehydrogenase, L chain
超家族 Superfamily superfamily	g.21.1 — Methylamine dehydrogenase, L chain
家族 Family family	g.21.1.1 — Methylamine dehydrogenase, L chain

结构域编号 domain_id	d2j57m_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.21 — Methylamine dehydrogenase, L chain
超家族 Superfamily superfamily	g.21.1 — Methylamine dehydrogenase, L chain
家族 Family family	g.21.1.1 — Methylamine dehydrogenase, L chain

结构域编号 domain_id	d2j57n_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.21 — Methylamine dehydrogenase, L chain
超家族 Superfamily superfamily	g.21.1 — Methylamine dehydrogenase, L chain
家族 Family family	g.21.1.1 — Methylamine dehydrogenase, L chain

CATH v4.4 (12 domains)

结构域编号 domain_id	2j57A00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2j57B00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2j57C00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2j57D00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2j57G00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2j57H00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2j57I00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2j57J00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2j57K00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	30 — Electron Transport Ethylamine Dehydrogenase
同源超家族 H-superfamily homologous superfamily	10 — Methylamine/Aralkylamine dehydrogenase light chain

结构域编号 domain_id	2j57L00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	30 — Electron Transport Ethylamine Dehydrogenase
同源超家族 H-superfamily homologous superfamily	10 — Methylamine/Aralkylamine dehydrogenase light chain

结构域编号 domain_id	2j57M00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	30 — Electron Transport Ethylamine Dehydrogenase
同源超家族 H-superfamily homologous superfamily	10 — Methylamine/Aralkylamine dehydrogenase light chain

结构域编号 domain_id	2j57N00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	30 — Electron Transport Ethylamine Dehydrogenase
同源超家族 H-superfamily homologous superfamily	10 — Methylamine/Aralkylamine dehydrogenase light chain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	122.131 Å
晶胞边长 b length_b	123.439 Å
晶胞边长 c length_c	246.920 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.250 Å
最低分辨率 resolution_low	49.390 Å
R 因子 r_factor	0.1830
R_work r_work	0.1790
R_free r_free	0.2410
