2m49

Structural Insights into Human S100B and Basic Fibroblast Growth Factor (FGF2) Interaction

Method: SOLUTION NMR D_max: 97.3 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fibroblast growth factor 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 161–286 Chain C； UniProt 161–286	Fragment：UNP residues 161-286 Mutation：C211S, C229S	Protein S100-B × 2 （P04271）	SOLUTION NMR NMR measurement conditions：pH 7.2；298 K；Ionic strength (raw mmCIF value) 0.050；Pressure ambient NMR sample composition：1.2 mM [U-100% 13C; U-100% 15N] S100B-1, 20 mM TRIS-2, 50 mM ammonium sulfate-3, 5 mM calcium chloride-4, 5 mM DTT-5, 0.01 % sodium azide-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2M49	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BAS THREE-DIMENSIONAL STRUCTURES OF ACIDIC AND BASIC FIBROBLAST GROWTH FACTORS Deposited 1992-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–155（154 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å
1BFB BASIC FIBROBLAST GROWTH FACTOR COMPLEXED WITH HEPARIN TETRAMER FRAGMENT Deposited 1995-12-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–155（147 aa）	Mutation：C70S, C88S	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å
1BFC BASIC FIBROBLAST GROWTH FACTOR COMPLEXED WITH HEPARIN HEXAMER FRAGMENT Deposited 1995-12-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–155（147 aa）	Mutation：C70S, C88S	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1BFF THE 154 AMINO ACID FORM OF HUMAN BASIC FIBROBLAST GROWTH FACTOR Deposited 1996-12-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–155（129 aa）	Not recorded	PO4 PHOSPHATE ION × 1 BME BETA-MERCAPTOETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；THE PROTEIN WAS CRYSTALLIZED FROM 30-40 % PEG1000 AND 0.2-0.3 % 2-MERCAPTOETHANOL BY THE HANGING DROP VAPOR DIFFUSION METHOD., pH 7.5, vapor diffusion - hanging drop	Resolution 2.00 Å
1BFG CRYSTAL STRUCTURE OF BASIC FIBROBLAST GROWTH FACTOR AT 1.6 ANGSTROMS RESOLUTION Deposited 1993-04-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 10–155（146 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
1BLA BASIC FIBROBLAST GROWTH FACTOR (FGF-2) MUTANT WITH CYS 78 REPLACED BY SER AND CYS 96 REPLACED BY SER, NMR Deposited 1996-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–155（155 aa）	Mutation：C78S, C96S	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1BLD BASIC FIBROBLAST GROWTH FACTOR (FGF-2) MUTANT WITH CYS 78 REPLACED BY SER AND CYS 96 REPLACED BY SER, NMR Deposited 1996-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–155（155 aa）	Mutation：C78S, C96S	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1CVS CRYSTAL STRUCTURE OF A DIMERIC FGF2-FGFR1 COMPLEX Deposited 1999-08-24	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 24–155（132 aa） Chain B 24–155（132 aa）	Mutation：YES Mutation：YES	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；ammonium sulfate, glycerol, Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.281
1CVS CRYSTAL STRUCTURE OF A DIMERIC FGF2-FGFR1 COMPLEX Deposited 1999-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 24–155（132 aa） Chain B 24–155（132 aa）	Mutation：YES Mutation：YES	SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；ammonium sulfate, glycerol, Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.281
1EV2 CRYSTAL STRUCTURE OF FGF2 IN COMPLEX WITH THE EXTRACELLULAR LIGAND BINDING DOMAIN OF FGF RECEPTOR 2 (FGFR2) Deposited 2000-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 24–155（132 aa） Fragment：THE B-TREFOIL CORE OF FIBROBLAST GROWTH FACTOR 2 Chain B 24–155（132 aa） Fragment：THE B-TREFOIL CORE OF FIBROBLAST GROWTH FACTOR 2 Chain C 24–155（132 aa） Fragment：THE B-TREFOIL CORE OF FIBROBLAST GROWTH FACTOR 2 Chain D 24–155（132 aa） Fragment：THE B-TREFOIL CORE OF FIBROBLAST GROWTH FACTOR 2	Mutation：YES Mutation：YES Mutation：YES Mutation：YES	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, temperature 298.0K	Resolution 2.20 Å R-free 0.273
1FGA REFINEMENT OF THE STRUCTURE OF HUMAN BASIC FIBROBLAST GROWTH FACTOR AT 1.6 ANGSTROMS RESOLUTION AND ANALYSIS OF PRESUMED HEPARIN BINDING SITES BY SELENATE SUBSTITUTION Deposited 1993-02-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 10–155（146 aa）	Not recorded	SE4 SELENATE ION × 2 BME BETA-MERCAPTOETHANOL × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1FQ9 CRYSTAL STRUCTURE OF A TERNARY FGF2-FGFR1-HEPARIN COMPLEX Deposited 2000-09-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 24–155（132 aa） Fragment：THE B-TREFOIL CORE OF FIBROBLAST GROWTH FACTOR 2 (FGF2) Chain B 24–155（132 aa） Fragment：THE B-TREFOIL CORE OF FIBROBLAST GROWTH FACTOR 2 (FGF2)	Mutation：C69S, C87S Mutation：C69S, C87S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；Ammonium sulfate, Glycerol, Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 3.00 Å R-free 0.282
1II4 CRYSTAL STRUCTURE OF SER252TRP APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.70 Å R-free 0.267
1II4 CRYSTAL STRUCTURE OF SER252TRP APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.70 Å R-free 0.267
1II4 CRYSTAL STRUCTURE OF SER252TRP APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.70 Å R-free 0.267
1II4 CRYSTAL STRUCTURE OF SER252TRP APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.70 Å R-free 0.267
1IIL CRYSTAL STRUCTURE OF PRO253ARG APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.30 Å R-free 0.259
1IIL CRYSTAL STRUCTURE OF PRO253ARG APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.30 Å R-free 0.259
1IIL CRYSTAL STRUCTURE OF PRO253ARG APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.30 Å R-free 0.259
1IIL CRYSTAL STRUCTURE OF PRO253ARG APERT MUTANT FGF RECEPTOR 2 (FGFR2) IN COMPLEX WITH FGF2 Deposited 2001-04-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–155（155 aa）	Mutation：C78S,C96S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, Isopropanol, HEPES-NaOH, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.30 Å R-free 0.259
2BFH CRYSTAL STRUCTURE OF BASIC FIBROBLAST GROWTH FACTOR AT 1.6 ANGSTROMS RESOLUTION Deposited 1993-08-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–155（128 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
2FGF THREE-DIMENSIONAL STRUCTURE OF HUMAN BASIC FIBROBLAST GROWTH FACTOR, A STRUCTURAL HOMOLOG OF INTERLEUKIN 1BETA Deposited 1991-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 10–155（146 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.77 Å
4FGF REFINEMENT OF THE STRUCTURE OF HUMAN BASIC FIBROBLAST GROWTH FACTOR AT 1.6 ANGSTROMS RESOLUTION AND ANALYSIS OF PRESUMED HEPARIN BINDING SITES BY SELENATE SUBSTITUTION Deposited 1993-02-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 10–155（146 aa）	Not recorded	SO4 SULFATE ION × 1 BME BETA-MERCAPTOETHANOL × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
4OEE Crystal Structure Analysis of FGF2-Disaccharide (S3I2) complex Deposited 2014-01-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–288（155 aa） Fragment：unp residues 134-288	Mutation：C69S, C87S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；299 K；40% polyethylene glycol 600 and 100 mM Na2HPO4/citric acid, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 299K	Resolution 1.50 Å R-free 0.185
4OEF Crystal Structure Analysis of FGF2-Disaccharide (S6I2) complex Deposited 2014-01-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–288（155 aa）	Mutation：C69S, C87S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；299 K；40% polyethylene glycol 600 and 100 mM Na2HPO4/citric acid, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 299K	Resolution 1.80 Å R-free 0.220
4OEG Crystal Structure Analysis of FGF2-Disaccharide (S9I2) complex Deposited 2014-01-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–288（155 aa） Fragment：unp residues 134-288	Mutation：C69S, C87S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；299 K；40% polyethylene glycol 600 and 100 mM Na2HPO4/citric acid, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 299K	Resolution 1.60 Å R-free 0.215
5X1O PI(4,5)P2 lipid binding induced a reorientation of FGF2 molecules near membrane surface to facilitate the unconventional oligomerization-dependent secretion process as revealed by a combined FTIR/NMR/X-ray study Deposited 2017-01-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 143–288（146 aa） Chain B 143–288（146 aa）	Not recorded	I3P D-MYO-INOSITOL-1,4,5-TRIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.1M Sodium citrate, 0.2M Ammonium acetate, 30% PEG 4000	Resolution 1.90 Å R-free 0.276
6L4O Crystal structure of API5-FGF2 complex Deposited 2019-10-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 135–288（154 aa）	Mutation：C211S,C229S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；100mM Na-HEPES (pH 7.5), 100mM potassium chloride, 10% (v/v) polyethylene glycol (PEG) 6000	Resolution 2.60 Å R-free 0.262
8HU7 Crystal structure of FGF2-M1 mutant - D28E/C78L/C96I/S137P Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 143–288（146 aa）	Mutation：D28E/C78I/C96I/S137P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 5.5；289.15 K；1.5M sodium citrate, 100mM sodium cacodylate, pH 5.5	Resolution 1.40 Å R-free 0.213
8HUE Crystal structure of FGF2-M2 mutant - D28E/C78I/C96I/S137P Deposited 2022-12-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 143–288（146 aa）	Mutation：D28E/C78I/C96I/S137P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；289.15 K；30% (w/v) polyethylene glycol 2000, 100mM potassium thiocyanate	Resolution 1.48 Å R-free 0.196
8HUE Crystal structure of FGF2-M2 mutant - D28E/C78I/C96I/S137P Deposited 2022-12-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 143–288（146 aa）	Mutation：D28E/C78I/C96I/S137P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；289.15 K；30% (w/v) polyethylene glycol 2000, 100mM potassium thiocyanate	Resolution 1.48 Å R-free 0.196
8HUE Crystal structure of FGF2-M2 mutant - D28E/C78I/C96I/S137P Deposited 2022-12-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 143–288（146 aa）	Mutation：D28E/C78I/C96I/S137P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；289.15 K；30% (w/v) polyethylene glycol 2000, 100mM potassium thiocyanate	Resolution 1.48 Å R-free 0.196
8OM6 Crystal structure of FGF2-STAB, a stable variant of human fibroblast growth factor 2 Deposited 2023-03-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–288（155 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；292.15 K；PEG 3350, Bis-Tris	Resolution 1.31 Å R-free 0.227

24 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FGF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–126； UniProt 161–286 Author chain C； PDBConstruct 1–126； UniProt 161–286

Protein S100-B

Homo sapiens

UniProt P04271

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 2–92 Chain D； UniProt 2–92	Not recorded	Fibroblast growth factor 2 × 2 （P09038）	SOLUTION NMR NMR measurement conditions：pH 7.2；298 K；Ionic strength (raw mmCIF value) 0.050；Pressure ambient NMR sample composition：1.2 mM [U-100% 13C; U-100% 15N] S100B-1, 20 mM TRIS-2, 50 mM ammonium sulfate-3, 5 mM calcium chloride-4, 5 mM DTT-5, 0.01 % sodium azide-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2M49	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1MQ1 Ca2+-S100B-TRTK-12 complex Deposited 2002-09-13	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–91（91 aa） Chain B 1–91（91 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.05；308 K；Ionic strength (raw mmCIF value) 35 mM KCl；Pressure ambient NMR sample composition U-13C, U-15N S100B (1.0 mM) unlabelled TRTK-12 (1.2 mM) 3 mM CaCl2 \| 90% H20, 10% D20 NMR sample composition U-2H, U-15N S100B (0.35 mM) unlabelled TRTK-12 (0.80 mM) 1 mM CaCl2 \| 90% H20, 10% D20 NMR sample composition U-13C, U-15N S100B (1.0 mM) 13C-acetyl, 13C-Ile TRTK-12 (1.2 mM) 3 mM CaCl2 \| 90% H20, 10% D20 NMR sample composition U-13C/U-12C S100B heterodimer (1.0mM) Unlabelled TRTK-12 (1.2 mM) 3 mM CaCl2 \| 90% H20, 10% D20	Resolution not provided
1UWO CALCIUM FORM OF HUMAN S100B, NMR, 20 STRUCTURES Deposited 1997-12-05	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–91（91 aa） Chain B 1–91（91 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.05；308 K	Resolution not provided
2H61 X-ray structure of human Ca2+-loaded S100B Deposited 2006-05-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 0–91（92 aa） Chain B 0–91（92 aa） Chain C 0–91（92 aa） Chain D 0–91（92 aa） Chain E 0–91（92 aa） Chain F 0–91（92 aa） Chain G 0–91（92 aa） Chain H 0–91（92 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 18 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；289 K；0.1 M HEPES, 18-20%PEG400, 0.2 M CaCl2, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 1.90 Å R-free 0.241
2PRU NMR Structure of Human apoS100B at 10C Deposited 2007-05-04	Different oligomeric state Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–92（91 aa） Chain B 2–92（91 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；283 K；Ionic strength (raw mmCIF value) 50 mM；Pressure ambient NMR sample composition 1-2 mM U-13C,U-15N S100B, 50 mM KCl, 90%H2O/10%D2O \| 90% H2O/10% D2O NMR sample composition 0.7 mM U-15N S100B, 50 mM KCl, 12 mg/ml PF1 Phage, 90%H2O/10%D2O \| 90% H2O/10% D2O	Resolution not provided
3CZT Crystal Structure of S100B in the Calcium and Zinc Loaded State at pH 9 Deposited 2008-04-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain X 1–92（92 aa）	Not recorded	CA CALCIUM ION × 6 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；291 K；0.02 M TAPS, pH 9.0, 30% PEG4000, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.40 Å R-free 0.222
3D0Y Crystal Structure of S100B in the Calcium and Zinc Loaded State at pH 6.5 Deposited 2008-05-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 4 ZN ZINC ION × 2 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M MES pH 6.5 21% PEG5000MME, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 1.50 Å R-free 0.261
3D10 Crystal Structure of S100B in the Calcium and Zinc Loaded State at pH 10.0 Deposited 2008-05-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4 ZN ZINC ION × 2 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；291 K；0.02 M CAPS pH 10.0, 23% PEG5000MME, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.65 Å R-free 0.275
3HCM Crystal structure of human S100B in complex with S45 Deposited 2009-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4 S45 (3R)-3-[3-(4-chlorophenyl)-1,2,4-oxadiazol-5-yl]piperidine × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.1M sodium acetate, 0.02M calcium chloride, 45% methylpenthanediol, pH4.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.311
4XYN X-ray structure of Ca(2+)-S100B with human RAGE-derived W61 peptide Deposited 2015-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；0.1M Na cacodylate, pH 6.8, 25% w/v PEG 3350, 9mM CaCl2	Resolution 2.55 Å R-free 0.254
4XYN X-ray structure of Ca(2+)-S100B with human RAGE-derived W61 peptide Deposited 2015-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–92（92 aa） Chain D 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；0.1M Na cacodylate, pH 6.8, 25% w/v PEG 3350, 9mM CaCl2	Resolution 2.55 Å R-free 0.254
5CSF S100B-RSK1 crystal structure A Deposited 2015-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000	Resolution 2.40 Å R-free 0.291
5CSI S100B-RSK1 crystal structure A' Deposited 2015-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000	Resolution 2.13 Å R-free 0.250
5CSJ S100B-RSK1 crystal structure B Deposited 2015-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000	Resolution 2.70 Å R-free 0.276
5CSN S100B-RSK1 crystal structure C Deposited 2015-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000	Resolution 2.95 Å R-free 0.279
5D7F X-ray structure of Ca(2+)-S100B with human RAGE-derived W72 peptide Deposited 2015-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–92（92 aa） Chain B 1–92（92 aa）	Not recorded	CA CALCIUM ION × 4 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；100mM Na cacodylate pH 6.8, 22% w/v PEG 3350, 5mM CaCl2	Resolution 1.30 Å R-free 0.183

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	S100B_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–91； UniProt 2–92 Author chain D； PDBConstruct 1–91； UniProt 2–92

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2m49
Deposition date deposition_date	2013-02-03
Structure title title	Structural Insights into Human S100B and Basic Fibroblast Growth Factor (FGF2) Interaction
Keywords keywords	S100B, FGF2, CYTOKINE-METAL BINDING PROTEIN complex; CYTOKINE/METAL BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.95 Å
Radius of gyration Rg (electron density) rg_electron	30.25 Å
Forward intensity I(0) i0	3533090000.00
Molecular weight molecular_weight	499510.0 kDa
Excluded volume excluded_volume	622350 Å³
Envelope volume envelope_volume	94904 Å³
Hydration-shell volume shell_volume	28462 Å³
Envelope diameter envelope_diameter	105.3 Å
Shell Rg shell_rg	34.53 Å
Envelope Rg envelope_rg	30.50 Å
Shape Rg shape_rg	30.26 Å
Total Rg total_rg	30.28 Å
Total atoms total_atoms	69760
Residues n_residues	4340
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

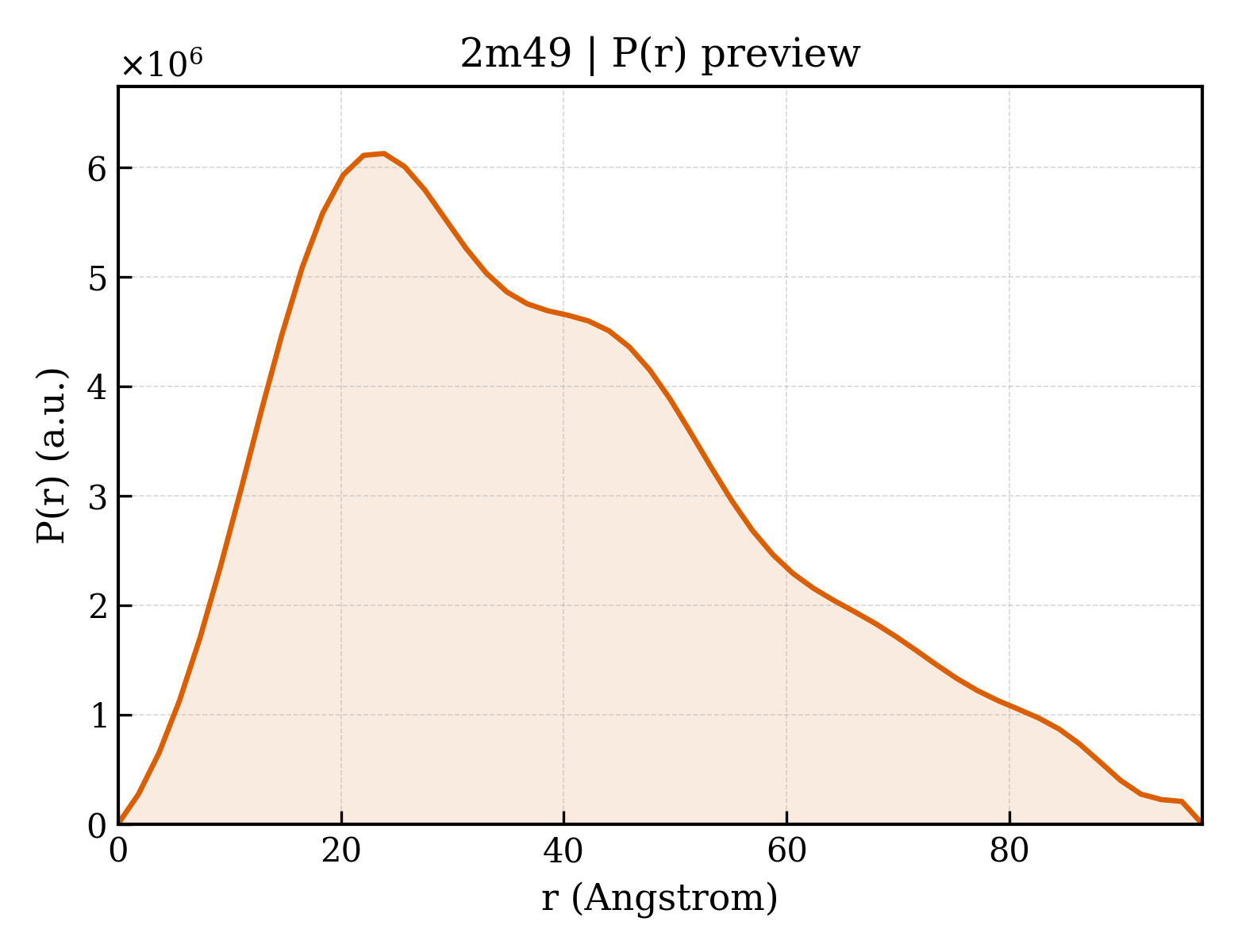

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.3 Å
Rg (real space) rg_real	30.34 Å
Rg uncertainty (real space) rg_real_error	0.91 Å
I(0) (real space) i0_real	3.5330e+09
I(0) uncertainty (real space) i0_real_error	6.0590e+07
Rg (reciprocal space) rg_reciprocal	30.18 Å
I(0) (reciprocal space) i0_reciprocal	3533000000.0000
Solution quality estimate total_estimate	0.5685
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	23.9 Å
Skewness Skewness skewness	0.583
Kurtosis Kurtosis kurtosis	-0.337
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16600000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.726; Stabil: 0.999; Sysdev: 0.135; Positv: 1.000; Valcen: 0.618; Smooth: 0.188

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Fibroblast growth factor 2
Molecular weight formula_weight	14422.5 kDa
Mutation mutation	C211S, C229S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	69760

DPKRLYCKNGGFFLRIHPDGRVDGVREKSDPHIKLQLQAEERGVVSIKGVSANRYLAMKEDGRLLASKSVTDECFFFERLESNNYNTYRSRKYTSWYVALKRTGQYKLGSKTGPGQKAILFLPMSA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Protein S100-B
Molecular weight formula_weight	10595.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

SELEKAMVALIDVFHQYSGREGDKHKLKKSELKELINNELSHFLEEIKEQEVVDKVMETLDNDGDGECDFQEFMAFVAMVTTACHEFFEHE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2m49a_
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.1 — Cytokine
Family Family family	b.42.1.1 — Fibroblast growth factors (FGF)

Domain ID domain_id	d2m49b_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.2 — S100 proteins

Domain ID domain_id	d2m49c_
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.1 — Cytokine
Family Family family	b.42.1.1 — Fibroblast growth factors (FGF)

Domain ID domain_id	d2m49d_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.2 — S100 proteins

CATH v4.4 (4 domains)

Domain ID domain_id	2m49A00
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2m49B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	2m49C00
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2m49D00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/m4/2m49/2m49.fit
pddf	/app/data/pr_computation/m4/2m49/2m49.pr.out
profile	/app/data/saxs_computation/m4/2m49/2m49.dat
