SAXSdb — 2naq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 3–93	Fragment：Pyrin domain residues 3-93	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 3.6；303 K；Ionic strength (raw mmCIF value) 0.0051；Pressure ambient NMR sample composition：100-200 uM [U-13C; U-15N] protein, 5 mM [U-2H] TCEP, 100 uM sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2NAQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3QF2 Crystal structure of NALP3 PYD Deposited 2011-01-21	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–112（110 aa） Fragment：PYD domain, DAPIN domain, residues 3-112	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；0.2M ammonium citrate, 0.1M sodium acetate pH4.6, 30% PEG MME 2000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.235
3QF2 Crystal structure of NALP3 PYD Deposited 2011-01-21	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–112（110 aa） Fragment：PYD domain, DAPIN domain, residues 3-112	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；0.2M ammonium citrate, 0.1M sodium acetate pH4.6, 30% PEG MME 2000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.235
6NPY Cryo-EM structure of NLRP3 bound to NEK7 Deposited 2019-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 3–1036（1034 aa）	Mutation：D133I, R135C, K136A, K140A	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7ALV Crystal Structure of NLRP3 NACHT domain in complex with a potent inhibitor Deposited 2020-10-07	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–679（549 aa） Fragment：NACHT domain	Not recorded	RM5 1-[4-chloranyl-2,6-di(propan-2-yl)phenyl]-3-[4-(2-oxidanylpropan-2-yl)furan-2-yl]sulfonyl-urea × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；0.1 M Hepes pH 7.5, 1.4M SodiumCitrate	Resolution 2.83 Å R-free 0.265
7PZC Cryo-EM structure of the NLRP3 decamer bound to the inhibitor CRID3 Deposited 2021-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 1–1036（1036 aa） Chain B 1–1036（1036 aa） Chain C 1–1036（1036 aa） Chain D 1–1036（1036 aa） Chain E 1–1036（1036 aa） Chain F 1–1036（1036 aa） Chain G 1–1036（1036 aa） Chain H 1–1036（1036 aa） Chain I 1–1036（1036 aa） Chain J 1–1036（1036 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 10 8GI 1-(1,2,3,5,6,7-hexahydro-s-indacen-4-yl)-3-[4-(2-oxidanylpropan-2-yl)furan-2-yl]sulfonyl-urea × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM Hepes pH 7.5, 150 mM NaCl, 0.5 mM TCEP, 10 mM MgCl2, 1 mM ADP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7PZD Cryo-EM structure of the NLRP3 PYD filament Deposited 2021-10-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 18 PDB declaration: octadecameric	Chain G 3–110（108 aa） Chain H 3–110（108 aa） Chain I 3–110（108 aa） Chain J 3–110（108 aa） Chain K 3–110（108 aa） Chain L 3–110（108 aa） Chain M 3–110（108 aa） Chain N 3–110（108 aa） Chain O 3–110（108 aa） Chain P 3–110（108 aa） Chain Q 3–110（108 aa） Chain R 3–110（108 aa） Chain S 3–110（108 aa） Chain T 3–110（108 aa） Chain U 3–110（108 aa） Chain V 3–110（108 aa） Chain W 3–110（108 aa） Chain X 3–110（108 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 150 mM NaCl, 0.5 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7VTP Cryo-EM structure of PYD-deleted human NLRP3 hexamer Deposited 2021-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 130–1036（907 aa） Chain B 130–1036（907 aa） Chain C 130–1036（907 aa） Chain D 130–1036（907 aa） Chain E 130–1036（907 aa） Chain F 130–1036（907 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 7YN 1-[4-(2-oxidanylpropan-2-yl)furan-2-yl]sulfonyl-3-(1,2,3,5-tetrahydro-s-indacen-4-yl)urea × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM HEPES-NaOH (pH 7.5), 0.2 M NaCl, 1 mM MgCl2, 0.5 mM TCEP, 1.0 mM ADP, 0.05 mM MCC950 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.23 Å
7ZGU Human NLRP3-deltaPYD hexamer Deposited 2022-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 126–1036（911 aa） Chain B 126–1036（911 aa） Chain C 126–1036（911 aa） Chain D 126–1036（911 aa） Chain E 126–1036（911 aa） Chain F 126–1036（911 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8EJ4 Cryo-EM structure of the active NLRP3 inflammasome disk Deposited 2022-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain A 133–1034（902 aa） Chain B 133–1034（902 aa） Chain C 133–1034（902 aa） Chain D 133–1034（902 aa） Chain E 133–1034（902 aa） Chain F 133–1034（902 aa） Chain G 133–1034（902 aa） Chain H 133–1034（902 aa） Chain I 133–1034（902 aa） Chain J 133–1034（902 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8ERT NLRP3 PYD filament Deposited 2022-10-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 21 PDB declaration: 21-meric	Chain A 1–95（95 aa） Chain B 1–95（95 aa） Chain C 1–95（95 aa） Chain D 1–95（95 aa） Chain E 1–95（95 aa） Chain F 1–95（95 aa） Chain G 1–95（95 aa） Chain I 1–95（95 aa） Chain J 1–95（95 aa） Chain K 1–95（95 aa） Chain L 1–95（95 aa） Chain M 1–95（95 aa） Chain N 1–95（95 aa） Chain O 1–95（95 aa） Chain Q 1–95（95 aa） Chain R 1–95（95 aa） Chain S 1–95（95 aa） Chain U 1–95（95 aa） Chain V 1–95（95 aa） Chain W 1–95（95 aa） Chain X 1–95（95 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ETR CryoEM Structure of NLRP3 NACHT domain in complex with G2394 Deposited 2022-10-17	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–676（543 aa）	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 WTN (6S,8R)-N-[(1,2,3,5,6,7-hexahydro-s-indacen-4-yl)carbamoyl]-6-(methylamino)-6,7-dihydro-5H-pyrazolo[5,1-b][1,3]oxazine-3-sulfonamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；0.15M NaCl, 20mM Tris pH 7.5, 10% glycerol, 1mM TCEP, 2.5mM ATP, 2mM MgCl2. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8RI2 Crystal structure of NLRP3 in complex with inhibitor NP3-562 Deposited 2023-12-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–679（549 aa）	Not recorded	A1H02 2-[4-chloranyl-9-oxidanylidene-12-(2-oxidanylpropan-2-yl)-5-thia-1,10,11-triazatricyclo[6.4.0.0^{2,6}]dodeca-2(6),3,7,11-tetraen-10-yl]-~{N}-[(3~{R})-1-methylpiperidin-3-yl]ethanamide × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；protein: well = 1: 1 well: 1.94 M Ammonium citrate pH 7.0 protein: 7 mg/ml protein copurified with 1 uM inhibitor	Resolution 2.80 Å R-free 0.270
8SWF Cryo-EM structure of NLRP3 open octamer Deposited 2023-05-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 130–1036（907 aa） Chain B 130–1036（907 aa） Chain C 130–1036（907 aa） Chain D 130–1036（907 aa） Chain E 130–1036（907 aa） Chain F 130–1036（907 aa） Chain G 130–1036（907 aa） Chain H 130–1036（907 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
8SWK Cryo-EM structure of NLRP3 closed hexamer Deposited 2023-05-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 133–1036（904 aa） Chain B 133–1036（904 aa） Chain C 133–1036（904 aa） Chain D 133–1036（904 aa） Chain E 133–1036（904 aa） Chain F 133–1036（904 aa）	Not recorded	7YN 1-[4-(2-oxidanylpropan-2-yl)furan-2-yl]sulfonyl-3-(1,2,3,5-tetrahydro-s-indacen-4-yl)urea × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.32 Å
8SXN Structure of NLRP3 and NEK7 complex Deposited 2023-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 133–1036（904 aa） Chain D 133–1036（904 aa）	Not recorded	7YN 1-[4-(2-oxidanylpropan-2-yl)furan-2-yl]sulfonyl-3-(1,2,3,5-tetrahydro-s-indacen-4-yl)urea × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.04 Å
8WSM NLRP3 NACHT domain in complex with compound 32 Deposited 2023-10-17	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–679（549 aa）	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 XE3 2-[[2-methyl-5-(trifluoromethyl)phenyl]amino]-~{N}-(1,4-oxazepan-4-ylsulfonyl)-1,3-oxazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M Tris pH 7.5, 1.2 M sodium citrate	Resolution 2.70 Å R-free 0.248
8ZEM Crystal Structure of NLRP3 NACHT domain in complex with NP3-1 Deposited 2024-05-06	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–679（549 aa）	Not recorded	A1D79 1-[5-[2,3-bis(chloranyl)phenyl]-2,3-dihydro-1~{H}-inden-4-yl]-3-[4-(2-oxidanylpropan-2-yl)thiophen-2-yl]sulfonyl-urea × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；23~25 % w/v Polyethylene glycol monomethyl ether 5,000 ;100 mM MES pH 6.3~6.7 ;200 mM Ammonium sulfate	Resolution 3.32 Å R-free 0.347
9DH3 Cryo-EM structure of NLRP3 complex with Compound C Deposited 2024-09-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 136–1036（901 aa） Chain B 136–1036（901 aa） Chain C 136–1036（901 aa） Chain D 136–1036（901 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 4 A1A4L 2-[(4S)-5-ethyl-8-oxothieno[2',3':4,5]pyrrolo[1,2-d][1,2,4]triazin-7(8H)-yl]-N-(pyrimidin-4-yl)acetamide × 4 CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.76 Å
9GU4 Crystal structure of NLRP3 in complex with inhibitor NP3-253 Deposited 2024-09-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–679（549 aa）	Not recorded	A1IPJ 2-[6-[[(3R)-1-ethylpiperidin-3-yl]amino]pyridazin-3-yl]-3-methyl-5-(trifluoromethyl)phenol × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；protein: well = 1: 1 well: 1.94 M Ammonium citrate pH 7.0 protein: 7 mg/ml, 1mM inhibitor co-complex	Resolution 2.70 Å R-free 0.264
9HG4 NACHT domain of NLRP3 in complex with DFV890 Deposited 2024-11-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–679（549 aa）	Not recorded	A1IUG 1-[azanyl-oxidanylidene-[2-(2-oxidanylpropan-2-yl)-1,3-thiazol-5-yl]-$l^{6}-sulfanylidene]-3-(1,2,3,5,6,7-hexahydro-s-indacen-4-yl)urea × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；protein: 0.2 ul NLRP3 (131-679) at 7 mg/ml in 50mM HEPES pH 7.8, 500mM NaCl, 10% glycerol, 1mM MgCl2, 1mM TCEP, 100uM ADP, and 0.8 mM DFV890 (in DMSO) wel: 0.2 ul 1.99M NH4 3 citrate	Resolution 2.77 Å R-free 0.264
9MGY Cryo-EM structure of Human NLRP3 complex with compound 1 Deposited 2024-12-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–1036（1036 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 A1BLR (2M)-2-(6-{[(3R)-1-methylpiperidin-3-yl]amino}pyridazin-3-yl)-5-(trifluoromethyl)phenol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9MIE Human NLRP3 complex with compound 2 in the closed hexamer Deposited 2024-12-12	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–1036（1036 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 A1BLP (2P)-2-(4-{[(3R)-1-methylpiperidin-3-yl]amino}-6,7-dihydro-5H-cyclopenta[d]pyridazin-1-yl)-5-(trifluoromethyl)phenol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.93 Å
9MIG Cryo-EM structure of Human NLRP3 complex with compound 3 Deposited 2024-12-12	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–1036（1036 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 A1BLQ (2P)-2-(4-{[(3R)-1-methylpiperidin-3-yl]amino}-5,6,7,8-tetrahydrophthalazin-1-yl)-5-(trifluoromethyl)phenol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9SFG Crystal structure of NLRP3 in complex with inhibitor NP3-742 Deposited 2025-08-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–679（549 aa）	Not recorded	A1JNK 5-methyl-~{N}-[(3~{R})-1-methylpiperidin-3-yl]-6-(2-methyl-1~{H}-pyrrolo[2,3-b]pyridin-6-yl)pyridazin-3-amine × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；protein: well = 1: 1 well: 1.94 M Ammonium citrate pH 7.0 protein: 7 mg/ml, 1mM inhibitor co-complex	Resolution 3.20 Å R-free 0.279

23 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NLRP3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–91； UniProt 3–93

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2naq
Deposition date deposition_date	2016-01-07
Structure title title	3D NMR solution structure of NLRP3 PYD
Keywords keywords	Death Domain Superfamily, APOPTOSIS; APOPTOSIS
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.78 Å
Radius of gyration Rg (electron density) rg_electron	13.47 Å
Forward intensity I(0) i0	625674000.00
Molecular weight molecular_weight	212490.0 kDa
Excluded volume excluded_volume	266270 Å³
Envelope volume envelope_volume	26756 Å³
Hydration-shell volume shell_volume	14655 Å³
Envelope diameter envelope_diameter	53.9 Å
Shell Rg shell_rg	21.42 Å
Envelope Rg envelope_rg	15.73 Å
Shape Rg shape_rg	13.39 Å
Total Rg total_rg	13.89 Å
Total atoms total_atoms	29820
Residues n_residues	1820
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.3 Å
Rg (real space) rg_real	13.67 Å
Rg uncertainty (real space) rg_real_error	0.29 Å
I(0) (real space) i0_real	6.2570e+08
I(0) uncertainty (real space) i0_real_error	6.8220e+06
Rg (reciprocal space) rg_reciprocal	13.68 Å
I(0) (reciprocal space) i0_reciprocal	625700000.0000
Solution quality estimate total_estimate	0.6756
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.4 Å
Skewness Skewness skewness	0.005
Kurtosis Kurtosis kurtosis	-0.256
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	258700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.562; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.993; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2naqa_
Class class	a — All alpha proteins
Fold Fold fold	a.77 — DEATH domain
Superfamily Superfamily superfamily	a.77.1 — DEATH domain
Family Family family	a.77.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	2naqA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

▶

8. Citations (1)

▶

Description description	NACHT, LRR and PYD domains-containing protein 3
Molecular weight formula_weight	10643.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	29820

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/na/2naq/2naq.fit
pddf	/app/data/pr_computation/na/2naq/2naq.pr.out
profile	/app/data/saxs_computation/na/2naq/2naq.dat

3D NMR solution structure of NLRP3 PYD

1. Protein Identity and Related Structures Protein Identity & Related Structures

NACHT, LRR and PYD domains-containing protein 3

State in the Current Structure

Other States of the Same Protein in the Database

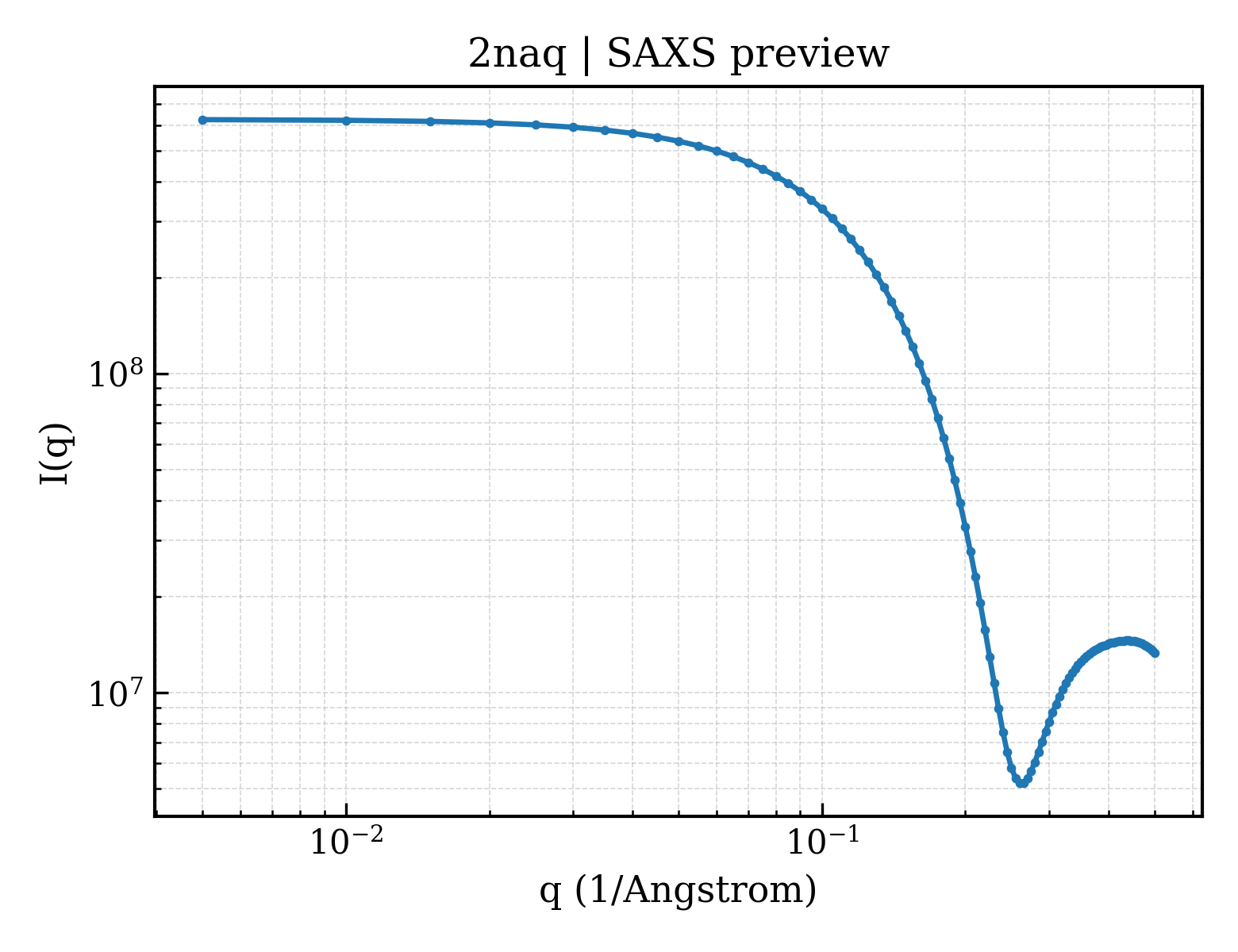

SAXS scattering curve SAXS Profile
