1. Protein Identity and Related Structures Protein Identity & Related Structures

Dedicator of cytokinesis protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–177	Fragment：N-terminal domains, SH3 domain, residues 1-177 Non-standard monomer：Yes (specific site not provided by mmCIF)	Engulfment and cell motility protein 1 × 1 （Q92556）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；12% PEG 3350, 0.1M di-ammonium hydrogen citrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.268
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–177	Fragment：N-terminal domains, SH3 domain, residues 1-177 Non-standard monomer：Yes (specific site not provided by mmCIF)	Engulfment and cell motility protein 1 × 1 （Q92556）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；12% PEG 3350, 0.1M di-ammonium hydrogen citrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.268

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3A98	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2RQR The solution structure of human DOCK2 SH3 domain - ELMO1 peptide chimera complex Deposited 2009-10-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–70（63 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1mM [U-100% 13C; U-100% 15N] protein, 20mM [U-2H] TRIS-2, 100mM sodium chloride-3, 0.02% sodium azide-4, 1mM [U-2H] DTT-5, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2YIN STRUCTURE OF THE COMPLEX BETWEEN Dock2 AND Rac1. Deposited 2011-05-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1192–1622（431 aa） Fragment：DHR2 DOMAIN, RESIDUES 1192-1622	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；0.1 M MES PH 6.5, 12% (W/V) PEG 3350, 10% (V/V) GLYCEROL AND 150 MM NACL. AT 20 C	Resolution 2.70 Å R-free 0.255
2YIN STRUCTURE OF THE COMPLEX BETWEEN Dock2 AND Rac1. Deposited 2011-05-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1192–1622（431 aa） Fragment：DHR2 DOMAIN, RESIDUES 1192-1622	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；0.1 M MES PH 6.5, 12% (W/V) PEG 3350, 10% (V/V) GLYCEROL AND 150 MM NACL. AT 20 C	Resolution 2.70 Å R-free 0.255
3B13 Crystal structure of the DHR-2 domain of DOCK2 in complex with Rac1 (T17N mutant) Deposited 2011-06-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1196–1622（427 aa） Fragment：DHR-2 domain (UNP RESIDUES 1196-1622) Chain C 1196–1622（427 aa） Fragment：DHR-2 domain (UNP RESIDUES 1196-1622)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；100mM sodium citrate, 15% PEG 6000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.01 Å R-free 0.234
6TGB CryoEM structure of the binary DOCK2-ELMO1 complex Deposited 2019-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1830（1830 aa） Chain D 1–1830（1830 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.50 Å
6TGC CryoEM structure of the ternary DOCK2-ELMO1-RAC1 complex. Deposited 2019-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1830（1830 aa） Chain D 1–1830（1830 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

5 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DOCK2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–184； UniProt 1–177 Author chain C； PDBConstruct 8–184； UniProt 1–177

Engulfment and cell motility protein 1

Homo sapiens

UniProt Q92556

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 532–727	Fragment：C-terminal domains, PH domain, residues 532-727 Non-standard monomer：Yes (specific site not provided by mmCIF)	Dedicator of cytokinesis protein 2 × 1 （Q92608）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；12% PEG 3350, 0.1M di-ammonium hydrogen citrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.268
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 532–727	Fragment：C-terminal domains, PH domain, residues 532-727 Non-standard monomer：Yes (specific site not provided by mmCIF)	Dedicator of cytokinesis protein 2 × 1 （Q92608）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；12% PEG 3350, 0.1M di-ammonium hydrogen citrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.268

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3A98	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2RQR The solution structure of human DOCK2 SH3 domain - ELMO1 peptide chimera complex Deposited 2009-10-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 697–722（26 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1mM [U-100% 13C; U-100% 15N] protein, 20mM [U-2H] TRIS-2, 100mM sodium chloride-3, 0.02% sodium azide-4, 1mM [U-2H] DTT-5, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2VSZ Crystal Structure of the ELMO1 PH domain Deposited 2008-05-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 532–675（144 aa） Fragment：PLECKSTRIN HOMOLOGY DOMAIN, RESIDUES 532-675 Chain B 532–675（144 aa） Fragment：PLECKSTRIN HOMOLOGY DOMAIN, RESIDUES 532-675	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.75；2.1 M SODIUM MALONATE [PH 6.75]	Resolution 2.30 Å R-free 0.239
6JPP Solution structure of ELMO1 RBD Deposited 2019-03-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–113（113 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Elmo1 RBD, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6TGB CryoEM structure of the binary DOCK2-ELMO1 complex Deposited 2019-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.50 Å
6TGC CryoEM structure of the ternary DOCK2-ELMO1-RAC1 complex. Deposited 2019-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–727（727 aa） Chain E 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7DPA Cryo-EM structure of the human ELMO1-DOCK5-Rac1 complex Deposited 2020-12-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–727（727 aa） Chain F 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
8JHK Cryo-EM structure of the DOCK5/ELMO1 complex, focused on one protomer Deposited 2023-05-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.76 Å
8XM7 Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex: RhoG/DOCK5/ELMO1 focused map Deposited 2023-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–727（727 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.91 Å
8ZJ2 Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–727（727 aa） Chain E 1–727（727 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.66 Å
8ZJI Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 1) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJJ Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 2) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJK Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 3) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJL Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 4) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.31 Å
8ZJM Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 5) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.52 Å
9LX0 DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–727（727 aa） Chain E 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.98 Å
9LXH DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.52 Å

17 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ELMO1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 8–203； UniProt 532–727 Author chain D； PDBConstruct 8–203； UniProt 532–727

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3a98
Deposition date deposition_date	2009-10-21
Structure title title	Crystal structure of the complex of the interacting regions of DOCK2 and ELMO1
Keywords keywords	;protein-protein complex, DOCK2, ELMO1, SH3 domain, PH domain, helix bundle, proline-rich sequence, Cytoskeleton, Guanine-nucleotide releasing factor, Membrane, Phosphoprotein, Apoptosis, Cell membrane, Phagocytosis, SH3-binding, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.61 Å
Radius of gyration Rg (electron density) rg_electron	31.73 Å
Forward intensity I(0) i0	94496900.00
Molecular weight molecular_weight	77882.0 kDa
Excluded volume excluded_volume	97592 Å³
Envelope volume envelope_volume	131590 Å³
Hydration-shell volume shell_volume	35055 Å³
Envelope diameter envelope_diameter	115.1 Å
Shell Rg shell_rg	38.12 Å
Envelope Rg envelope_rg	31.57 Å
Shape Rg shape_rg	31.74 Å
Total Rg total_rg	32.24 Å
Total atoms total_atoms	5417
Residues n_residues	648
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

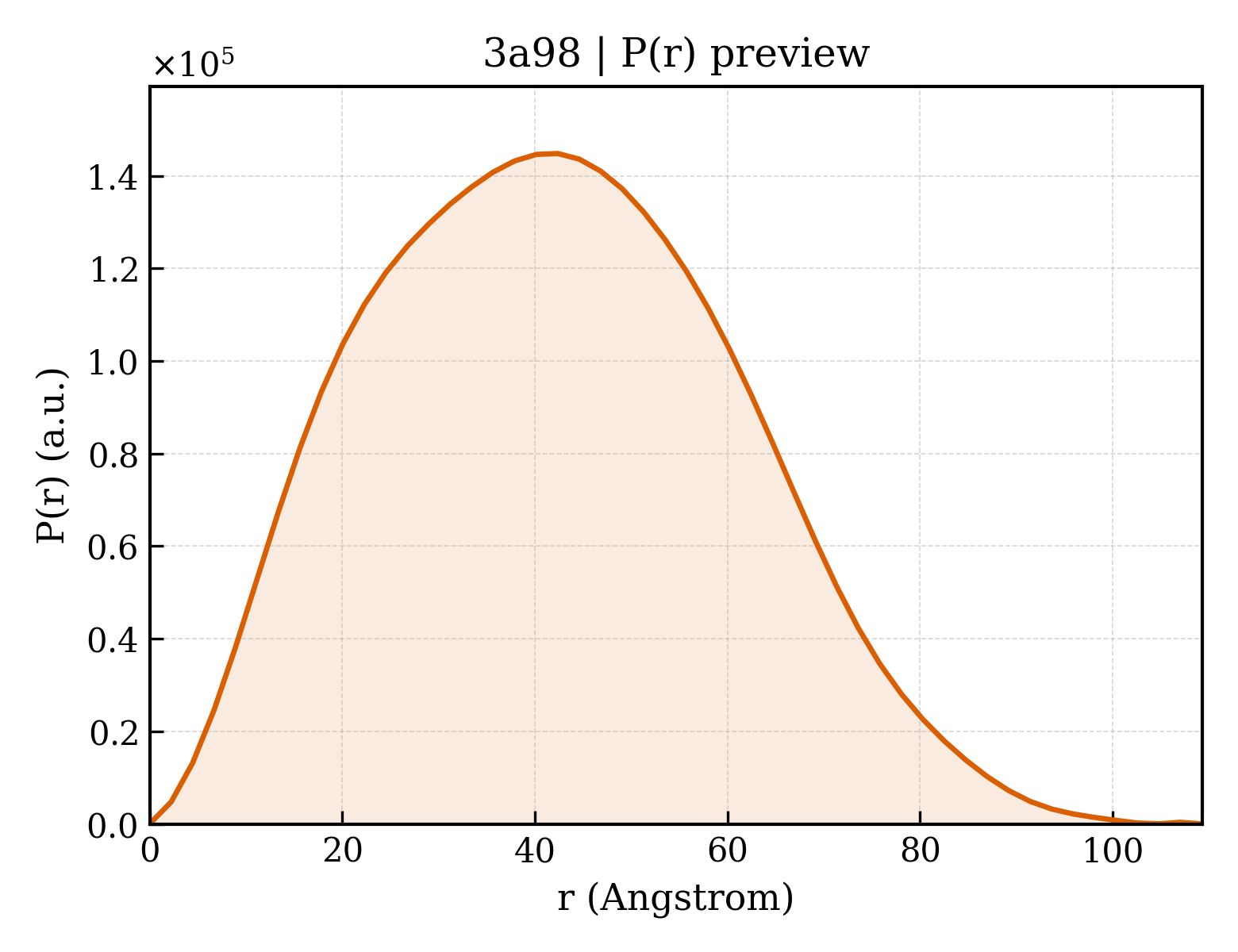

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.3 Å
Rg (real space) rg_real	32.56 Å
Rg uncertainty (real space) rg_real_error	1.07 Å
I(0) (real space) i0_real	9.4500e+07
I(0) uncertainty (real space) i0_real_error	1.6120e+06
Rg (reciprocal space) rg_reciprocal	32.58 Å
I(0) (reciprocal space) i0_reciprocal	94500000.0000
Solution quality estimate total_estimate	0.8959
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.4 Å
Skewness Skewness skewness	0.216
Kurtosis Kurtosis kurtosis	-0.520
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11230000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.966

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Dedicator of cytokinesis protein 2
Molecular weight formula_weight	21402.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	5550

GSSGSSGMAPWRKADKERHGVAIYNFQGSGAPQLSLQIGDVVRIQETCGDWYRGYLIKHKMLQGIFPKSFIHIKEVTVEKRRNTENIIPAEIPLAQEVTTTLWEWGSIWKQLYVASKKERFLQVQSMMYDLMEWRSQLLSGTLPKDELKELKQKVTSKIDYGNKILELDLIVRDEDGNILDPDN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cell free protein synthesis

Entity 2 Entity 2 polymer

Description description	Engulfment and cell motility protein 1
Molecular weight formula_weight	23408.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GSSGSSGPILELKEKIQPEILELIKQQRLNRLVEGTCFRKLNARRRQDKFWYCRLSPNHKVLHYGDLEESPQGEVPHDSLQDKLPVADIKAVVTGKDCPHMKEKGALKQNKEVLELAFSILYDSNCQLNFIAPDKHEYCIWTDGLNALLGKDMMSDLTRNDLDTLLSMEIKLRLLDLENIQIPDAPPPIPKEPSNYDFVYDCN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cell free protein synthesis

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	133

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	3a98A01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	3a98A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	350 — Dedicator of cytokinesis N-terminal subdomain

Domain ID domain_id	3a98B01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	10 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3a98B02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

Domain ID domain_id	3a98C01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	3a98C02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	350 — Dedicator of cytokinesis N-terminal subdomain

Domain ID domain_id	3a98D01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	10 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3a98D02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

▶

8. Citations (1)

▶

Unit-cell length a length_a	63.837 Å
Unit-cell length b length_b	104.028 Å
Unit-cell length c length_c	124.731 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	49.870 Å
R factor r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2680

fit	/app/data/saxs_computation/a9/3a98/3a98.fit
pddf	/app/data/pr_computation/a9/3a98/3a98.pr.out
profile	/app/data/saxs_computation/a9/3a98/3a98.dat
