SAXSdb — 8zj2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dedicator of cytokinesis protein 5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Ras-related C3 botulinum toxin substrate 1 × 2 （P63000） Engulfment and cell motility protein 1 × 2 （Q92556） Rho-related GTP-binding protein RhoG × 1 （P84095） MAGNESIUM ION × 1 GUANOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DOCK5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 7–1648； UniProt 1–1642 Author chain F； PDBConstruct 7–1648； UniProt 1–1642

Ras-related C3 botulinum toxin substrate 1

Homo sapiens

UniProt P63000

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Dedicator of cytokinesis protein 5 × 2 （Q9H7D0） Engulfment and cell motility protein 1 × 2 （Q92556） Rho-related GTP-binding protein RhoG × 1 （P84095） MAGNESIUM ION × 1 GUANOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAC1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 8–184； UniProt 1–177 Author chain G； PDBConstruct 8–184； UniProt 1–177

Engulfment and cell motility protein 1

Homo sapiens

UniProt Q92556

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Dedicator of cytokinesis protein 5 × 2 （Q9H7D0） Ras-related C3 botulinum toxin substrate 1 × 2 （P63000） Rho-related GTP-binding protein RhoG × 1 （P84095） MAGNESIUM ION × 1 GUANOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELMO1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 7–733； UniProt 1–727 Author chain E； PDBConstruct 7–733； UniProt 1–727

Rho-related GTP-binding protein RhoG

Homo sapiens

UniProt P84095

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Dedicator of cytokinesis protein 5 × 2 （Q9H7D0） Ras-related C3 botulinum toxin substrate 1 × 2 （P63000） Engulfment and cell motility protein 1 × 2 （Q92556） MAGNESIUM ION × 1 GUANOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RHOG_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 8–191； UniProt 1–184

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8zj2
Deposition date deposition_date	2024-05-14
Structure title title	Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex
Keywords keywords	ELMO, DOCK, GEF, GTPASE, RHO, RAC, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8zj2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8zj2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

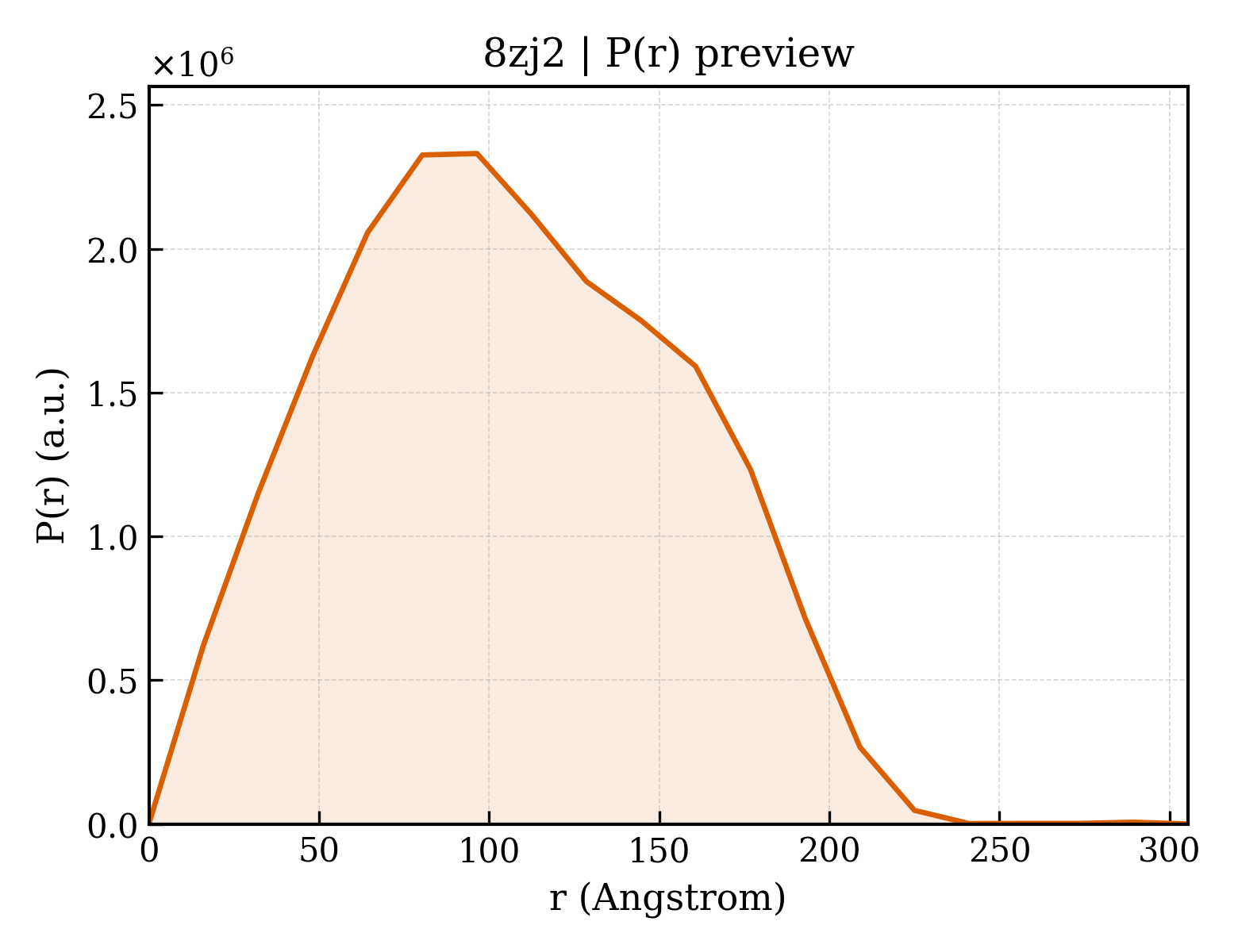

8zj2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	81.97 Å
Rg (electron density)	81.89 Å
Total Rg	81.91 Å
Atom count	38587
Residues	4745
Excluded volume	691880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8zj2__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Dedicator of cytokinesis protein 5
Molecular weight formula_weight	191492.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F
Atom count atom_count	38587

GGSGGSMARWIPTKRQKYGVAIYNYNASQDVELSLQIGDTVHILEMYEGWYRGYTLQNKSKKGIFPETYIHLKEATVEDLGQHETVIPGELPLVQELTSTLREWAVIWRKLYVNNKLTLFRQLQQMTYSLIEWRSQILSGTLPKDELAELKKKVTAKIDHGNRMLGLDLVVRDDNGNILDPDETSTIALFKAHEVASKRIEEKIQEEKSILQNLDLRGQSIFSTIHTYGLYVNFKNFVCNIGEDAELFMALYDPDQSTFISENYLIRWGSNGMPKEIEKLNNLQAVFTDLSSMDLIRPRVSLVCQIVRVGHMELKEGKKHTCGLRRPFGVAVMDITDIIHGKVDDEEKQHFIPFQQIAMETYIRQRQLIMSPLITSHVIGENEPLTSVLNKVIAAKEVNHKGQGLWVSLKLLPGDLTQVQKNFSHLVDRSTAIARKMGFPEIILPGDVRNDIYVTLIHGEFDKGKKKTPKNVEVTMSVHDEEGKLLEKAIHPGAGYEGISEYKSVVYYQVKQPCWYETVKVSIAIEEVTRCHIRFTFRHRSSQETRDKSERAFGVAFVKLMNPDGTTLQDGRHDLVVYKGDNKKMEDAKFYLTLPGTKMEMEEKELQASKNLVTFTPSKDSTKDSFQIATLICSTKLTQNVDLLGLLNWRSNSQNIKHNLKKLMEVDGGEIVKFLQDTLDALFNIMMEMSDSETYDFLVFDALVFIISLIGDIKFQHFNPVLETYIYKHFSATLAYVKLSKVLNFYVANADDSSKTELLFAALKALKYLFRFIIQSRVLYLRFYGQSKDGDEFNNSIRQLFLAFNMLMDRPLEEAVKIKGAALKYLPSIINDVKLVFDPVELSVLFCKFIQSIPDNQLVRQKLNCMTKIVESTLFRQSECREVLLPLLTDQLSGQLDDNSNKPDHEASSQLLSNILEVLDRKDVGATAVHIQLIMERLLRRINRTVIGMNRQSPHIGSFVACMIALLQQMDDSHYSHYISTFKTRQDIIDFLMETFIMFKDLIGKNVYAKDWMVMNMTQNRVFLRAINQFAEVLTRFFMDQASFELQLWNNYFHLAVAFLTHESLQLETFSQAKRNKIVKKYGDMRKEIGFRIRDMWYNLGPHKIKFIPSMVGPILEVTLTPEVELRKATIPIFFDMMQCEFNFSGNGNFHMFENELITKLDQEVEGGRGDEQYKVLLEKLLLEHCRKHKYLSSSGEVFALLVSSLLENLLDYRTIIMQDESKENRMSCTVNVLNFYKEKKREDIYIRYLYKLRDLHRDCENYTEAAYTLLLHAELLQWSDKPCVPHLLQRDSYYVYTQQELKEKLYQEIISYFDKGKMWEKAIKLSKELAETYESKVFDYEGLGNLLKKRASFYENIIKAMRPQPEYFAVGYYGQGFPSFLRNKIFIYRGKEYERREDFSLRLLTQFPNAEKMTSTTPPGEDIKSSPKQYMQCFTVKPVMSLPPSYKDKPVPEQILNYYRANEVQQFRYSRPFRKGEKDPDNEFATMWIERTTYTTAYTFPGILKWFEVKQISTEEISPLENAIETMELTNERISNCVQQHAWDRSLSVHPLSMLLSGIVDPAVMGGFSNYEKAFFTEKYLQEHPEDQEKVELLKRLIALQMPLLTEGIRIHGEKLTEQLKPLHERLSSCFRELKEKVEKHYGVITL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Ras-related C3 botulinum toxin substrate 1
Molecular weight formula_weight	20244.3 kDa
EC 编号 ec_number	3.6.5.2
Mutation mutation	G15A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

GSSGSSGMQAIKCVVVGDGAVAKTCLLISYTTNAFPGEYIPTVFDNYSANVMVDGKPVNLGLWDTAGQEDYDRLRPLSYPQTDVFLICFSLVSPASFENVRAKWYPEVRHHCPNTPIILVGTKLDLRDDKDTIEKLKEKKLTPITYPQGLAMAKEIGAVKYLECSALTQRGLKTVFDEAIRAVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Engulfment and cell motility protein 1
Molecular weight formula_weight	84337.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,A

GGSGGSMPPPADIVKVAIEWPGAYPKLMEIDQKKPLSAIIKEVCDGWSLANHEYFALQHADSSNFYITEKNRNEIKNGTILRLTTSPAQNAQQLHERIQSSSMDAKLEALKDLASLSRDVTFAQEFINLDGISLLTQMVESGTERYQKLQKIMKPCFGDMLSFTLTAFVELMDHGIVSWDTFSVAFIKKIASFVNKSAIDISILQRSLAILESMVLNSHDLYQKVAQEITIGQLIPHLQGSDQEIQTYTIAVINALFLKAPDERRQEMANILAQKQLRSIILTHVIRAQRAINNEMAHQLYVLQVLTFNLLEDRMMTKMDPQDQAQRDIIFELRRIAFDAESEPNNSSGSMEKRKSMYTRDYKKLGFINHVNPAMDFTQTPPGMLALDNMLYFAKHHQDAYIRIVLENSSREDKHECPFGRSSIELTKMLCEILKVGELPSETCNDFHPMFFTHDRSFEEFFCICIQLLNKTWKEMRATSEDFNKVMQVVKEQVMRALTTKPSSLDQFKSKLQNLSYTEILKIRQSERMNQEDFQSRPILELKEKIQPEILELIKQQRLNRLVEGTCFRKLNARRRQDKFWYCRLSPNHKVLHYGDLEESPQGEVPHDSLQDKLPVADIKAVVTGKDCPHMKEKGALKQNKEVLELAFSILYDSNCQLNFIAPDKHEYCIWTDGLNALLGKDMMSDLTRNDLDTLLSMEIKLRLLDLENIQIPDAPPPIPKEPSNYDFVYDCN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Rho-related GTP-binding protein RhoG
Molecular weight formula_weight	22362.4 kDa
Mutation mutation	Q61L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

GSSGSSGMQSIKCVVVGDGAVGKTCLLICYTTNAFPKEYIPTVFDNYSAQSAVDGRTVNLNLWDTAGLEEYDRLRTLSYPQTNVFVICFSIASPPSYENVRHKWHPEVCHHCPDVPILLVGTKKDLRAQPDTLRRLKEQGQAPITPQQGQALAKQIHAVRYLECSALQQDGVKEVFAEAVRAVLNPTPIKRSGPSSGENLYFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.66 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	169096

Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex
