SAXSdb — 8zjj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Engulfment and cell motility protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Dedicator of cytokinesis protein 5 × 2 （Q9H7D0） Ras-related C3 botulinum toxin substrate 1 × 2 （P63000）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELMO1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–733； UniProt 1–727 Author chain D； PDBConstruct 7–733； UniProt 1–727

Dedicator of cytokinesis protein 5

Homo sapiens

UniProt Q9H7D0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Engulfment and cell motility protein 1 × 2 （Q92556） Ras-related C3 botulinum toxin substrate 1 × 2 （P63000）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DOCK5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 7–1648； UniProt 1–1642 Author chain E； PDBConstruct 7–1648； UniProt 1–1642

Ras-related C3 botulinum toxin substrate 1

Homo sapiens

UniProt P63000

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Engulfment and cell motility protein 1 × 2 （Q92556） Dedicator of cytokinesis protein 5 × 2 （Q9H7D0）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAC1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 8–184； UniProt 1–177 Author chain F； PDBConstruct 8–184； UniProt 1–177

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8zjj
Deposition date deposition_date	2024-05-15
Structure title title	Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 2)
Keywords keywords	ELMO, DOCK, GEF, GTPASE, RHO, RAC, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8zjj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8zjj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

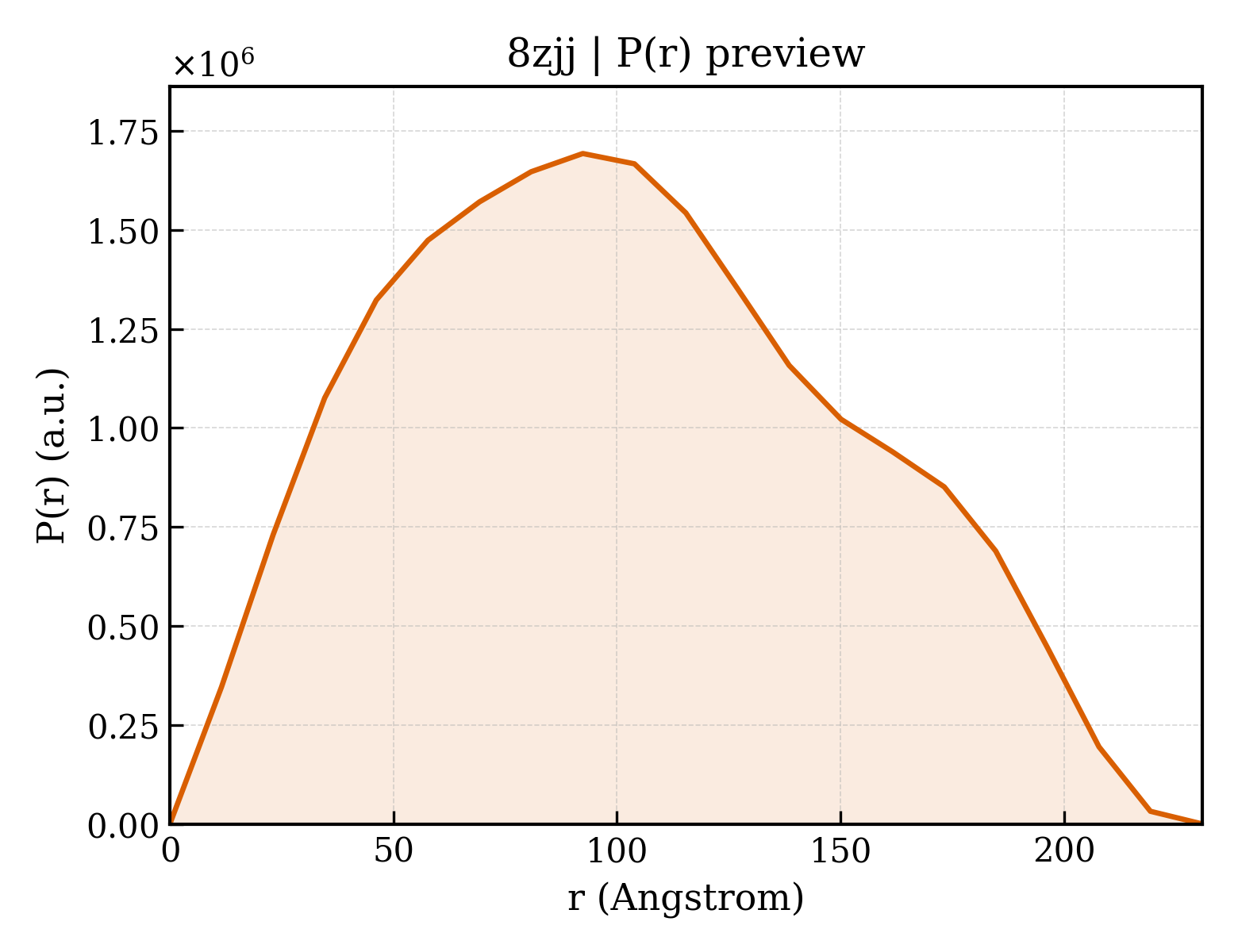

8zjj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	79.18 Å
Rg (electron density)	79.34 Å
Total Rg	79.34 Å
Atom count	32858
Residues	4034
Excluded volume	589760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8zjj__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Engulfment and cell motility protein 1
Molecular weight formula_weight	84337.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	32858

GGSGGSMPPPADIVKVAIEWPGAYPKLMEIDQKKPLSAIIKEVCDGWSLANHEYFALQHADSSNFYITEKNRNEIKNGTILRLTTSPAQNAQQLHERIQSSSMDAKLEALKDLASLSRDVTFAQEFINLDGISLLTQMVESGTERYQKLQKIMKPCFGDMLSFTLTAFVELMDHGIVSWDTFSVAFIKKIASFVNKSAIDISILQRSLAILESMVLNSHDLYQKVAQEITIGQLIPHLQGSDQEIQTYTIAVINALFLKAPDERRQEMANILAQKQLRSIILTHVIRAQRAINNEMAHQLYVLQVLTFNLLEDRMMTKMDPQDQAQRDIIFELRRIAFDAESEPNNSSGSMEKRKSMYTRDYKKLGFINHVNPAMDFTQTPPGMLALDNMLYFAKHHQDAYIRIVLENSSREDKHECPFGRSSIELTKMLCEILKVGELPSETCNDFHPMFFTHDRSFEEFFCICIQLLNKTWKEMRATSEDFNKVMQVVKEQVMRALTTKPSSLDQFKSKLQNLSYTEILKIRQSERMNQEDFQSRPILELKEKIQPEILELIKQQRLNRLVEGTCFRKLNARRRQDKFWYCRLSPNHKVLHYGDLEESPQGEVPHDSLQDKLPVADIKAVVTGKDCPHMKEKGALKQNKEVLELAFSILYDSNCQLNFIAPDKHEYCIWTDGLNALLGKDMMSDLTRNDLDTLLSMEIKLRLLDLENIQIPDAPPPIPKEPSNYDFVYDCN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Dedicator of cytokinesis protein 5
Molecular weight formula_weight	191492.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

GGSGGSMARWIPTKRQKYGVAIYNYNASQDVELSLQIGDTVHILEMYEGWYRGYTLQNKSKKGIFPETYIHLKEATVEDLGQHETVIPGELPLVQELTSTLREWAVIWRKLYVNNKLTLFRQLQQMTYSLIEWRSQILSGTLPKDELAELKKKVTAKIDHGNRMLGLDLVVRDDNGNILDPDETSTIALFKAHEVASKRIEEKIQEEKSILQNLDLRGQSIFSTIHTYGLYVNFKNFVCNIGEDAELFMALYDPDQSTFISENYLIRWGSNGMPKEIEKLNNLQAVFTDLSSMDLIRPRVSLVCQIVRVGHMELKEGKKHTCGLRRPFGVAVMDITDIIHGKVDDEEKQHFIPFQQIAMETYIRQRQLIMSPLITSHVIGENEPLTSVLNKVIAAKEVNHKGQGLWVSLKLLPGDLTQVQKNFSHLVDRSTAIARKMGFPEIILPGDVRNDIYVTLIHGEFDKGKKKTPKNVEVTMSVHDEEGKLLEKAIHPGAGYEGISEYKSVVYYQVKQPCWYETVKVSIAIEEVTRCHIRFTFRHRSSQETRDKSERAFGVAFVKLMNPDGTTLQDGRHDLVVYKGDNKKMEDAKFYLTLPGTKMEMEEKELQASKNLVTFTPSKDSTKDSFQIATLICSTKLTQNVDLLGLLNWRSNSQNIKHNLKKLMEVDGGEIVKFLQDTLDALFNIMMEMSDSETYDFLVFDALVFIISLIGDIKFQHFNPVLETYIYKHFSATLAYVKLSKVLNFYVANADDSSKTELLFAALKALKYLFRFIIQSRVLYLRFYGQSKDGDEFNNSIRQLFLAFNMLMDRPLEEAVKIKGAALKYLPSIINDVKLVFDPVELSVLFCKFIQSIPDNQLVRQKLNCMTKIVESTLFRQSECREVLLPLLTDQLSGQLDDNSNKPDHEASSQLLSNILEVLDRKDVGATAVHIQLIMERLLRRINRTVIGMNRQSPHIGSFVACMIALLQQMDDSHYSHYISTFKTRQDIIDFLMETFIMFKDLIGKNVYAKDWMVMNMTQNRVFLRAINQFAEVLTRFFMDQASFELQLWNNYFHLAVAFLTHESLQLETFSQAKRNKIVKKYGDMRKEIGFRIRDMWYNLGPHKIKFIPSMVGPILEVTLTPEVELRKATIPIFFDMMQCEFNFSGNGNFHMFENELITKLDQEVEGGRGDEQYKVLLEKLLLEHCRKHKYLSSSGEVFALLVSSLLENLLDYRTIIMQDESKENRMSCTVNVLNFYKEKKREDIYIRYLYKLRDLHRDCENYTEAAYTLLLHAELLQWSDKPCVPHLLQRDSYYVYTQQELKEKLYQEIISYFDKGKMWEKAIKLSKELAETYESKVFDYEGLGNLLKKRASFYENIIKAMRPQPEYFAVGYYGQGFPSFLRNKIFIYRGKEYERREDFSLRLLTQFPNAEKMTSTTPPGEDIKSSPKQYMQCFTVKPVMSLPPSYKDKPVPEQILNYYRANEVQQFRYSRPFRKGEKDPDNEFATMWIERTTYTTAYTFPGILKWFEVKQISTEEISPLENAIETMELTNERISNCVQQHAWDRSLSVHPLSMLLSGIVDPAVMGGFSNYEKAFFTEKYLQEHPEDQEKVELLKRLIALQMPLLTEGIRIHGEKLTEQLKPLHERLSSCFRELKEKVEKHYGVITL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Ras-related C3 botulinum toxin substrate 1
Molecular weight formula_weight	20244.3 kDa
EC 编号 ec_number	3.6.5.2
Mutation mutation	G15A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

GSSGSSGMQAIKCVVVGDGAVAKTCLLISYTTNAFPGEYIPTVFDNYSANVMVDGKPVNLGLWDTAGQEDYDRLRPLSYPQTDVFLICFSLVSPASFENVRAKWYPEVRHHCPNTPIILVGTKLDLRDDKDTIEKLKEKKLTPITYPQGLAMAKEIGAVKYLECSALTQRGLKTVFDEAIRAVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.23 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	128824
