SAXSdb — 8xm7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Engulfment and cell motility protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–727	Not recorded	Dedicator of cytokinesis protein 5 × 1 （Q9H7D0） Rho-related GTP-binding protein RhoG × 1 （P84095） MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.91 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XM7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2RQR The solution structure of human DOCK2 SH3 domain - ELMO1 peptide chimera complex Deposited 2009-10-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 697–722（26 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1mM [U-100% 13C; U-100% 15N] protein, 20mM [U-2H] TRIS-2, 100mM sodium chloride-3, 0.02% sodium azide-4, 1mM [U-2H] DTT-5, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2VSZ Crystal Structure of the ELMO1 PH domain Deposited 2008-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 532–675（144 aa） Fragment：PLECKSTRIN HOMOLOGY DOMAIN, RESIDUES 532-675 Chain B 532–675（144 aa） Fragment：PLECKSTRIN HOMOLOGY DOMAIN, RESIDUES 532-675	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.75；2.1 M SODIUM MALONATE [PH 6.75]	Resolution 2.30 Å R-free 0.239
3A98 Crystal structure of the complex of the interacting regions of DOCK2 and ELMO1 Deposited 2009-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 532–727（196 aa） Fragment：C-terminal domains, PH domain, residues 532-727	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；12% PEG 3350, 0.1M di-ammonium hydrogen citrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.268
3A98 Crystal structure of the complex of the interacting regions of DOCK2 and ELMO1 Deposited 2009-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 532–727（196 aa） Fragment：C-terminal domains, PH domain, residues 532-727	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；12% PEG 3350, 0.1M di-ammonium hydrogen citrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.268
6JPP Solution structure of ELMO1 RBD Deposited 2019-03-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–113（113 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Elmo1 RBD, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6TGB CryoEM structure of the binary DOCK2-ELMO1 complex Deposited 2019-11-15	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.50 Å
6TGC CryoEM structure of the ternary DOCK2-ELMO1-RAC1 complex. Deposited 2019-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–727（727 aa） Chain E 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7DPA Cryo-EM structure of the human ELMO1-DOCK5-Rac1 complex Deposited 2020-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–727（727 aa） Chain F 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–82（82 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
8JHK Cryo-EM structure of the DOCK5/ELMO1 complex, focused on one protomer Deposited 2023-05-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.76 Å
8ZJ2 Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–727（727 aa） Chain E 1–727（727 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.66 Å
8ZJI Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 1) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJJ Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 2) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJK Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 3) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJL Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 4) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.31 Å
8ZJM Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 5) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–727（727 aa） Chain D 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.52 Å
9LX0 DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–727（727 aa） Chain E 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.98 Å
9LXH DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–727（727 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.52 Å

17 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ELMO1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–733； UniProt 1–727

Dedicator of cytokinesis protein 5

Homo sapiens

UniProt Q9H7D0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–1642	Not recorded	Engulfment and cell motility protein 1 × 1 （Q92556） Rho-related GTP-binding protein RhoG × 1 （P84095） MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.91 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XM7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7DPA Cryo-EM structure of the human ELMO1-DOCK5-Rac1 complex Deposited 2020-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1642（1642 aa） Chain D 1–1642（1642 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8JHK Cryo-EM structure of the DOCK5/ELMO1 complex, focused on one protomer Deposited 2023-05-23	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–1642（1642 aa） Chain E 1–1642（1642 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.76 Å
8ZJ2 Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 1–1642（1642 aa） Chain F 1–1642（1642 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.66 Å
8ZJI Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 1) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–1642（1642 aa） Chain E 1–1642（1642 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJJ Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 2) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–1642（1642 aa） Chain E 1–1642（1642 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJK Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 3) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–1642（1642 aa） Chain E 1–1642（1642 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8ZJL Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 4) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–1642（1642 aa） Chain E 1–1642（1642 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.31 Å
8ZJM Structure of DOCK5/ELMO1/Rac1 core (RhoG/DOCK5/ELMO1/Rac1 dataset, class 5) Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–1642（1642 aa） Chain E 1–1642（1642 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.52 Å
9LX0 DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–1870（1870 aa） Chain F 1–1870（1870 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.98 Å
9LXH DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–1870（1870 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.52 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DOCK5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 7–1648； UniProt 1–1642

Rho-related GTP-binding protein RhoG

Homo sapiens

UniProt P84095

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain D； UniProt 1–184	Mutation：Q61L	Engulfment and cell motility protein 1 × 1 （Q92556） Dedicator of cytokinesis protein 5 × 1 （Q9H7D0） MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.91 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XM7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6UKA Crystal structure of RHOG and ELMO complex Deposited 2019-10-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–191（191 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M CHES, 0.95M sodium citrate	Resolution 2.40 Å R-free 0.237
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–184（184 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–184（184 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–184（184 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
7Y4A Crystal structure of human ELMO1 RBD-RhoG complex Deposited 2022-06-14	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–184（184 aa）	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.91 M potassium phosphate dibasic and 0.49 M sodium phosphate monobasic monohydrate	Resolution 1.60 Å R-free 0.235
8ZJ2 Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex Deposited 2024-05-14	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–184（184 aa）	Mutation：Q61L	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.66 Å
9LX0 DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–191（191 aa） Chain G 1–191（191 aa）	Mutation：Q61L Mutation：Q61L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.98 Å
9LXH DOCK5/ELMO1 complex with RhoG and Rac1 on lipid membrane Deposited 2025-02-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–191（191 aa）	Mutation：Q61L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.52 Å

5 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RHOG_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 8–191； UniProt 1–184

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xm7
Deposition date deposition_date	2023-12-27
Structure title title	Cryo-EM structure of the RhoG/DOCK5/ELMO1/Rac1 complex: RhoG/DOCK5/ELMO1 focused map
Keywords keywords	ELMO, DOCK, GEF, GTPASE, RHO, RAC, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	54.28 Å
Radius of gyration Rg (electron density) rg_electron	53.99 Å
Forward intensity I(0) i0	832944000.00
Molecular weight molecular_weight	244660.0 kDa
Excluded volume excluded_volume	307890 Å³
Envelope volume envelope_volume	468980 Å³
Hydration-shell volume shell_volume	73827 Å³
Envelope diameter envelope_diameter	169.3 Å
Shell Rg shell_rg	56.73 Å
Envelope Rg envelope_rg	51.13 Å
Shape Rg shape_rg	53.98 Å
Total Rg total_rg	54.09 Å
Total atoms total_atoms	17190
Residues n_residues	2123
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

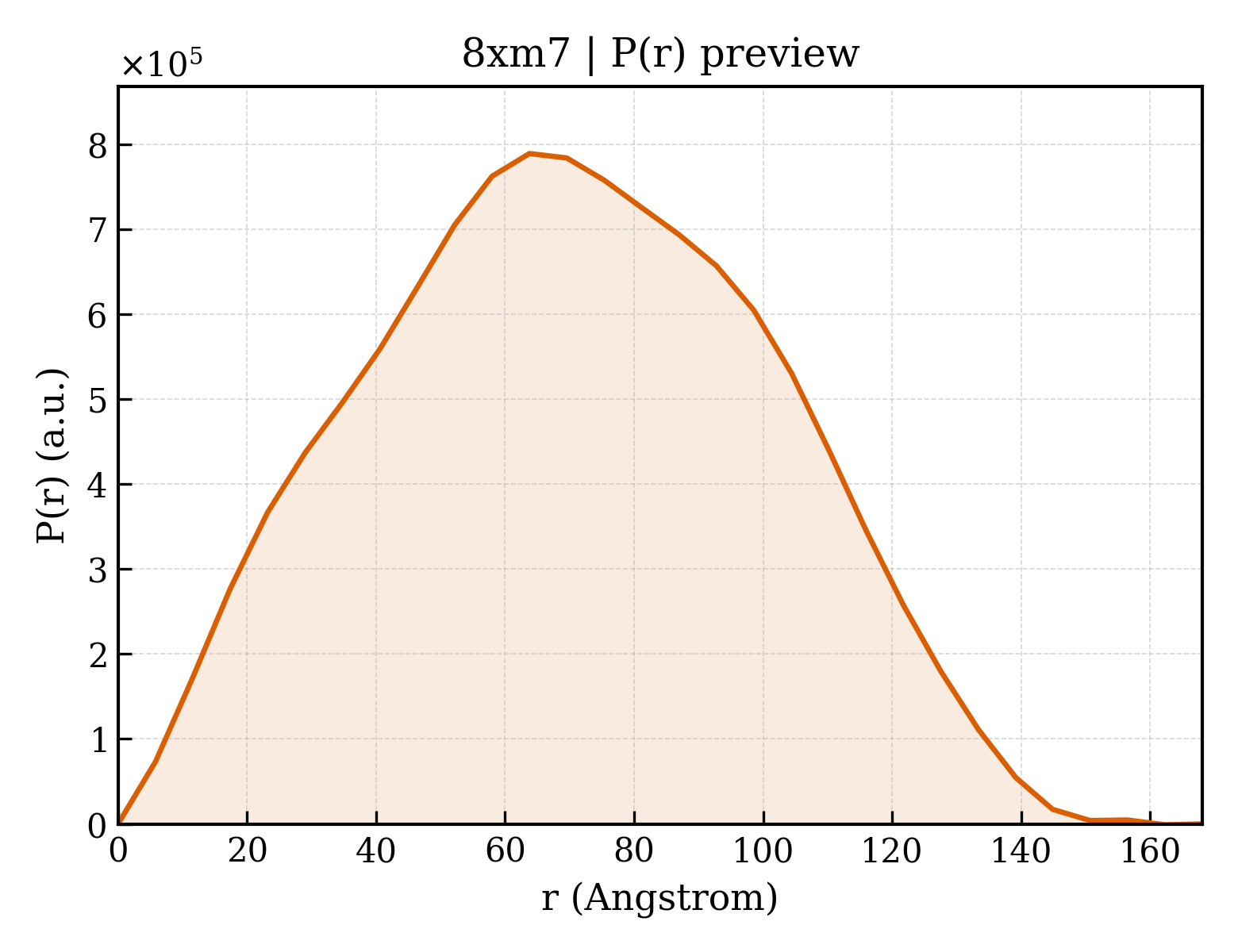

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	168.1 Å
Rg (real space) rg_real	54.11 Å
Rg uncertainty (real space) rg_real_error	1.54 Å
I(0) (real space) i0_real	8.3290e+08
I(0) uncertainty (real space) i0_real_error	1.6260e+07
Rg (reciprocal space) rg_reciprocal	54.40 Å
I(0) (reciprocal space) i0_reciprocal	833300000.0000
Solution quality estimate total_estimate	0.8403
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	63.8 Å
Skewness Skewness skewness	0.048
Kurtosis Kurtosis kurtosis	-0.696
Angular range angular_range	— – 0.1450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	23220000.0000
Real-space data points n_real_points	30
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.975; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Engulfment and cell motility protein 1
Molecular weight formula_weight	84337.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	17190

GGSGGSMPPPADIVKVAIEWPGAYPKLMEIDQKKPLSAIIKEVCDGWSLANHEYFALQHADSSNFYITEKNRNEIKNGTILRLTTSPAQNAQQLHERIQSSSMDAKLEALKDLASLSRDVTFAQEFINLDGISLLTQMVESGTERYQKLQKIMKPCFGDMLSFTLTAFVELMDHGIVSWDTFSVAFIKKIASFVNKSAIDISILQRSLAILESMVLNSHDLYQKVAQEITIGQLIPHLQGSDQEIQTYTIAVINALFLKAPDERRQEMANILAQKQLRSIILTHVIRAQRAINNEMAHQLYVLQVLTFNLLEDRMMTKMDPQDQAQRDIIFELRRIAFDAESEPNNSSGSMEKRKSMYTRDYKKLGFINHVNPAMDFTQTPPGMLALDNMLYFAKHHQDAYIRIVLENSSREDKHECPFGRSSIELTKMLCEILKVGELPSETCNDFHPMFFTHDRSFEEFFCICIQLLNKTWKEMRATSEDFNKVMQVVKEQVMRALTTKPSSLDQFKSKLQNLSYTEILKIRQSERMNQEDFQSRPILELKEKIQPEILELIKQQRLNRLVEGTCFRKLNARRRQDKFWYCRLSPNHKVLHYGDLEESPQGEVPHDSLQDKLPVADIKAVVTGKDCPHMKEKGALKQNKEVLELAFSILYDSNCQLNFIAPDKHEYCIWTDGLNALLGKDMMSDLTRNDLDTLLSMEIKLRLLDLENIQIPDAPPPIPKEPSNYDFVYDCN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Dedicator of cytokinesis protein 5
Molecular weight formula_weight	191492.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GGSGGSMARWIPTKRQKYGVAIYNYNASQDVELSLQIGDTVHILEMYEGWYRGYTLQNKSKKGIFPETYIHLKEATVEDLGQHETVIPGELPLVQELTSTLREWAVIWRKLYVNNKLTLFRQLQQMTYSLIEWRSQILSGTLPKDELAELKKKVTAKIDHGNRMLGLDLVVRDDNGNILDPDETSTIALFKAHEVASKRIEEKIQEEKSILQNLDLRGQSIFSTIHTYGLYVNFKNFVCNIGEDAELFMALYDPDQSTFISENYLIRWGSNGMPKEIEKLNNLQAVFTDLSSMDLIRPRVSLVCQIVRVGHMELKEGKKHTCGLRRPFGVAVMDITDIIHGKVDDEEKQHFIPFQQIAMETYIRQRQLIMSPLITSHVIGENEPLTSVLNKVIAAKEVNHKGQGLWVSLKLLPGDLTQVQKNFSHLVDRSTAIARKMGFPEIILPGDVRNDIYVTLIHGEFDKGKKKTPKNVEVTMSVHDEEGKLLEKAIHPGAGYEGISEYKSVVYYQVKQPCWYETVKVSIAIEEVTRCHIRFTFRHRSSQETRDKSERAFGVAFVKLMNPDGTTLQDGRHDLVVYKGDNKKMEDAKFYLTLPGTKMEMEEKELQASKNLVTFTPSKDSTKDSFQIATLICSTKLTQNVDLLGLLNWRSNSQNIKHNLKKLMEVDGGEIVKFLQDTLDALFNIMMEMSDSETYDFLVFDALVFIISLIGDIKFQHFNPVLETYIYKHFSATLAYVKLSKVLNFYVANADDSSKTELLFAALKALKYLFRFIIQSRVLYLRFYGQSKDGDEFNNSIRQLFLAFNMLMDRPLEEAVKIKGAALKYLPSIINDVKLVFDPVELSVLFCKFIQSIPDNQLVRQKLNCMTKIVESTLFRQSECREVLLPLLTDQLSGQLDDNSNKPDHEASSQLLSNILEVLDRKDVGATAVHIQLIMERLLRRINRTVIGMNRQSPHIGSFVACMIALLQQMDDSHYSHYISTFKTRQDIIDFLMETFIMFKDLIGKNVYAKDWMVMNMTQNRVFLRAINQFAEVLTRFFMDQASFELQLWNNYFHLAVAFLTHESLQLETFSQAKRNKIVKKYGDMRKEIGFRIRDMWYNLGPHKIKFIPSMVGPILEVTLTPEVELRKATIPIFFDMMQCEFNFSGNGNFHMFENELITKLDQEVEGGRGDEQYKVLLEKLLLEHCRKHKYLSSSGEVFALLVSSLLENLLDYRTIIMQDESKENRMSCTVNVLNFYKEKKREDIYIRYLYKLRDLHRDCENYTEAAYTLLLHAELLQWSDKPCVPHLLQRDSYYVYTQQELKEKLYQEIISYFDKGKMWEKAIKLSKELAETYESKVFDYEGLGNLLKKRASFYENIIKAMRPQPEYFAVGYYGQGFPSFLRNKIFIYRGKEYERREDFSLRLLTQFPNAEKMTSTTPPGEDIKSSPKQYMQCFTVKPVMSLPPSYKDKPVPEQILNYYRANEVQQFRYSRPFRKGEKDPDNEFATMWIERTTYTTAYTFPGILKWFEVKQISTEEISPLENAIETMELTNERISNCVQQHAWDRSLSVHPLSMLLSGIVDPAVMGGFSNYEKAFFTEKYLQEHPEDQEKVELLKRLIALQMPLLTEGIRIHGEKLTEQLKPLHERLSSCFRELKEKVEKHYGVITL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Rho-related GTP-binding protein RhoG
Molecular weight formula_weight	22362.4 kDa
Mutation mutation	Q61L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

GSSGSSGMQSIKCVVVGDGAVGKTCLLICYTTNAFPKEYIPTVFDNYSAQSAVDGRTVNLNLWDTAGLEEYDRLRTLSYPQTNVFVICFSIASPPSYENVRHKWHPEVCHHCPDVPILLVGTKKDLRAQPDTLRRLKEQGQAPITPQQGQALAKQIHAVRYLECSALQQDGVKEVFAEAVRAVLNPTPIKRSGPSSGENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.91 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	181978

fit	/app/data/saxs_computation/xm/8xm7/8xm7.fit
pddf	/app/data/pr_computation/xm/8xm7/8xm7.pr.out
profile	/app/data/saxs_computation/xm/8xm7/8xm7.dat
